Battery Evo 24V Hawk 2 - 314Ah 8kWh
OPTIONS:
- 24V HAWK 2 - 314Ah 8kWh
- 24V HAWK 2 (2X Kit) - 628Ah 16kWh
- 24V HAWK 2 (3X Kit) - 942Ah 24kWh
- 24V HAWK 2 (4X Kit) - 1256Ah 32kWh
PRODUCT INFORMATION:
The HAWK 2 is the next generation of high-performance lithium batteries, delivering more power, superior design, and an enhanced user experience. Whether for RVs, campers, off-grid solar setups, or industrial applications, this 8kWh powerhouse is built to provide reliable and efficient energy wherever you need it.

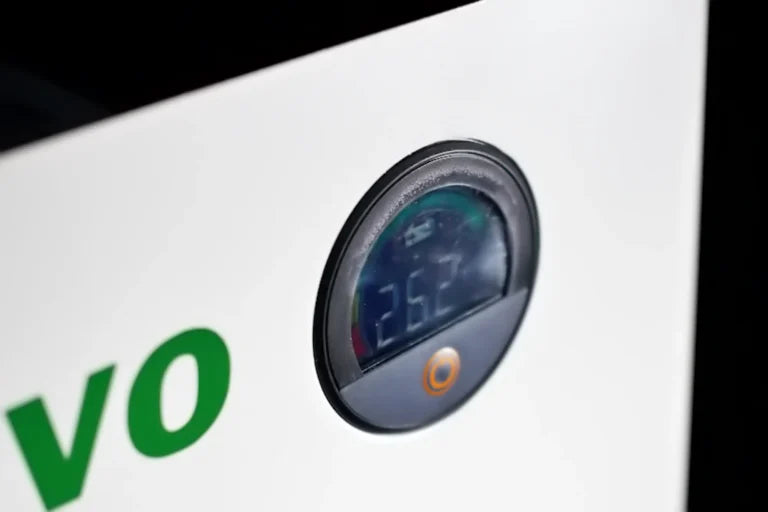

With higher energy density than its predecessor, the HAWK 2 offers even greater efficiency and longer-lasting performance. It features an upgraded exterior design with a sleek, modern look, as well as a larger, more intuitive display for real-time monitoring of battery status, including State of Charge (SOC), voltage, and temperature.
Equipped with an advanced Battery Management System (BMS) with Thermal Management, the HAWK 2 ensures safe and stable performance across a wide range of temperatures. This makes it an ideal choice for off-grid winter camping and other extreme environments.
Thanks to its fast-charging capabilities and a lifespan exceeding 10 years, the HAWK 2 significantly outperforms traditional lead-acid batteries, offering higher efficiency, greater durability, and zero maintenance requirements.
For those who demand unmatched power, reliability, and a cutting-edge design, the HAWK 2 is the ultimate energy solution. Upgrade to the next level of power today!
SPECIFICATIONS:
| SKU: |
EVO-HAWK-24080-G3 |
| Name: |
HAWK 2 |
| System Voltage: |
24V |
| Nominal Voltage: |
25.6V |
| Chemistry: |
LFP |
| kWh Capacity: |
8kWh |
| Ah Capacity: |
314Ah |
| Charging Voltage: |
27.6V - 29.2V |
| Max Charge Voltage: |
29.6V |
| Operating Voltage Range: |
22.4V - 29.2V |
| Suggested Low Voltage Cutoff: |
22.4V - 25.2V |
| Cell Configuration: |
8S1P |
| Max Continuous Discharge Current: |
150A |
| Max Continuous Power: |
3840W |
| Max Discharge Peak Current: |
300A (5 seconds) |
| Max Charge Current: |
150A |
| Charge Temperature Range: |
0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: |
-20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: |
15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: |
-5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: |
88lbs (39.9kg) |
| Depth: |
9.4in (238.8mm) |
| Width: |
13.2in (335.3mm) |
| Height: |
21.6in (548.6mm) |
| Safety Features: |
Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: |
Up To (8) Parallel |
| Battery Spec Sheet: |
View |
SUITABLE FOR:
- LEAD ACID REPLACEMENT
- RV
- CAMPER
- TRAILER
- EMERGENCY POWER
- OFF-GRID SYSTEMS
- WORKSITE BACKUP

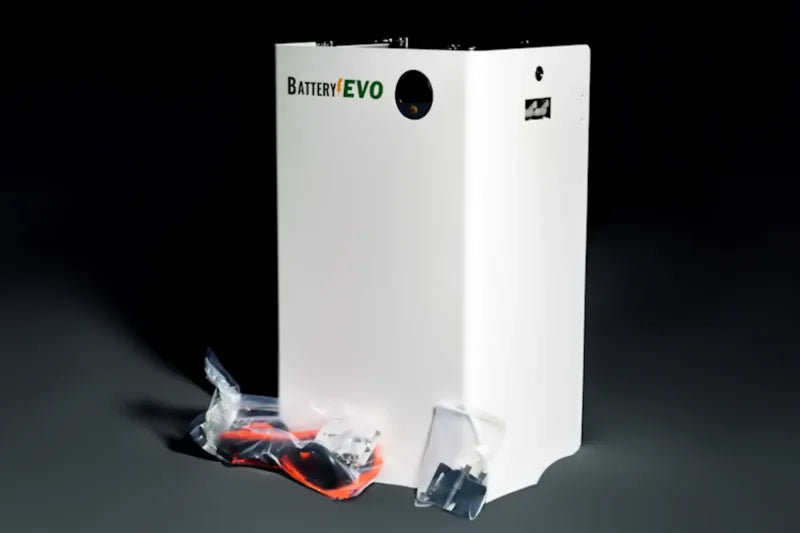

24V HAWK 2 - 3140Ah 8kWh
- 1 X 24V HAWK 2-S
- 1 X 4AWG 4FT BE175 to Ring Terminal Cable

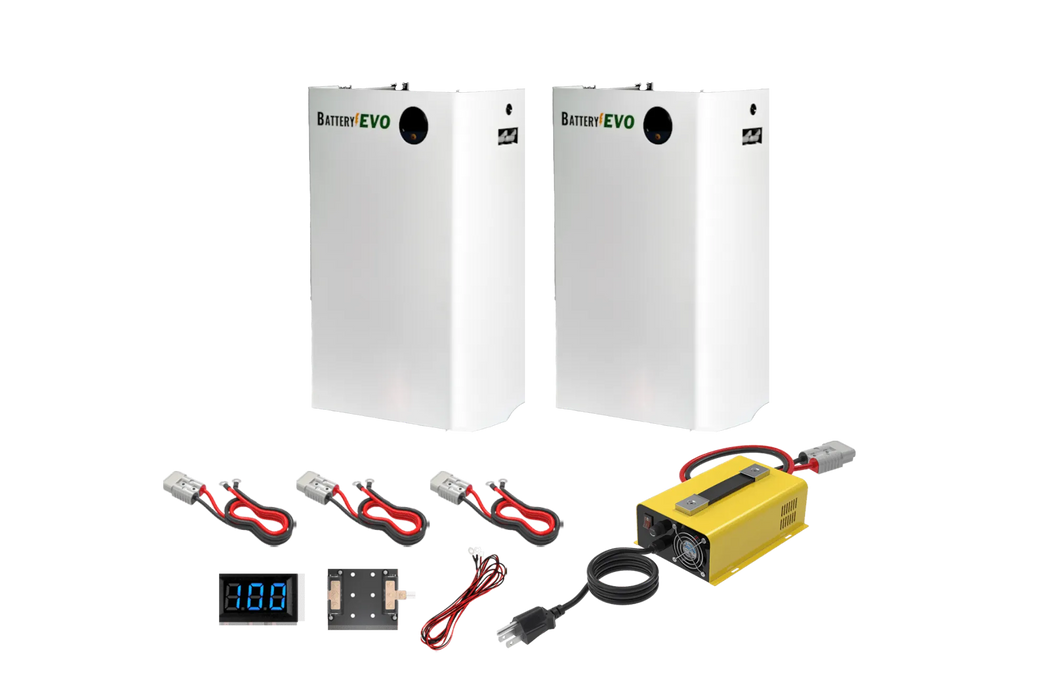

24V HAWK 2 (2X Kit) - 628Ah 16kWh
- 2 X 24V HAWK 2-S
- 3 X 4AWG 4FT BE175 to Ring Terminal Cable
- 1 X 29.2V DC - 110 VAC - 30A IP65 Lithium Charger
- 1 X 24AWG 10FT Meteor to Ring Terminal Cable
- 1 X Parallel Busbar
- 1 X LED Percentage Capacity Meter - 8S LFP

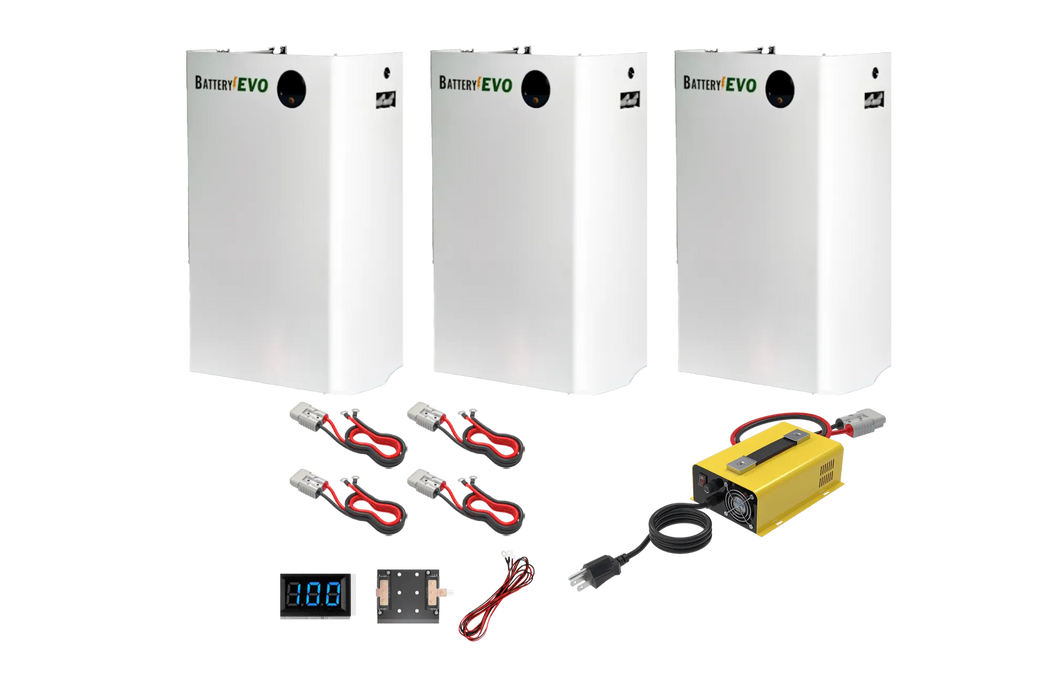

24V HAWK 2 (3X Kit) - 942Ah 24kWh
- 3 X 24V HAWK 2-S
- 4 X 4AWG 4FT BE175 to Ring Terminal Cable
- 1 X 29.2V DC - 110 VAC - 30A IP65 Lithium Charger
- 1 X 24AWG 10FT Meteor to Ring Terminal Cable
- 1 X Parallel Busbar
- 1 X LED Percentage Capacity Meter - 8S LFP

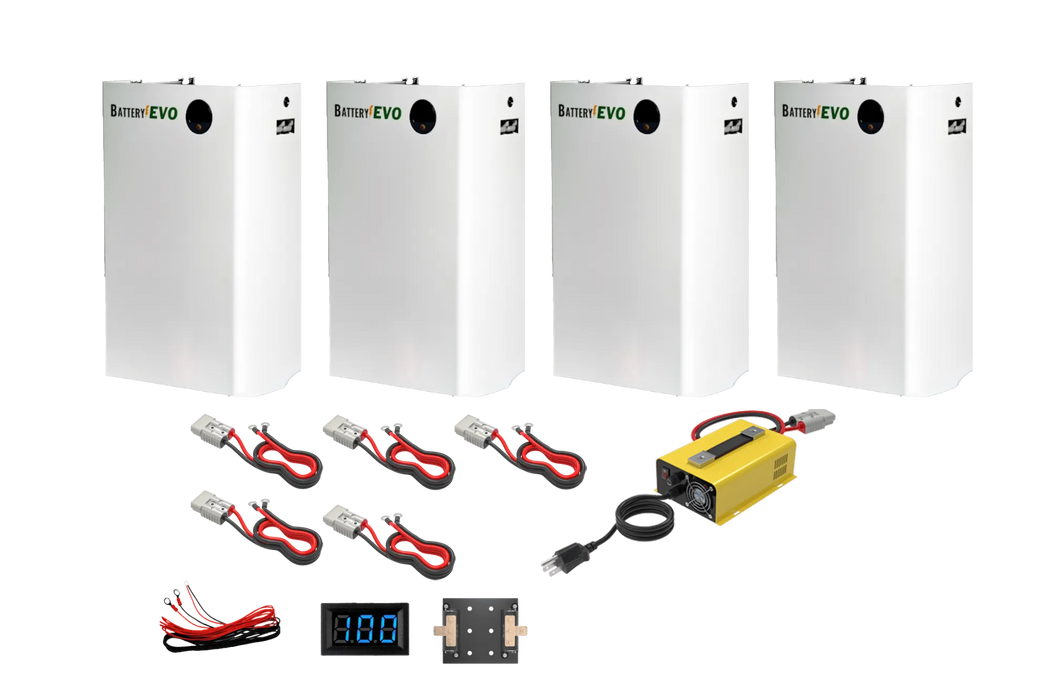

24V HAWK 2 (4X Kit) - 1256Ah 32kWh
- 4 X 24V HAWK 2-S
- 5 X 4AWG 4FT BE175 to Ring Terminal Cable
- 1 X 29.2V DC - 110 VAC - 30A IP65 Lithium Charger
- 1 X 24AWG 10FT Meteor to Ring Terminal Cable
- 1 X Parallel Busbar
- 1 X LED Percentage Capacity Meter - 8S LFP
