Battery Evo 48V Falcon Elite - 67Ah 3.3 kWh

Battery Evo 48V Falcon Elite - 67Ah 3.3 kWh

by Battery Evo
SKU EVO-FLCN-48033-G2
Save up to $733.90 Save $423.90
$1,399.00
$1,399.00 - $4,999.00
$1,399.00
$975.10
$975.10 - $4,265.10
$975.10
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Battery Evo Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937
 More payment options

Have Questions? 📞Call or Text (916)-999-9937 (10am-10pm EST - Daily)

Description

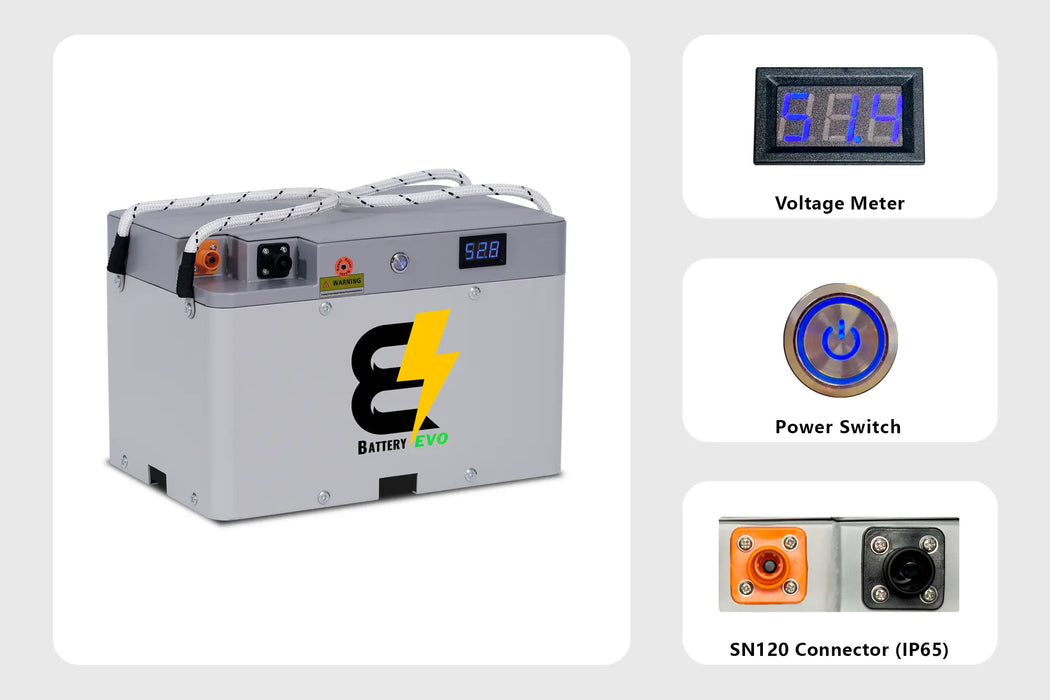

Battery Evo 48V Falcon Elite - 67Ah 3.3kWh

OPTIONS:

  • 48V Falcon Elite - 67Ah 3.3kWh
  • 48V Falcon Elite (2X Kit) - 134Ah 6.6kWh
  • 48V Falcon Elite (3X Kit) - 201Ah 9.9kWh
  • 48V Falcon Elite (4X Kit) - 268Ah 13.2kWh

PRODUCT INFORMATION

A powerful upgrade designed for your high-performance 48V golf and utility carts.

The idea for the FALCON Elite comes from our impressive 72V FALCON model, bringing the strength of the FALCON into a 48 volt setup. Equipped with Tier 1 LFP cells, our advanced BMS system, and a 300A Safety Fuse, the FALCON Elite is a trustworthy, safe, and energy efficient lithium upgrade for your carts. Plus, the FALCON Elite has built-in cutouts at the base, so you don’t have to worry about plastic dividers in your battery tray.

Opting for the FALCON Elite for your cart means gaining higher speeds, better performance, and a longer range, all while saving space and weight. Take your golf cart experience to the next level with the 48V FALCON Elite!

Please Note: A single 48V FALCON Elite is meant to power a standard stock golf cart. Golf carts with high-power motors or controllers might require multiple batteries. To find the right battery kit for your setup, compare the Continuous Power specifications of the FALCON Elite or FALCON Elite kit with your motor and controller. Using the battery beyond its specifications will void the warranty.

SPECIFICATIONS:

SKU: EVO-FLCN-48033-G2
Name: 48V FALCON ELITE
System Voltage: 48V
Nominal Voltage: 51.2V
Chemistry: LFP
kWh Capacity: 3.3kWh
Ah Capacity: 67Ah
Charging Voltage: 55.2V - 58.4V
Max Charge Voltage: 58.8V
Operating Voltage Range: 44.8V - 58.4V
Suggested Low Voltage Cutoff: 44.8V - 50.8V
Cell Configuration: 16S1P
Max Continuous Discharge Current: 80A
Max Continuous Power: 4000W
Max Discharge Peak Current: 160A (5 seconds)
Max Charge Current: 60A
Charge Temperature Range: 0°C (32°F) / 55°C (131°F)
Discharge Temperature Range: -20°C (-4°F) / 55°C (131°F)
Optimal Discharge Temperature Range: 15°C (59°F) / 35°C (95°F)
Storage Temperature Range: -5°C (23°F) / 35°C (95°F) (Max 6 Months)
Weight: 68lbs (30.8kg)
Depth: 10.4in (264.2mm)
Width: 14.2in (360.68mm)
Height: 9.6in (243.8mm)
Safety Features: Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
Max Connections: Up To (8) Parallel
Battery Spec Sheet: View

 SUITABLE FOR:

  • LEAD ACID REPLACEMENT
  • GOLF CART
  • ELECTRIC LAWN MOWER
  • OFF-GRID SYSTEMS

INCLUDES:

48V Falcon Elite - 67Ah 3.3kWh

  • 1 X 48V FALCON Elite-S
  • 1 X 6AWG NE120 to Ring Terminal Cable

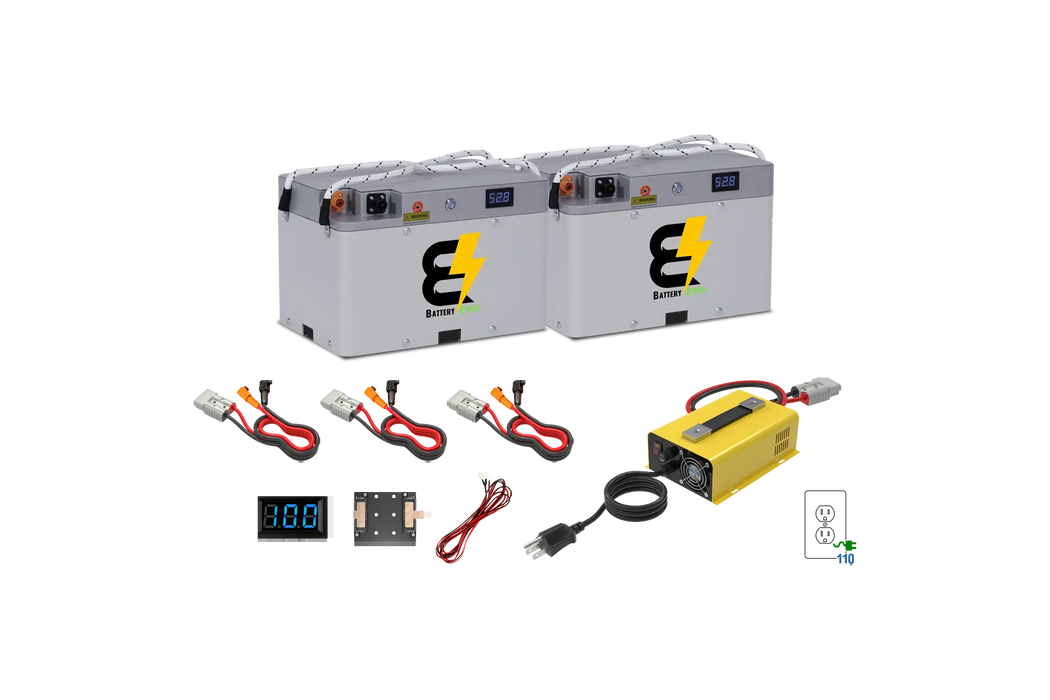

48V Falcon Elite (2X Kit) - 134Ah 6.6kWh

  • 2 X 48V FALCON Elite-S
  • 2 X 6AWG NE120 to Ring Terminal Cable
  • 1 X 58.4V DC - 110 VAC - 17A Lithium Charger
  • 1 X 6AWG 4FT BE175 to Ring Terminal Cable
  • 1 X 24AWG 10FT Meter to Ring Terminal Cable
  • 1 X LED Percentage Capacity Meter - 16S LFP
  • 1 X Parallel Busbar

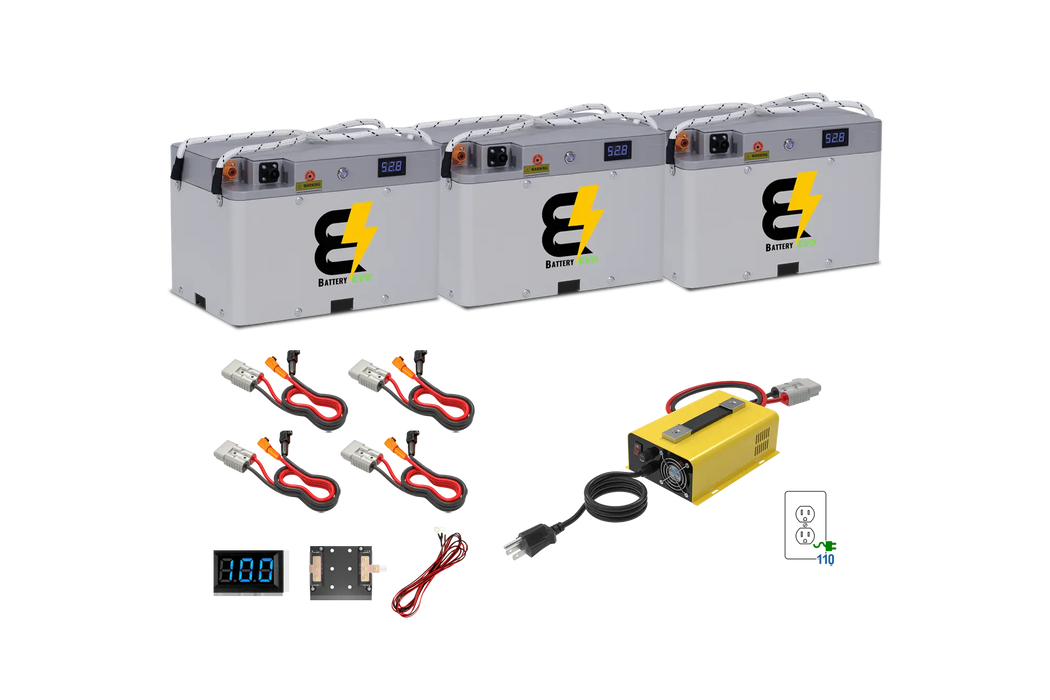

48V Falcon Elite (3X Kit) - 201Ah 9.9kWh

  • 3 X 48V FALCON Elite-S
  • 3 X 6AWG NE120 to Ring Terminal Cable
  • 1 X 58.4V DC - 110 VAC - 17A Lithium Charger
  • 1 X 6AWG 4FT BE175 to Ring Terminal Cable
  • 1 X 24AWG 10FT Meter to Ring Terminal Cable
  • 1 X LED Percentage Capacity Meter - 16S LFP
  • 1 X Parallel Busbar

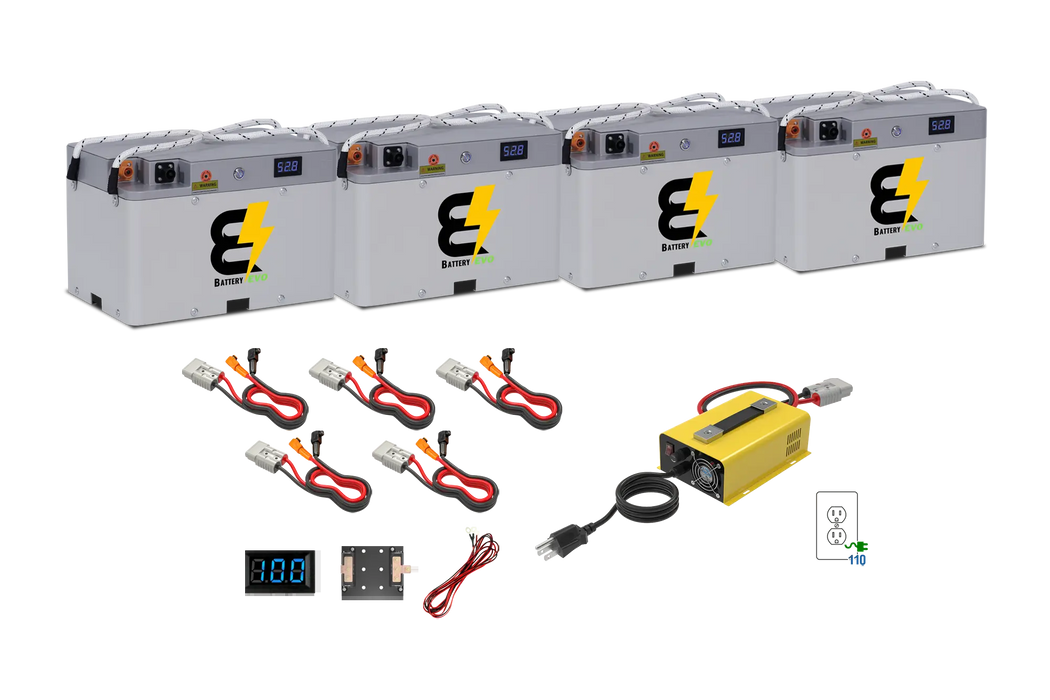

48V Falcon Elite (4X Kit) - 268Ah 13.2kWh

  • 4 X 48V FALCON Elite-S
  • 4 X 6AWG NE120 to Ring Terminal Cable
  • 1 X 58.4V DC - 110 VAC - 17A Lithium Charger
  • 1 X 4AWG 4FT BE175 to Ring Terminal Cable
  • 1 X 24AWG 10FT Meter to Ring Terminal Cable
  • 1 X LED Percentage Capacity Meter - 16S LFP
  • 1 X Parallel Busbar
