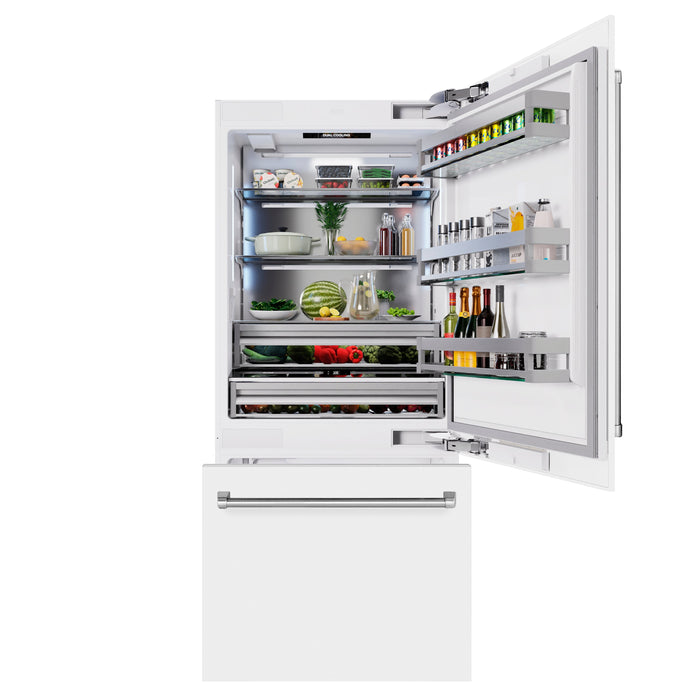

ZLINE Autograph Edition 36" 19.8 cu. ft. Built-In Bottom Freezer Refrigerator with Water Dispenser and Ice Maker - Stainless Steel, White Matte, DuraSnow, and Accent Options
Luxury isn’t meant to be desired – it’s meant to be attainable. The ZLINE 36" 19.8 cu. ft. Built-In Bottom Freezer Refrigerator provides the ultimate upgrade to the heart of your home by combining premium dual cooling technology with ample storage space. Designed to seamlessly integrate into your kitchen, this refrigerator delivers industry-leading performance, timeless design, and advanced functionality that enhances both cooling and freezing capabilities.
Prefer Graphite Gray interior color? Click here.
FEATURES:
-

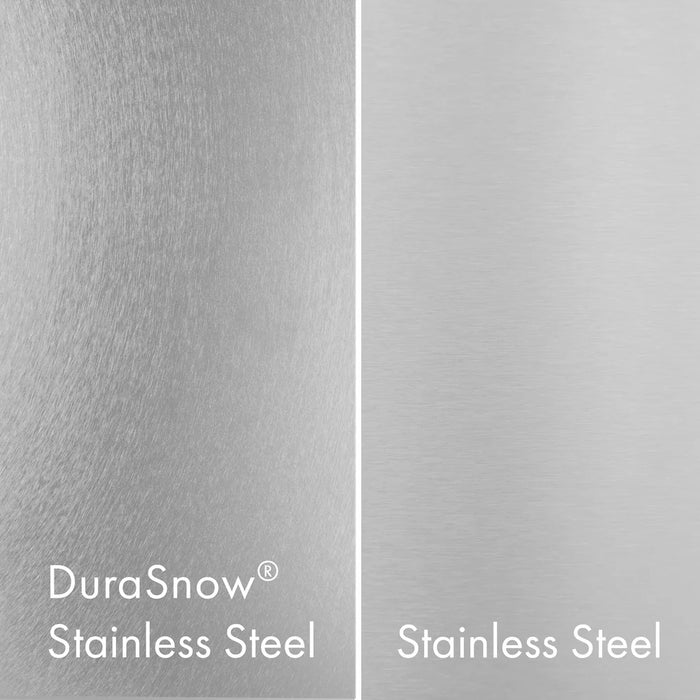

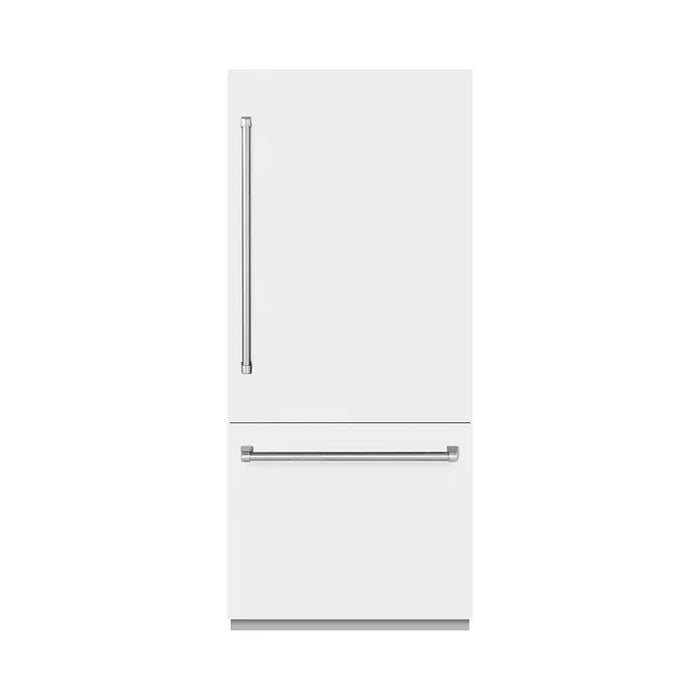

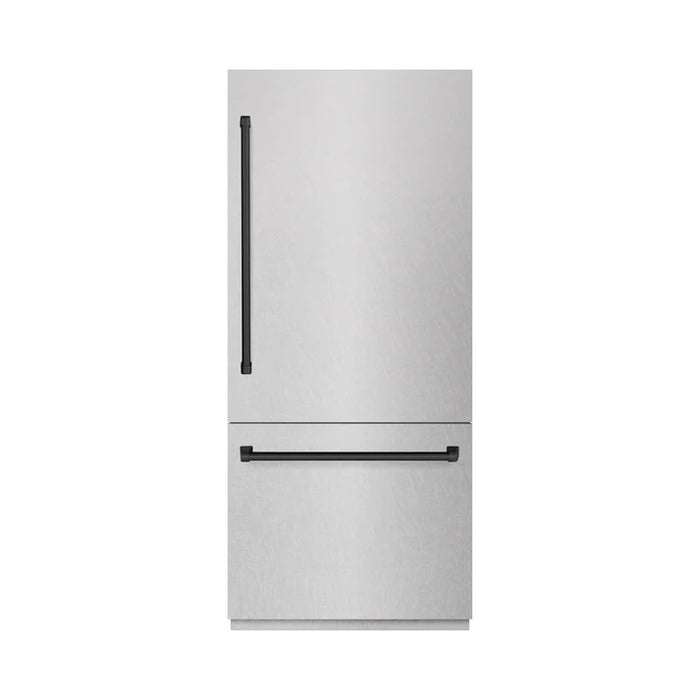

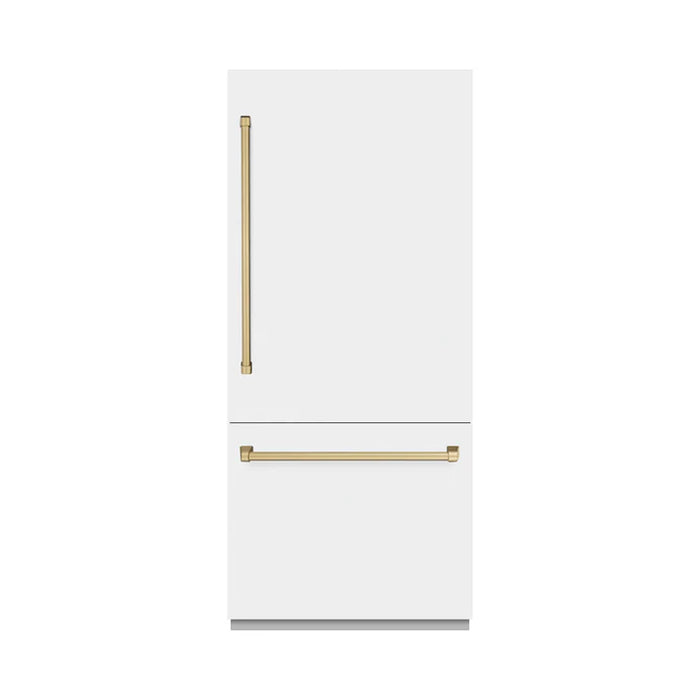

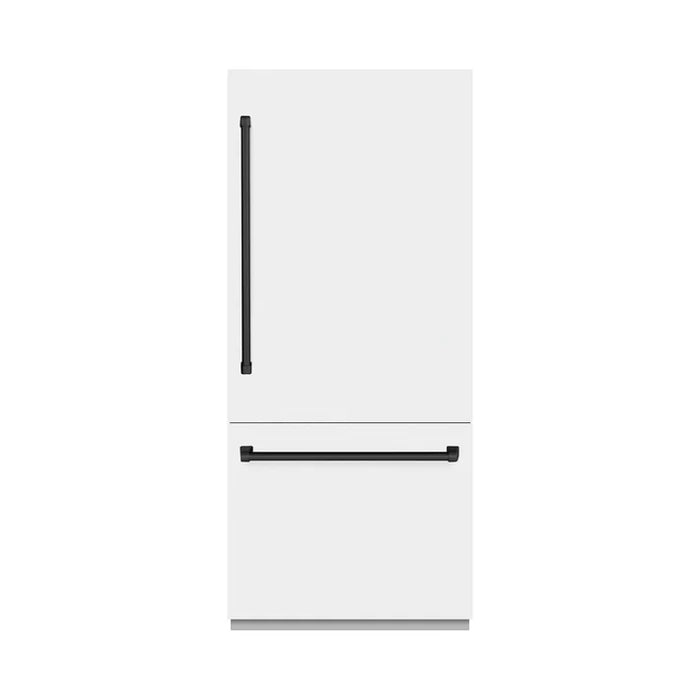

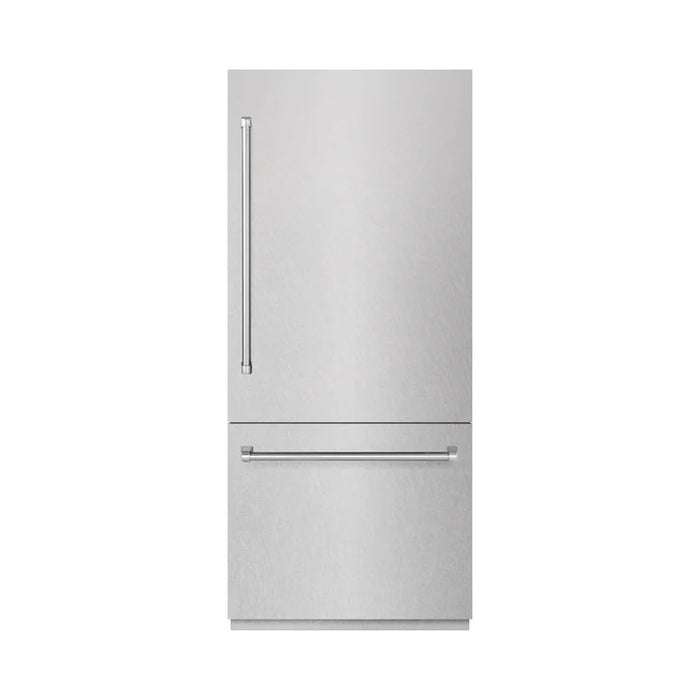

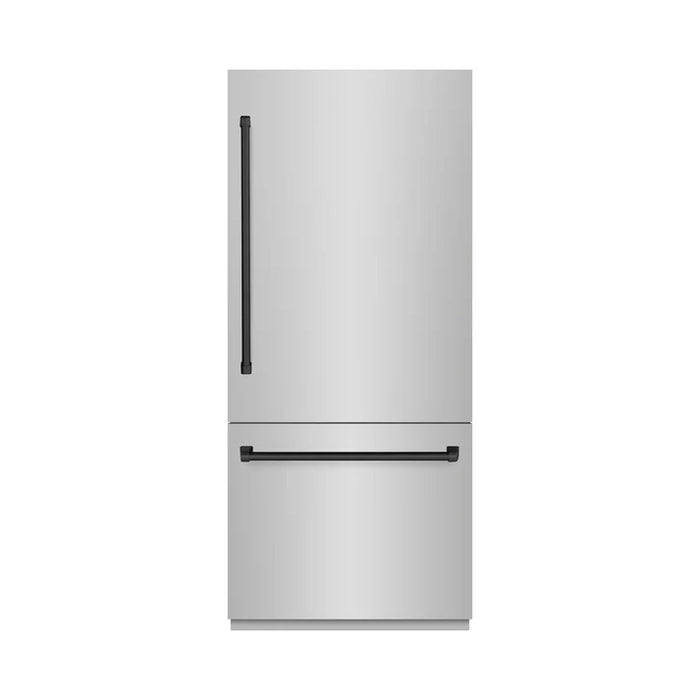

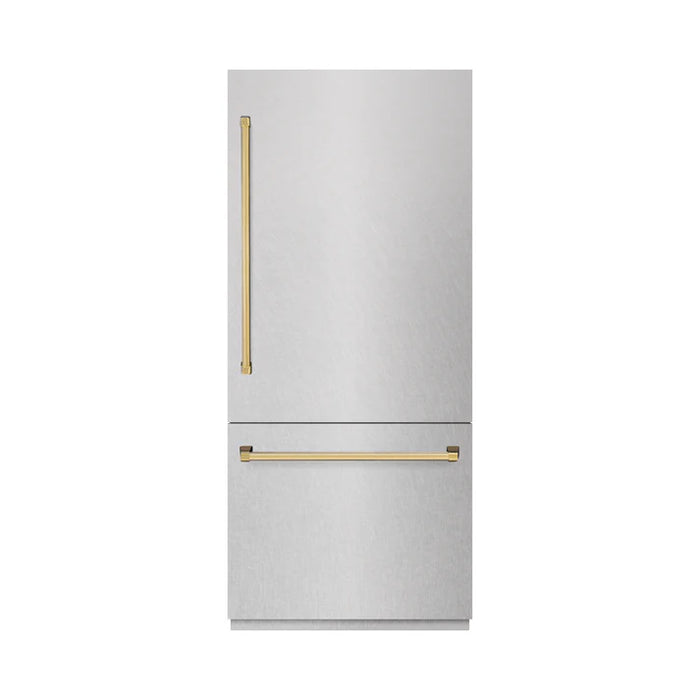

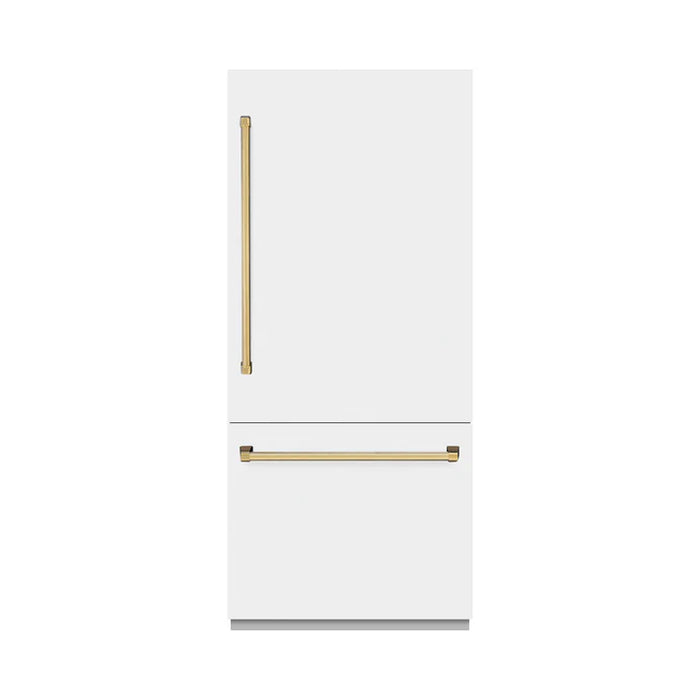

Custom Door Panel Finish: Elegant, durable Stainless, White Matte or DuraSnow Stainless Steel panels for a true flush installation.
-

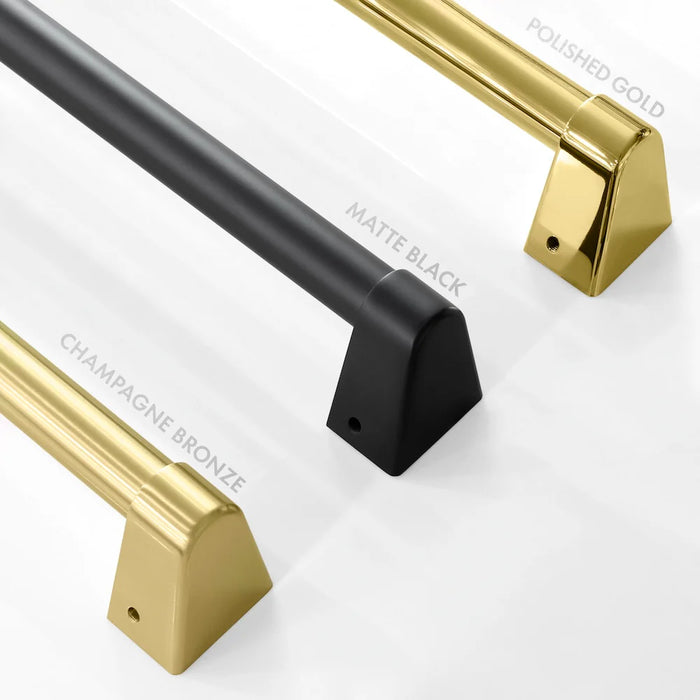

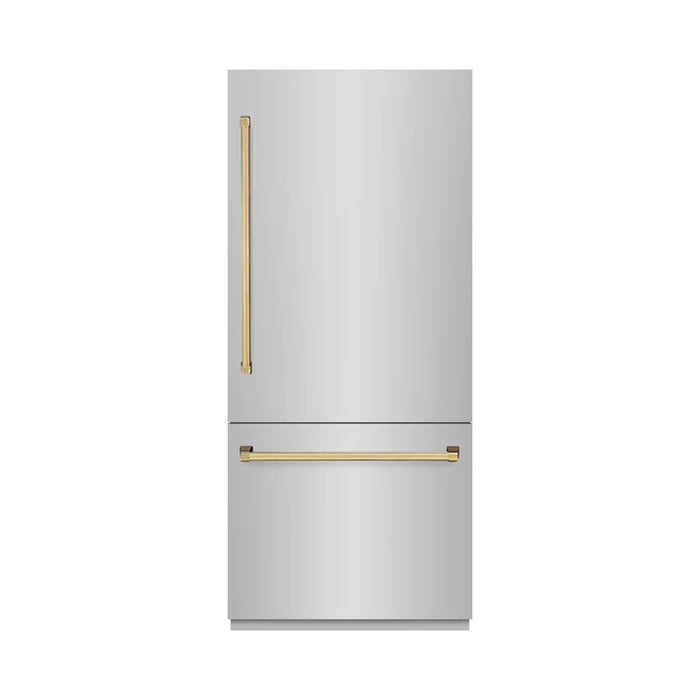

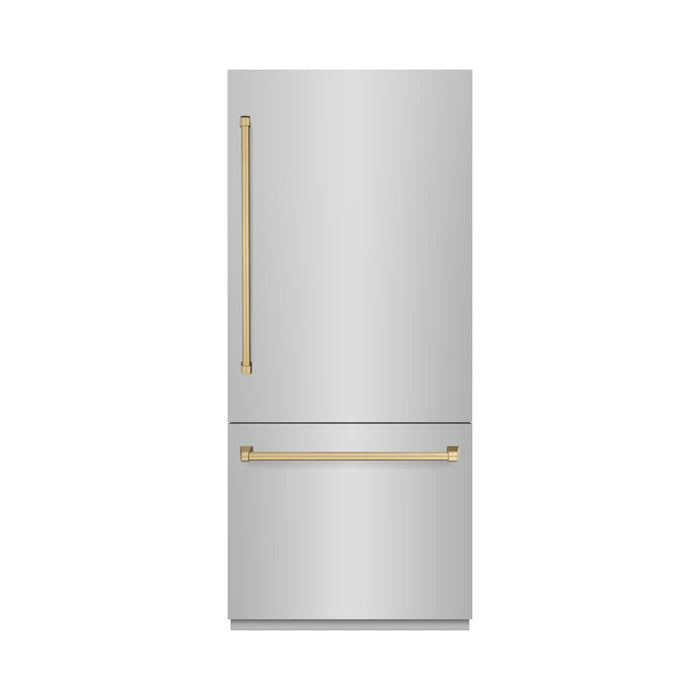

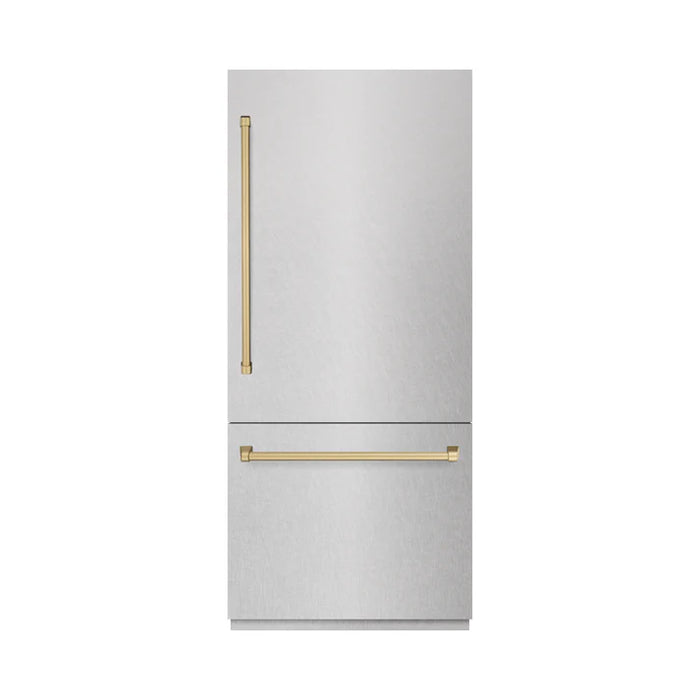

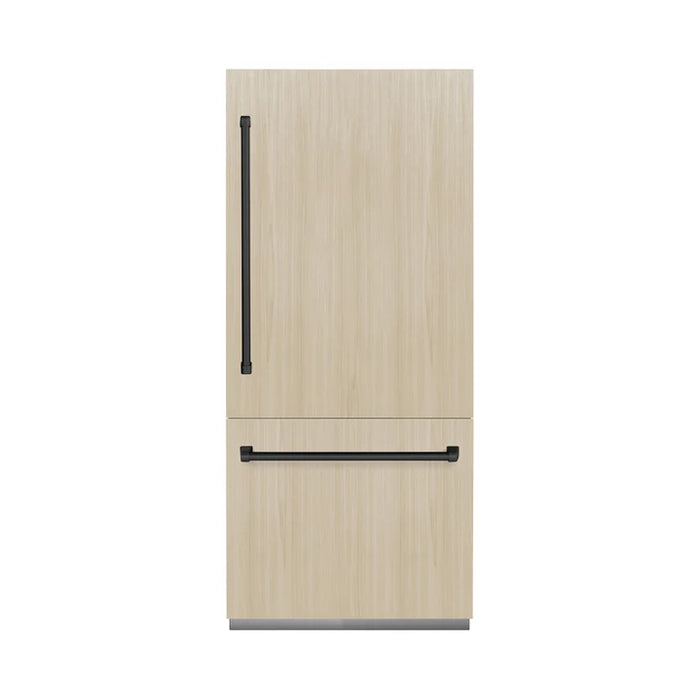

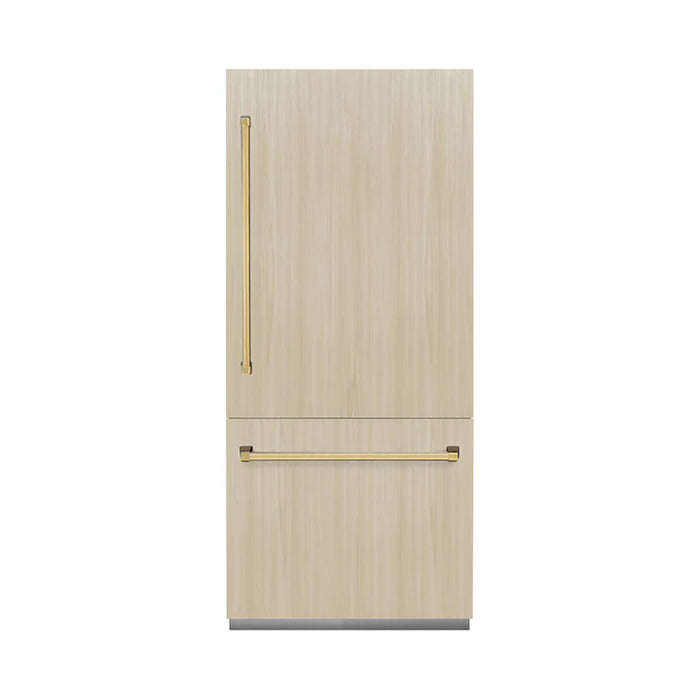

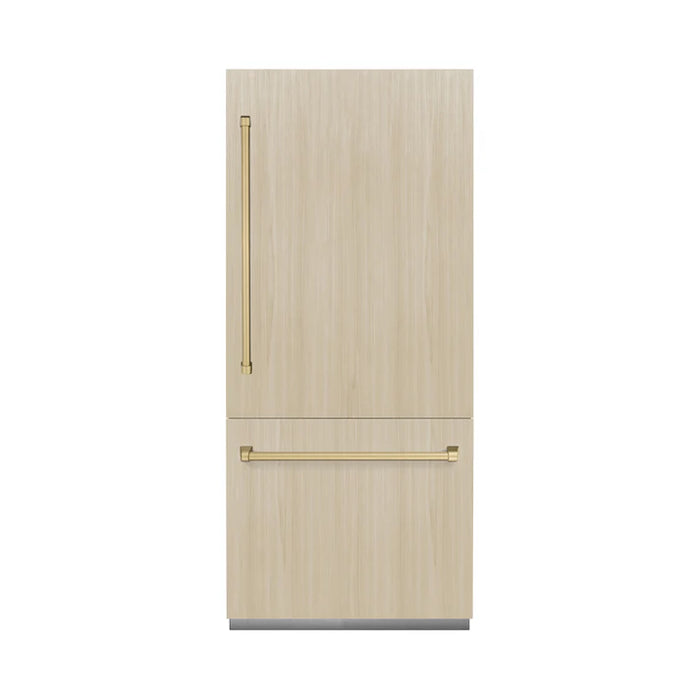

Autograph Edition Accents: Includes luxurious Champagne Bronze, Polished Gold, Matte Black, and Stainless Steel handles for a refined finish.
-
Bright White or Graphite Gray Interior: Provides a stylish contrast and enhanced visibility of stored items.
-

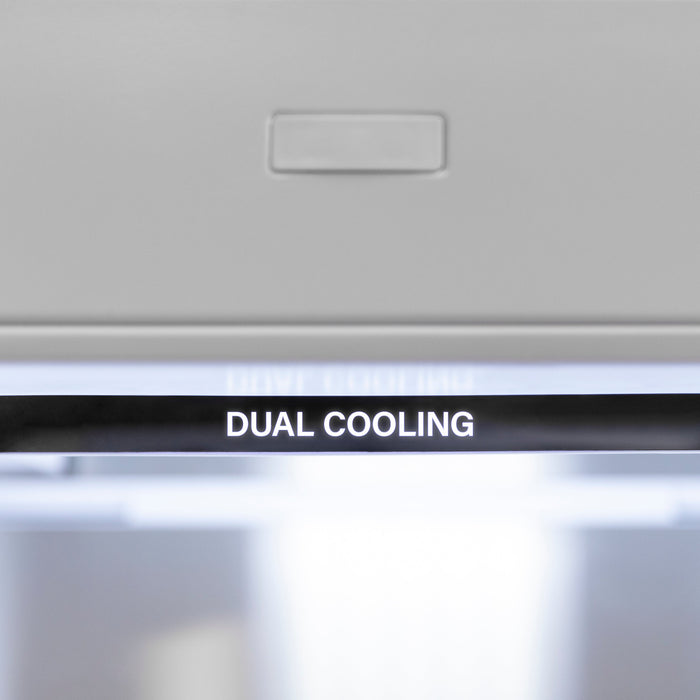

Dual Cooling System: Independent fridge and freezer cooling prevents odor transfer and boosts efficiency.
-
Flex Drawer: A versatile flex drawer with 4 temperature settings (30°F–41°F) ideal for wine, meats, and party trays.
-
Adjustable Temperature Ranges:
-
Fridge: 35°F to 46°F
-
Freezer: -11°F to 5°F
-
Super Cool & Super Freeze Modes: Instantly drops internal temps to quickly chill or freeze fresh groceries.
-

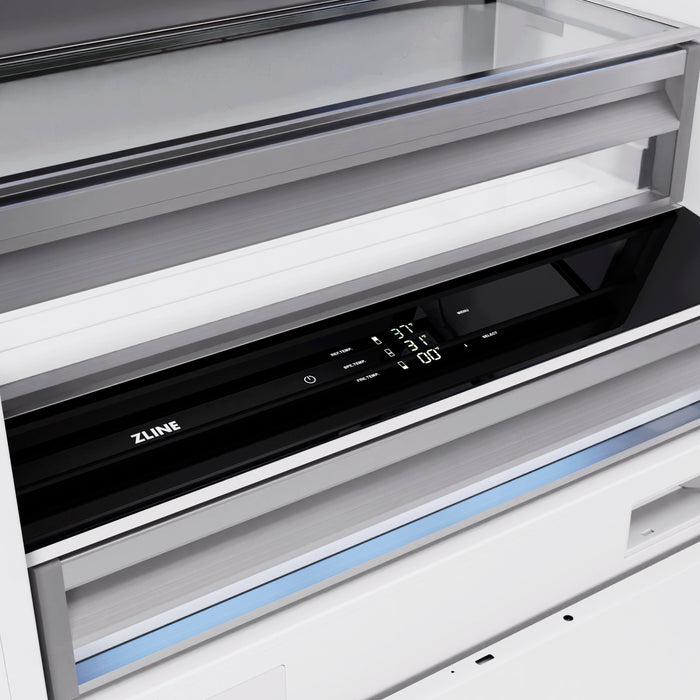

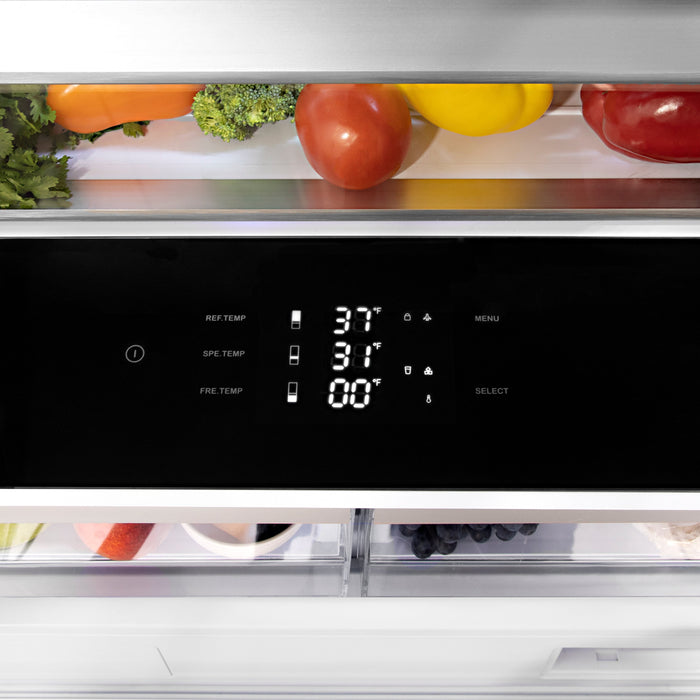

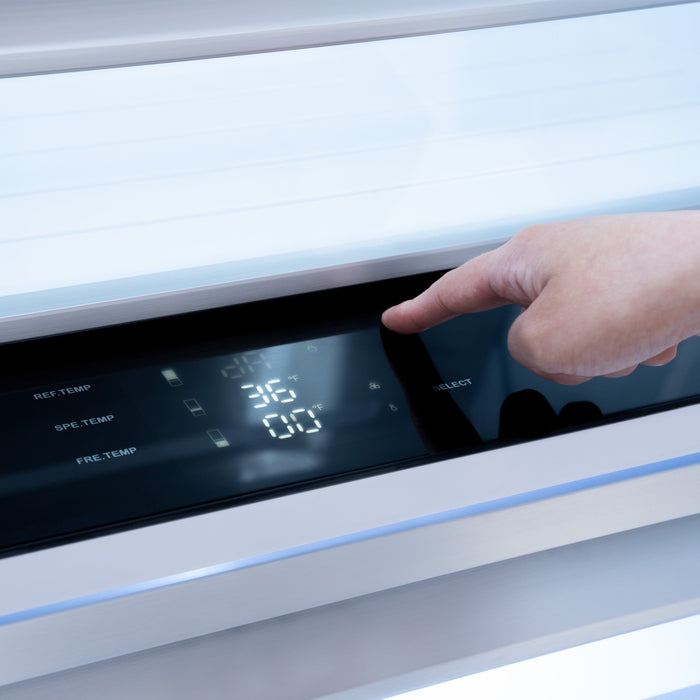

Digital ChillControl: Easy-to-use LED display for switching between eco, vacation, or sabbath modes.
-

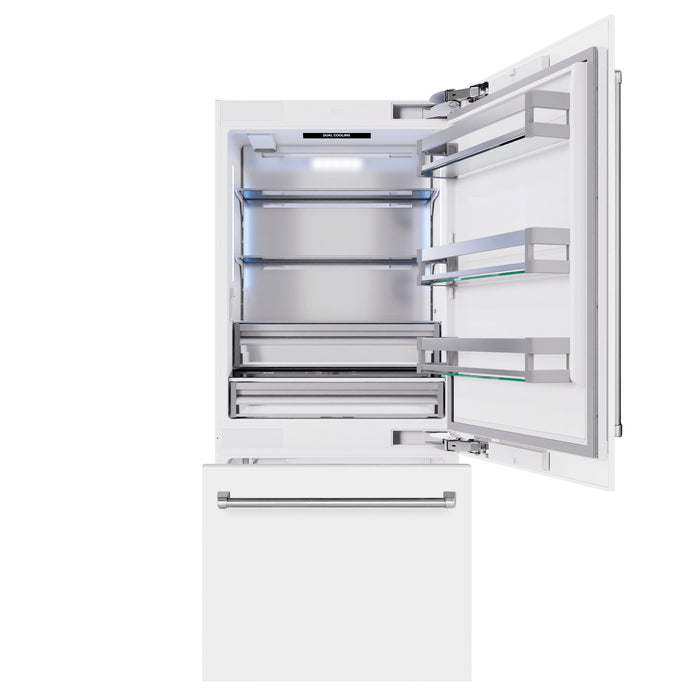

Spacious Storage: 14.2 cu. ft. refrigeration + 5.6 cu. ft. freezer = 19.8 cu. ft. total capacity.
-
Full-Width Pantry Drawer: Ideal for keeping fruits and vegetables fresh for longer.
-
Adjustable Glass Shelves & Bins: Spill-resistant and customizable for larger items.
-
Soft-Shut Technology: Quiet, smooth-closing drawers built for long-term durability.
-
LED Illumination: Bright, energy-efficient lighting across walls and ceiling.
-

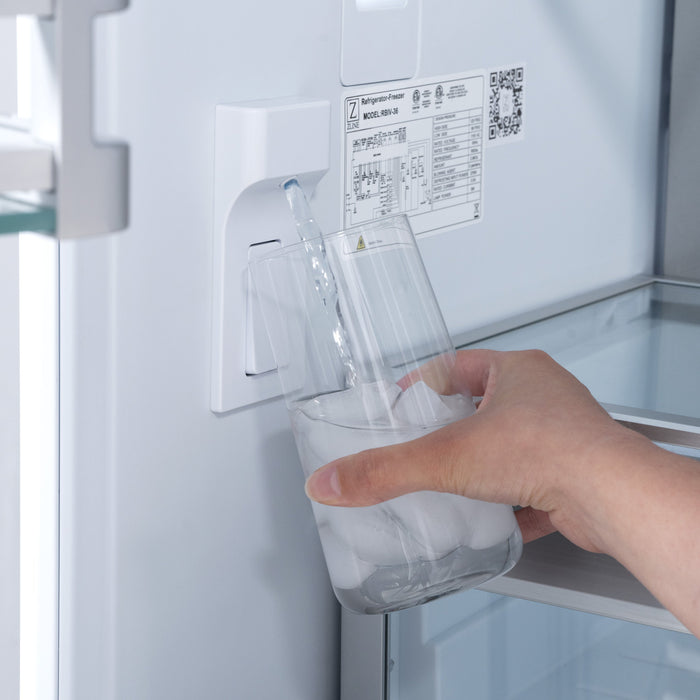

Water Dispenser: Discreetly built-in for fresh, filtered water.
-
Automatic Ice Maker: Produces up to 4 lbs. of ice daily.
-
ENERGY STAR® Rated: Designed for energy savings without compromising on performance.
-
Water Filter Included: Easy-to-replace filter for pure, crystal-clear water.
-
Warranty: 2-year parts & labor; 5-year parts-only on the sealed system.

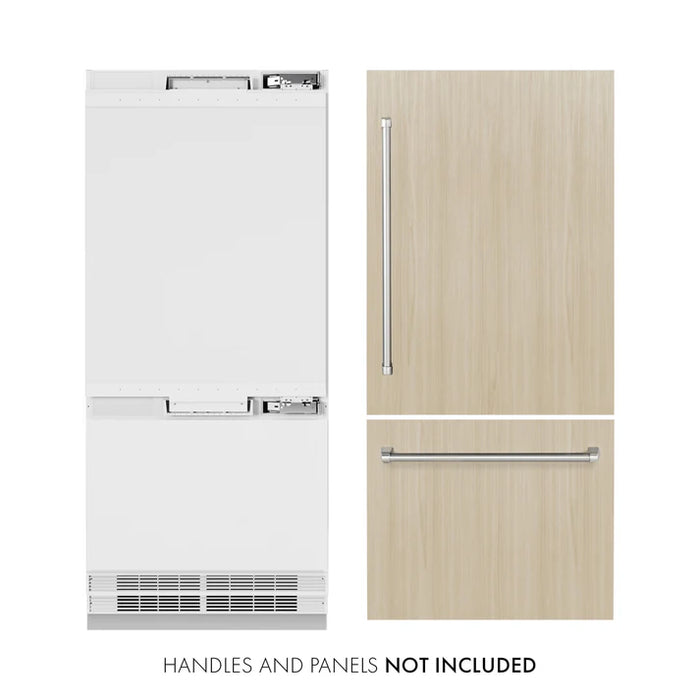

Assembly Required: This refrigerator and its door panels will ship in multiple boxes and requires assembly upon installation.
SPECIFICATIONS:

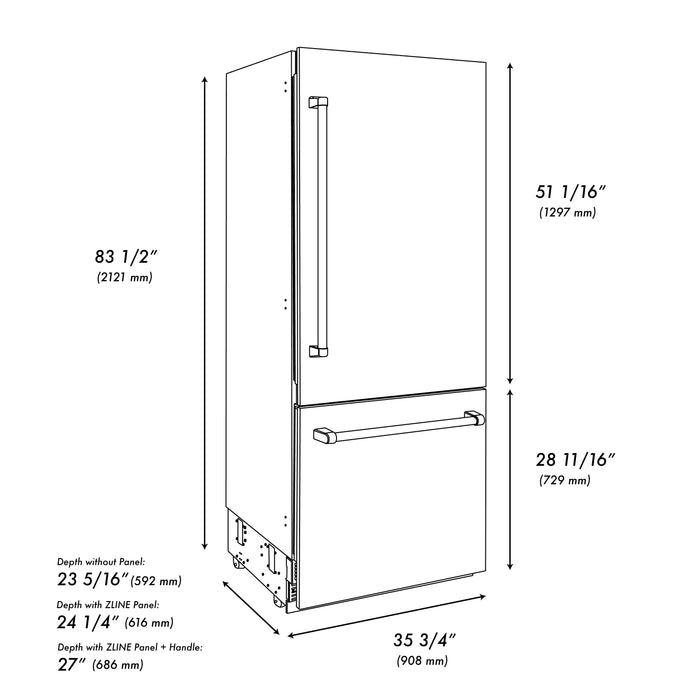

| Dimensions |
35.75" W x 23.31" D x 83.5" H |
| Cut Out Dimensions |
36.19" W x 25" D x 84" H |
| Door Style |
Single Door (Reversible Hinge) |
| Installation Disclaimer |
This refrigerator is two (2) separate 36-inch units that are required to be installed with two (2) 15 amp outlets and two (2) water lines installed together with the included trim kit. |
| Mount Type |
Built-in |
| Depth Type |
Counter-Depth |
| Supply Voltage |
120V/60Hz |
| Dedicated Circuit |
15A |
| Rated Current (Amps) |
3A |
| Capacity |
Total: 19.8 cu. ft.
Fridge Capacity: 14.2 cu. ft.
Freezer Capacity: 5.6 cu. ft.
|
| Water Dispenser |
Yes |
| Ice Dispenser |
Yes |
| Ice Maker Type |
Automatic |
| Ice Amount per Day |
3.9 lbs |
| Ice Tray Storage |
8.4 lbs |
| Ice/Water Dispenser Location |
Internal |
| Replacement Filter Model Number |
RBIV-205A |
| Temperature Zone |
30°F – 41°F |
| Decibels |
43 dBA |
| Door Alarm |
Yes |
| Sabbath Mode |
Yes |
| Energy Consumption |
590 kWh/year |
| Warranty |
2-year parts and labor warranty, 5-year parts-only for sealed system |
| Certifications |
ETL Listed, Energy Star Certified, AB100 (also known as NSF or ANSI 61) |
| Weight |
430.6 lbs |
