Wagan Lithium Cube™ EX5

by Wagan
SKU EL8835
Save up to $730.05 Save $720.00
Original price $1,249.95
Original price $1,249.95 - Original price $1,499.95
Original price $1,249.95
Current price $529.95
$529.95 - $769.90
Current price $529.95
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Wagan Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937

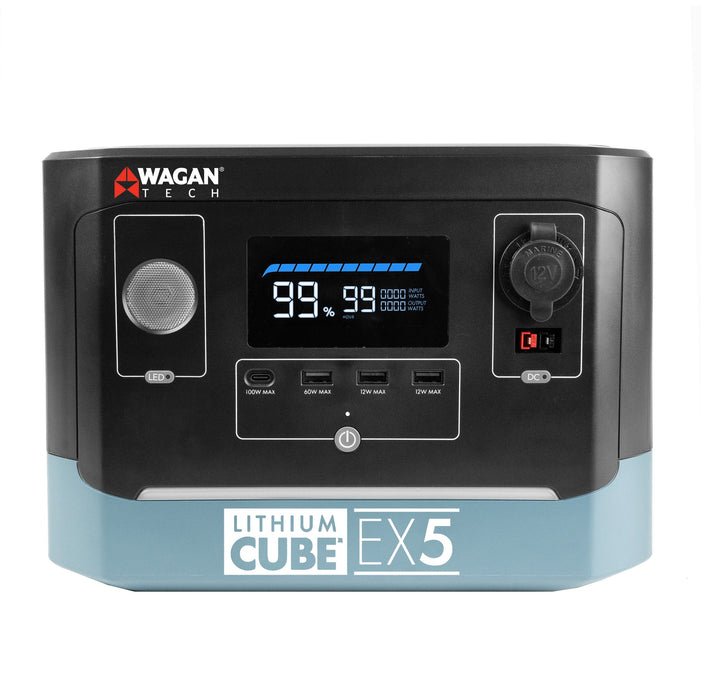

Wagan Lithium Cube™ EX5


Lithium Cube EX5
The Lithium Cube EX5 features a sleek functional exterior design intended to protect the internal components and endure the rigors of off-road exploration. Each portion of the Lithium Cube EX5 was thoughtfully planned to allow an intuitive user experience.

lithium cube EX5 - wagan tech

Power Output
On the power side, the Lithium Cube EX5 features two 120V AC outlets capable of providing 500 watts of continuous Pure Sine Wave power with Fast Charge and PD delivery USB power ports supplying fast charges to all of your electronic devices. A locking 12V DC socket and industry standard Anderson power pole connectors keep your DC appliances running smoothly.

lithium cube EX5 - wagan tech

Fast Charging

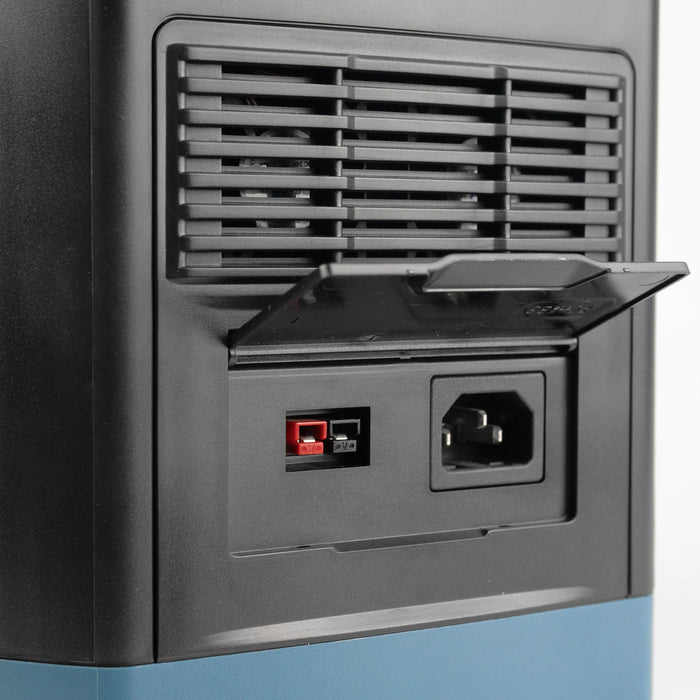

Recharging the Lithium Cube EX5 is simple with the included AC and DC chargers. Performance is the name of the game when it comes to recharging; a full battery charge from 0% to 100% can be achieved in under 2 hours. Connect up to 150 watts of solar panels to the MPPT charge controller and have a standalone solar generator when power outlets are nowhere to be found.

lithium cube EX5 - wagan tech

Upgraded 12V DC Socket
Another cool feature that both the EX18 and the EX5 share - it may seem inconsequential to some, but those who need it will appreciate this design feature - the 12V DC Socket has been upgraded to a marine-type twist-lock design!

People off-roading, overlanding, or those who are prone to "bump-into things" will love the new twist-lock plug - it allows the 12V DC plug to remain in-place through bumpy terrain and rough handling. For those running fridges or other devices that don't steadily consume power, we have removed the timeout function on both the EX18 and EX5 models.

lithium cube EX5 - wagan tech

Form & Function
The design of the Lithium Cube EX5 makes one thing certain; it was designed for the user. From the handle that folds flat into the lid to the full-color display that tells you everything that is going on, even the rounded edges of the stackable square case; all point to a device that was made to be purely functional (yet retains its exceptional good looks!).

Safety
As with all of our products, your safety is a priority. We have the industry standard protections in-place to protect you and your loved ones: UL Certification on the battery, Over-voltage Protection, Over-charge Protection, Short Circuit Protection, Reverse Polarity, and Overload Protection.

The Lithium Cube EX5 will power your needs for whatever road lies ahead.

Appliance Run-Times

lithium cube EX5 - AC OPERATING TIME

Dc appliance run times - lithium cube EX5

Quick List of Features:

  • 500W Continuous / 1000W Peak Output
  • Pure Sine Wave Inverter
  • 150W Solar Input / MPPT Controller
  • <2 hour Fast Charging
  • Compact Size / Fold flat handle


Specifications

Battery

  • Lithium Ternary 21700
  • 25.2V, 504Wh

Power Inverter (120V AC) Output

  • Waveform: Pure Sine Wave (PSW)
  • Output: 120V AC
  • Continuous Output: 500W
  • Peak Surge: 1000W
  • Frequency: 60Hz
  • Cooling Fan: Thermally Controlled
  • AC Outlets: 2
  • Over-heat protected: Yes
  • Short-circuit protected: Yes
  • Over-voltage protected: Yes
  • Under-voltage protected: Yes

Solar Charge Controller

  • Type: MPPT
  • Input: Anderson power-pole
  • Input Voltage: 10-25V DC
  • Input Current: 10A
  • Max Solar Input: 150W

AC Charger

  • Input Voltage: 108-132V
  • Input Frequency: 60Hz
  • AC Charger Output: 300W

DC Charger (Input)

  • Fuse: 30A
  • Length: 5 Feet
  • Acceptable Input: AC (via voltage converter), DC, Solar Panels, Wind Turbine, Hydro-electric
  • Anderson Connectors: Built-in
  • Input Range: 11-15V
  • Input Max Amperage: 8.5A

DC Socket (Output)

  • Regulated 12.0V Socket
  • 12VDC Socket Count: 1
  • Socket Rated Output: 10A

USB Power Ports

  • USB Power Port Count: 4
  • USB-C: 1 port
       - 100W PD  (5V, 9V, 12V, 15V, 20V 5A)
  • USB-A (Fast-Charging): 1 port
       - 60W
  • USB-A (standard USB): 2 ports
       - 12W (2.4A)

    Build Specs

    • Pass Through Charging: Yes
    • Folding Handle
    • AC Charger: Included
    • DC Charger: Included
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 122°F (-20°C - 50°C)
    • Operating Humidity: 10% - 90%
    • Storage Humidity: 5% - 95%
    • LED Worklight: 60 Lumens
    • LED Worklight Modes: High, SOS
    • Weight: 15.5 lbs.
    • Dimensions (LxWxH): 8.4 x 11.9 x 7.8 in
    • Display: Full Color, Full operational details
    • UPC: 08436708835-2
    • MFG: EL8835
    • Warranty (USA): 2 Years

    Certifications & Protections

    • UL Certification: Battery
    • Over-voltage Protection
    • Over-charge Protection
    • Short circuit Protection
    • Reverse Polarity
    • Overload Protection


    Prop 65 Warning Text - Wagan Tech - CaliforniaWARNING: This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


    100W Solar Panels

    • Power Cable Length: 6.3 feet
    • Panel Open Dimensions: 21.7 x 43.4 x 0.2 in
    • Panel Closed Dimensions: 21.7 x 21.7 x 1.4 in
    • Panel Composition: Sunpower
    • Panel Voltage: 17.6V
    • Panel Efficiency: 23%
    • Max Wattage: 100 Watts
    • Solar Controller: No
    • Panel Weight: 6.6 lbs.
    • Power Tolerance Range: ±3%
    • Open Circuit Voltage / Voc: 22.2V
    • Max Power Voltage / Vmp: 17.6V
    • Short Circuit Current / Isc: 6.24A
    • Max Power Current / Imp: 5.68A
    • Maximum System Voltage: 600V DC
    • Item Number: 8213

    Wagan 100W Solar Panels click to know more...
