Wagan Lithium Cube™ 500

by Wagan
SKU EL8834
Save up to $149.95 Save $125.95
Original price $649.95
Original price $649.95 - Original price $923.95
Original price $649.95
Current price $524.00
$524.00 - $774.00
Current price $524.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Wagan Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts 469-809-4999

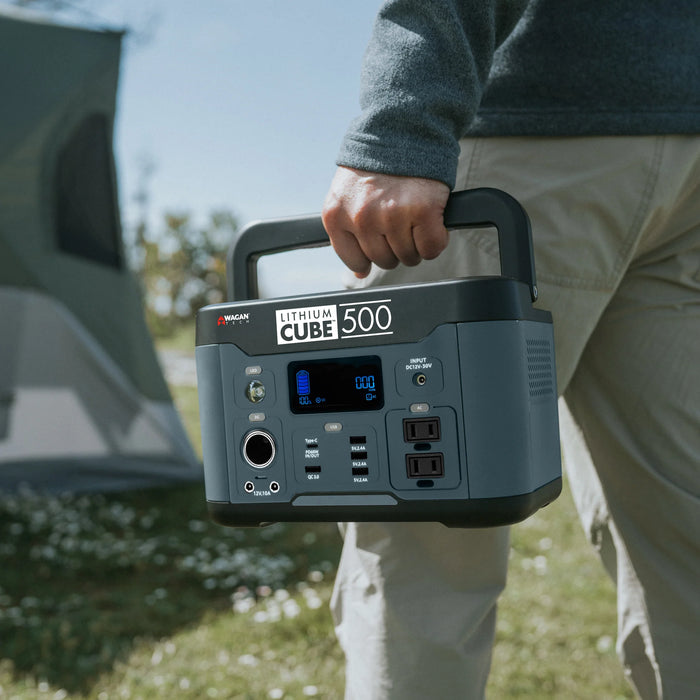

Wagan Lithium Cube™ 500

Wagan tech - lithium cube 500 banner



Power where you want to be.

Uncompromising Quality
The Lithium Cube is a culmination of 30 years' worth of power supply knowledge with cues taken from our popular jump-starter, power inverter, and Solar Cube lines. That knowledge cultivated the perfect lithium power supply; one that was full-featured with a solid build quality, could be used anywhere, and is reliable as all can be.

Simplicity
We designed the Lithium Cube to be user friendly and accessible to everyone, everywhere. No proprietary plugs, no special connectors, no hassle finding compatible accessories; our Lithium Cube will work with the set-up you already have and with readily-available components.

Wagan tech - lithium cube 500 banner



Powerful
The Lithium Cube 500 is no slouch; with a 500W PSW inverter paired with the 496Wh lithium-ion battery, you'll have the power you need to get the job done. Whether you need to power a battery charger, CPAP, laptop, or lighting for remote photography, we have you covered!

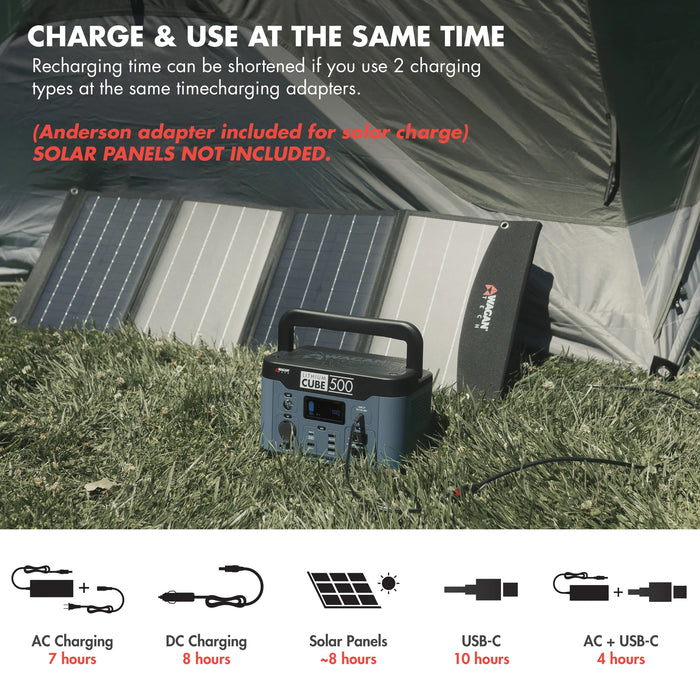

Pass-through Charging
One gripe that we've seen with other units is that they cannot be used while charging; not so with the Lithium Cube! You can charge the Lithium Cube and use it at the same time... how cool is that?!
Need the unit to be recharged even faster? Recharging time can be shortened if you use 2 charging types at the same time (You can recharge via AC and USB-C concurrently)!

Wagan tech - lithium cube 500 banner



Full Featured Color Digital Display
Take the guess-work out of using our Lithium Cube! Our Full Featured Display will let you know what is happening at a glance.

  • Battery Percentage Remaining
  • Power Status
  • Battery Hours Remaining (until charged/until discharged)
  • Wattage (input/output current)
  • Fan On
  • Error Detection
Wagan tech - lithium cube 500 banner

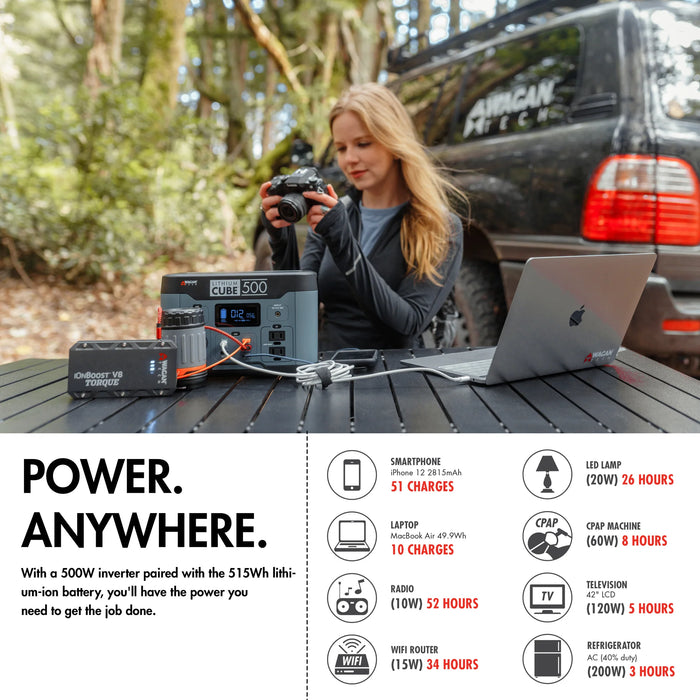

Run-Times
One of the most important questions regarding a power supply is, "How long can it power my device for?". We've compiled a clear list of common appliances that you'd power using our Lithium Cube.

How to Use
1) Press the power switch to turn on the power port you want to use (AC, DC, USB); once on, the power icon will illuminate.
2) Plug in your device, That's it!

When you're done, simply unplug your device, press the power switch, and the Lithium Cube will automatically power off after 1-minute.

Built with you in mind
As an American company, we produce products that our families are proud to use. We live and breathe the outdoors; we're out there camping, overlanding, exploring, and knee-deep within the outdoor communities. With that said, it's imperative that our products are safe, reliable, and built to perform.

Like you, we wouldn't want our families using something that doesn't meet our high standards. Our Lithium Cube was built for real-world use with you in mind.

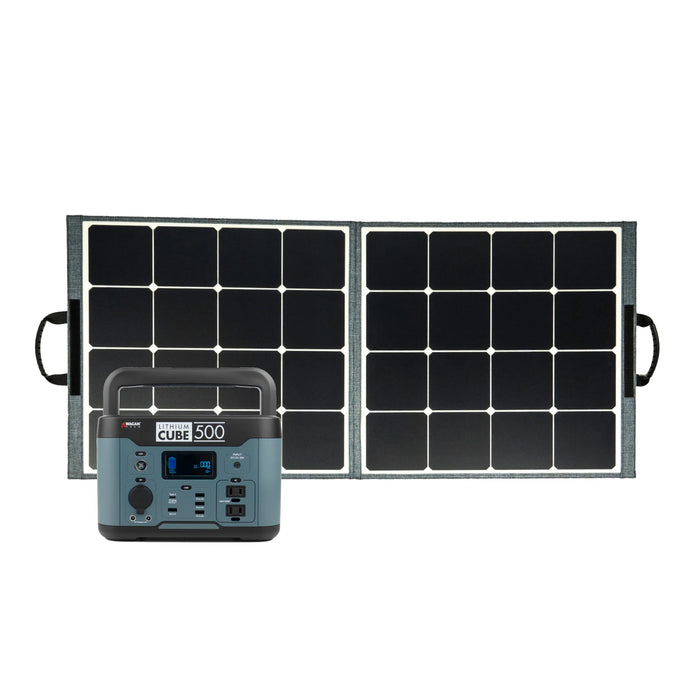

Lithium Cube 500 Solar Combo

Make it a Combo!
We have Solar Panels that are ready to use with the Lithium Cube 500. No guess-work trying to figure out what panel perfectly pairs with the Lithium Cube 500, we have them available in the drop-down menu at the top of this page!

The 100W panel is the best deal as it gives you the maximum power that the Lithium Cube 500 accepts. Already outfitted with an Anderson Power Pole connector, simply plug in to the Cube and charge!

Our 68W panel folds up nicely and is ready to go at a moments notice. Compact and powerful, this panel too is equipped with Anderson Power Pole connectors and is a simple plug-and-play unit.

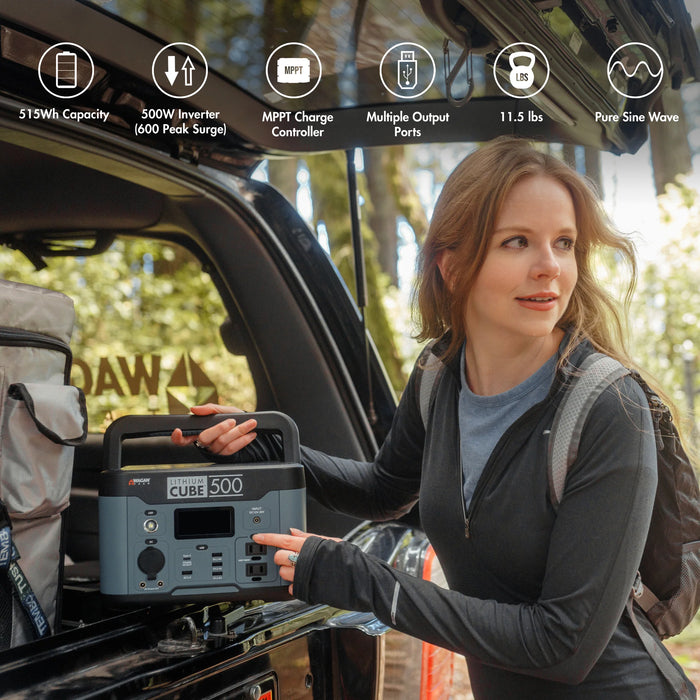

Quick List of Features:

  • 120V AC, 12V DC, USB Power Outputs
  • Pure Sine Wave (PSW) Inverter
  • Recharge via: Solar (MPPT), DC & AC, USB-C, Wind & Water Turbine*
  • Bright Full-Featured Digital Color Display
  • Only 11.5 lbs.! Lightweight, Portable





*For Wind and Water Turbine charging, you will need to use the DC input port (adapters are not included).

** Note: Due to the broad power consumption needs of some 12V fridges, we do not recommend the Lithium Cube 500 for fridge application. Instead, we recommend you to use our Lithium Cube 1200 to power your fridge for many days of fresh groceries and ice cream on the road!


Specifications

Specifications

Wagan tech - lithium cube 500 banner



Battery

  • Lithium 18650
  • 14.8V, 496Wh
  • Cell Count: 48
  • Low Battery Shutdown: 12.1V

Power Inverter (120V AC) Output

  • Waveform: Pure Sine Wave (PSW)
  • Output: 120V @ 60Hz
  • Peak Surge: 600W
  • Max AC Power: 500W Continuous
  • Cooling Fan: Thermally Controlled
  • AC Outlets: 2

AC Charger

  • Input Voltage: 100-240V
  • Input Frequency: 50-60Hz
  • AC Charger Output: 19V, 3.8A (72W)

DC Socket (Output)

  • Regulated 12.0V Socket
  • 12VDC Socket Count: 1
  • Socket Rated Output: 10A (@12.0V)

DC Port (Output)

  • DC Port Count: 2
  • DC Port Size: 5.5mm x 2.5mm
  • Maximum Output: 5A (each)

USB Power Ports

  • USB Power Port Count: 5
  • USB-C: 1 port - (Input/Output)
       60W PD (5V3A / 9V / 12V / 15V / 20V3A)
  • USB-A (standard USB): 4 ports
       (3) 2.4A
       (1) QC 3.0 (5V3A / 9V2A / 12V1.5A)

DC Input Port (Charging)

  • Input Voltage Range: 12-24V
  • Input Charging Port Size: 4.0mm x 1.7mm
  • Acceptable Input: AC (via voltage converter), DC, Solar Panels, Wind Turbine, Hydro-electric
  • Solar Controller: MPPT
  • Solar Input: 80W Max
  • Anderson Connector Adapter: Included

On-Board Light

  • Light Type: LED
  • Light Modes: High-S.O.S.
  • Light Output: 60lm

Build Specs

  • Pass Through Charging: Yes
  • Folding Handle
  • AC Charger: Included
  • DC Charger: Included
  • Operating Temperature: 32°F - 113°F (0°C - 45°C)
  • Storage Temperature: 14°F - 149°F (-10°C - 65°C)
  • Weight: 11.5lbs.
  • Dimensions (LxWxH): 10.3 x 6.8 x 8.0 (inches)
  • Display: Full Color, Full operational details
  • UPC: 084367088345
  • MFG: EL8834
  • Warranty (USA): 2 Years

Certifications & Protections

  • UL Certification: Battery - FCC Part15 Class B, IEC61000-4-4 1KV
  • Over-voltage Protection
  • Over-charge Protection
  • Short circuit Protection
  • Reverse Polarity
  • Overload Protection

Chart: Recharging Times (in hours)

lithium cube recharge times chart diagram
* The above chart is approximate and based on a fully depleted battery and under normal operating conditions.





Prop 65 Warning Text - Wagan Tech - CaliforniaWARNING: This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.



100W Solar Panels

  • Power Cable Length: 6.3 feet
  • Panel Open Dimensions: 21.7 x 43.4 x 0.2 in
  • Panel Closed Dimensions: 21.7 x 21.7 x 1.4 in
  • Panel Composition: Sunpower
  • Panel Voltage: 17.6V
  • Panel Efficiency: 23%
  • Max Wattage: 100 Watts
  • Solar Controller: No
  • Panel Weight: 6.6 lbs.
  • Power Tolerance Range: ±3%
  • Open Circuit Voltage / Voc: 22.2V
  • Max Power Voltage / Vmp: 17.6V
  • Short Circuit Current / Isc: 6.24A
  • Max Power Current / Imp: 5.68A
  • Maximum System Voltage: 600V DC
  • Item Number: 8213



68W Solar Panels

  • Power Cable Length: 6.3 feet
  • Panel Open Dimensions: 21.0 x 29.5 x 1.5 in
  • Panel Closed Dimensions: 21.0 x 14.8 x 1.5 in
  • Panel Composition: Sunpower PET
  • Panel Efficiency: 23%
  • Max Wattage: 68 Watts
  • Solar Controller: No
  • Panel Weight: 4.8 lbs.
  • Power Tolerance Range: ±3%
  • Open Circuit Voltage / Voc: 27.7V
  • Max Power Voltage / Vmp: 22V
  • Short Circuit Current / Isc: 3.4A
  • Max Power Current / Imp: 3.0A
  • Item Number: 8212
