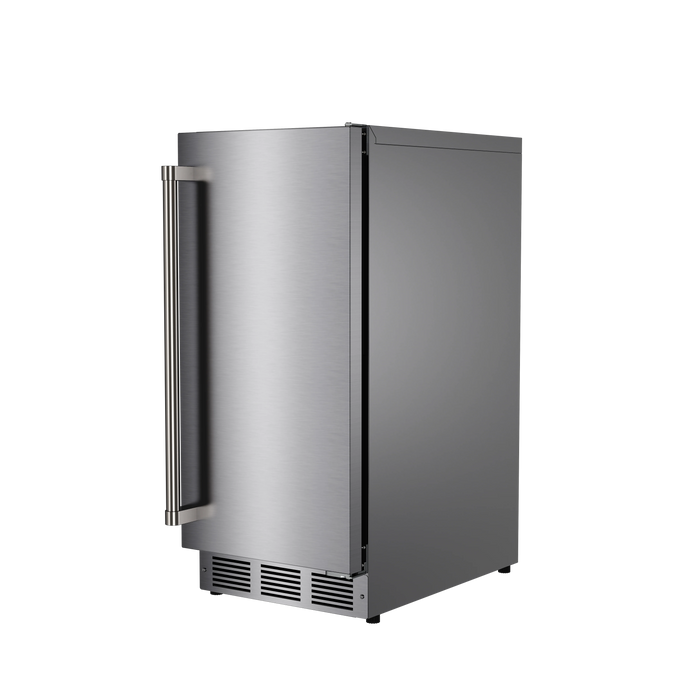

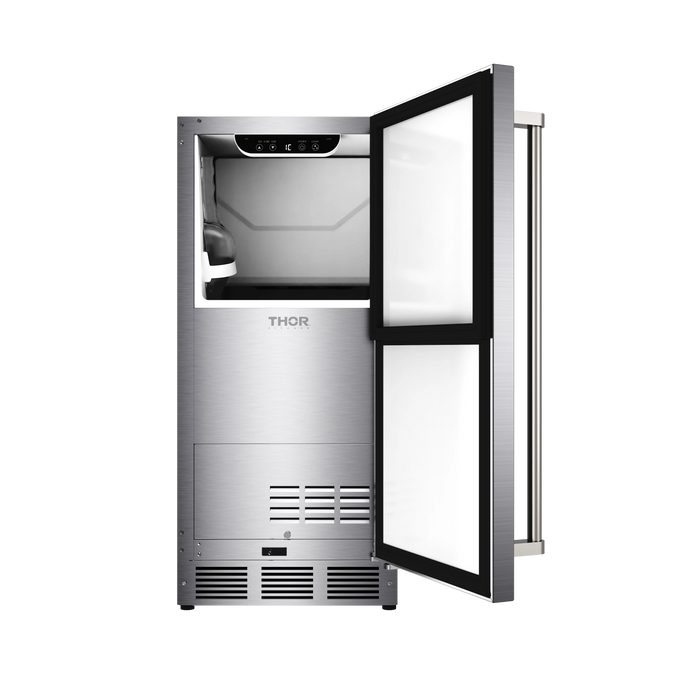

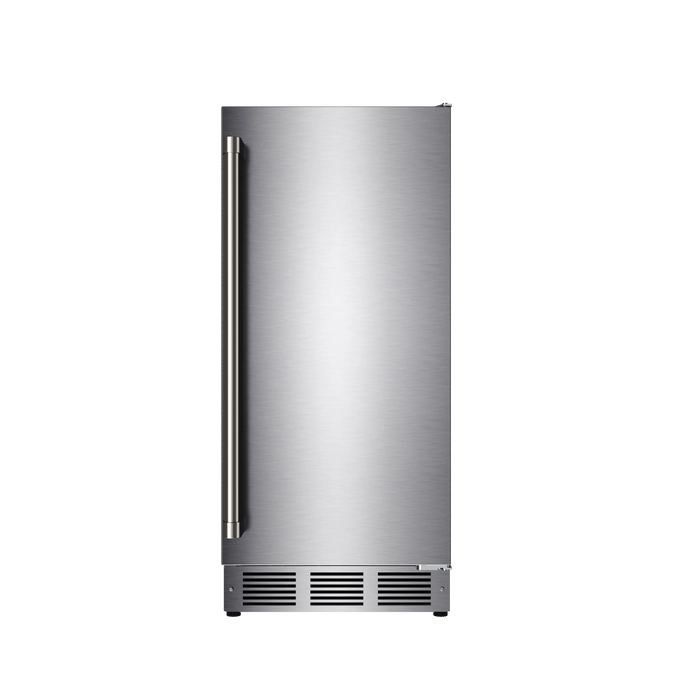

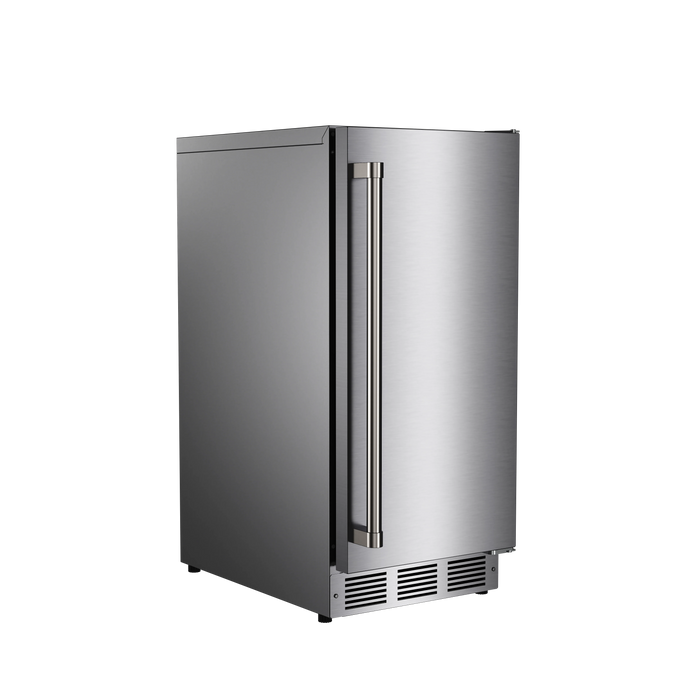

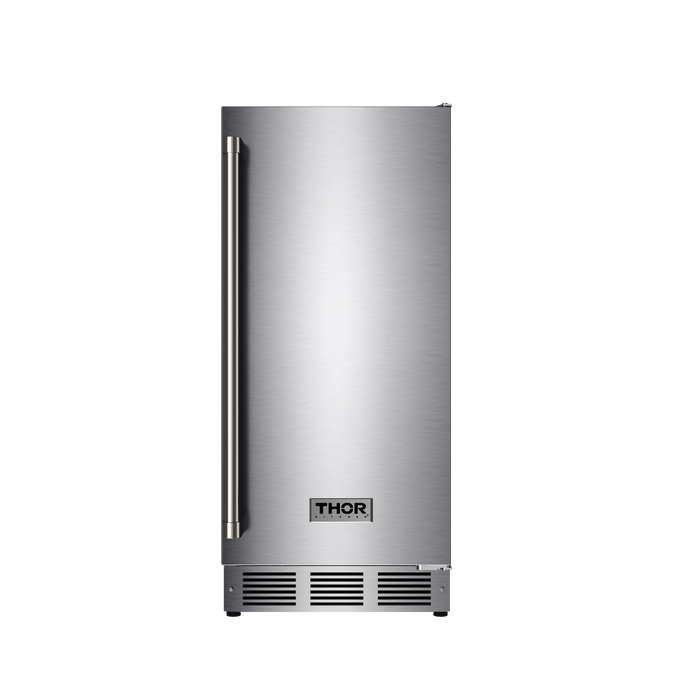

THOR Kitchen 15" Indoor/Outdoor Ice Maker with Drain Pump in Stainless Steel (TIM1511)
THOR Kitchen TIM1511 produces up to 70 pounds of square ice daily with 26-pound storage capacity. This versatile 15" ice maker works indoors or outdoors with freestanding or built-in installation. Features include stainless steel construction, IPX4 water resistance, digital controls, built-in filtration, and reversible door—perfect for home bars and outdoor kitchens.
FEATURES:
-
High Ice Production Capacity: Produces up to 70 pounds of crystal-clear square ice cubes per day to keep up with high-demand usage.
-
Generous Ice Storage: Stores up to 26 pounds of ice at a time, ensuring you always have a ready supply on hand.
-
Compact Cube Output: Produces 32 cubes per cycle, each measuring 7/8” x 7/8” x 7/8”, weighing about 0.4 oz (11g) per cube.
-
Indoor/Outdoor Flexibility: Engineered for both indoor and covered outdoor use under awnings or canopies.
-
Built-In or Freestanding Installation: Allows flexible placement with zero-clearance sides and back for built-in applications.
-
Durable Stainless Steel Design: Features a sleek, professional-grade stainless steel exterior built to last.
-
Weather-Resistant Construction: Rated IPX4 for splash resistance, making it suitable for protected outdoor environments.
-
Reversible Door Option: Includes hardware to switch door swing direction for left- or right-hand opening.
-
User-Friendly Digital Controls: Touch panel with display for power, cleaning, filter reset, and size adjustments.
-
Adjustable Ice Size Settings: Select from six cube size levels to suit different beverage or storage needs.
-
Timed Ice Making Mode: Program timed operation from 1 to 12 hours for planned entertaining or events.
-
Sabbath Mode Feature: Disables lights and alerts for observant users or nighttime quiet.
-
Integrated Cleaning Cycle: Built-in CLEAN mode for easy maintenance and hygienic ice production.
-

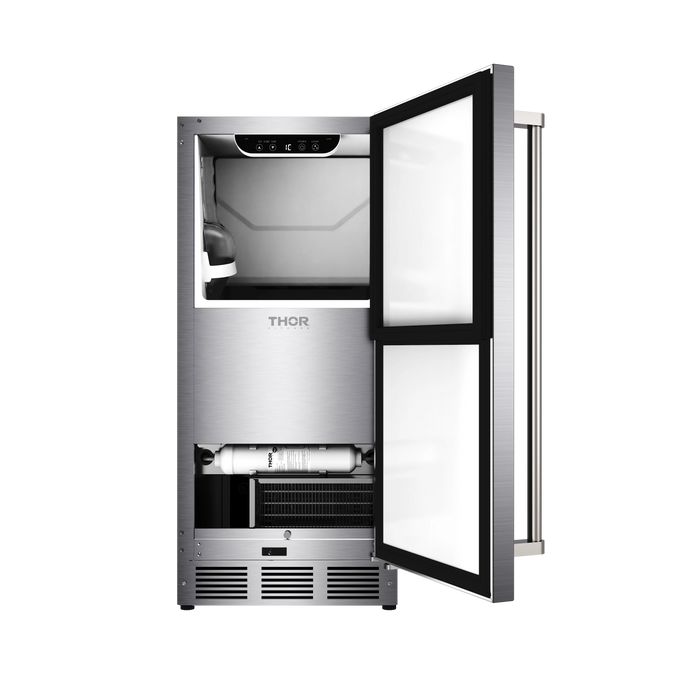

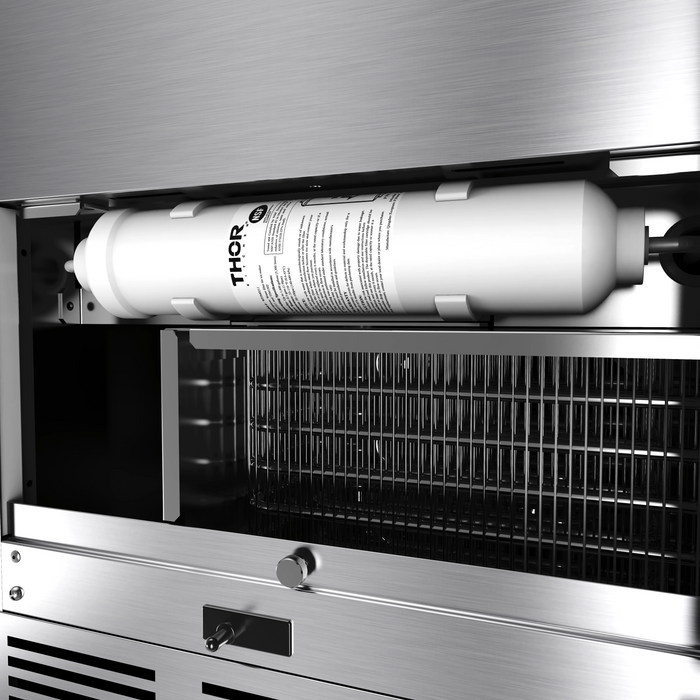

Water Filtration System: Includes a quick-connect water filter (Model WFIM0211) for improved taste and purity.
-
Drain Pump Included: Comes with a drain pump and pre-installation testing procedure.
-
Temperature Ready: Operates effectively in ambient conditions between 50°F and 110°F (10°C–43°C).
SPECIFICATIONS & DIMENSIONS:
| DIMENSIONS |
| Dimensions |
14-7/8" W × 22-5/8" D × 32-7/8" H |
| Cutout Dimensions |
15" W x 24” D x 34-1/2" H |
| Product Depth With Door Open 90 Degrees |
36-1/2” |
| Weight |
89.2 lbs (40.5 kg) |
| ELECTRICAL REQUIREMENTS |
| Voltage |
115V |
| Phase |
60Hz |
| Amps |
15A |
| Plug Type |
NEMA 5-15P |
| FEATURES |
| Mount Type |
Built-in or Freestanding (Indoor/Outdoor use under awning or canopy) |
| Depth Type |
Counter Depth |
| Door Style |
Single Door (Reversible Hinge) |
| Parts Included |
1 Ice Scoop, 1 Water Filter, Model#: WFIM0211, 1 Water Line, 1 Left Latch Mechanism Kit, 1 Use & Care Manual |
| Ice Type |
Clear square cube |
| Ice Cube Size Adjustable Level |
6 (Default Size: 3) |
| Ice Size (Default) |
7/8" L × 7/8" D × 7/8" H |
| Ice Amount per Day |
Up to 70 lbs (32 kg) per day (at 70°F air / 50°F water) |
| Ice Storage Capacity |
26 lbs (12 kg) |
| Replacement Filter Model Number |
Model WFIM0211; Replace every 6 months |
| Control Panel |
Digital with adjustable cube size (levels 1–6), cleaning, Sabbath mode |
| Drain Pump |
Included, with testing procedure recommended pre-installation |
| Ambient Operating Temp Range |
50°F to 110°F (10°C to 43°C) |
| Water Operating Temp Range |
40°F to 90°F (4°C to 32°C) |
| Water Pressure Range |
20–80 psi (0.138–0.55 MPa) |
| Water Inlet Connection |
1/4" OD compression fitting |
| IP Rating |
IPX4 (splash resistant) |
| Self Clean |
Yes |
| Sabbath |
Yes |
| Door Ajar Alarm |
Yes |
| WARRANTY & CERTIFICATIONS |
| Certifications |
Energy Star, UL Listed, Complies with California Proposition 65 |
| Warranty |
2-year parts and labor warranty, 5-year parts-only for sealed system |
| Power Cord Length |
6 ft. (1800mm) |
