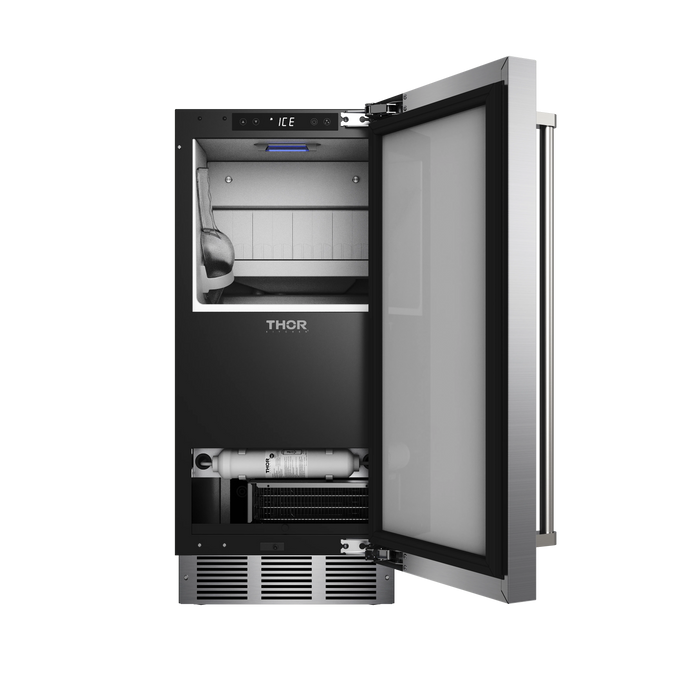

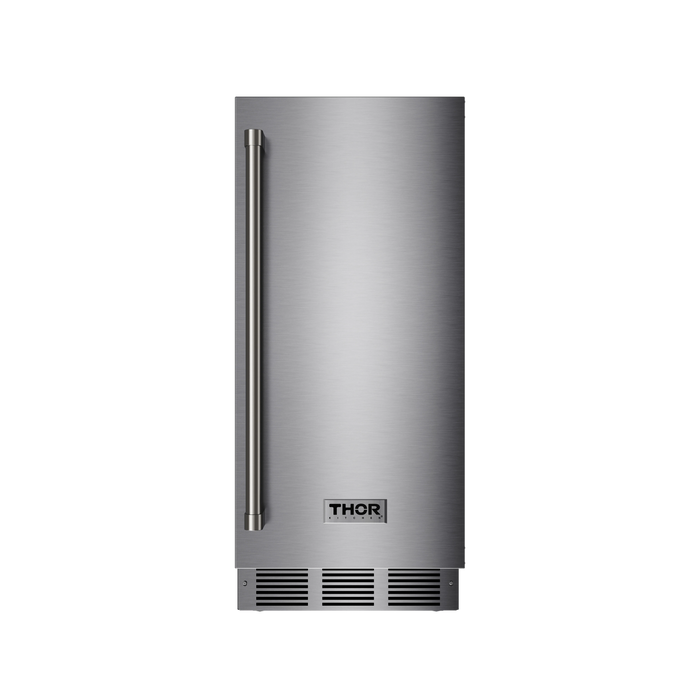

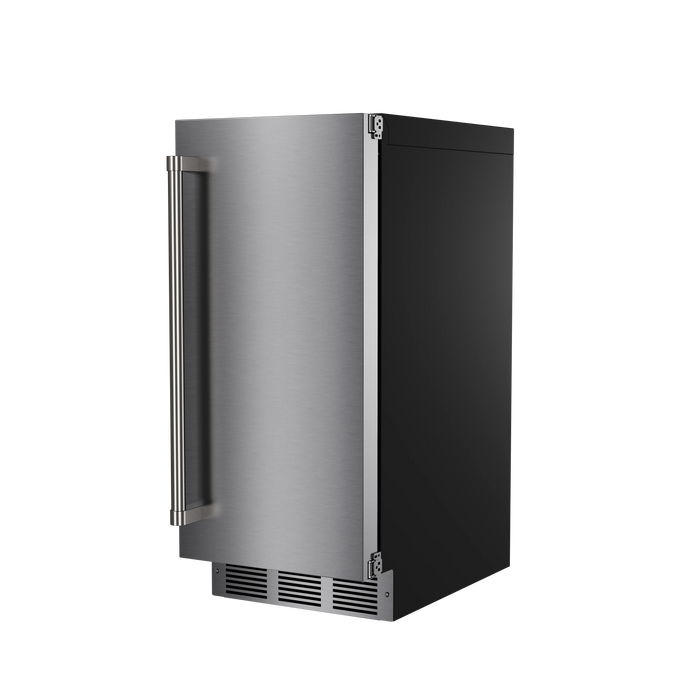

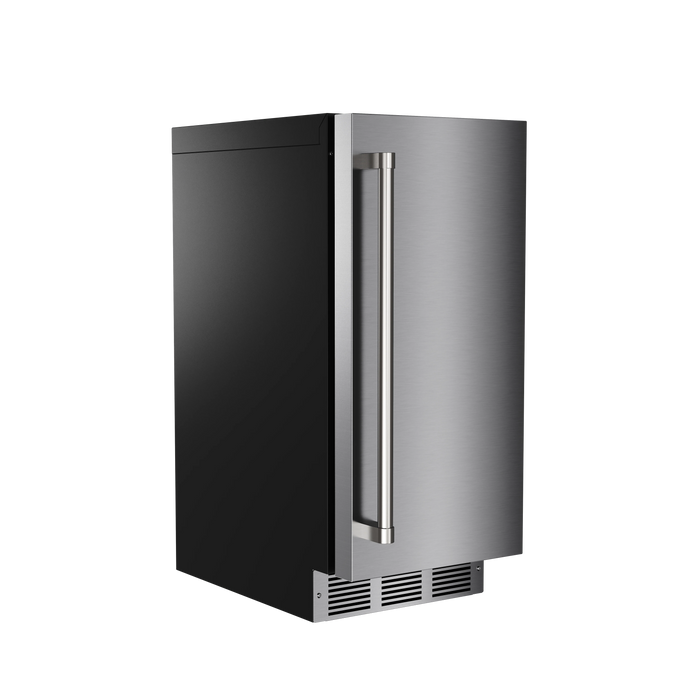

Thor Kitchen 15" Gourmet Ice Maker with Drain Pump in Stainless Steel (TIM1502)
The Thor Kitchen TIM1502 is a 15-inch indoor ice maker designed to bring commercial ice-making capabilities to your home or bar. With a sleek, built-in design, this unit delivers up to 60 pounds of clear, octagon-shaped ice per day. Ideal for entertaining or everyday convenience, it includes intuitive controls, adjustable ice sizing, and smart maintenance alerts. Whether under a counter or as a freestanding appliance, the TIM1502 offers powerful performance in a compact footprint.
FEATURES:
-
High Ice Production: Produces up to 60 lbs of crystal-clear octagon ice per day to keep up with demand.
-
Large Storage Capacity: Holds up to 26 lbs of ice in the bin so you’re never caught without ice.
-
Octagon Ice Shape: Creates slow-melting, restaurant-quality cubes that look great in any drink.
-
Compact Design: 15-inch width fits seamlessly into undercounter spaces or built-in cabinets.
-
Built-In or Freestanding Use: Flexible installation options for kitchen, bar, or entertainment areas.
-
Reversible Door: Door can be mounted to open left or right for flexible access and placement.
-
Front Ventilation System: Allows zero-clearance installation; ideal for tight spaces.
-
Digital Touch Controls: Simple panel to power on/off, adjust settings, and monitor performance.
-
Adjustable Ice Size: Choose from 6 cube size settings to match your cooling preferences.
-
Fast Ice Mode: Speeds up production when you need ice quickly for parties or heavy use.
-
Timer Function: Program ice-making in advance for efficient energy use.
-
Sabbath Mode: Disables display and sound for use in observant households.
-
Self-Cleaning Function: Keeps the internal system fresh with an automatic 30-minute cycle.
-
Filter & Cleaning Reminders: Alerts you when it’s time to clean the machine or replace the filter.
-
Door Ajar Alarm: Sounds if the door is left open, preserving temperature and energy.
-
Quiet Operation: Efficient fan and compressor system minimizes noise during operation.
SPECIFICATIONS & DIMENSIONS:
| DIMENSIONS |
| Dimensions |
14-7/8" W x 23-1/4” D x 34" H |
| Cutout Dimensions |
15" W x 24” D x 34-1/2" H |
| Product Depth With Door Open 90 Degrees |
37-3/4" |
| Weight |
98.7 lbs (44.8 kg) |
| ELECTRICAL REQUIREMENTS |
| Voltage |
115V |
| Phase |
60Hz |
| Amps |
15A (Dedicated) |
| Plug Type |
NEMA 5-15P |
| Power Cord Length |
6 ft. (1800mm) |
| FEATURES |
| Mount Type |
Built-in or Freestanding (Indoor/Outdoor use under awning or canopy) |
| Depth Type |
Counter Depth |
| Door Style |
Single Door (Reversible Hinge) |
| Parts Included |
1 Ice Scoop, 1 Water Filter, Model#: WFIM0211, 1 Water Line, 1 Left Latch Mechanism Kit, 1 Use & Care Manual |
| Ice Type |
Gourmet / Top-Hat |
| Ice Shape |
Octagon |
| Ice Cube Size Adjustable Level |
6 (Default Size: 3) |
| Ice Size (Default) |
1-1/4" L x 1-1/4" D x 1" H |
| Ice Amount per Day |
Up to 60 lbs (27 kg) (at 70°F air / 50°F water) |
| Ice Storage Capacity |
26 lbs (12 kg) |

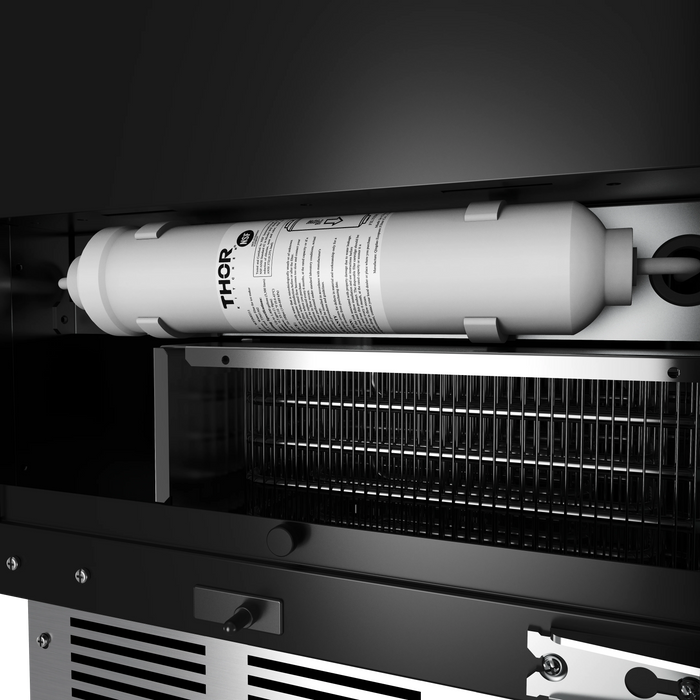

| Replacement Filter Model Number |
Model WFIM0211; Replace every 6 months |
| Control Panel |
Digital with adjustable cube size (levels 1–6), cleaning, Sabbath mode, Fast Ice, Timer, |
| Drain Pump |
Included, with testing procedure recommended pre-installation |
| Ambient Operating Temp Range |
50°F to 100°F (10°C to 38°C) |
| Water Operating Temp Range |
40°F to 90°F (4°C to 32°C) |
| Water Pressure Range |
220–80 psi (0.138–0.55 MPa) |
| Water Inlet Connection |
1/4" OD compression fitting |
| Sabbath Mode |
Yes |
| Self-Clean |
Yes |
| Door Jar Alarm |
Yes |
| WARRANTY & CERTIFICATIONS |
| Certifications |
Energy Star, UL Listed, Complies with California Proposition 65 |
| Warranty |
2 Years Parts and Labor |
