Sungold Power 3000W 24V Solar Inverter Charger

SPH302480A-A+01.jpg__PID:7e5ca9e2-af00-40fd-99b8-d8439a5b1228
A+01.jpg__PID:4e31dc4c-8dd0-4e82-868b-8ec4f03a69f8
A+03.jpg__PID:db0e687b-fa15-4e9b-bb74-b86ac2613c45

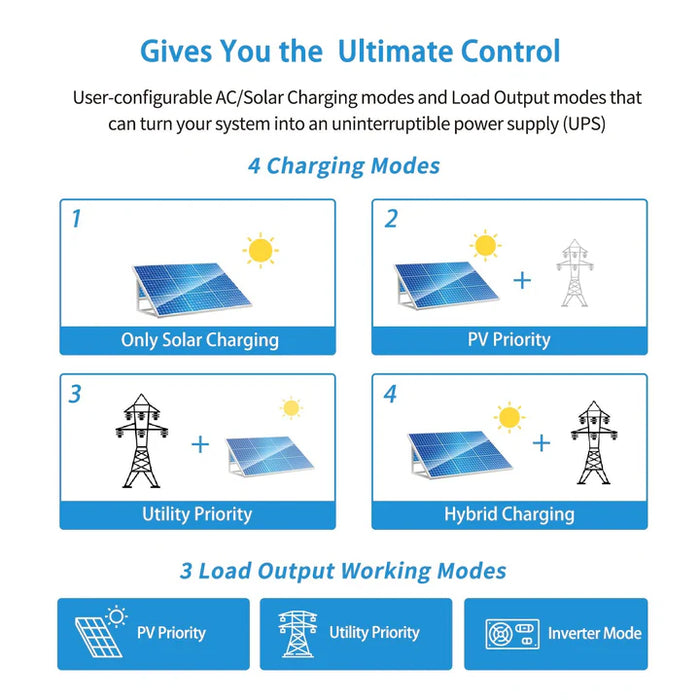

SUNGOLDPOWER 3000W 24V solar inverter combines solar charging, AC/generator battery charging and battery inverter into one complete unit to make your off-grid system working. This solar inverter charger is compatible with 24V battery packs. It provides four user-configurable AC/solar charging modes and three load output modes. It can turn your system into an uninterruptible power supply (UPS )with only 10 milliseconds automatically switching to off-grid to ensure the load powered.

33.webp__PID:ccc7ce89-9f01-4f0b-946c-c109c9d26afd

A+03.jpg__PID:d144bf1d-b5b8-46a4-ba84-53107bee1efd
SPH302480A-01.jpg__PID:367ad144-bf1d-45b8-a6a4-7a8453107bee
详情图-2.jpg__PID:8cf8d173-5499-4195-ab3e-075c0a3370d7
详情图-8-拷贝_01.jpg__PID:7c02acb7-3949-4c27-88ea-1da0dff0e49c
详情图-8-拷贝_02.jpg__PID:02acb739-49fc-47c8-aa1d-a0dff0e49c06
详情图-8-拷贝_03.jpg__PID:acb73949-fc27-48ea-9da0-dff0e49c06ec

0

SPECIFICATIONS:

Main Features:

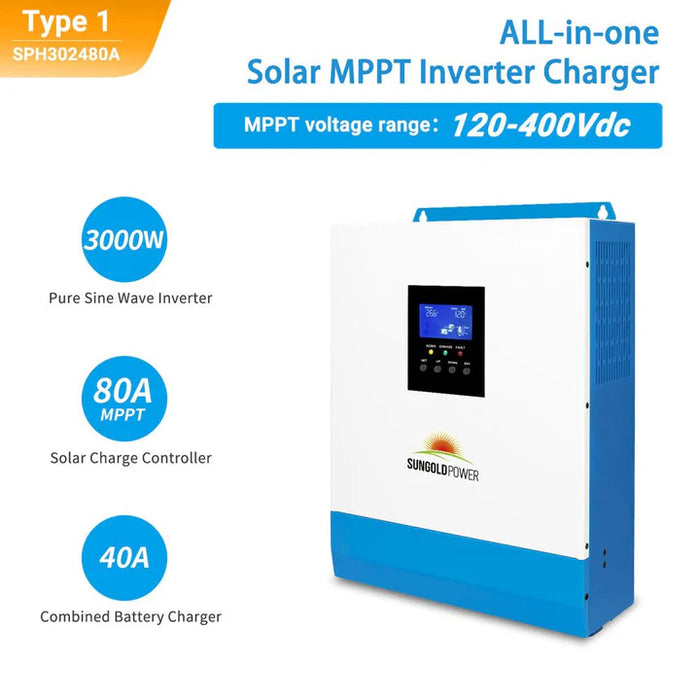

● SPH302480A Built-in 80A MPPT solar charge controller, max PV input 4000W
● SPH302460A Built-in 60A MPPT solar charge controller, max PV input 1600W
● 40A Smart AC charger
● High frequency transformer-less compact design
● Pure sine wave AC 120V output with 50hz/60hz switch
● Optional WiFi/ GPRS remote monitoring (extral cost)
● Overload, short circuit, over discharge protection
● Auto-start the generator ( Dry Contacts for delivering signal)

Inverter Mode:
●  Output: Pure Sine Wave
●  Peak Power : 6000VA
●  AC Output : 120VAC ,50HZ/60HZ
●  Input Voltage / Rated Battery : 24VDC (minimum start-up voltage:22V)
●  Bypass Breaker Current: 40A
●  Idle Power: 50W
●  Power Saver Mode Idle Consumption: 25W

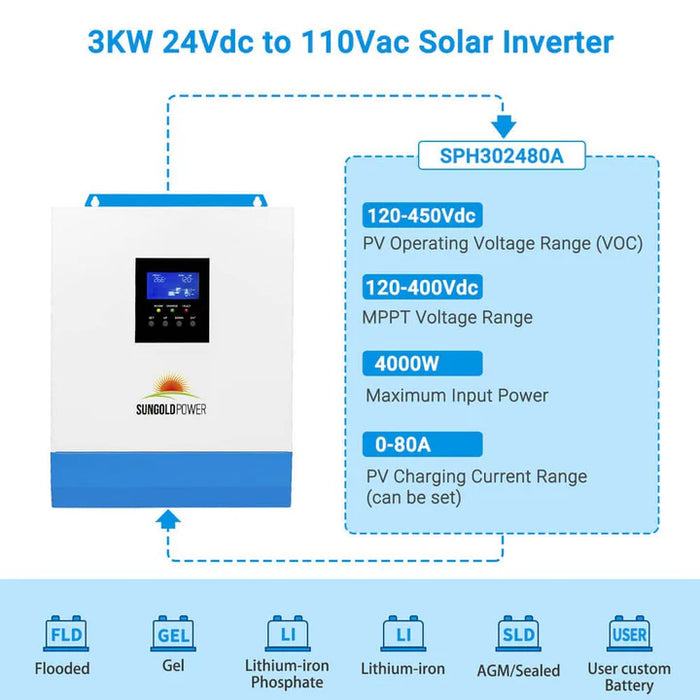

SPH302480A MPPT Solar Charging Mode:
●  Maximum Input Power: 4000W
●  PV Charging Current : 0-80A
●  Max.PV Open Circuit Voltage: 450V
● PV operation voltage range: 120-450VDC
● Mppt Voltage Range: 120-400VDC
● Recommended wire: 12 AWG

SPH302460A MPPT Solar Charging Mode:
● Maximum Input Power: 1600W
● PV Charging Current : 0-60A
● Max.PV Open Circuit Voltage: 108V
● PV operation voltage range: 30-108Vdc
● Mppt Voltage Range: 30-90Vdc
● Recommended wire: 12 AWG

AC Charging Mode:
● Rated AC input: 110V, 50HZ/60HZ
● Input Voltage Range: 90VAC-140VAC
● Conversion Time: 10ms
● Battery Type: Lead Acid and Lithium Battery
● Maximum Charging Current: 40A
● Charging Voltage Range:20-33VDC
● Short-Circuit Protection: Breakers and fuses
● Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min

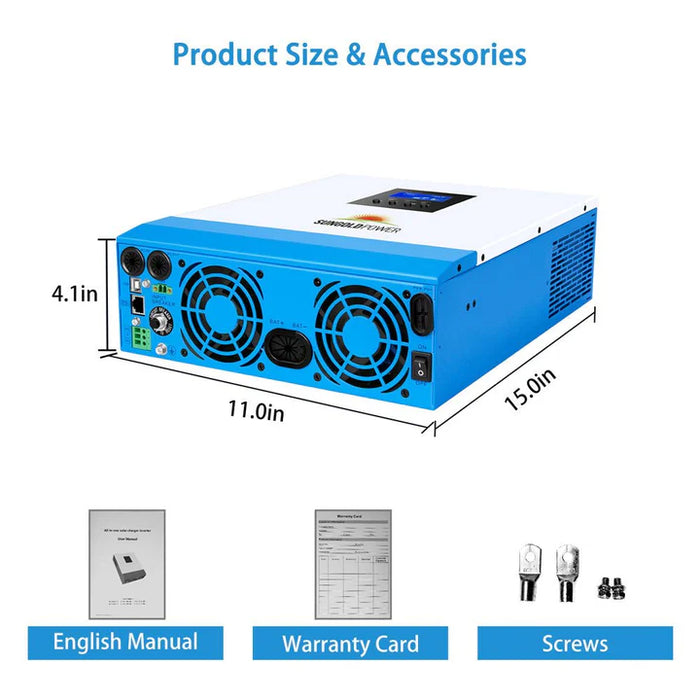

Mechanical Specification:
● Size: 15.0 x 11.0 x 4.1 inch
● Net Weight: 16.8lbs
● Noise: ≤60dB
● Operating Temperature Range:5°F ~ 131°F/ -10°C ~ 55°C
● Cooling Fan: Yes

GUIDE:

3000W SPH302480A Solar Inverter User's Manual

3000W SPH302460A Solar Inverter User's Manual

UL 1741 Certificate of Compliance for SPH302460A
