Sol-Ark 30K Hybrid 3 Phase Solar Inverter | 30K-3P-208V | 10-Year Warranty

Sol-Ark 30K Hybrid 3 Phase Solar Inverter | 30K-3P-208V | 10-Year Warranty

SKU: SOL-ARK-30K

Regular price $14,750.00
Regular price $16,000.00 Sale price $14,750.00
Sale Temporarily Out of Stock

🚚 Fast Delivery Times
❓Questions? Talk to Experts 469-809-4999
🧑🏻‍💼Post-Purchase Lifetime Customer Support
🛡️Premium Authorized Dealer - Warranty Included

Sol-Ark 30K Hybrid 3 Phase Solar Inverter | 30K-3P-208V | 10-Year Warranty


The 30K INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.

Fleet Management

With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.

AC/DC Coupling & Stackable

Supports simultaneous DC and AC coupling. Boosts PV energy without increasing PV array size and reduces storage inverter costs up to 30%.

Warranty and Reliability

Comes with our award winning iron clad 10 year warranty and our 7 day a week live support to assist you in all your needs.

Limitless

Introducing the Sol-Ark 30K All-In-One Hybrid, a highly robust and efficient solar inverter that seamlessly integrates solar power, storage, and generator power for residential, commercial, and industrial applications. Equipped with cutting-edge technology, the Sol-Ark 30K is a reliable solution that offers a range of features.

All-In-One

The Sol-Ark 30k Outdoor Case is an all-in-one pre-wired system that includes the inverter, charge controller, and other components, eliminating the need for fuses, breakers, or combiner boxes. This simplifies the installation process and keeps the additional hardware required to a minimum, resulting in a low-cost solution.

Battery Agnostic

Sol-Ark inverters offer the advantage of not being limited to costly battery requirements, as some other solar inverters are. They are compatible with a broad range of 48V battery chemistries, ranging from lead to lithium.

Highly Accelerated Life Testing

Proven to last well beyond the standard 10 year warranty

 Other Features:



  • High Power Output: With a power output of 30,000 Watts, Sol-Ark 30K can handle even the most demanding energy needs. It can power multiple appliances, tools, and machinery at the same time, making it an ideal choice for businesses with high energy requirements.

  • Battery Storage: The Sol-Ark 30K can store up to 102 kWh of energy with its advanced battery storage system. This means that you can use your solar power even when the sun is not shining, or during power outages. The battery system is expandable, allowing you to add more storage capacity as your needs grow.

  • Remote Monitoring and Control: With Sol-Ark 30K's remote monitoring and control system, you can monitor your energy usage, battery status, and system performance from anywhere in the world. The system is compatible with a wide range of devices, including smartphones and tablets.

  • Easy Installation: Sol-Ark 30K is designed for easy installation, with a simple and intuitive interface that makes it easy to set up and use. The all-in-one design eliminates the need for multiple components, reducing installation time and costs.

  • High Efficiency: The Sol-Ark 30K is highly efficient, with a maximum efficiency of 98%. This means that it can convert almost all of the solar energy it receives into usable power, reducing your energy costs and carbon footprint.

Engineered, Serviced, And Tested In The USA

Talk to a US Based Engineer 7 days a week

Applications

The best applications for the Sol-Ark 30k are off-grid, big gains, and time of use. For smaller scale systems, we highly recommend the Sol-ark 12k.

  • Grid-Tied Mode – Sell power back to the Utility to reduce your electric bill
  • Meter Zero Mode – Zero your electric bill without adding an additional smart meter
  • Time-Of-Use Mode – Use solar and batteries to minimize grid power usage when it’s most expensive
  • Smart Load Mode – Use a programmable output for high-power off grid loads or grid
  • Time-of-use loads – to run only when there is optimum solar – use excess PV power when batteries are full
  • Off Grid applications – battery agnostic
  • AC Coupling – retrofits to existing grid tie systems
  • Battery backup

Technical Features



  • Transformerless inverter
  • Pure sine wave
  • 120/240/208V
  • Grid-tie, off-grid, or hybrid applications (can be with or without batteries)
  • Wide variety or 48V battery chemistries, from lead to lithium
  • Simultaneously manages power to battery, loads, and grid
  • Expandable
  • Highly efficient

User Features And Integrations



  • Color touch screen
  • Remote monitoring from smart device
  • Battery disconnect
  • Battery temp sensor
  • Auto-generator start
  • Rapid shut down signal
  • Current sensors
  • Battery communication
  • PV Disconnect
  • Wiring knockouts
  • WiFi

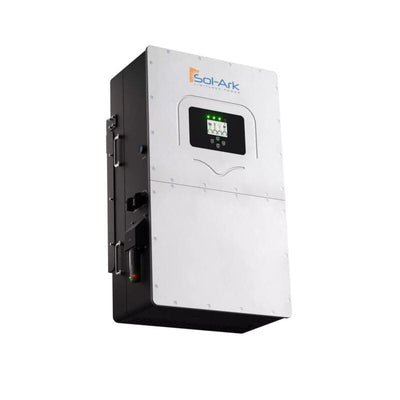

details-image

Specifications


Nominal DC Input > 300V
Capacity 50 — 9900Ah
Max Allowed PV Power 39,000W
Starting Voltage 150V
Number of MPPT 4
Dimensions (H x W x D) 35.2” x 20.8” x 11.6”
Weight 172 lbs
Enclosure IP65 / NEMA 3R
Ambient Temperature -40~60°C, >45°C Derating
Standard Warranty (verified by HALT Testing) 10 years
