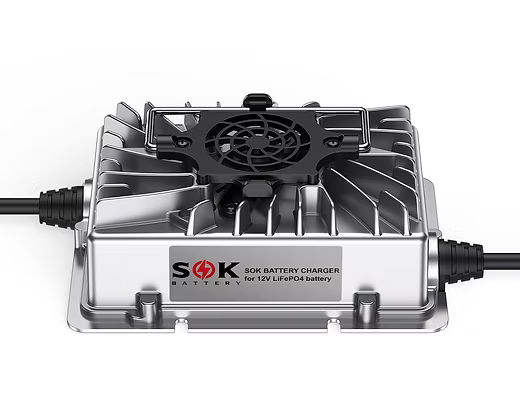

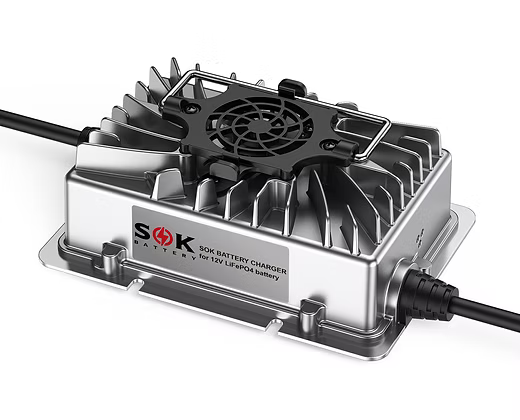

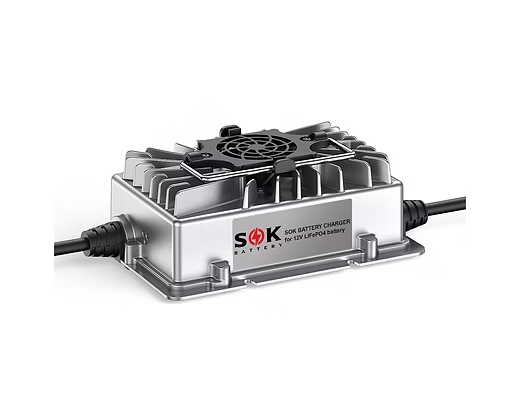

SOK Battery Charger for 12V LiFePO4 Battery (SK12V20A)

Suitable for all types of lead-acid, lithium batteries

A 280W Constant current to Constant Voltage output power supply for a variety of applications including charging of Electric Vehicle (EV) and battery systems contained within them.

FEATURES:

• High efficiency: 92% typical @230Vac, full load
• High power factor: 0.96 typical. @ 230Vac, full load
• With LED indicator
• Waterproof metal shell type

SPECIFICATIONS:

Input information:
Input voltage: 90Vac to 264Vac / single phase
Input Frequency Range: 47Hz ~ 63Hz
Max Efficiency: ≥89%

Output information:
Constant Voltage Output: 14.6±0.2V
Output Current Limit Range: 19A ~ 21A
Max Output Voltage: 14.8V

Protection:
1) Hardware Over Voltage Protection: When the output voltage exceeds 15V;
2) Short Circuit Protection

Temperature:
Operating Temperature: -20 ~ +45℃
Storage Temperature: -25 ~ +85℃

Life Time:
≥15,000 hours at 25℃; ambient temperature, Full load and nominal input condition.

GUIDE:

Specification Sheet
