SOK Battery 24V 150Ah LiFePO4 Battery with Built-in Heater & Bluetooth, Victron CAN Comms (SK24V150PH)

• CAN Communication with Victron Inverter: Supports CAN protocol, ensuring seamless communication and integration with Victron Cerbo GX.
• Self-Heating: Built-in self-heating functionality allows for reliable operation in low-temperature environments, perfect for installations in colder climates.
• Gas Aerosol Fireproof: Equipped with a gas aerosol fire suppression system for enhanced safety, quickly containing potential fire hazards.
• IP67 Waterproof & Dustproof: Designed with IP67 protection, offering excellent water and dust resistance for extended durability in outdoor and harsh environments.
• 15000+ Cycle Life: Delivers a long lifespan with over 15000 charge cycles, ensuring sustained performance over time.
• Bluetooth 5.1 for iOS and Android Apps: Allows real-time monitoring and control via Bluetooth on both iOS and Android devices .
• ON/OFF Switch: Features an easy-to-use switch for quick power control
• 500A/10s Peak Discharge Current: Supports a peak discharge of 500A for 10 seconds.
• Connect in series or in Parallel: Support connect max 10 batteries in parallel or max 2 batteries in series.
• Supports external sound and light alarms and relay control.

FEATURES:

• SOK 24V 150Ah lithium iron phosphate batteries.
• PC+ABS housing, best for  RV or marine applications!
• Up to 15000 cycles.
• Bluetooth Function,self-heater pad built-in.
• CAN Communication with Victron Cerbo GX
• Peak Discharge Current: 500A 10S
• Support  connect 10pcs in Parallel.
• Support connect in series for 48v bank.

SPECIFICATIONS:

Charge information:
Recommended Charge Current:150 A
Maximum Charge Current:200 A
Recommended Charge Voltage:<27.6 V

Discharge information:
Maximum Continuous Discharge Current:200 A
Peak Discharge Current:500 A (7.5 s ±2.5 s)
Recommended Low Voltage Disconnect: ≥21V

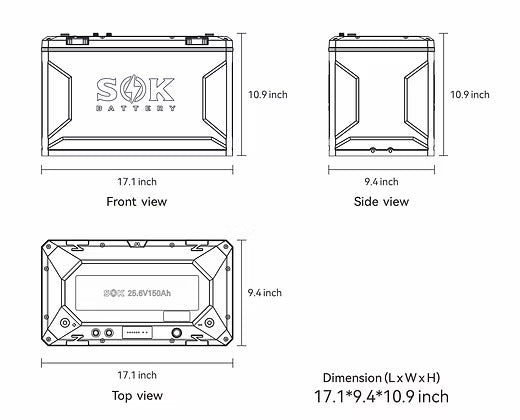

Size Information:17.1 inch X9.4 inchx10.9 inch
Terminal Type: M8, 5/16 lugs
Weight: 70 lbs.

Temperature Information:
Discharge Temperature: -4 to 140 ºF
Charge Temperature:4 to 122 ºF (built-in heater pad)
Storage Temperature: -23 to 95 ºF

Certifications:
UL1973&IEC62619 for Battery cells.
MSDS,UN38.3 for shipping.

GUIDE:

Specification Sheet
