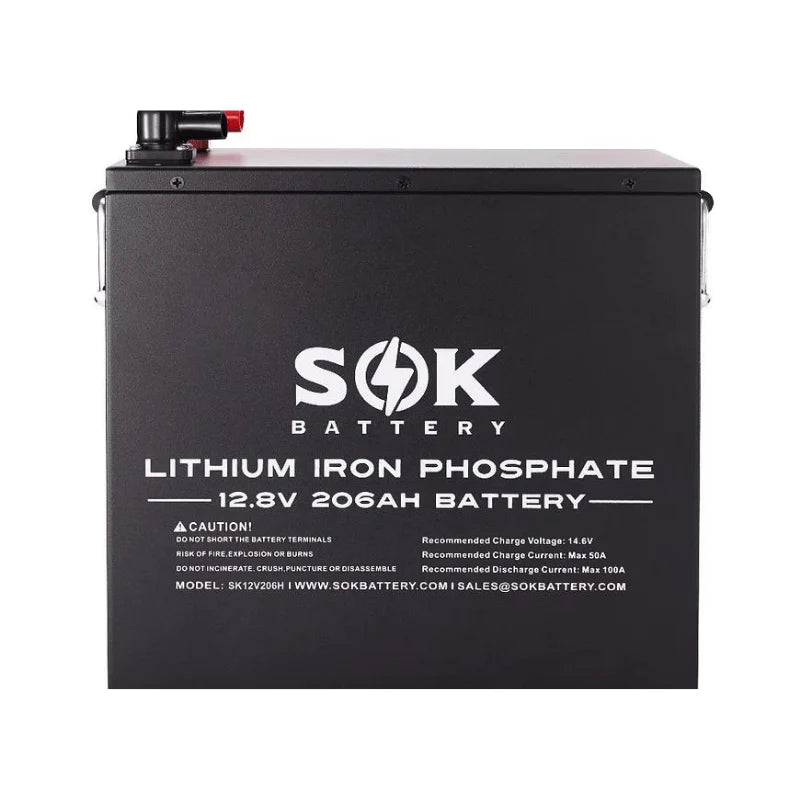

SOK Battery 12V 206Ah LiFePO4 Battery Bluetooth & Built-in Heater (SK12V206H) | 12V 206Ah Marine Grade LiFePO4 Battery in Sealed Plastic (SK12V206PH)
FEATURES:
SK12V206H
- Latest V8 version Bluetooth BMS, top battery cells balance function.
- Bluetooth & Built-in Heater Function SK12V206H designed for cold weather using!
- Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger.
- The heater pads which draws power from the charger itself,battery cells no power lost.
- 7 year warranty and maintenance free with a 3000-8000 cycles life span.
- Detachable cover with replaceable BMS and cells.
- Built-in heater pad for using in down to -4°F.
- Bluetooth4.0 , support IPhone or Android smartphone.
- Support connect in parallel for larger capacity.
- Built-in smart Battery Management System (BMS).
- Low temperature charging cut-off.
- High temperature charging or discharging cut-off.
- Over charging and discharging protection.
- Over current and short circuit protection.
- Battery cells auto balance.
Please note for connecting in series: NOT OVER 4 Batteries IN SERIES, and make sure add the battery voltage balancer.
Download the app to connect and monitor your SOK Battery.
Search ABC-BMS on google or apple store, download and install.
Please note: SOC is initially incorrect, it takes 2 full charge / discharge cycles to reach proper calibration.
SK12V206PH
- Latest V8 version BMS.
- Bluetooth BMS, Self-heater pad.
- 7 Years Warranty,3000~8000 Cycles Life Span, Free Maintenance.
- Detachable Cover,Replaceable BMS or Cells.
- Connect in series for 24V or 36V or 48V Battery Bank, or Connect in Parallel for Larger Capacity.
- Built-in Smart Battery Management System.
- Low Temperature Charging Cut-off.
- High Temperature Charging or Discharging Cut-off.
- Over Charging or Discharging Protection.
- Over Current & Short Circuit Protection.
- Battery Cells Auto Balance.
Notice for connect in series: If you need connect batteries in series, they should be at the same state-of-charge (SOC)before they are connected.

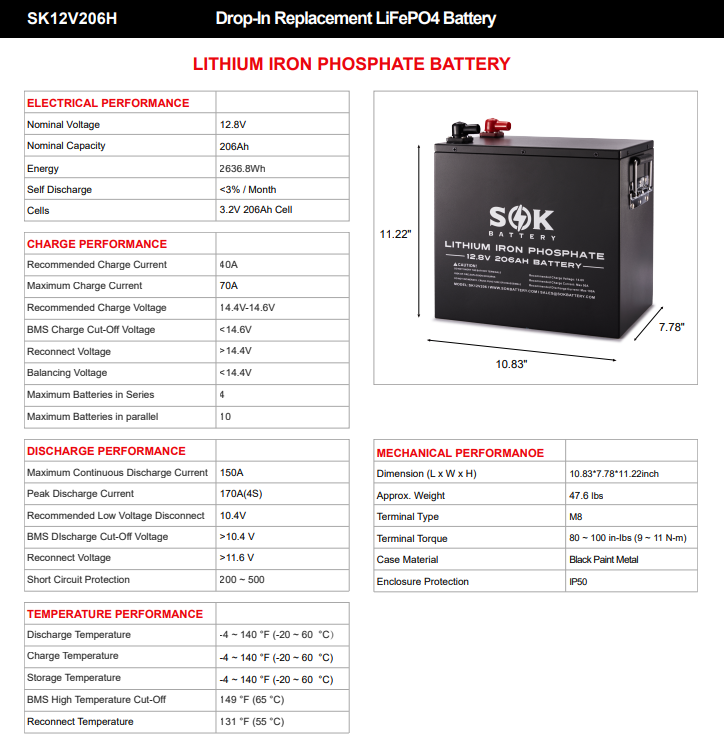

SPECIFICATIONS:
SK12V206H
Charge information:
Recommended Charge Current 40 A
Maximum Charge Current 70 A
Recommended Charge Voltage 14.6 V
Discharge information:
Maximum Continuous Discharge Current 170 A
Peak Discharge Current 200 A (3 s)
Recommended Low Voltage Disconnect 10.4V
Size Information:
Terminal Type: M8, 5/16 lugs
Weight: 48 lbs.
Dimensions: 12.3 x 12.9 x 7.9 inches
Temperature Information:
Discharge Temperature -4 to 140 ºF
Charge Temperature -4 to 113 ºF
Storage Temperature 23 to 95 ºF
Certifications Information:
UL1973 & IEC62619 for Battery cells.
SK12V206PH
Charge information:
Recommend charge current: 40A
Maximum charge current: 70A
Recommend charge voltage:14.4V ~14.6V
Maximum batteries in series: 4PCs batteries.
Discharge Information:
Maximum continuous discharge current: 170A
Peak discharge current: 200A(3 seconds)
Recommend low voltage disconnect: 11.2V
BMS discharge cut-off voltage: Around 10.4V
Reconnect Voltage:>11.6V
Size Information:
Terminal Type: M8, 5/16 lugs
Weight: 48 lbs.
Dimensions: 10.9 x 13.3 x 9.6 inches
Temperature Information:
Discharge temperature:-4°F~140°F
Charge temperature: 32°F~113°F
Recommend storage temperature:23°F~95°F
Certifications Information:
UL1973 & IEC62619 for Battery cells.
GUIDE:
SK12V206H Dimensions Sheet
SK12V206H Specification Sheet
SK12V206H & SK12V206PH UL Certification
SK12V206H & SK12V206PH Manual
SK12V206PH Dimension Sheet
SK12V206PH Specification Sheet
