Ruixu Self-Heating Server Rack Battery - Daisy Chain, Bracket Rack
RUiXU bracket rack is a specially designed accessory that allows you to stack up to nine Ruixu RX-LFP48100-H lithium batteries vertically in a compact and stable configuration. The RUiXU bracket rack is the perfect solution for homeowners and businesses who want to enjoy the benefits of a reliable, scalable, and cost-effective energy storage system.
For the non-heating server rack battery option, click here!

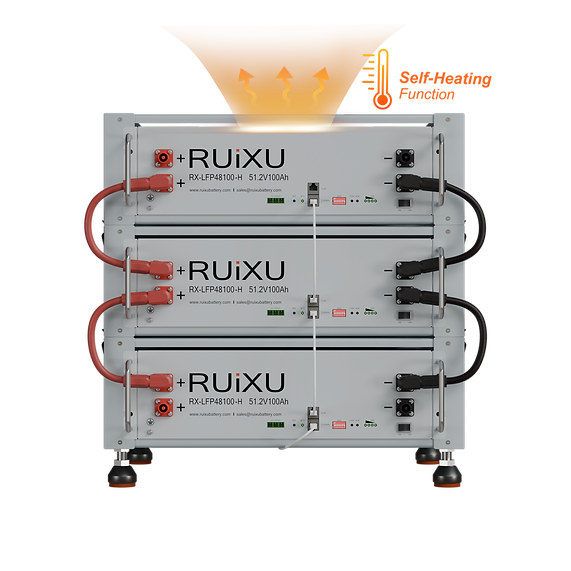

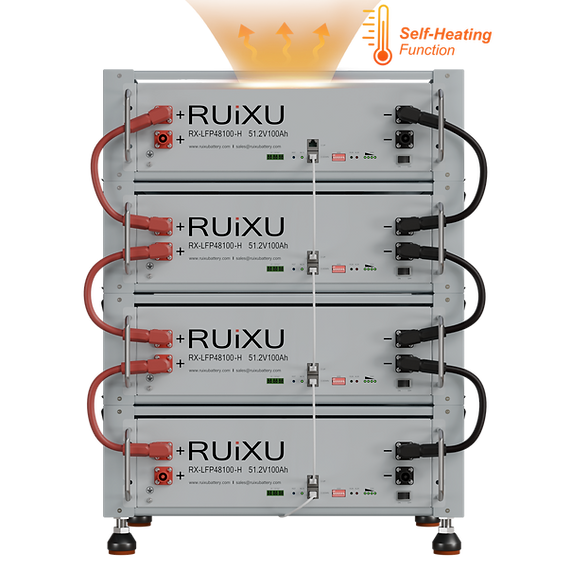

RUiXU Self-heating Server Rack Battery Optional Installation Method -Bracket Racks
- Flexibility & Stackable
- 10kWH-20kWH,Max 4 Stacks
- A rack can be added as needed it
Modular: Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing: Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications:
-
Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
-
RS485: MPP, Voltronic, RCT, Alpha outback
RX-LFP48100-H
- Self-heating 48V server rack battery is designed for cold weather using!
- Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger.
- The heater pads which draws power from the charger itself.
Standard Included:
- (1) RUiXU 48V Server Rack battery (RX-LFP48100)
- (1) RJ45/CAT5e Patch Cable
- (1) Ground Cable
- (1) Set of Parallel 4AWG Cables per battery
Accessories that require an additional purchase:
-
RS485 communcation cable with PC. This is used for monitoring the battery and firmware updates. If you need this cable, please add it to your cart and check out with batteries together.
- Inverter Communications Cables for RUiXU 48V Battery Bank
SPECIFICATIONS:
| Nominal voltage |
51.2V |
| Nominal capacity |
100Ah |
| Nominal energy |
5.12kWh |
| Usable energy |
4.92kWh |
| Operating voltage range |
44.8V–56.0V |
| Charge voltage |
56V |
| Float voltage |
54.6V |
| Recommended charge current |
50A |
| Max. charge current |
70A |
| Recommended discharge current |
50A |
| Max. discharge current |
100A |
| Communication |
RS485 / CAN |
| Peak discharge current |
101–119A @ 5mins | 120–149A @ 15S |
| IP rating |
IP20 |
| Cycle life |
≥6000 cycles @90%DOD |
| Net weight |
~103.6 lbs |
| Dimension (W*H*D) |
18.9*5.2*18.1 inches |
| Cell type |
Lithium-iron phosphate (LiFePO4) |
| Design life |
15 years |
| Operation temperature |
14–122°F |
| Storage temperature |
14–113°F |
| Relative humidity |
5%–90% No condensation |
| Install altitude |
≤4000m |
| Installation location |
Indoor |
| Installation |
Wall mounted / Floor mounted / Stack / Rack mounted |
| Certification |
CE / IEC62619 / UN1973 / UN38.3 |
| Heater Specifications |
| Voltage |
56V |
| Power Consumption |
250W |
| Function |
self-heating starts ≤4l°F (5°C), ≥53.6°F(5°C) self-heating stops |
GUIDE:
