Ruixu Lithium Batteries Kits | 15kWH, 20kWH, 25kWH, 30kWH
OPTIONS:
- RX-LFP48100 - CEC | SGIP
- RX-LFP48100-H - SELF-HEATING
DESCRIPTION & FEATURES:
RX-LFP48100
-
Nominal voltage：51.2V
-
Nominal capacity@0.2C: 100 Ah
-
Min. capacity@0.2C：100 Ah
-
Nominal energy: 5120Wh
-
Dimesion(W*D*H): 482.6x460x133mm | 19 x 18.1 x 5.23 inch
-
Weight: 47kg (103.6lb)
Modular: Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing: Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications:
-
Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
-
RS485: MPP, Voltronic, RCT, Alpha outback
Standard Included:
- (1) RUiXU 48V Server Rack battery (RX-LFP48100)
- (1) RJ45/CAT5e Patch Cable
- (1) Ground Cable
- (1) Set of Parallel 4AWG Cables per battery
Accessories that require an additional purchase:
-
RS485 communcation cable with PC. This is used for monitoring the battery and firmware updates. If you need this cable, please add it to your cart and check out with batteries together.
- Inverter Communications Cables for RUiXU 48V Battery Bank

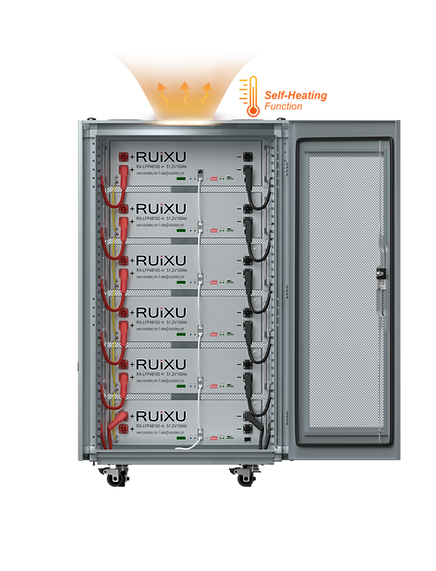

RX-LFP48100-H
Self-heating 48V server rack battery is designed for cold weather using!
Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger.
The heater pads which draws power from the charger itself.
-
Nominal voltage：51.2V
-
Nominal capacity@0.2C：100 Ah
-
Min. capacity@0.2C：100 Ah
-
Nominal energy: 5120Wh
-
Dimesion(W*D*H): 482.6x460x133mm | 19 x 18.1 x 5.23 inch
-
Weight: 47kg (103.6lb)
Modular: Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing: Use DIP address to set the RS485 baud rate and inverter protocol choosing.
Communications:
-
Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
-
RS485: MPP, Voltronic, RCT, Alpha outback
Standard Included:
15kWh Lithium Batteries Kits
- (3) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
- (3) RJ45/CAT5e Patch Cable
- (3) Ground Cable
- (3) Sets 30cm Parallel 4AWG Cables per battery
- (1) Pre-assembled 6 Slot Battery Cabinet

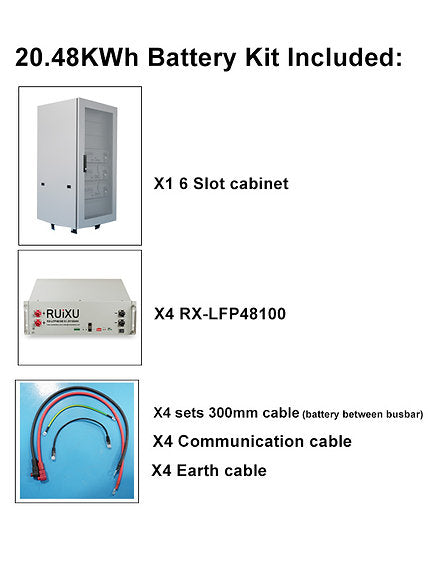

20kWh Lithium Batteries Kits
- (4) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
- (4) RJ45/CAT5e Patch Cable
- (4) Ground Cable
- (4) Sets 30cm Parallel 4AWG Cables per battery
- (1) Pre-assembled 6 Slot Battery Cabinet

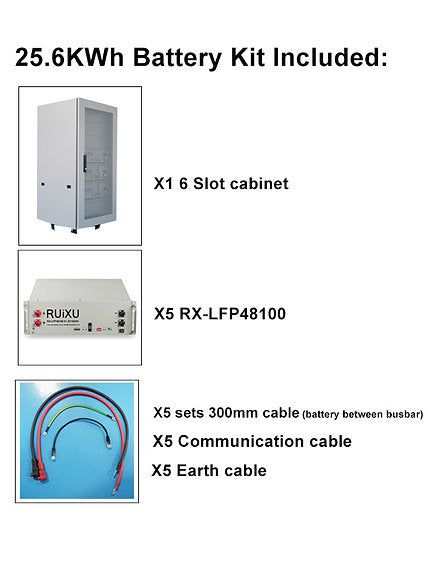

25kWh Lithium Batteries Kits
- (5) RUiXU Self-heating 48V Server Rack battery (RX-LFP48100-H)
- (5) RJ45/CAT5e Patch Cable
- (5) Ground Cable
- (5) Sets 30cm Parallel 4AWG Cables per battery
- (1) Pre-assembled 6 Slot Battery Cabinet

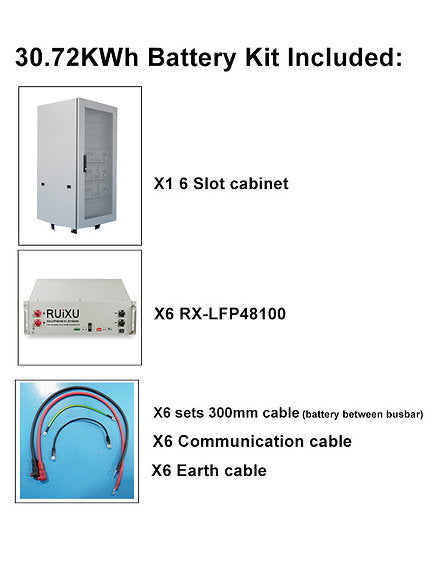

30kWh Lithium Batteries Kits
- (6) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
- (6) RJ45/CAT5e Patch Cable
- (6) Ground Cable
- (6) Sets 30cm Parallel 4AWG Cables per battery
- (1) Pre-assembled 6 Slot Battery Cabinet
