Ruixu 600A Busbar Pair – 3/8" (M10) Terminal Studs, Compatible with OP140 & OP200

Ruixu 600A Busbar Pair – 3/8" (M10) Terminal Studs, Compatible with OP140 & OP200

by Ruixu
SKU RX5600
$85.00 - $125.00
$85.00
$85.00 - $125.00
$85.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized Ruixu Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937

Ruixu 600A Busbar Pair – 3/8" (M10) Terminal Studs, Compatible with OP140 & OP200

OPTIONS: SIZE

  • RX5600
  • RX8600

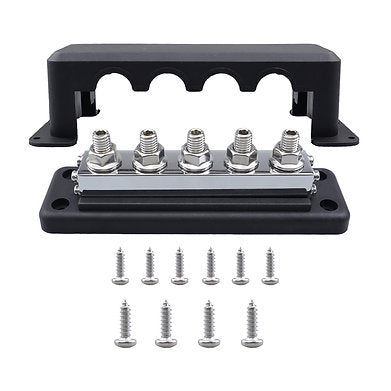

The RUiXU 600A Busbar Pair is engineered for high-current power distribution in demanding battery and inverter systems. With robust 3/8" (M10) terminal studs and durable insulated construction, this busbar set is ideal for clean, safe, and efficient wiring—especially in systems utilizing OP140 or OP200 batteries.

Whether you're setting up a mobile RV system, off-grid solar array, or industrial-grade power bank, these busbars provide the performance and reliability your setup demands.

FEATURES:

  • High Current Capacity (600A)
    Supports up to 600 amps continuous for heavy-duty applications.

  • 3/8" (M10) Terminal Studs
    Secure and stable connections for thick gauge wires and ring terminals.

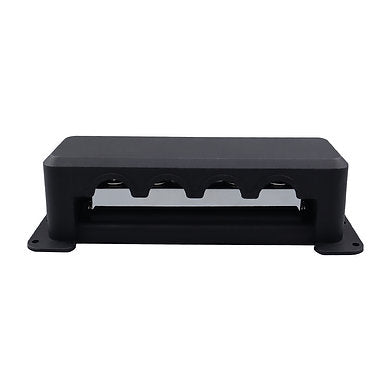

  • Insulated Protective Covers
    Removable covers included for added safety and contact protection.

  • Dual Busbar Pair
    Comes with one red (positive) and one black (negative) busbar for easy polarity identification.

  • Heavy-Duty Construction
    High-conductivity copper core and impact-resistant plastic base for durability in harsh environments.

SPECIFICATIONS:

Specification Details
Model RX5600
Dimensions (W x D x H) 2.2 x 8 x 2.2 inch / 55 x 204 x 56 mm
Weight 1.7 lb / 0.75 kg
Other Heavy Duty 5-Post Power/Ground Distribution Busbar | (X5) 3/8" Terminal Post & (x4) 14mm Fastening Nuts | Constructed out of Highly Conductive Nickel Coated Copper | Features a Robust Polymer Mounting Base | Each busbar is fitted out with a removable protection cover
Specification Details
Model RX8600
Dimensions (W x D x H) 2.2 x 12.4 x 2.2 inch / 56 x 316 x 56 mm
Weight 2.9 lb / 1.3 kg
Other Heavy Duty 5-Post Power/Ground Distribution Busbar | (X8) 3/8" Terminal Post & (x8) 14mm Fastening Nuts | Constructed out of Highly Conductive Nickel Coated Copper | Features a Robust Polymer Mounting Base | Each busbar is fitted out with a removable protection cover

GUIDE:

Manual and Specifications

FAQS:

Can this busbar handle continuous 600A loads?

Yes. It is rated for 600A continuous use, ideal for high-load DC systems.

Is this compatible with 48V battery banks?

Yes. It works with 12V, 24V, and 48V DC systems, commonly used in solar and inverter setups.

Do the covers come included?

Yes. Both red and black protective covers are included to help prevent accidental contact.

Can I mount this on a wall or panel?

Yes. Each busbar includes mounting holes for secure installation.
