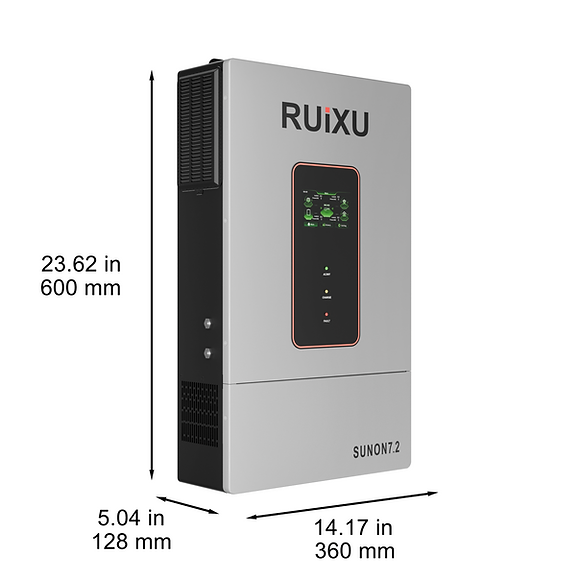

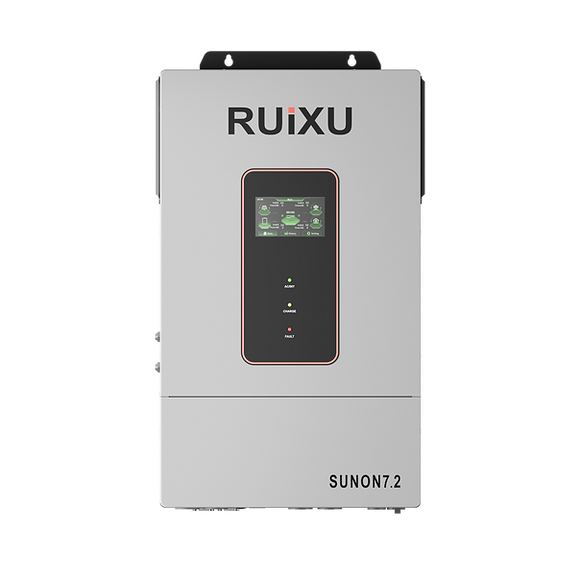

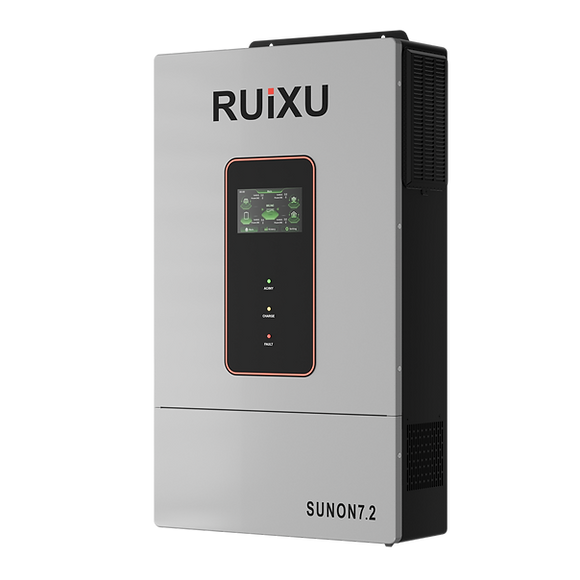

Ruixu 7.2kW Single/Split-Phase Off-Grid Inverter UL1741 (SUNON7.2)

Advanced solar energy storage solution compatible with 48v batteries, featuring a charging capacity of up to 150A. The innovative hybrid charging mode allows for charging from both the grid and solar sources, while the time-sharing charge and discharge function optimizes energy usage. Supporting parallel connections of up to six units for a total capacity of 43.2kW. This inverter is ideal for both residential and commercial applications. Efficiently harness and manage solar energy for maximum savings and performance with the SUNON7.2.

FEATURES:

Powerful Hybrid Charging
Supports charging up to 150A, combining solar and grid hybrid charging

Intelligent Time-Sharing
Allows for timed charging and discharging, maximizing energy efficiency.

Stackable Design
Stack up to 6 units for a total output of 43.2kW120V/240V Output. Provides 120V and 240V to meet you need.

Dual MPPT Technology
Dual MPPT design ensures optimal solar energy utilization, 99% MPPT efficiency.

Rapid Shutdown
Quickly de-energizes solar PV systems to protect first responders

WiFi & App Integration
Connects via WiFi to an app for easy access and monitoring of information.

INCLUSIONS:

• (1) SUNON7.2 7.2kW Inverter
• (1) 200CM CAT6 Communcation cable connect with battery
• (1) Operation manual
• (1) Wifi dongle

GUIDE:

Specifications Sheet
