Ruixu 51.2V 100Ah Server Rack-Mounted Self-Heating LiFePO4 Battery - 5.12kWh (RX-LFP48100-H)
For No-Heating LiFePO4 Battery, click here: RX-LFP48100 !
A cold-weather-ready, high-efficiency energy storage solution for off-grid, telecom, and industrial backup systems. The RUiXU RX-LFP48100-H combines advanced LiFePO₄ chemistry, modular scalability, and self-heating capability to deliver reliable performance even in harsh climates.
FEATURES:
-
Modular & Scalable Design:
-
Compact 3U Form Factor:
-
Advanced Battery Management System (BMS):
-
Over-charge, over-discharge, over-current, and short circuit protection
-
Balances cell voltages automatically for longevity
-
Multiple Installation Options:
-
User-Configurable Communication:
APPLICATIONS:
- Off-Grid Solar Systems
- Home & Cabin Energy Storage
- Telecom & Data Center Backup
- Industrial Equipment Power Backup
- Renewable Energy Storage (solar, wind, hybrid)
INCLUSIONS:
- (1) RUiXU RX-LFP48100 48V Battery Module
- (1) RJ45 / CAT5e Patch Cable
- (1) Ground Cable
- (1) Set of 4AWG Parallel Cables (per battery)
Optional Accessories (Sold Separately)
Cables & Installation Notes
- 300mm cabinet cable included for battery-to-busbar connection
- 250mm inter-battery cable included (for 48V 2000W–5000W systems)
-
Optional brackets available for alternate mounting scenarios
SPECIFICATIONS:
| Parameters |
RX-LFP48100-H |
| Nominal voltage |
51.2V |
| Nominal capacity |
100Ah |
| Nominal energy |
5.12kWh |
| Usable energy |
4.92kWh |
| Operating voltage range |
44.8V–56.0V |
| Charge voltage |
56V |
| Float voltage |
54.6V |
| Recommended charge current |
50A |
| Max. charge current |
70A |
| Recommended discharge current |
50A |
| Max. discharge current |
100A |
| Communication |
RS485 / CAN |
| Peak discharge current |
101–119A @ 5mins | 120–149A @ 15S |
| IP rating |
IP20 |
| Cycle life |
≥6000 cycles @90%DOD |
| Net weight |
~103.6 lbs |

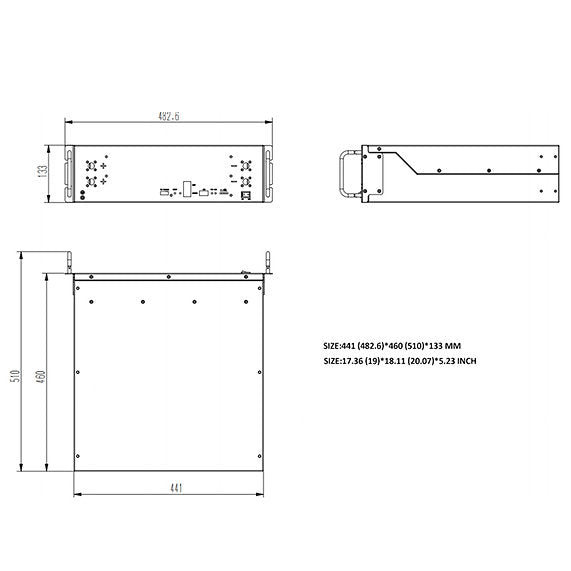

| Dimension (W*H*D) |
18.9*5.2*18.1 inches |
| Cell type |
Lithium-iron phosphate (LiFePO4) |
| Design life |
15 years |
| Operation temperature |
14–122°F |
| Storage temperature |
14–113°F |
| Relative humidity |
5%–90% No condensation |
| Install altitude |
≤4000m |
| Installation location |
Indoor |
| Installation |
Wall mounted / Floor mounted / Stack / Rack mounted |
| Certification |

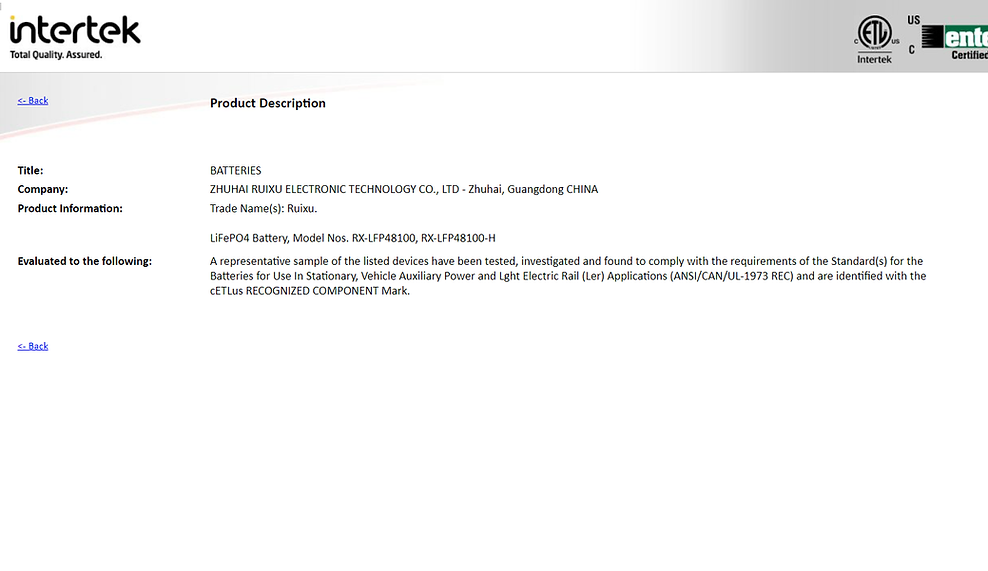

CE / IEC62619 / UN1973 / UN38.3 |
| Heater Specifications |
| Voltage |
56V |
| Power Consumption |
250W |
| Function |
self-heating starts ≤4l°F (5°C), ≥53.6°F(5°C) self-heating stops |
| Communications |
| Canbus |
Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye,
Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB,
MUST, Sunsynk,Schneider |
| RS485 |
MPP, Voltronic, RCT, Alpha outback |
GUIDE:
FAQS:
Can I expand this battery system? Yes, the RX-LFP48100-H can be expanded up to 32 batteries in parallel, supporting a total capacity of 160kWh.
Is this battery compatible with my inverter? This battery supports CANbus and RS485 communication protocols, making it compatible with major inverters such as Victron, SMA, Sol-Ark, Growatt, and Goodwe.
Can this battery charge in freezing temperatures? Yes! The self-heating function allows safe charging at temperatures as low as -4°F (-20°C). For No-Heating LiFePO4 Battery, click here: RX-LFP48100 !
Can this be used for telecom or server rack applications? Absolutely! The 3U rack-mounted design makes it an ideal UPS backup solution for data centers, telecom infrastructure, and IT applications.
How long does the battery last? With 6,000+ cycles at 90% DOD, this battery is designed to last over 10 years with proper use.
