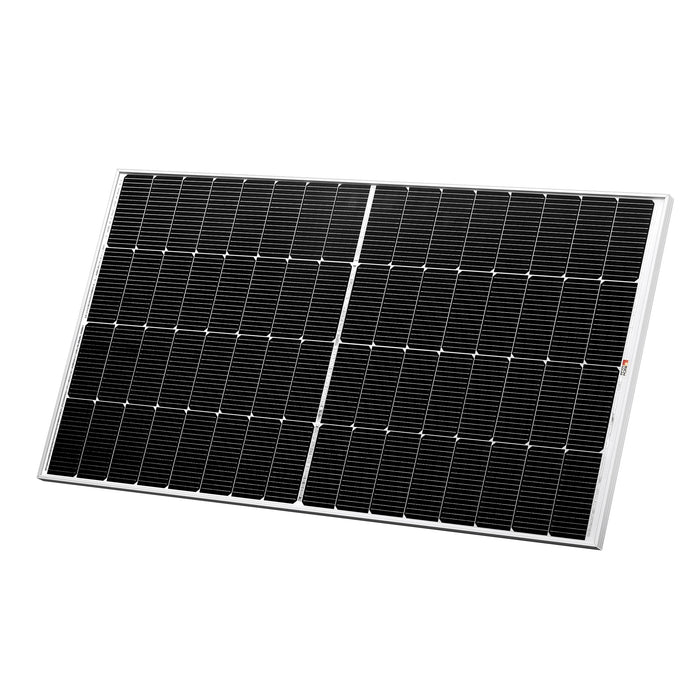

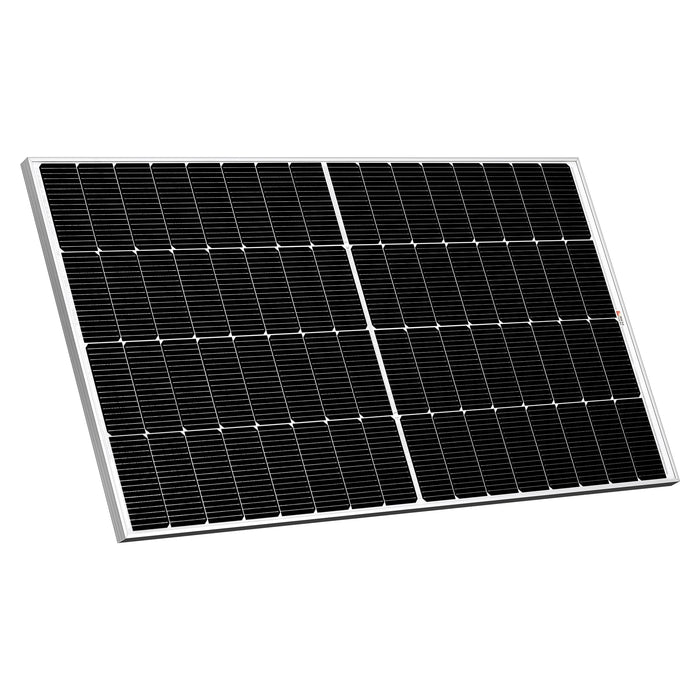

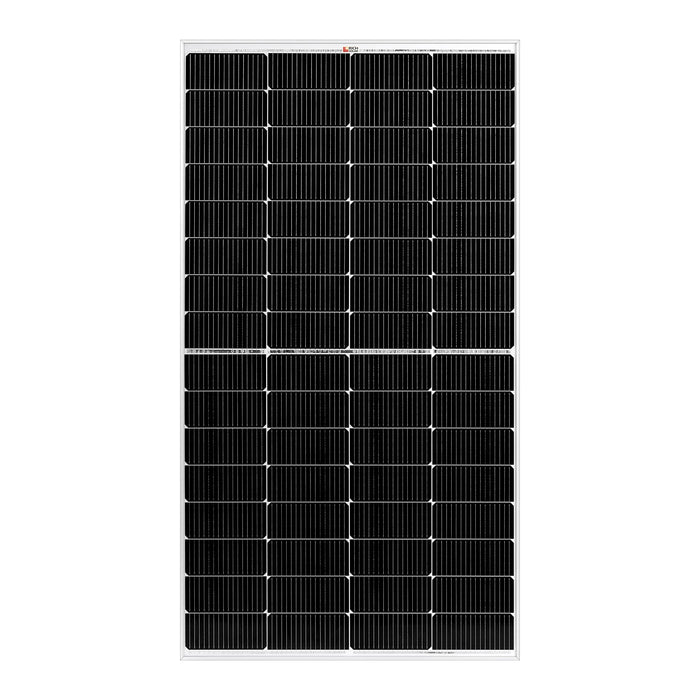

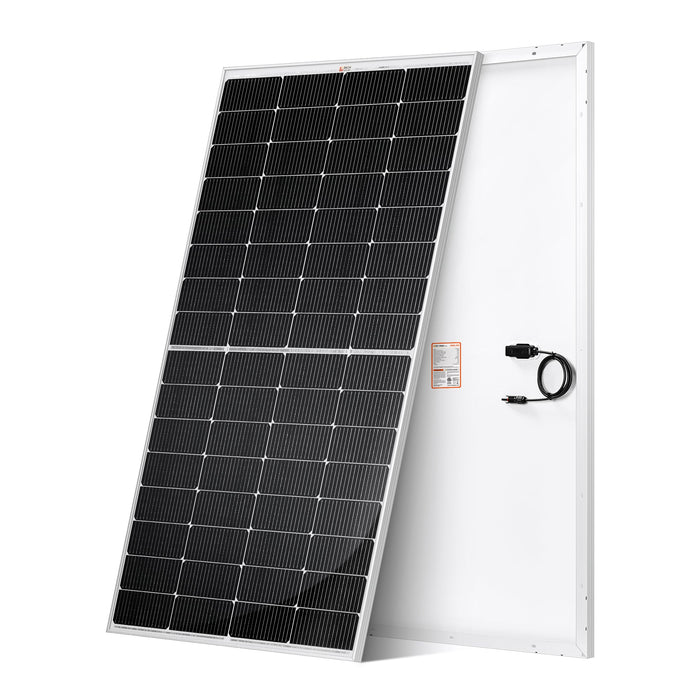

Rich Solar Mega 220 - 220W 12V Off-Grid Solar Panel
Premium 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified
DESCRIPTION & FEATURES:
- 15-busbar solar cell configuration

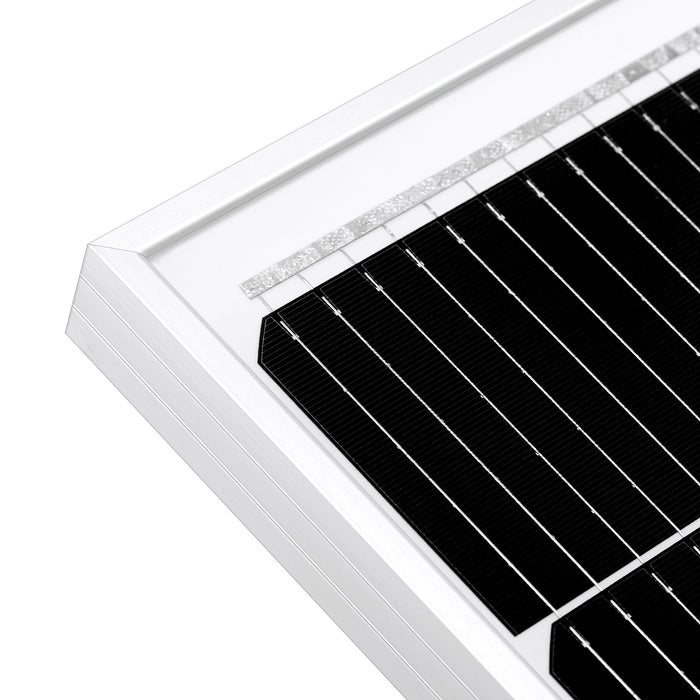

- Lightweight, anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry standard quick-connect cables work in series or in parallel
- Excellent low light performance on cloudy days, mornings and evenings
- Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
- Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)
- 25-year output warranty
- 10-year workmanship warranty
BUILT-IN COMPONENTS:
- 220 watt solar panel
- Panel leads (pair): 3 feet each

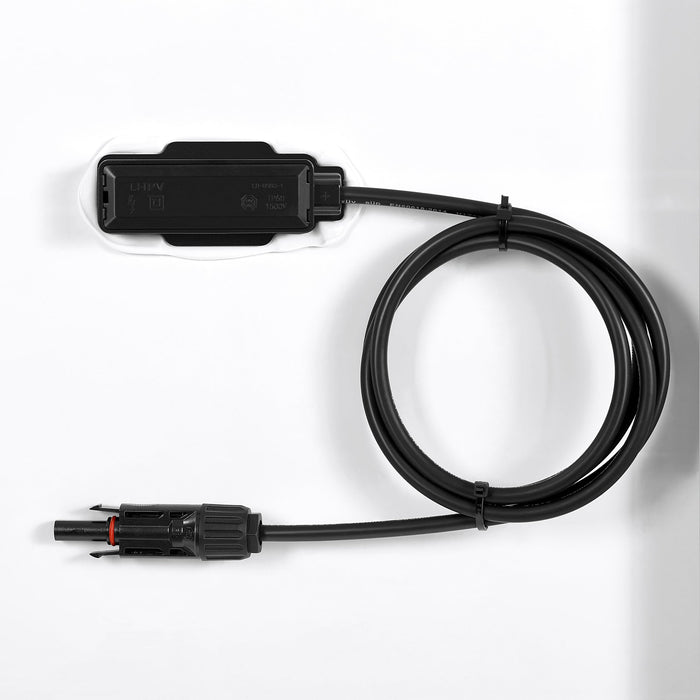

- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box

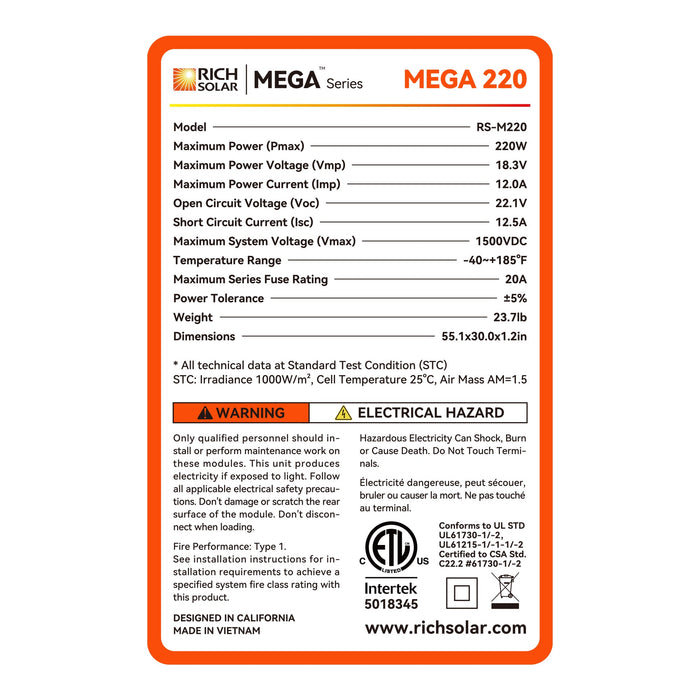

SPECIFICATIONS:
| Model |
RS-M220 |
| Maximum Power(Pmax) |
220W
|
| Maximum Power Voltage(Vmp) |
18.3V |
| Maximum Power Current(Imp) |
12.0A |
| Open Circuit Voltage(Voc) |
22.1V |
| Short Circuit Current(Isc) |
12.5A |
| Maximum System Voltage(Vmax) |
1500 VDC |
| Temperature Range |
-40~ +185℉ |
| Weight |
23.7lb (10.7kg) |

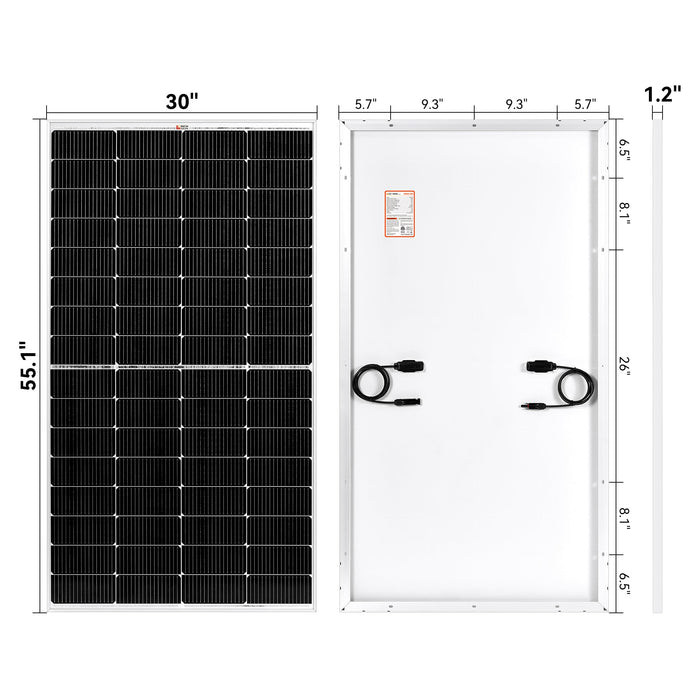

| Dimensions |
55.1x30.0x1.2in (1400x760x30mm) |
INSTALLATION:
Easy installation and handling for various applications (high-end off-grid and mobile applications)

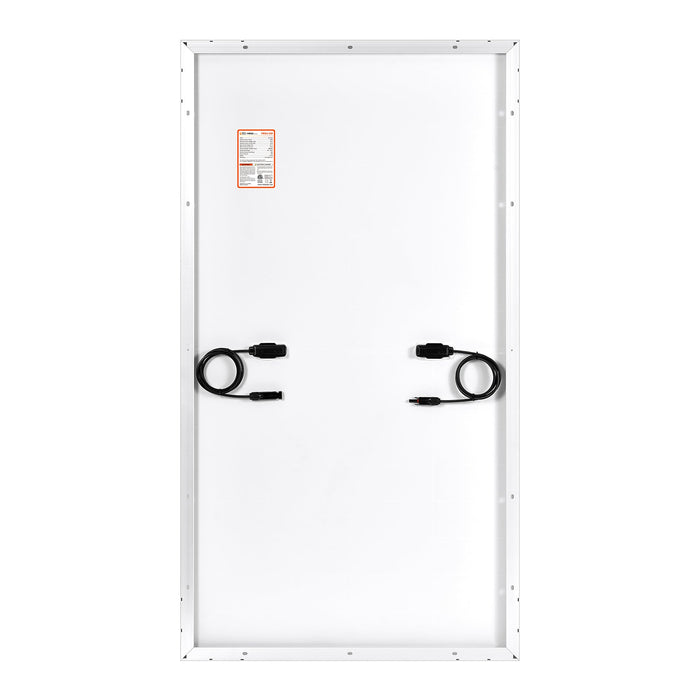

Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
Compatible with on-grid and off-grid inverters
