Rich Solar Mega 150 - 150W 12V Off-Grid Solar Panel
Lightweight 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified
DESCRIPTION & FEATURES:
Combining high efficiency and a compact design, the MEGA 150 solar panel provides optimized solar energy for any off-grid application. Built with lightweight aluminum anodized frames and a 9-busbar solar cell configuration for durability and high efficiency for optimized performance.
- 9 busbar solar cell configuration
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box

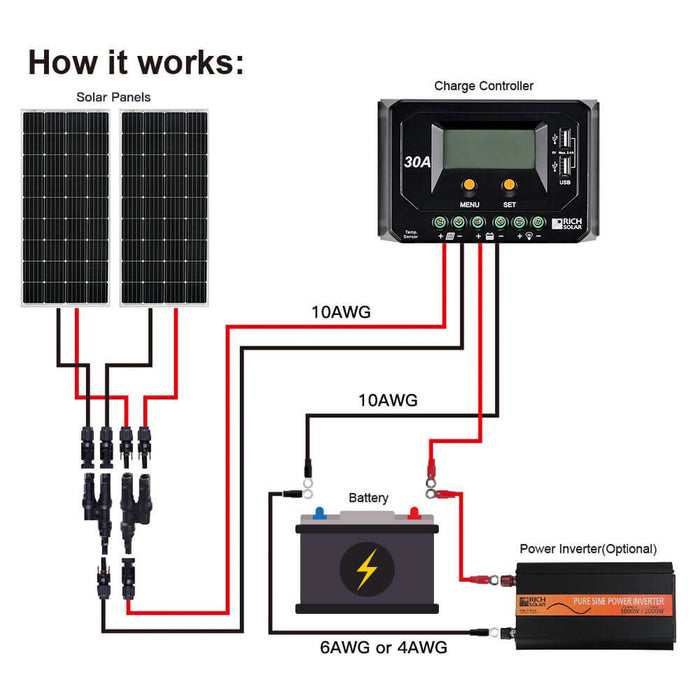

- Industry-standard quick-connect cables work in series or parallel
- Certified to withstand challenging environmental conditions
- Excellent low-light performance on cloudy days, mornings, and evenings
BUILT-IN COMPONENTS:
- RICH SOLAR 150-watt monocrystalline solar panel
- Panel leads (pair): 3 feet each
- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box
SPECIFICATIONS:
| Model |
RS-M150 |
| Maximum Power(Pmax) |
150W
|
| Maximum Power Voltage(Vmp) |
19.5V |
| Maximum Power Current(Imp) |
7.69A |
| Open Circuit Voltage(Voc) |
23.6V |
| Short Circuit Current(Isc) |
8.06A |
| Maximum System Voltage(Vmax) |
1000VDC |
| Temperature Range |
-40 ~ +185°F |
| Weight |
18.0 lbs |
| Dimensions |
42.5 x 27.6 x 1.2 in |
INSTALLATION:
Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
Compatible with on-grid and off-grid inverters
