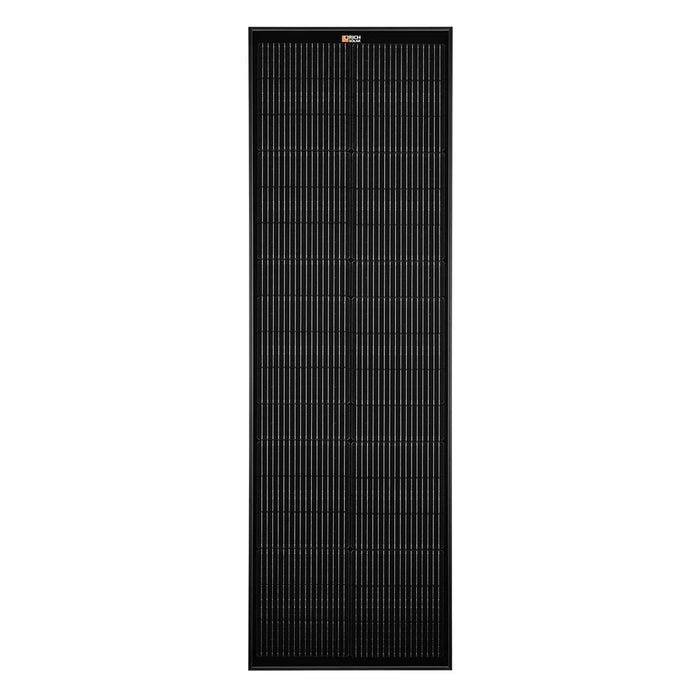

Rich Solar Mega 100 Slim - 100 Watt Slim Solar Panel

Compact 12V Off-Grid Narrow Solar Panel for Vans, Overlanders, Boats | 25-Year Output Warranty | UL Certified

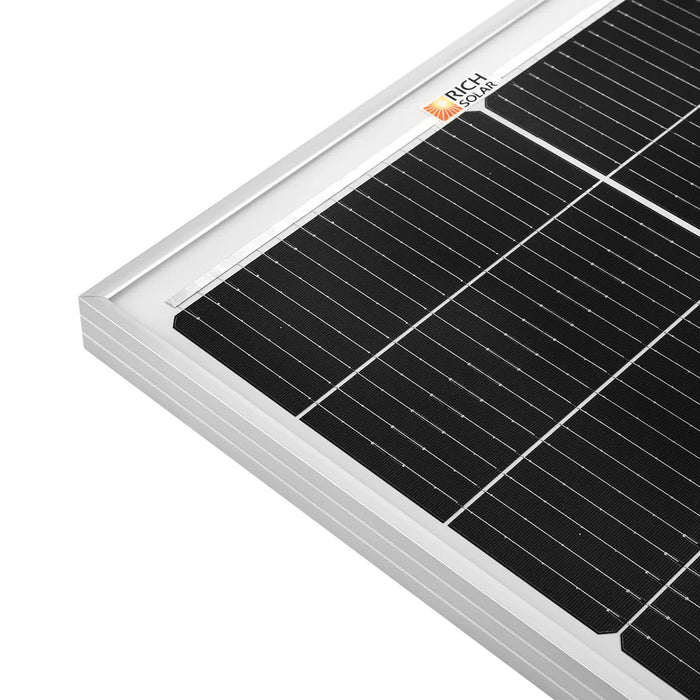

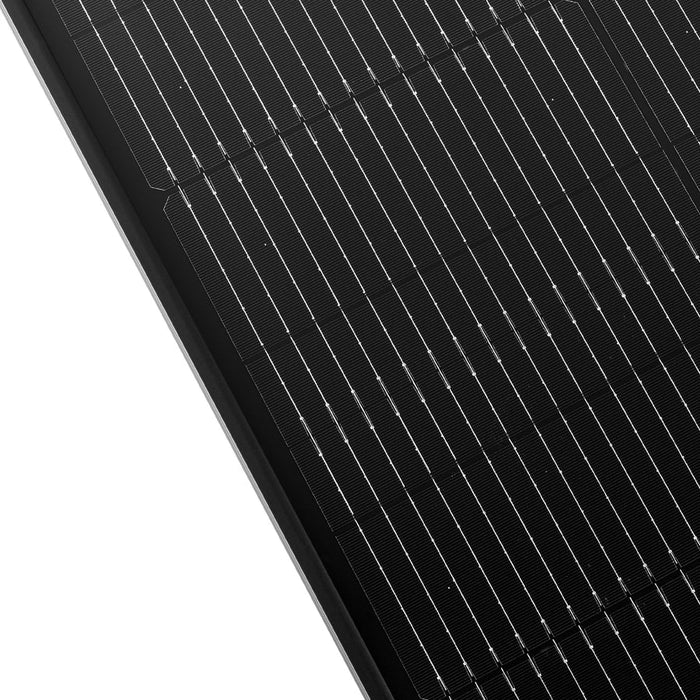

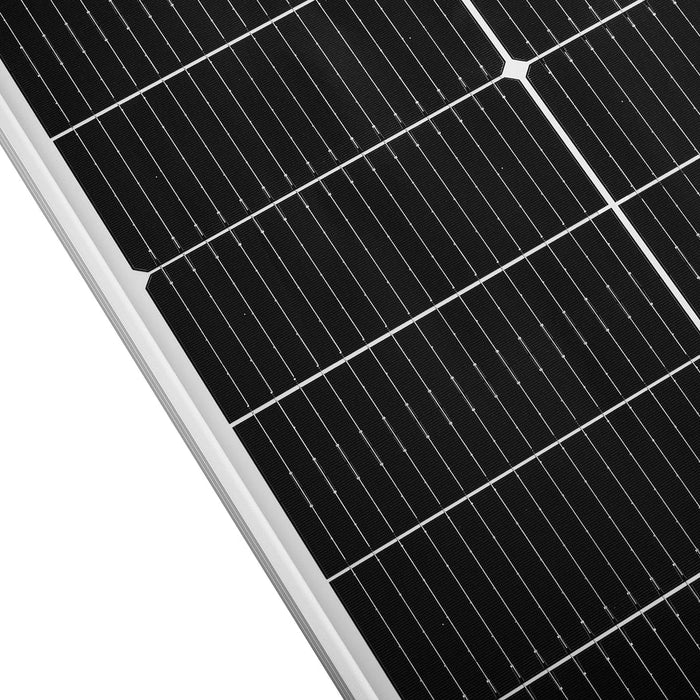

• 16-busbar monocrystalline cells with up to 24.6% efficiency
• 34-cell configuration delivers a reliable 100W output
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
• Power tolerance 0 to +5W ensures at least the rated output
• Excellent low-light performance on cloudy days and at dawn/dusk
• Tested for UV exposure, thermal cycling, humidity freeze, and more
• PID-resistant and 100% EL-inspected to prevent microcracks
• Certified to withstand 2400 Pa wind, 5400 Pa snow load, and 35 mm hail at 97 km/h
• Perfect for RVs, vans, truck campers, overland rigs, and marine systems

INSTALLATION:

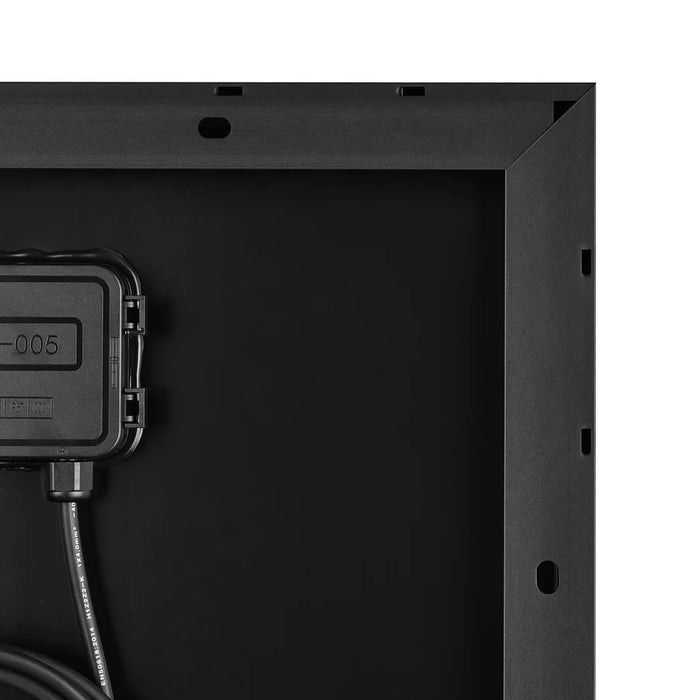

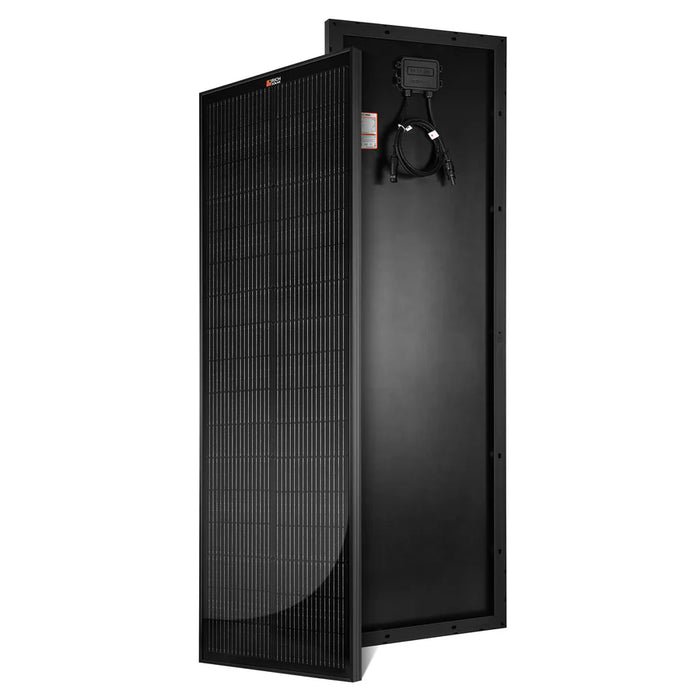

• Durable anodized aluminum frame — lightweight and corrosion-resistant

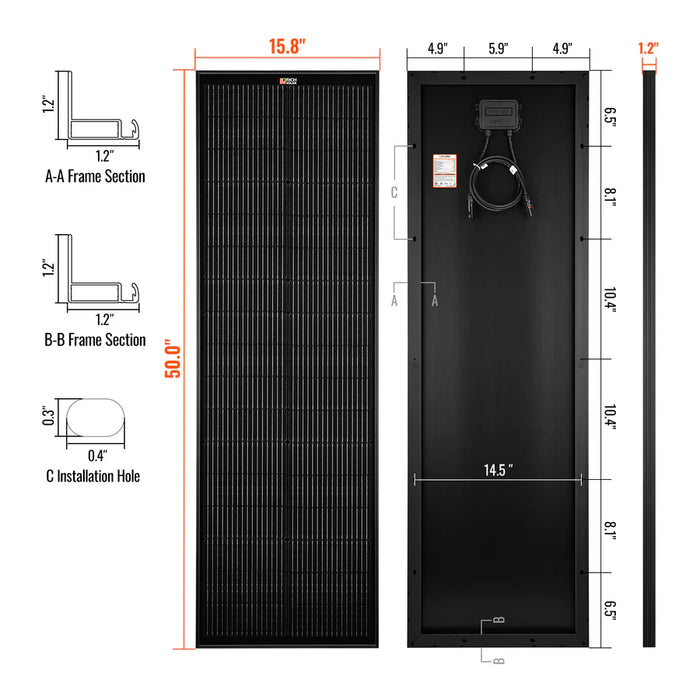

• 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation

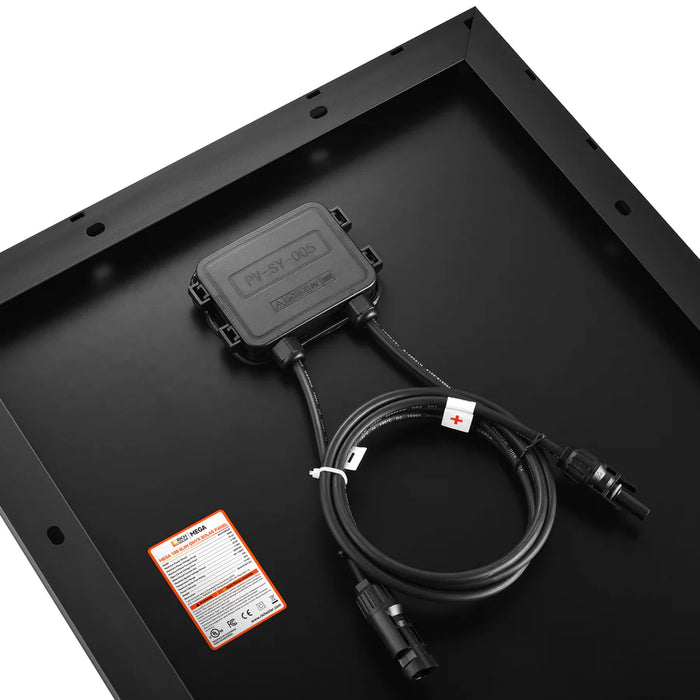

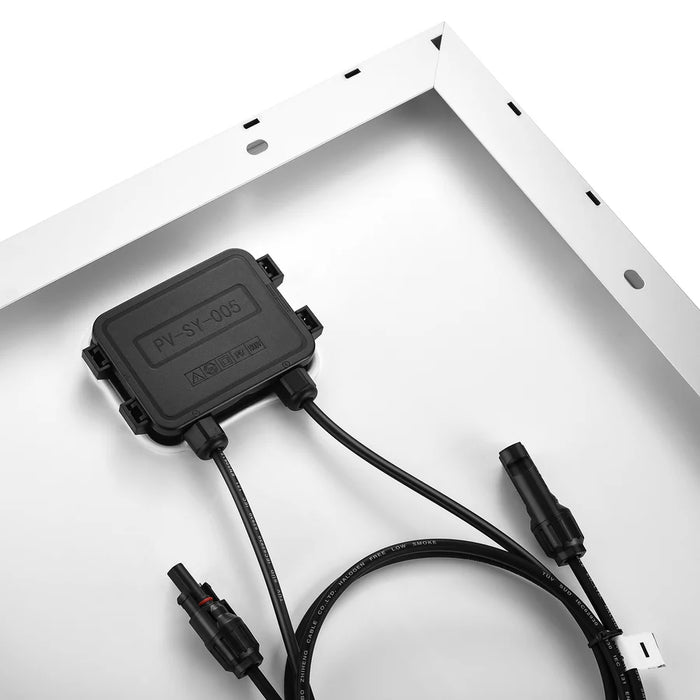

• MC4 connectors with 3 ft pre-attached cables for easy connection to other solar panels
• Compatible with both on-grid and off-grid inverters

WARRANTY:

• 25-year output warranty
• 10-year workmanship warranty

BUILT-IN COMPONENTS:

• Panel Leads (Pair): 12 AWG, 3 ft each

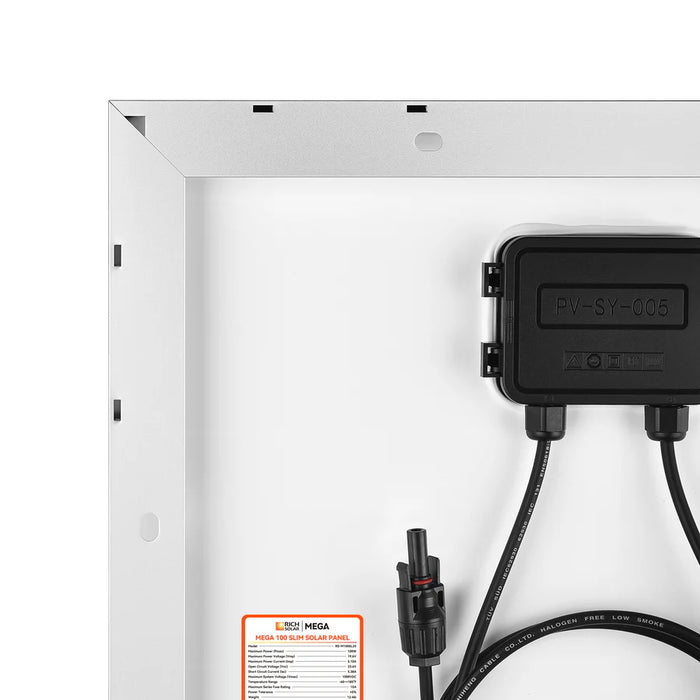

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

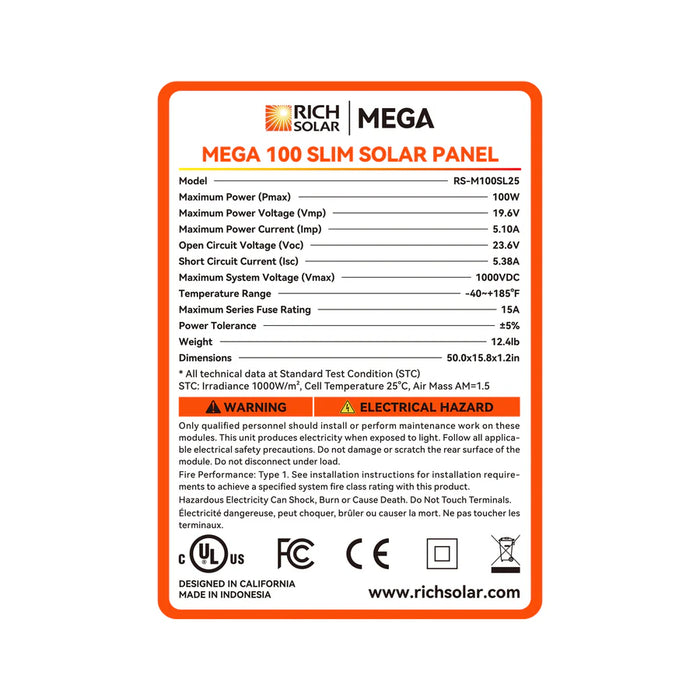

SPECIFICATIONS:

• Maximum Power(Pmax): 100W
• Maximum Power Voltage(Vmp): 19.6V
• Maximum Power Current(Imp): 5.1A
• Open Circuit Voltage(Voc): 23.6V
• Short Circuit Current(Isc): 5.38A
• Maximum System Voltage(Vmax): 1000VDC
• Maximum Series Fuse Rating: 15A
• Weight: 12.4 lb

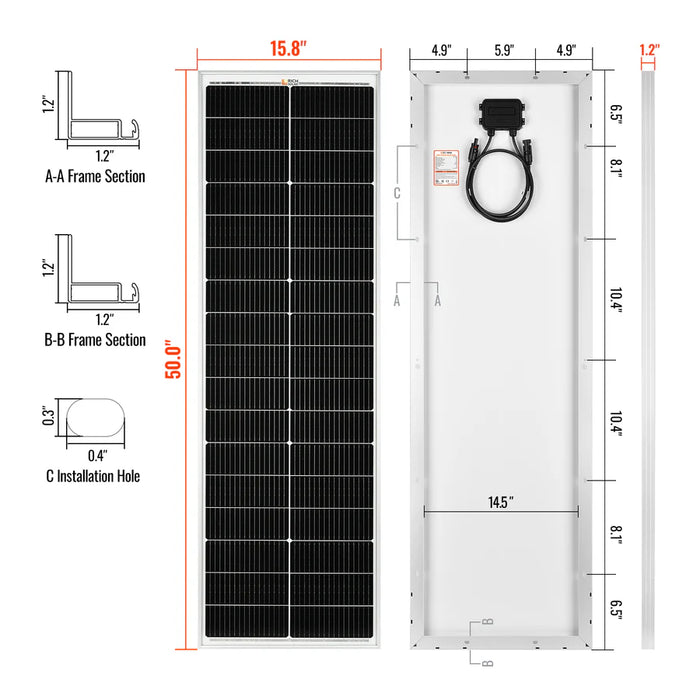

• Dimensions: 50.0 x 15.8 x 1.2 in
