Rich Solar Basic 400 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging (RS-K4004)
Our Basic 400 Watt Solar Kit includes a high-efficiency 200W Monocrystalline panel with 18 busbars and a 30A MPPT controller. One of the best 200W solar panel kits in the market, this can be paired with our 100AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, go solar now and start powering your travel trailer solar system!

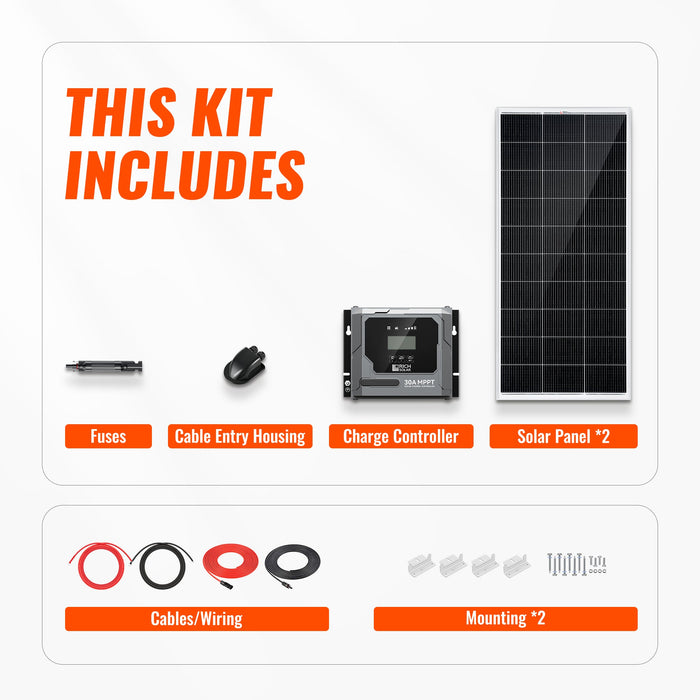

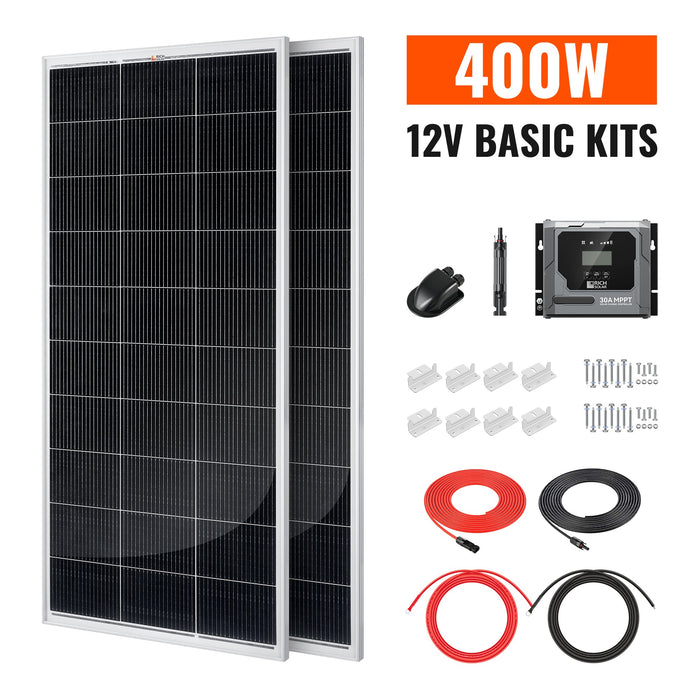

KIT INCLUDES:
- 2 x 200 Watt Monocrystalline Solar Panel(RS-M200)
- 1 x Bravo 30A MPPT Charge Controller (RS-MPPT30PB)
- 2 x Mounting Z Brackets (one set)(RS-ZB4C)
- 1 x Cable Entry Housing (RS-C2B)
- 1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
- 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
- 1 x 10' 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
MEGA 200 - 12V 200W Solar Panel
The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.
FEATURES:
- Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
- Excellent low-light performance even on early mornings, evenings, and cloudy days.
- Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
- Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- 25-year limited warranty for power output; 10-year workmanship warranty.
INSTALLATION:
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
WARRANTY:
- 25-year limited power output warranty
- 10-year workmanship warranty
SPECIFICATIONS:
-
Maximum Power(Pmax): 200W
-
Maximum Power Voltage(Vmp): 18.4V
-
Maximum Power Current(Imp): 10.9A
-
Open Circuit Voltage(Voc): 21.8V
-
Short Circuit Current(Isc): 11.6A
-
Temperature Range: -40 ~ +185°F
-
Maximum Series Fuse Rating: 15A
-
Weight: 24 lb
-
Dimensions: 58.7 x 26.8 x 1.2 in
Bravo 30A - 30 Amp MPPT Solar Charge Controller
FEATURES:
1. Advanced MPPT Technology
- Advanced MPPT algorithm with up to 99.5% tracking efficiency
- 98% conversion efficiency for maximum solar energy utilization
- Stable operation under low-light or partial shading conditions
2. Flexible Battery Compatibility
- Auto-detects 12V/24V systems for seamless integration
- Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
- Multi-stage charging algorithm with customizable parameters helps extend battery lifespan
3. Advanced Protection System
- Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
- Weather-resistant build with IP43-rated PCBA and IP22 connectors
- Certified to ETL, FCC, CE, ROHS
4. Intelligent Monitoring System
- LCD + LED display: Real-time solar input, battery status, and customizable parameters
- Built-in Bluetooth for App monitoring (Rich Solar App)
- Optional remote meter and temperature sensor for enhanced control
SPECIFICATIONS:
-
Maximum Solar Input Current: 30A
-
Maximum Charging Current: 30A
-
Recommended Solar Power: 500W (12V) / 1000W (24V)
-
Nominal System Voltage: 12V/24V Auto-Detect
-
Solar Input Voltage Range: 8V-100V
-
MPPT Voltage Range: 15V-72V
-
Maximum Conversion Efficiency: 98%
-
Maximum MPPT Tracking Efficiency: 99.5%
-
Battery Compatibility: GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
-
Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
-
Protection Rating: IP43 PCBA, IP22 Connection
-
Net Weight: 1.8 lb
-
Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in
