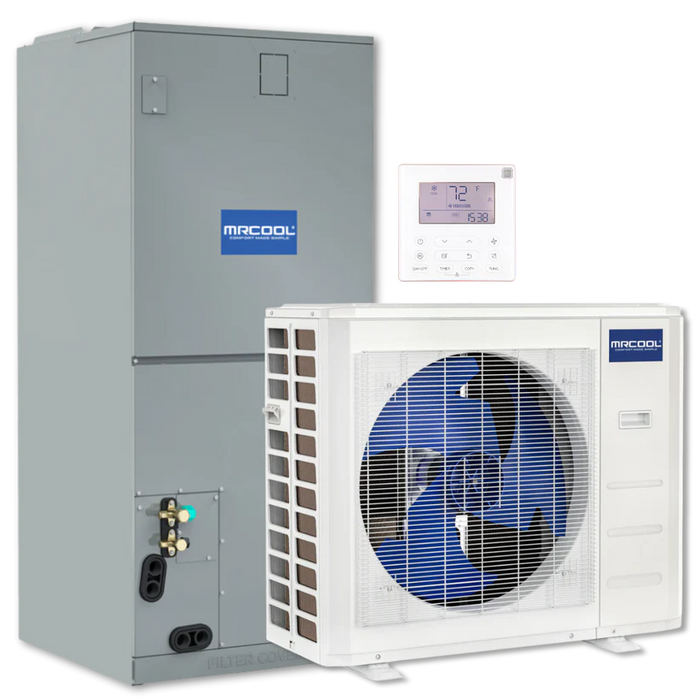

Upgrade your home’s climate control with the MRCOOL VersaPro® 2nd Gen—a high-efficiency, all-in-one HVAC system engineered for reliable, year-round comfort. Featuring advanced inverter technology, whisper-quiet operation, and energy-saving performance, this system provides powerful heating and cooling while helping keep energy costs low.
-
Coverage Area: Efficiently heats and cools spaces from 1,251 to 1,500 sq. ft.
-
Energy-Efficient Performance: Achieves 16.1 SEER2 and 9.1 HSPF4 for lower utility bills and optimal efficiency.
-
Flexible Installation: Supports upflow, downflow, and horizontal left or right configurations to fit diverse home layouts.
-

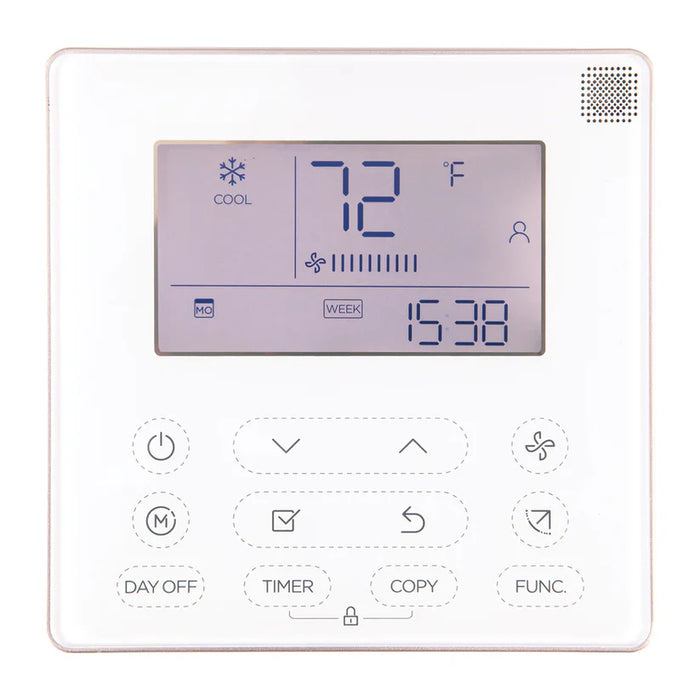

Quiet & Smart Operation: DC inverter technology ensures near-silent performance, paired with the MRCOOL® Smart Thermostat for easy control.
-
Eco-Friendly Refrigerant: Uses R-454B, offering reduced environmental impact compared to traditional refrigerants.
-
Durable & Compact Design: Constructed with painted galvanized steel for long-lasting durability and a space-saving side-discharge layout.
-
Smart Features & Easy Maintenance: Includes a self-diagnostics panel for quick troubleshooting and SmartHVAC app compatibility for remote adjustments.
-
Optional Heating Boost: Compatible with an optional heat kit for extra warmth during colder months.
-
Warranty Protection: Backed by a 10-year parts and compressor warranty for lasting peace of mind.
-
Hassle-Free Installation: Works with No Vac® Quick Connect® Line Sets (sold separately) for a faster, simpler setup.
NOTE: Line sets are not included and must be purchased separately to fit your installation needs.
WHAT YOU GET:
SPECIFICATIONS:
| Dimensions & Weight |

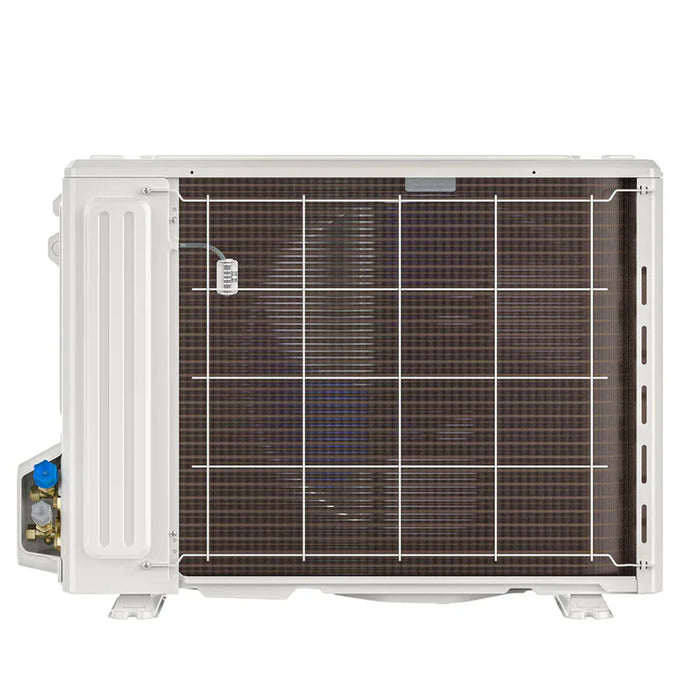

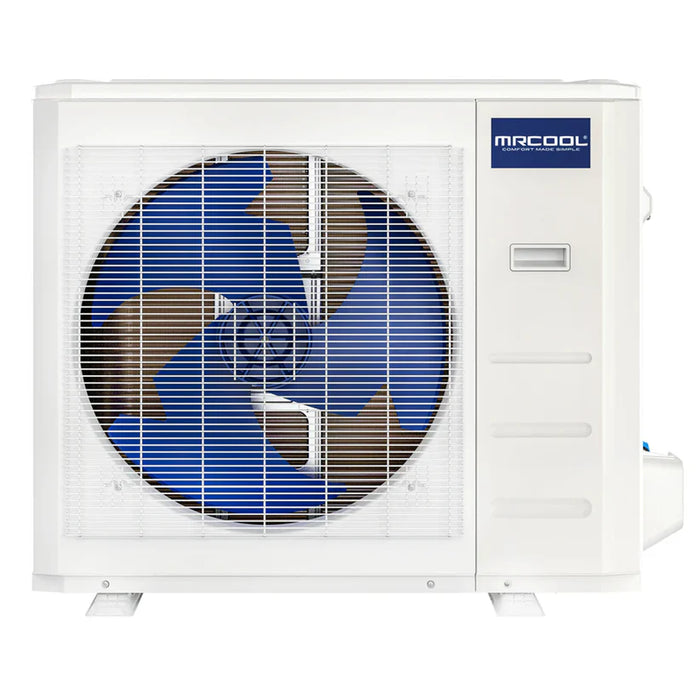

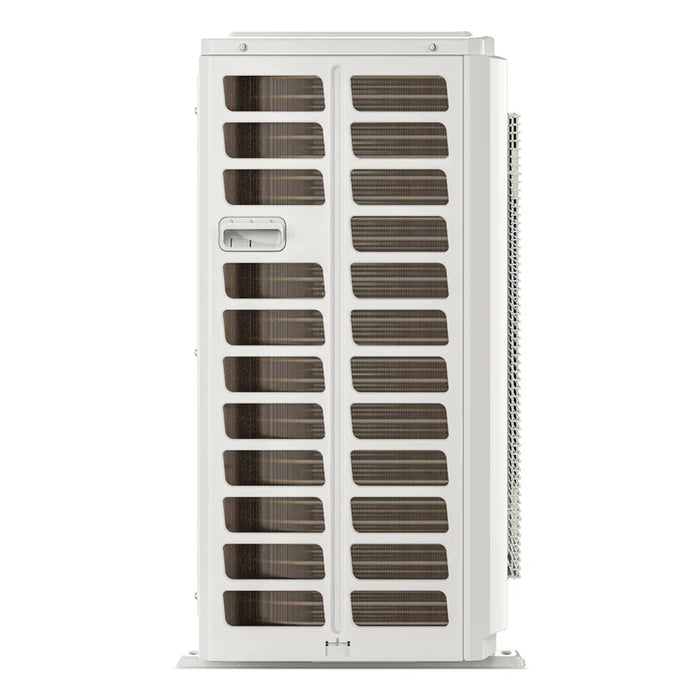

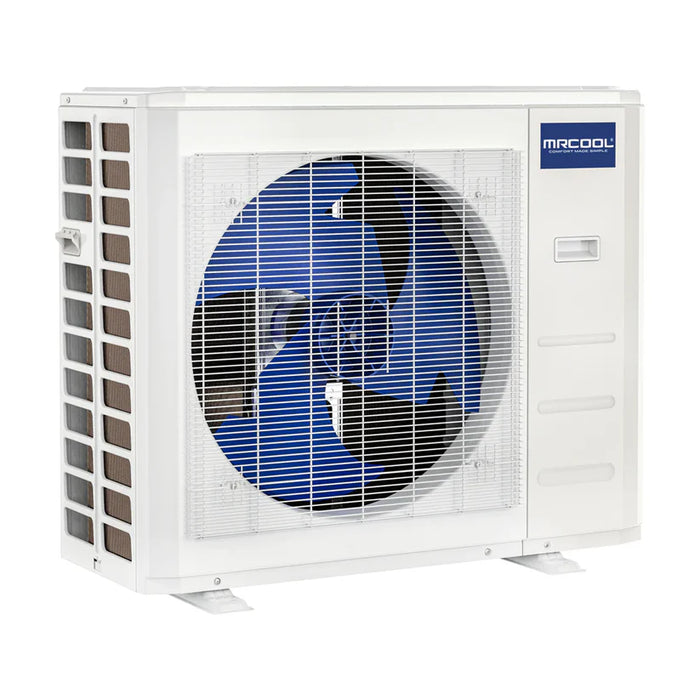

| Condenser Dimensions |
37.24" W x 16.14" D x 31.89" H |

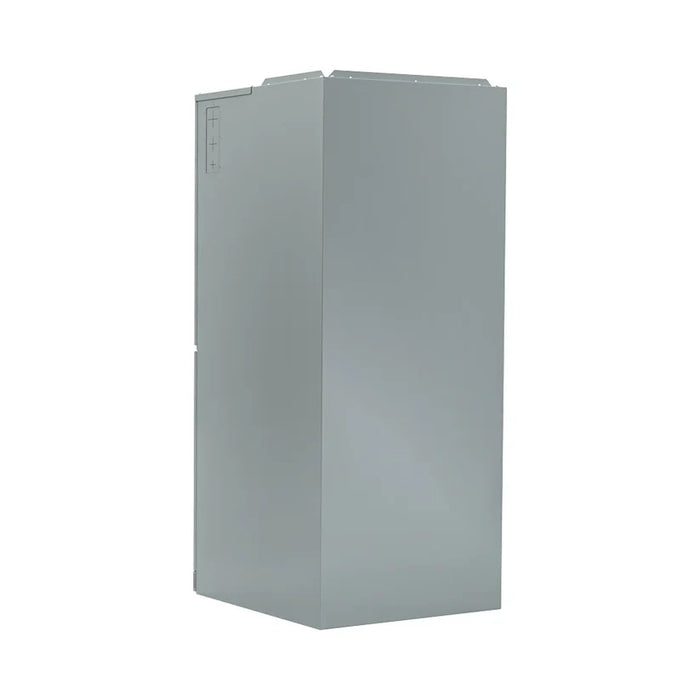

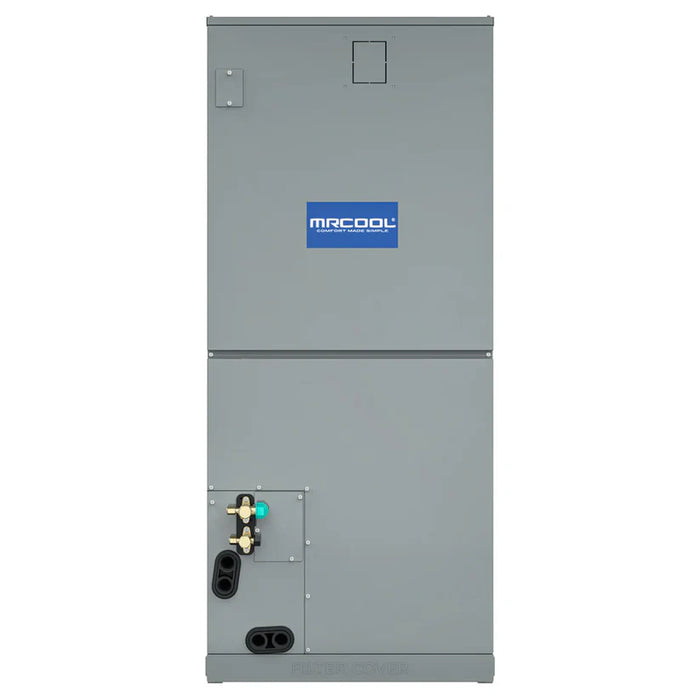

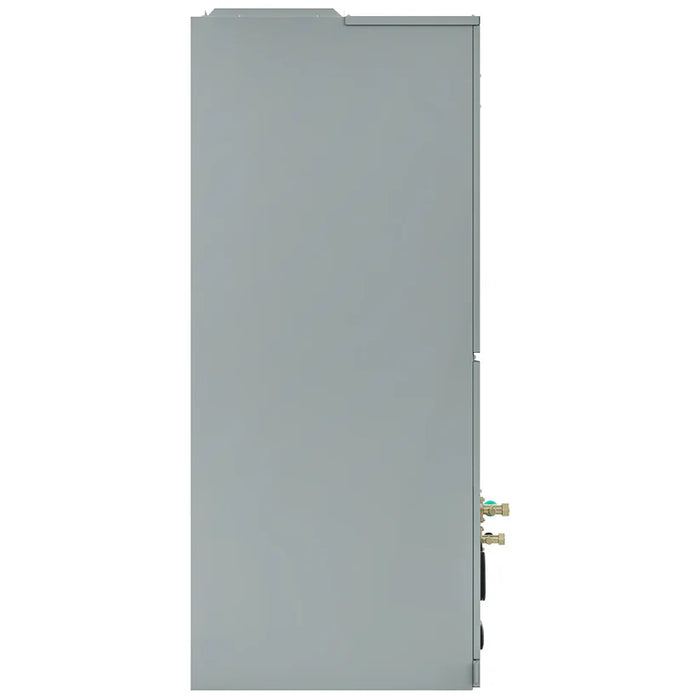

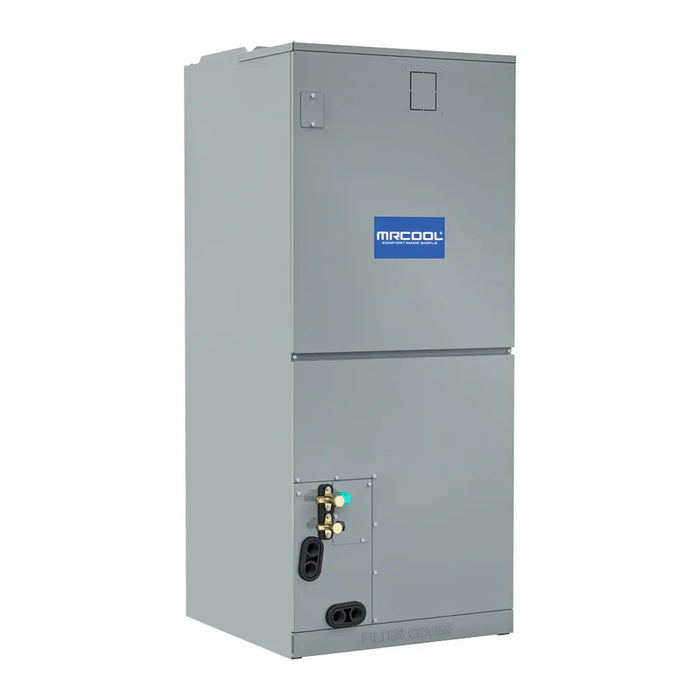

| Air Handler Dimensions |
21.02" W x 21.02" D x 49.02" H |
| Condenser Weight |
153.22 lbs |
| Air Handler Weight |
162.92 lbs |
| Capacity & Performance |
| Tonnage |
3 |
| Cooling Capacity |
36,000 BTU |
| Operating Temperature (Cooling) |
-22°F to 122°F |
| SEER2 |
16.1 |
| EER2 |
10.0 |
| Heating Capacity |
36,000 BTU |
| Operating Temperature (Heating) |
-22°F to 75°F |
| HSPF2-4 |
9.1 |
| HSPF2-5 |
7.0 |
| Coverage Area |
1,251-1,500 square feet |
| Outdoor Noise Level |
63 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) |
48 / 45 / 28 dB(A) |
| Electrical Requirements |
| Condenser |
Voltage: 208-230V
Phase: 1
Cycle: 60 Hz
Max Fuse Breaker: 30A
Min Circuit Ampacity: 24A
|
| Air Handler |
Voltage: 115/208/230V
Phase: 1
Cycle: 60 Hz
Max Fuse Breaker: 15A
Min Circuit Ampacity: 8/6A
|
| Refrigerant & Piping |
| Refrigerant Type |
R454B |
| Refrigerant Volume |
116.4 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Max Line Set Length |
246 ft |
| Features |
| Compatible Heat Kits |
5kW, 8kW, 10kW, 15kW, 20kW |
| Filter Type |
Replaceable |
| Filter Size |
16" x 20" x 1" |
| Adjustable Thermostat |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Remote Control Included |
No |
| Certifications & Warranty |
| Certifications |
ETL Certified, AHRI Certified |
| Warranty |
10 Years Compressor, 10 Years Parts |
