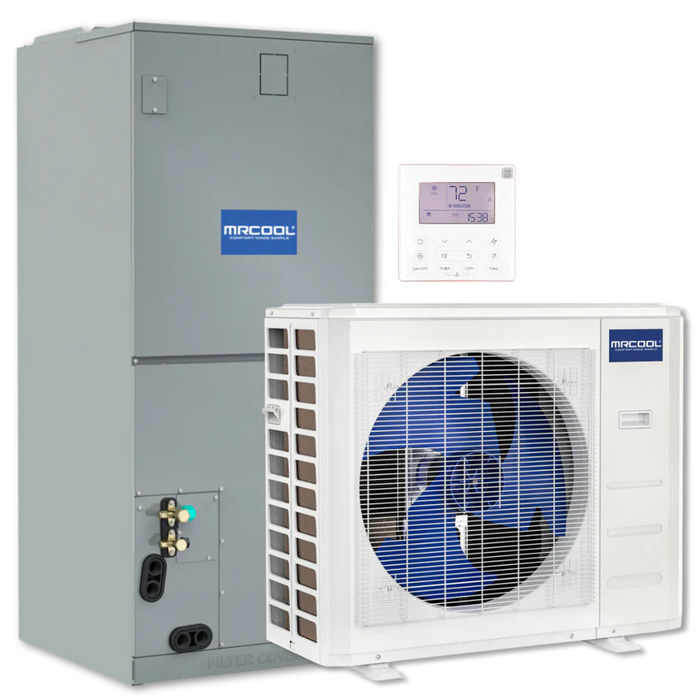

Enhance your home’s comfort with the MRCOOL VersaPro® 2nd Gen—a high-efficiency, all-in-one HVAC system engineered for reliable, year-round heating and cooling. Featuring advanced inverter technology, whisper-quiet operation, and energy-efficient performance, this system delivers powerful climate control while keeping energy costs low.
-
Coverage Area: Efficiently heats and cools spaces from 1,001 to 1,250 sq. ft.
-
Energy-Saving Performance: Achieves a 17 SEER2 and 8.5 HSPF4 rating for optimal efficiency and reduced utility bills.
-
Flexible Installation: Supports upflow, downflow, and horizontal left or right configurations to suit a variety of home layouts.
-

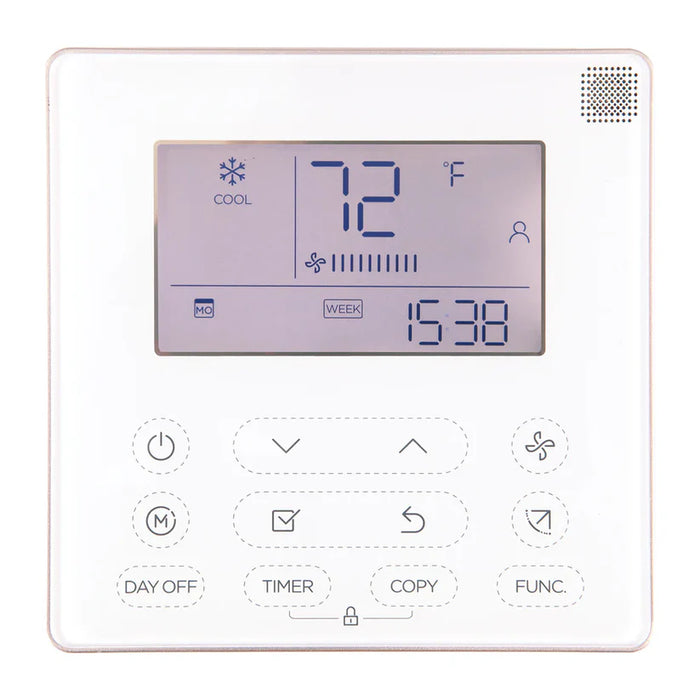

Quiet & Smart Operation: DC inverter technology ensures near-silent performance, paired with the MRCOOL® Smart Thermostat for easy control.
-
Eco-Friendly Refrigerant: Uses R-454B for lower environmental impact compared to traditional refrigerants.
-
Durable & Space-Saving Design: Constructed with painted galvanized steel for long-lasting reliability, with a compact side-discharge design for versatile placement.
-
Smart Features & Easy Maintenance: Includes a self-diagnostics panel for quick troubleshooting and SmartHVAC app compatibility for remote adjustments.
-
Optional Heating Boost: Compatible with an optional heat kit for added warmth during colder months.
-
Warranty Protection: Backed by a 10-year parts and compressor warranty for lasting peace of mind.
-
Hassle-Free Installation: Works with No Vac® Quick Connect® Line Sets (sold separately) for faster, simpler setup.
NOTE: Line sets are not included and must be purchased separately to fit your installation needs.
WHAT YOU GET:
SPECIFICATIONS:
| Dimensions & Weight |

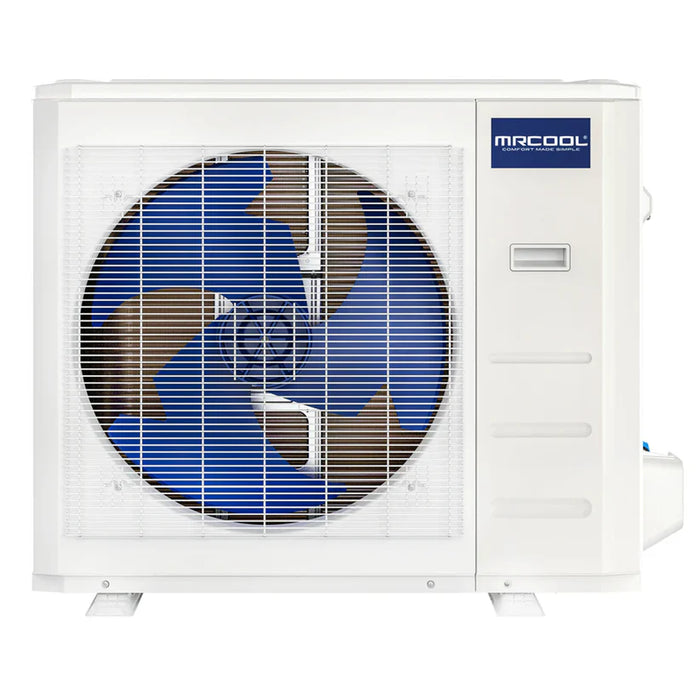

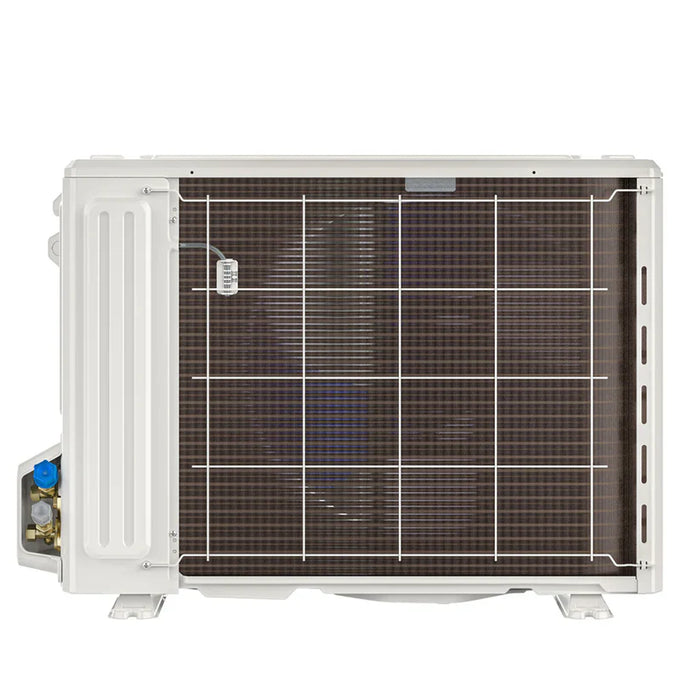

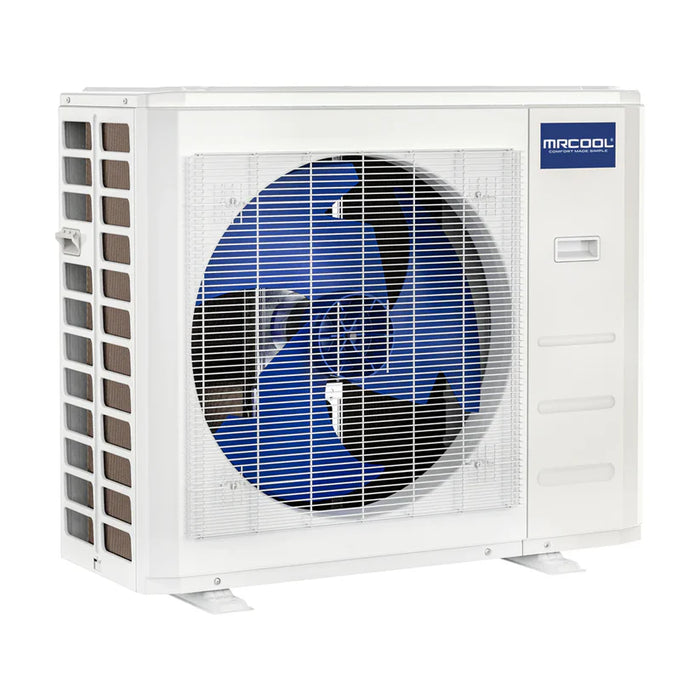

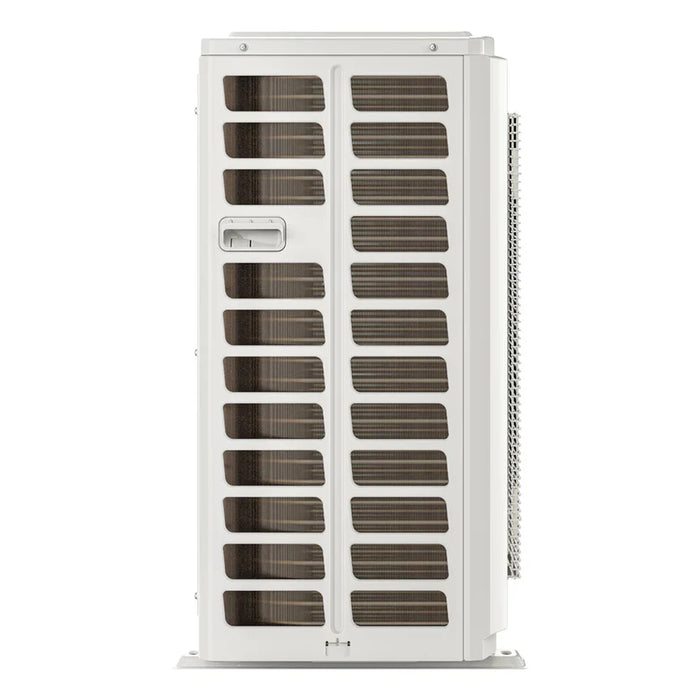

| Condenser Dimensions |
37.24" W x 16.14" D x 31.89" H |

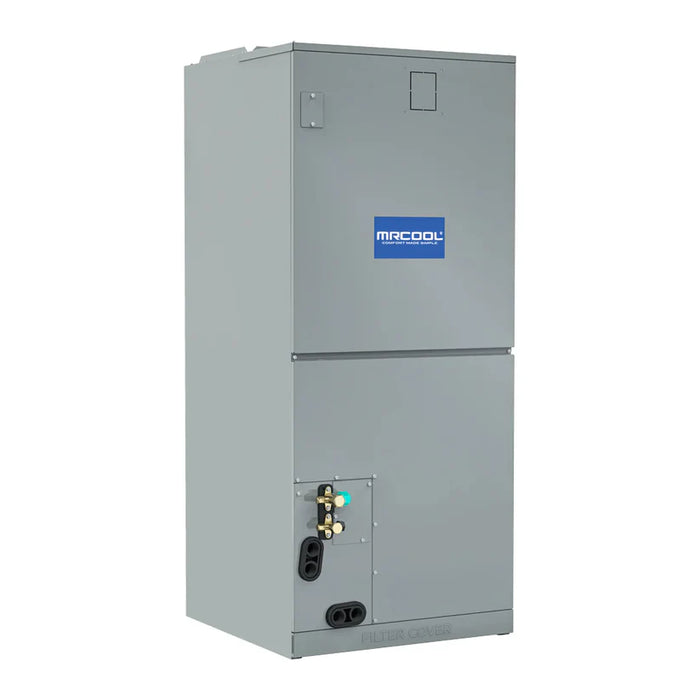

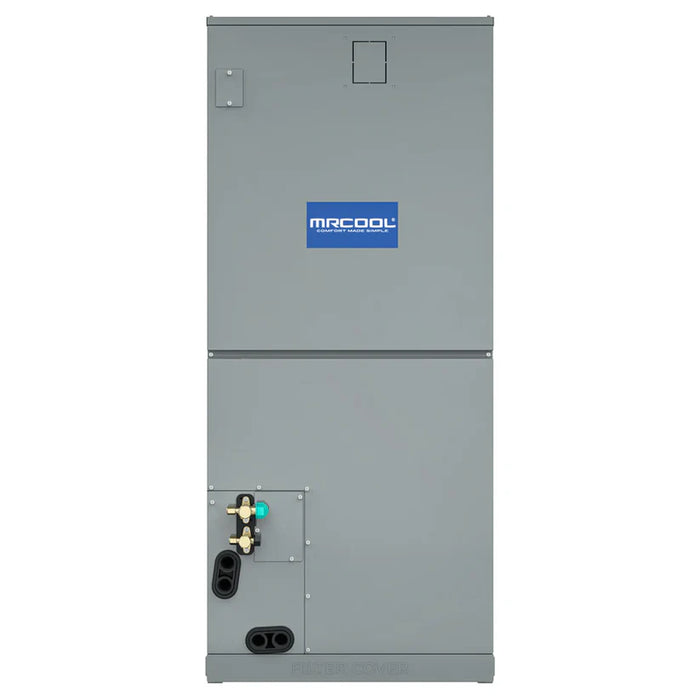

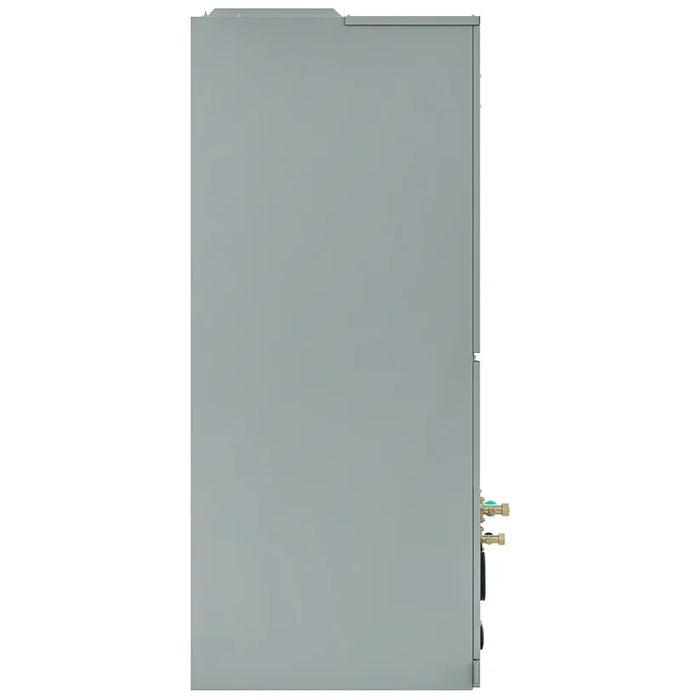

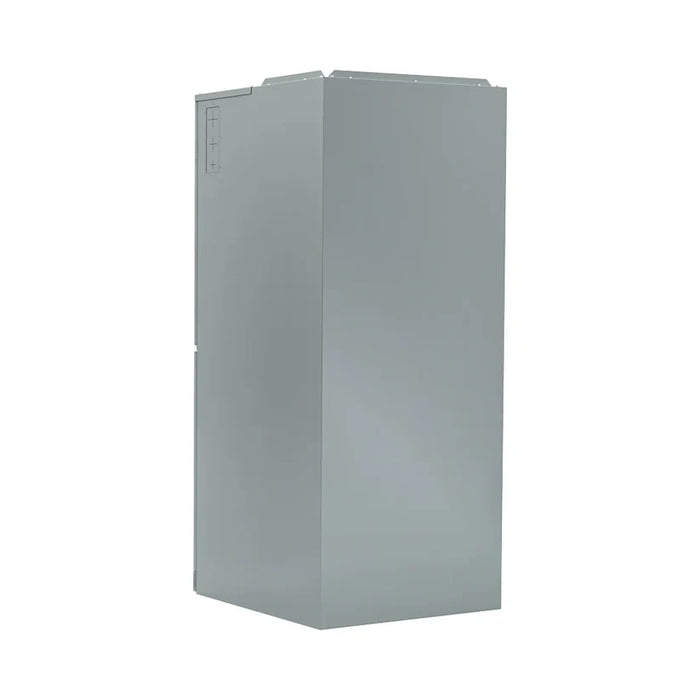

| Air Handler Dimensions |
21.02" W x 21.02" D x 49.02" H |
| Condenser Weight |
152.34 lbs |
| Air Handler Weight |
128.97 lbs |
| Capacity & Performance |
| Tonnage |
2.5 |
| Cooling Capacity |
30,000 BTU |
| Operating Temperature (Cooling) |
-22°F to 122°F |
| SEER2 |
17 |
| EER2 |
10.7 |
| Heating Capacity |
30,000 BTU |
| Operating Temperature (Heating) |
-22°F to 75°F |
| HSPF2-4 |
8.5 |
| HSPF2-5 |
6.6 |
| Coverage Area |
1,000-1,250 square feet |
| Outdoor Noise Level |
60 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) |
46 / 42 / 29 dB(A) |
| Electrical Requirements |
| Condenser |
Voltage: 208-230V
Phase: 1
Cycle: 60 Hz
Max Fuse Breaker: 25A
Min Circuit Ampacity: 22.5A
|
| Air Handler |
Voltage: 115/208/230V
Phase: 1
Cycle: 60 Hz
Max Fuse Breaker: 15A
Min Circuit Ampacity: 8/6A
|
| Refrigerant & Piping |
| Refrigerant Type |
R454B |
| Refrigerant Volume |
91.71 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Max Line Set Length |
164 ft |
| Features |
| Compatible Heat Kits |
5kW, 8kW, 10kW, 15kW |
| Filter Type |
Replaceable |
| Filter Size |
16" x 20" x 1" |
| Adjustable Thermostat |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Remote Control Included |
No |
| Certifications & Warranty |
| Certifications |
ETL Certified, AHRI Certified |
| Warranty |
10 Years Compressor, 10 Years Parts |
