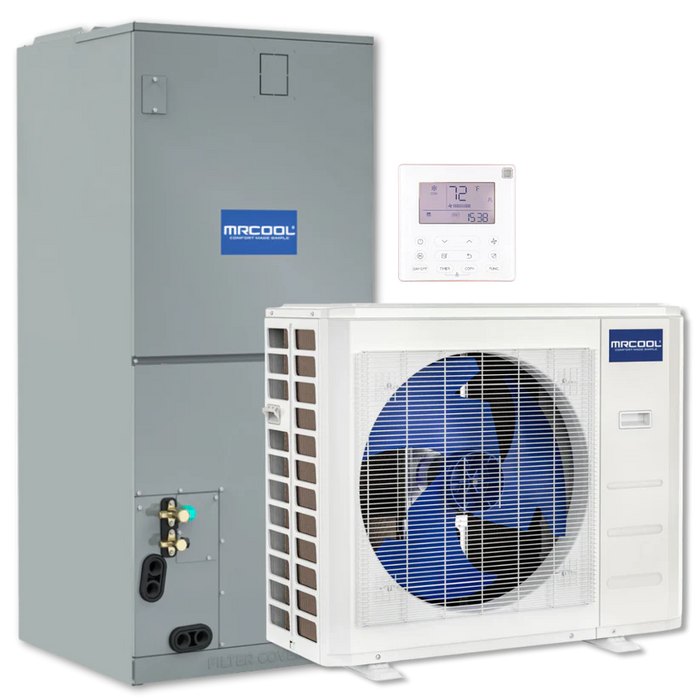

Upgrade your home’s comfort with the MRCOOL VersaPro® 2nd Gen—a high-efficiency, all-in-one HVAC system engineered for dependable, year-round heating and cooling. Featuring advanced inverter technology, whisper-quiet operation, and energy-conscious performance, this system delivers powerful climate control while helping keep energy costs in check.
-
Coverage Area: Efficiently heats and cools spaces from 2,001 to 2,500 sq. ft.
-
Energy-Efficient Performance: Offers 15.2 SEER2 and 8.6 HSPF4 ratings for balanced efficiency and reduced utility expenses.
-
Flexible Installation: Supports upflow, downflow, and horizontal left or right configurations to suit a wide range of home layouts.
-

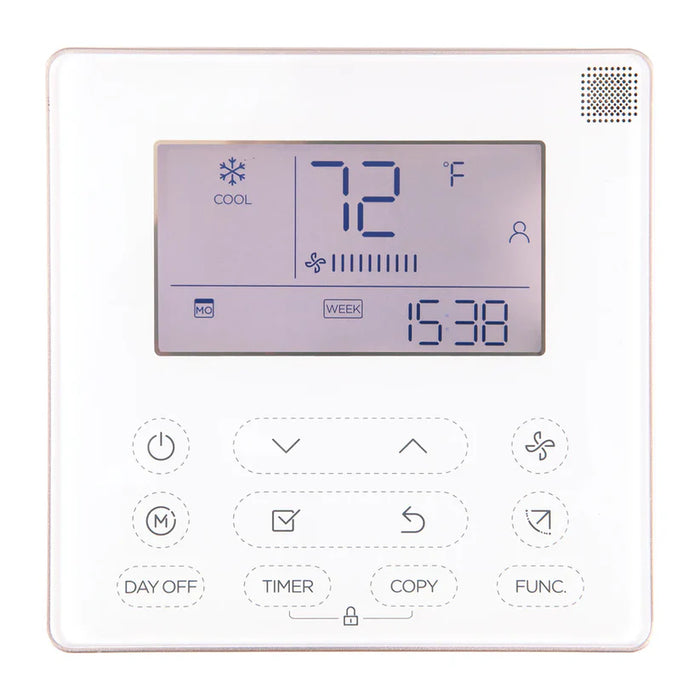

Quiet & Smart Operation: DC inverter technology ensures ultra-quiet performance, paired with the MRCOOL® Smart Thermostat for simple, intuitive control.
-
Eco-Friendly Refrigerant: Uses R-454B refrigerant for a lower environmental impact compared to traditional options.
-
Durable & Compact Design: Built with painted galvanized steel for long-lasting reliability and a space-saving side-discharge design for versatile placement.
-
Smart Features & Easy Maintenance: Includes a self-diagnostics panel for quick troubleshooting and SmartHVAC app compatibility for convenient remote adjustments.
-
Optional Heating Boost: Compatible with an optional heat kit to provide added warmth during colder months.
-
Warranty Protection: Backed by a 10-year parts and compressor warranty for lasting peace of mind.
-
Hassle-Free Installation: Compatible with No Vac® Quick Connect® Line Sets (sold separately) for faster, easier installation.
NOTE: Line sets are not included and must be purchased separately to fit your installation needs.
WHAT YOU GET:
SPECIFICATIONS:
| Dimensions & Weight |

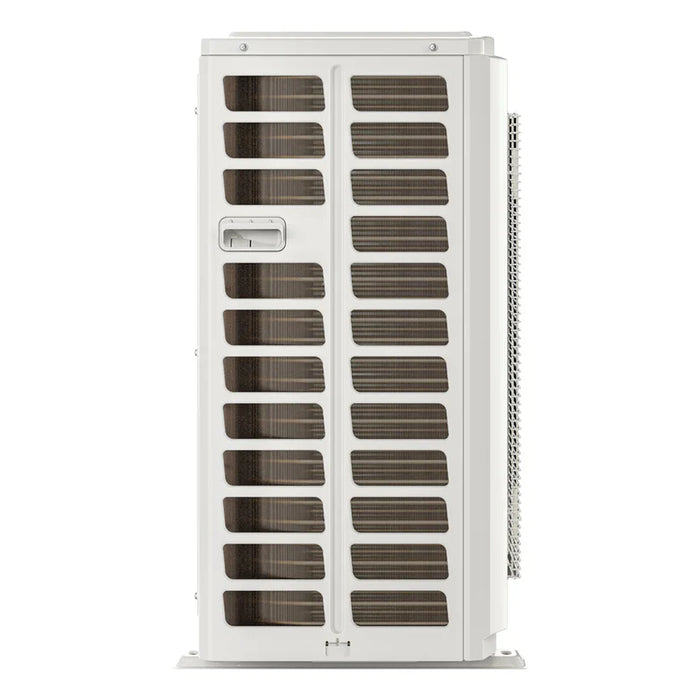

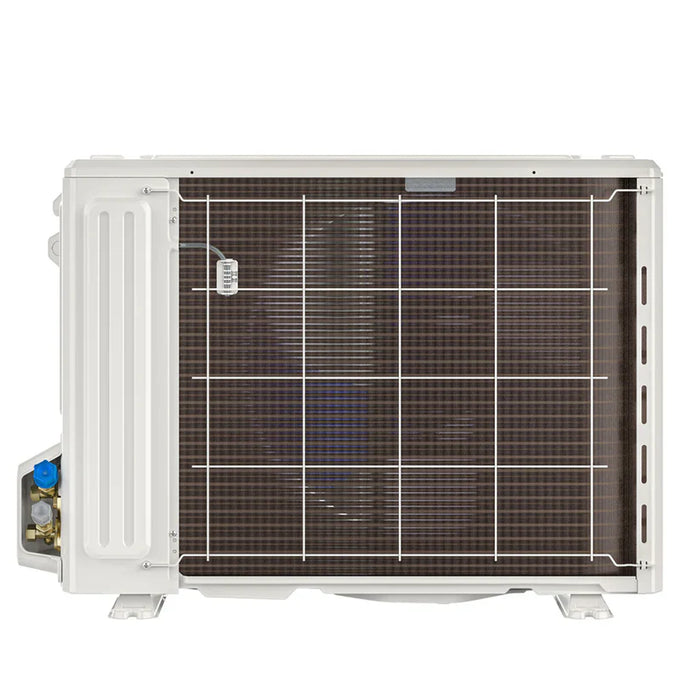

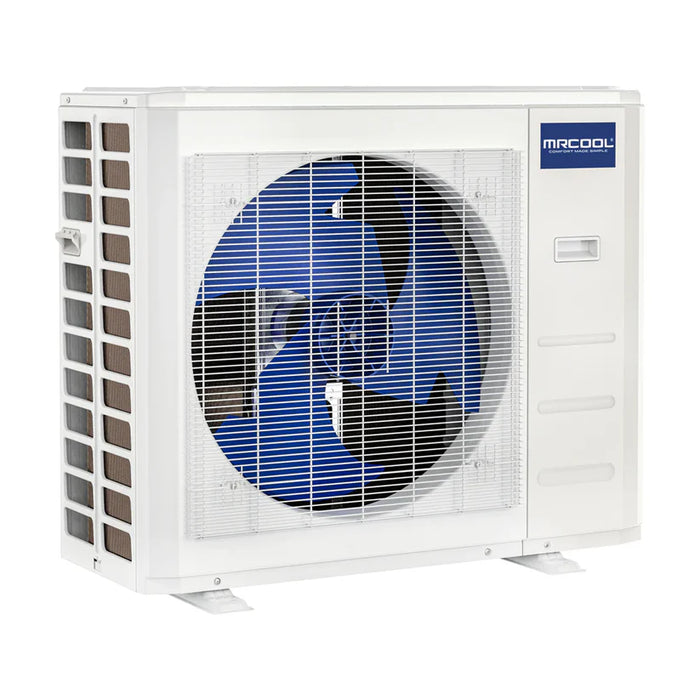

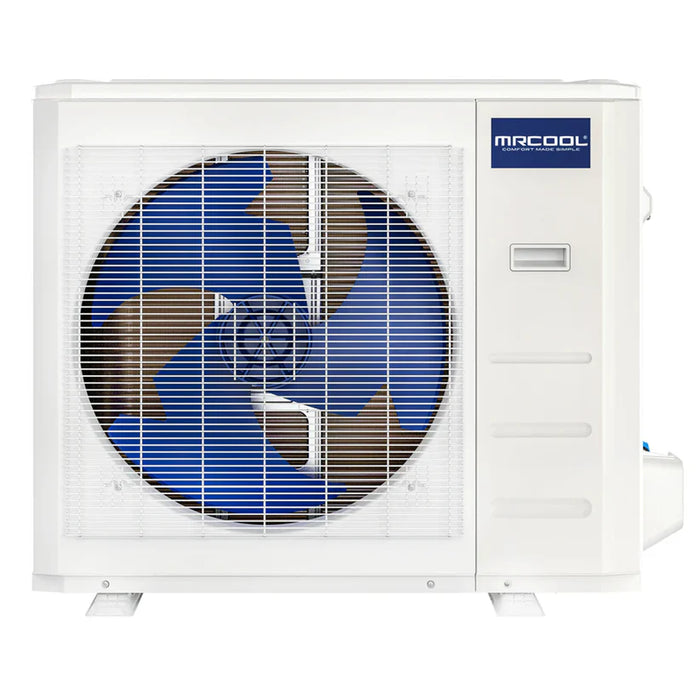

| Condenser Dimensions |
38.58" W x 16.34" D x 38.39" H |

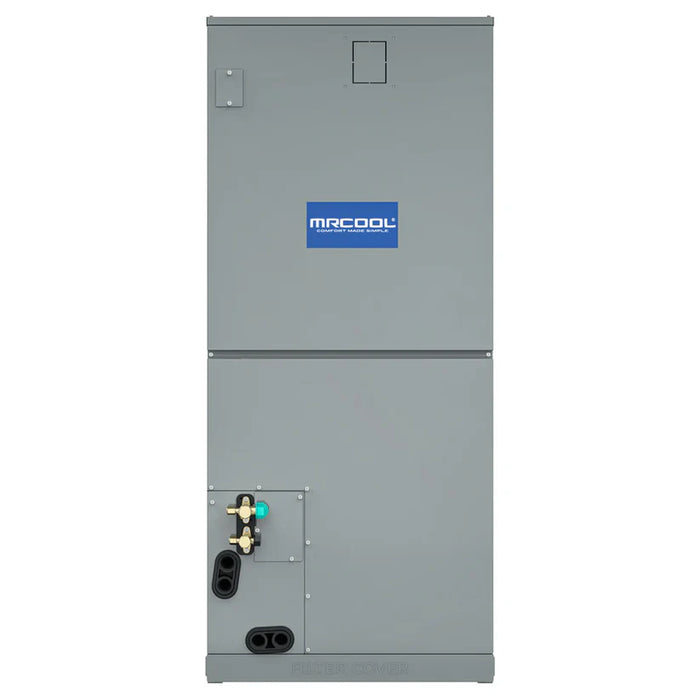

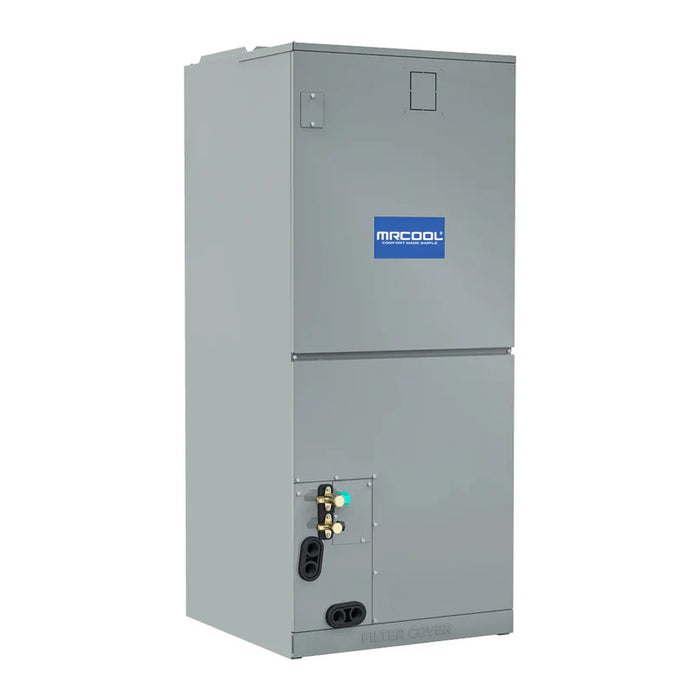

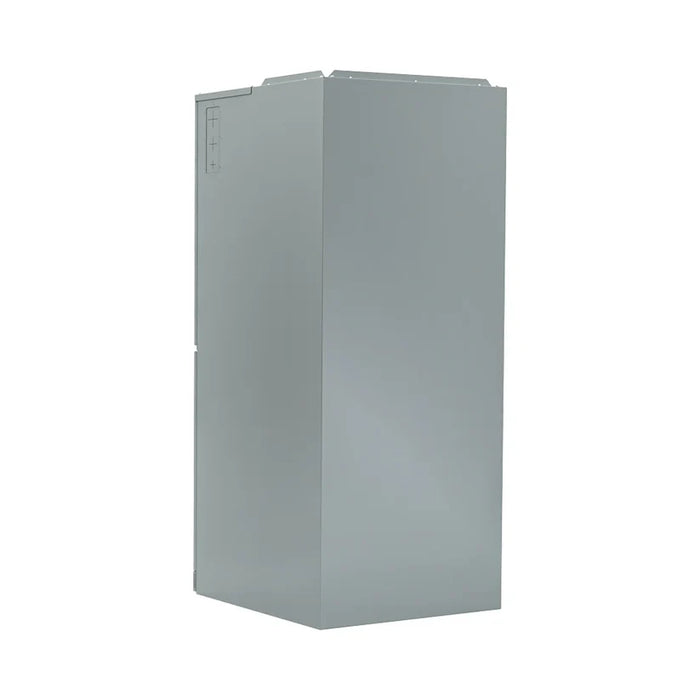

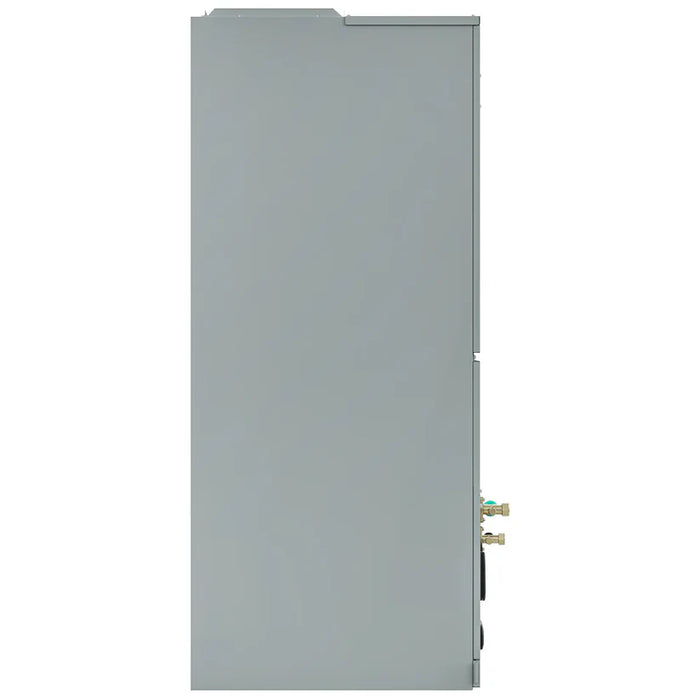

| Air Handler Dimensions |
21.02" W x 24.49" D x 52.99" H |
| Condenser Weight |
192.20 lbs |
| Air Handler Weight |
162.92 lbs |
| Capacity & Performance |
| Tonnage |
5 |
| Cooling Capacity |
58,000 BTU |
| Operating Temperature (Cooling) |
-22°F to 122°F |
| SEER2 |
15.2 |
| EER2 |
8.6 |
| Heating Capacity |
54,000 BTU |
| Operating Temperature (Heating) |
-22°F to 75°F |
| HSPF2-4 |
8.4 |
| HSPF2-5 |
6.8 |
| Coverage Area |
2,001 - 2,500 square feet |
| Outdoor Noise Level |
65 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) |
56 / 52 / 49 / 34.5 dB(A) |
| Electrical Requirements |
| Condenser |
Voltage: 208-230V
Phase: 1
Cycle: 60 Hz
Max Fuse Breaker: 40A
Min Circuit Ampacity: 39A
|
| Air Handler |
Voltage: 115/208/230V
Phase: 1
Cycle: 60 Hz
Max Fuse Breaker: 15A
Min Circuit Ampacity: 14.5/11A
|
| Refrigerant & Piping |
| Refrigerant Type |
R454B |
| Refrigerant Volume |
134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Max Line Set Length |
246 ft |
| Features |
| Compatible Heat Kits |
10kW, 15kW, 20kW |
| Filter Type |
Replaceable |
| Filter Size |
23" x 20" x 1" |
| Adjustable Thermostat |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Remote Control Included |
No |
| Certifications & Warranty |
| Certifications |
ETL Certified, AHRI Certified |
| Warranty |
10 Years Compressor, 10 Years Parts |
