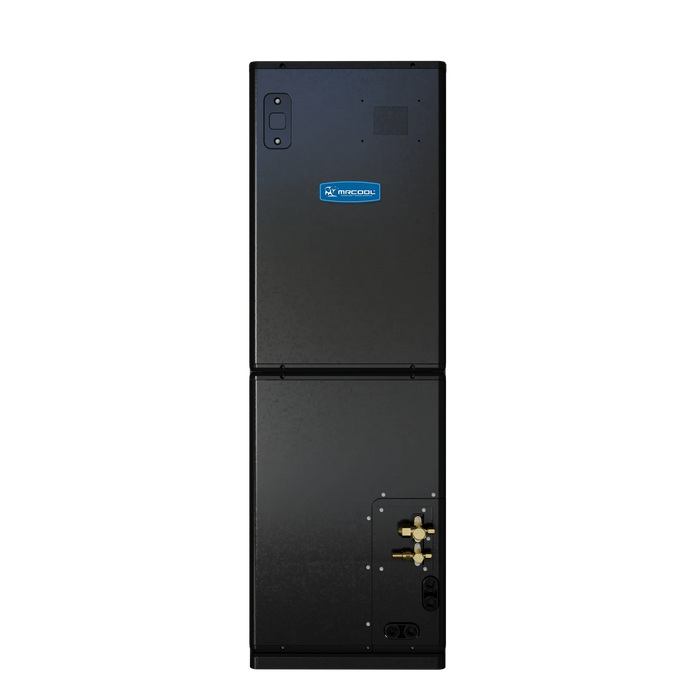

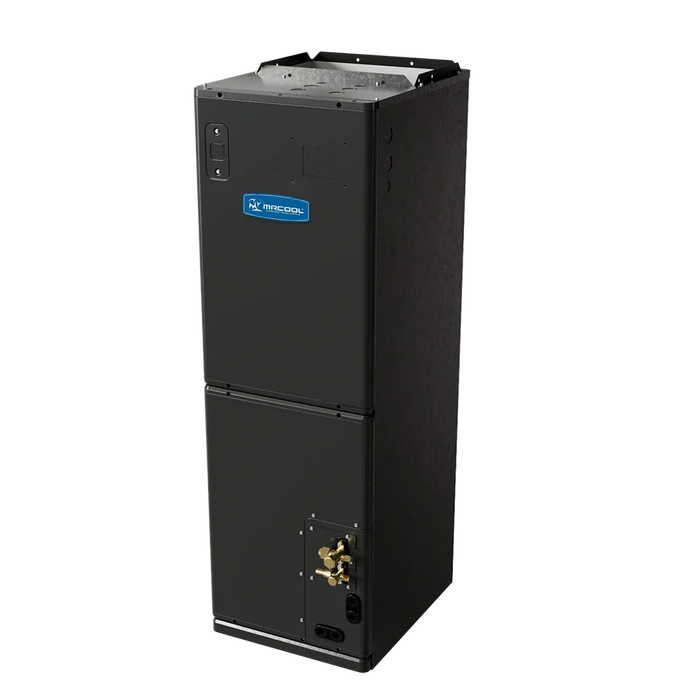

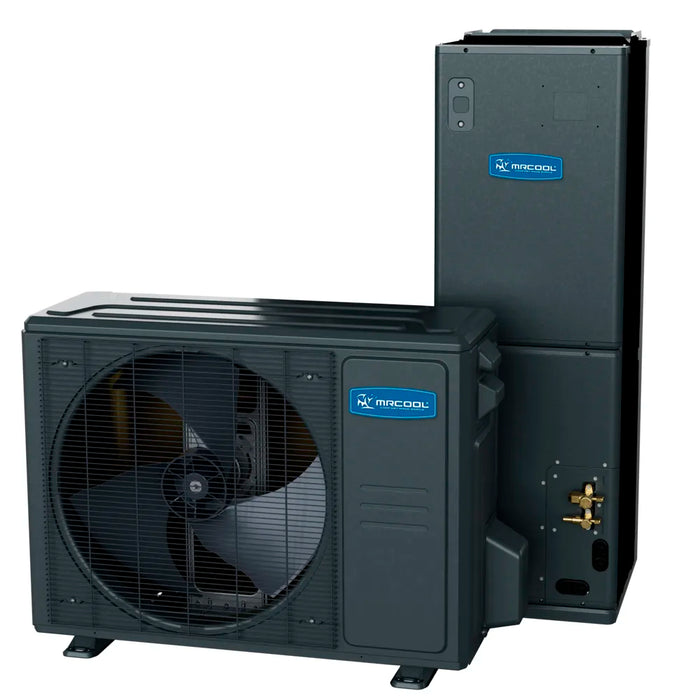

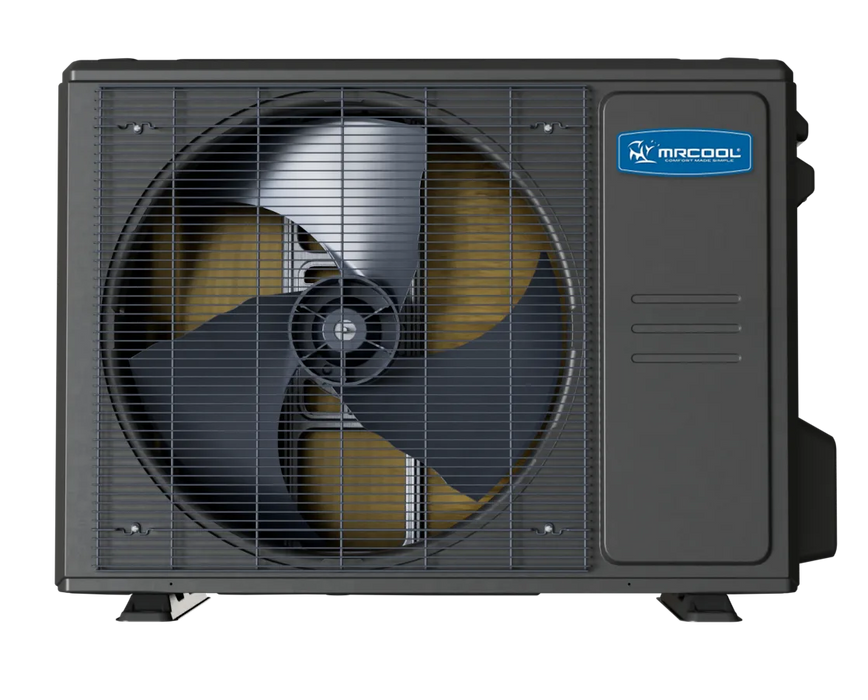

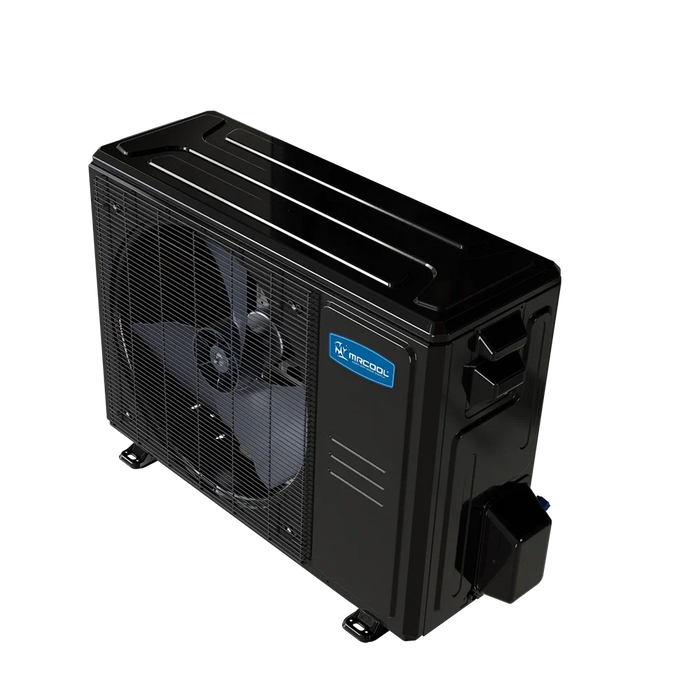

The MRCOOL® Universal® Series 48,000 BTU (4 Ton) Multi-Position Air Handler & Heat Pump Inverter Split System with R-454B refrigerant provides reliable, energy-efficient heating and cooling year-round. With a 17.5 SEER2 rating and advanced DC inverter technology, it maintains consistent indoor comfort while lowering energy costs. Its slim, compact design allows for flexible installation in attics, closets, crawlspaces, or other tight spaces. Both the air handler and condenser are built for quiet, dependable operation and long-lasting durability, featuring corrosion-resistant components and compatibility with MRCOOL® NO-VAC® Quick Connect® line sets for fast, hassle-free installation. Optional heat kits enhance performance in extreme climates, while industry-leading warranties provide lasting peace of mind.
-
High Efficiency: 17.5 SEER2 rating ensures year-round comfort with reduced energy consumption.
-
Advanced Inverter Technology: Variable-speed operation keeps temperatures stable with minimal noise and wear.
-
Versatile Installation: Supports upflow, downflow, and horizontal configurations for flexible placement.
-
Compact Design: Slim profile fits easily into attics, closets, crawlspaces, and other space-restricted areas.
-
Quick Installation: Compatible with MRCOOL® NO-VAC® Quick Connect® line sets for faster, simpler setup without vacuuming or flaring.
-
Optional Heat Kits: Improve cold-weather efficiency and provide emergency backup heating when needed.
-
Durable Construction: 100% aluminum M-shaped coil resists corrosion and maximizes heat exchange for long-lasting reliability.
-
Quiet Performance: Engineered for whisper-quiet operation without compromising power.
-
Warranty Protection: Backed by a 10-year parts warranty and 2-year limited labor warranty.
NOTE: Line sets are not included and must be purchased separately to fit your installation needs.
WHAT YOU GET:
SPECIFICATIONS:
| DIMENSIONS |
| Condenser Dimensions |
38.58" W x 16.34" D x 38.39" H |
| Air Handler Dimensions |
21.50" W x 21.50" D x 55.94" H |
| Condenser Weight |
201.50 lbs |
| Air Handler Weight |
186.51 lbs |
| CAPACITY & PERFORMANCE |
| Cooling Capacity |
48,000 BTU |
| Outdoor Operating Temperature (Cooling) |
-22°F to 122°F |
| SEER2 |
17.5 |
| EER2 |
12 |
| Heating Capacity |
48,000 BTU |
| Outdoor Operating Temperature (Heating) |
-22°F to 75°F |
| HSPF2-4 |
9.5 |
| HSPF2-5 |
7.7 |
| Coverage Area |
Up to 2,000 sq. ft. |
| Outdoor Noise Level |
65 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) |
53 / 49/ 33 dB(A) |
| ELECTRICAL REQUIREMENTS |
| Condenser |
Voltage: 208-230V
Phase: 1
Cycle: 60 Hz
Max Fuse Breaker: 40A
Min Circuit Ampacity: 38A
|
| Air Handler |
Voltage: 115/208/230V
Phase: 1
Cycle: 60 Hz
Max Fuse Breaker: 15A
Min Circuit Ampacity: 14.5/10A
|
| REFRIGERANT & PIPING |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Max Line Set Length |
246 ft. |
| FEATURES |
| Air Handler Mount Type |
Multi-Position (Upflow/Downflow/Horizontal) |
| Filter Type |
Replaceable |
| Filter Size |
20" x 20" x 1" |
| Compressor Type |
Rotary |
| Metering Device |
EXV |
| Auxiliary Heater Included |
No |
| Auxiliary Heater Available |
Yes |
| Compatible Auxiliary Heater Sizes |
8 KW / 10 KW / 15 KW / 20 KW |
| CERTIFICATIONS & WARRANTY |
| Certifications |
UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty |
10 Year Parts and 2 Year Labor |
