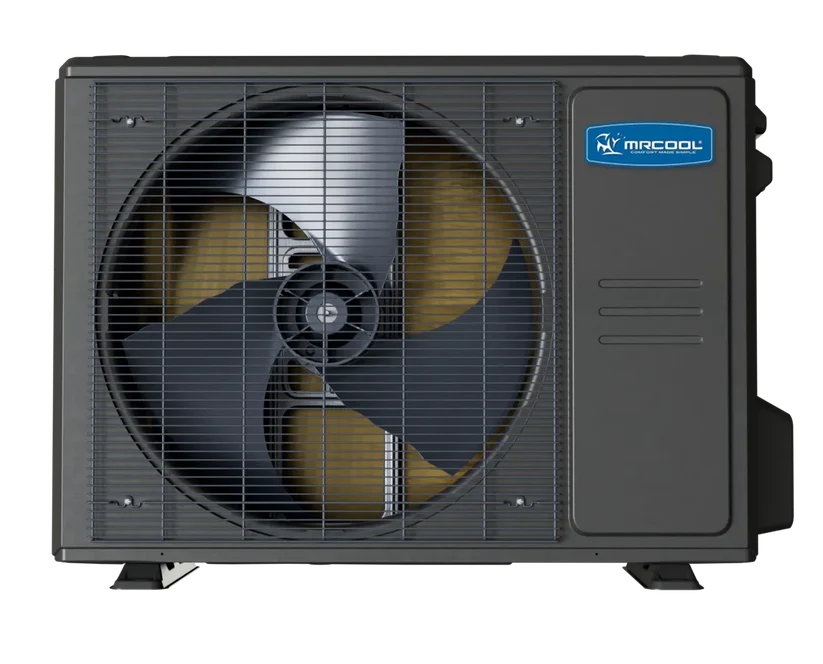

The MRCOOL® Universal® Series 40K DC Inverter Heat Pump Condenser is designed to deliver reliable, energy-efficient heating and cooling in every season. With a 17.5 SEER2 rating and advanced inverter technology, it maintains consistent indoor comfort while helping reduce energy costs. Its compact, space-saving design makes it ideal for installations with limited space, and compatibility with the MRCOOL® NO-VAC® Quick Connect® line set allows for quick, hassle-free installation. Built for durability and quiet operation, this unit provides powerful performance and is supported by industry-leading warranty coverage.
-
High Efficiency: 17.5 SEER2 rating ensures year-round comfort while minimizing energy use.
-
Advanced Inverter Technology: Variable-speed operation delivers steady temperatures with reduced noise and system wear.
-
Compact, Space-Saving Design: Slim profile fits easily into tight spaces without compromising performance.
-
Fast, Easy Installation: Compatible with MRCOOL® NO-VAC® Quick Connect® line sets for simplified setup.
-
Built for Durability: Engineered for reliable performance in extreme weather conditions.
-
Warranty Coverage: Backed by a 10-year parts warranty and a 2-year limited labor warranty for added peace of mind.
SPECIFICATIONS:
| DIMENSIONS |
| Dimensions |
38.58" W x 16.34" D x 38.39" H |
| Weight |
201.50 lbs |
| CAPACITY & PEFORMANCE |
| Cooling Capacity |
48,000 BTU |
| SEER2 |
17.5 |
| EER2 |
12 |
| Heating Capacity |
48,000 BTU |
| HSPF2-4 |
9.5 |
| HSPF2-5 |
7.7 |
| Coverage Area |
Up to 2,000 sq. ft. |
| Outdoor Noise Level |
65 dB(A) |
| Outdoor Operating Temperature |
Cooling: -22°F to 122°F
Heating: -22°F to 75°F
|
| ELECTRICAL REQUIREMENTS |
| Voltage |
208-230V |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
40A |
| Min Circuit Ampacity |
38A |
| REFRIGERANT & PIPING |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Max Line Set Length |
246 ft. |
| FEATURES |
| Inverter |
DC |
| Compressor Type |
Rotary |
| Metering Device |
EXV |
| CERTIFICATIONS & WARRANTY |
| Certifications |
UL Listed, ETL Listed, CSA Listed, AHRI Certified |
| Warranty |
10 Year Parts and 2 Year Labor |
