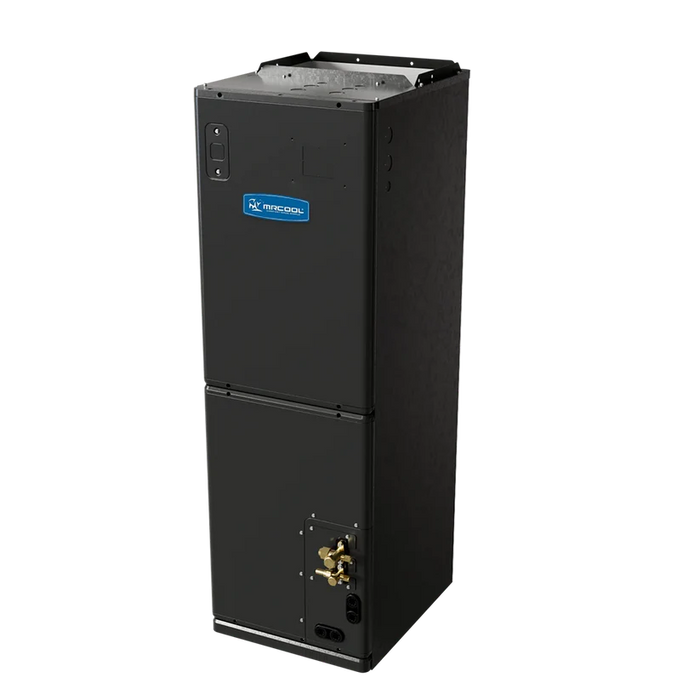

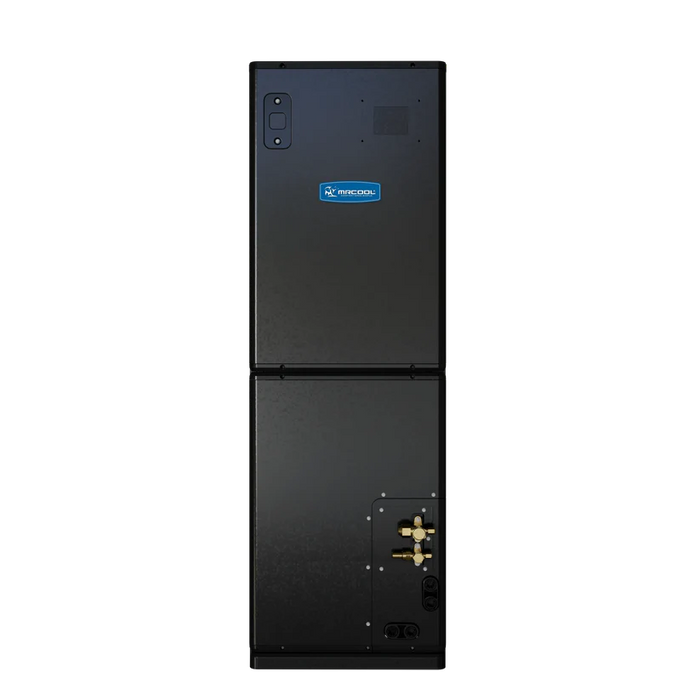

The MRCOOL® Universal® Series 36K Air Handler delivers reliable, energy-efficient heating and cooling year-round. Its slim, versatile design allows for flexible installation in attics, closets, or crawlspaces, while the corrosion-resistant aluminum coil ensures long-lasting performance. Quiet operation, compatibility with MRCOOL® NO-VAC® Quick Connect® line sets, and optional heat kits make this air handler both convenient and high-performing. Backed by a solid warranty, it’s a dependable solution for maintaining comfortable indoor environments in any season.
-
Versatile Installation: Supports upflow, downflow, and horizontal configurations for flexible placement in a variety of spaces.
-
Compact Design: Slim profile fits easily in attics, closets, and crawlspaces.
-
Quick Connect® Compatible: Works with MRCOOL® NO-VAC® Quick Connect® line sets for fast, no-vacuum installation.
-
Optional Heat Kits: Provides additional heating capacity and backup support for extreme winter conditions.
-
Durable Coil: M-shaped 100% aluminum coil maximizes airflow and heat exchange while resisting corrosion.
-
Quiet Operation: Engineered to deliver powerful performance at whisper-quiet sound levels.
-
Reliable Warranty: Backed by a 10-year parts warranty and 2-year limited labor warranty for peace of mind.
SPECIFICATIONS:
| DIMENSIONS |
| Dimensions |
17.52" W x 21.50" D x 53.98" H |
| Air Handler Mount Type |
Multi-Position (Upflow/Downflow/Horizontal) |
| Weight |
149.25 lbs |
| CAPACITY & PERFORMANCE |
| Tonnage |
3 |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
37,000 BTU |
| Coverage Area |
Up to 1,500 sq. ft. |
| Noise Level (Turbo/Hi/Mi/Lo) |
48 / 46 / 45 / 33 dB(A) |
| Indoor air flow (Turbo/Hi/Mi/Lo) |
1236 / 1147 / 1059 / 971 CFM |
| ELECTRICAL REQUIREMENTS |
| Voltage |
115/208/230V |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
15A |
| Min Circuit Ampacity |
8.0/6.0A |
| REFRIGERANT & PIPING |
| Refrigerant Type |
R-454B |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Max Line Set Length |
246 ft. |
| FEATURES |
| Filter Type |
Replaceable |
| Filter Size |
16" x 20" x 1" |
| Metering Device |
EXV |
| Auxiliary Heater Included |
No |
| Auxiliary Heater Available |
Yes |
| Compatible Auxiliary Heater Sizes |
5 KW / 8 KW / 10 KW / 15 KW / 20 KW |
| CERTIFICATION & WARRANTY |
| Certifications |
UL Listed, CSA Listed, ETL Listed |
| Warranty |
10 Year Parts and 2 Year Labor |
