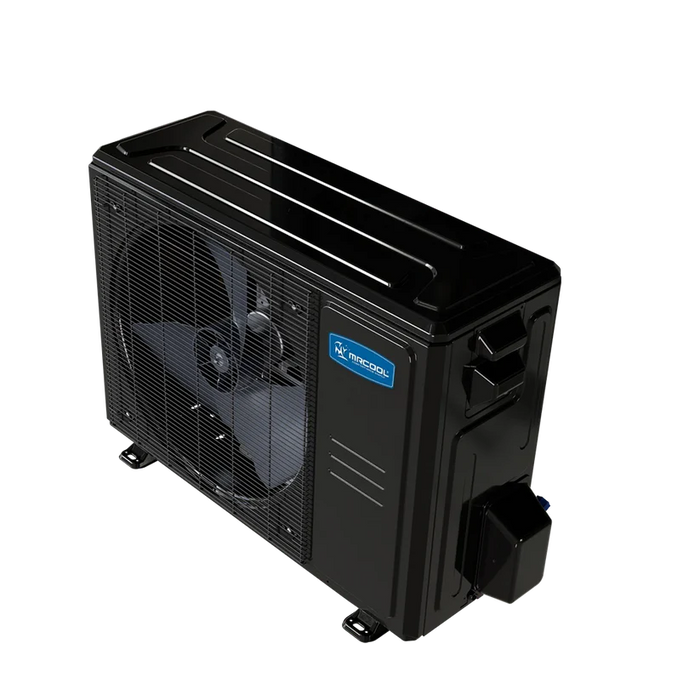

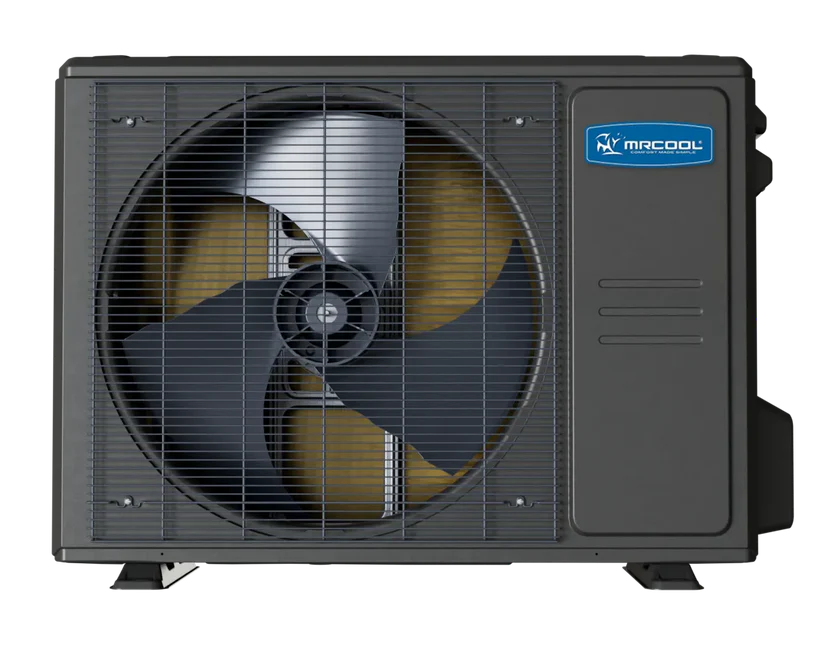

The MRCOOL® Universal® Series 24K DC Inverter Heat Pump Condenser is designed to deliver reliable, high-efficiency heating and cooling throughout the year. Featuring an impressive 18.6 SEER2 rating and advanced inverter technology, it maintains consistent indoor comfort while helping lower energy costs. Its compact, space-saving design makes it ideal for tighter installations, and compatibility with the MRCOOL® NO-VAC® Quick Connect® line set ensures a faster, easier installation process. Built for durability and quiet operation, this condenser provides powerful performance and is supported by strong, industry-leading warranties.
-
High Efficiency: 18.6 SEER2 rating delivers dependable year-round comfort while reducing energy usage.
-
Advanced Inverter Technology: Variable-speed operation ensures stable temperatures with less noise and reduced system wear.
-
Compact, Space-Saving Design: Slim profile fits easily into limited spaces without compromising performance.
-
Fast, Simple Installation: Compatible with MRCOOL® NO-VAC® Quick Connect® line sets for quick and hassle-free setup.
-
Built for Reliability: Engineered to perform consistently in extreme weather conditions.
-
Warranty Coverage: Backed by a 10-year parts warranty and a 2-year limited labor warranty for added peace of mind.
SPECIFICATIONS:
| DIMENSIONS |
| Dimensions |
35.04" W x 13.46" D x 26.50" H |
| Weight |
102.29 lbs |
| CAPACITY & PEFORMANCE |
| Cooling Capacity |
24,000 BTU |
| SEER2 |
18.6 |
| EER2 |
12 |
| Heating Capacity |
24,000 BTU |
| HSPF2-4 |
10 |
| HSPF2-5 |
8.1 |
| Coverage Area |
900 to 1,200 sq. ft. |
| Outdoor Noise Level |
59 dB(A) |
| Outdoor Operating Temperature |
Cooling: -22°F to 122°F
Heating: -22°F to 75°F
|
| ELECTRICAL REQUIREMENTS |
| Voltage |
208-230V |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
20A |
| Min Circuit Ampacity |
19A |
| REFRIGERANT & PIPING |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
74.08 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Max Line Set Length |
164 ft. |
| FEATURES |
| Inverter |
DC |
| Compressor Type |
Rotary |
| Metering Device |
EXV |
| CERTIFICATIONS & WARRANTY |
| Certifications |
UL Listed, ETL Listed, CSA Listed, AHRI Certified |
| Warranty |
10 Year Parts and 2 Year Labor |
