The MRCOOL® Easy Pro™ Mini-Split System provides powerful, energy-efficient heating and cooling for spaces up to 1,050 sq. ft., all with a simple DIY installation. This complete system includes a quiet, WiFi-enabled indoor air handler and a durable outdoor condenser. Perfect for bedrooms, offices, or tech spaces like server rooms, the Easy Pro™ combines smart control, year-round comfort, and reliable performance—without breaking the bank.
-
DIY Installation Made Simple: Features a 16 ft. pre-charged Fast Connection® line set for quick and easy installation—no HVAC technician needed.
-
Smart Home Integration: Built-in WiFi with MRCOOL® Smart HVAC Controller® app support, compatible with Google Assistant and Amazon Alexa for seamless voice and mobile control.
-
Personalized Comfort: The included remote with Follow Me® technology automatically adjusts the temperature based on your location in the room.
-
Energy-Efficient Performance: Boasts a SEER2 rating of 18.9 and HSPF2-4 of 8.7, ensuring year-round comfort with reduced energy costs.
-
Quiet Operation: Operates at just 61 dB(A), ideal for bedrooms, offices, and other noise-sensitive spaces.
-
Low Ambient Cooling: Maintains reliable performance even when outdoor temperatures drop to 5°F, making it great for server rooms or greenhouses.
-
Durable, Weather-Resistant Design: The Gold Fin® condenser coating provides excellent corrosion resistance, perfect for coastal or humid environments.
-
Clean & Healthy Air: Active Clean Technology keeps the indoor unit fresh, while washable filters promote better air quality and easy maintenance.
-
Eco-Conscious & Certified: Utilizes R-454B refrigerant and meets AHRI, NEEP ccASHP, and CEE Tier 1 - North certification standards for energy efficiency and sustainability.
-
Reliable Warranty Protection: Backed by a 2-year parts warranty and 1-year compressor warranty upon registration for complete peace of mind.

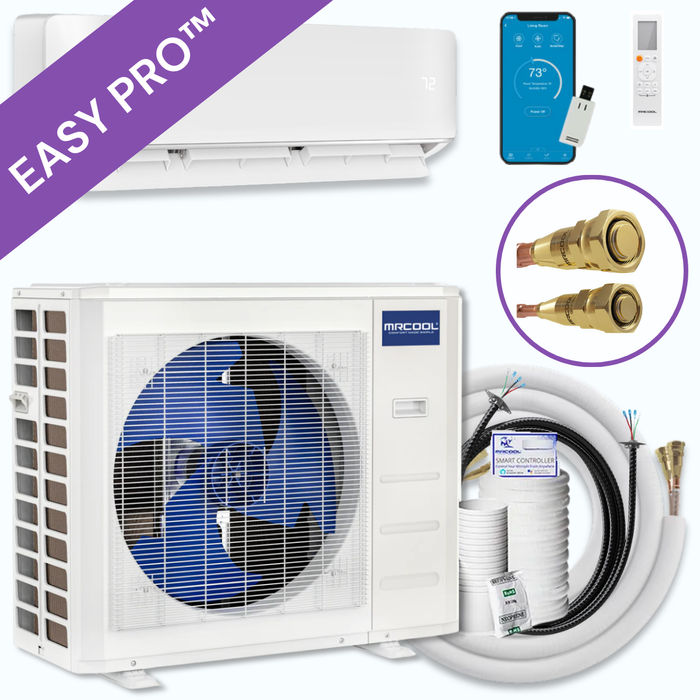

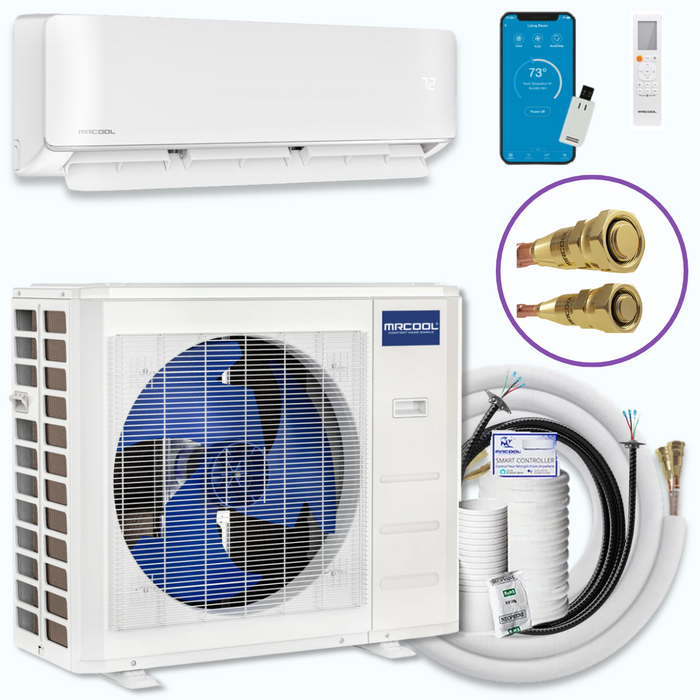

WHAT YOU GET:
- OUTDOOR UNIT (24K) w/ 16 ft. DIY Quick Connect Line Set x 1

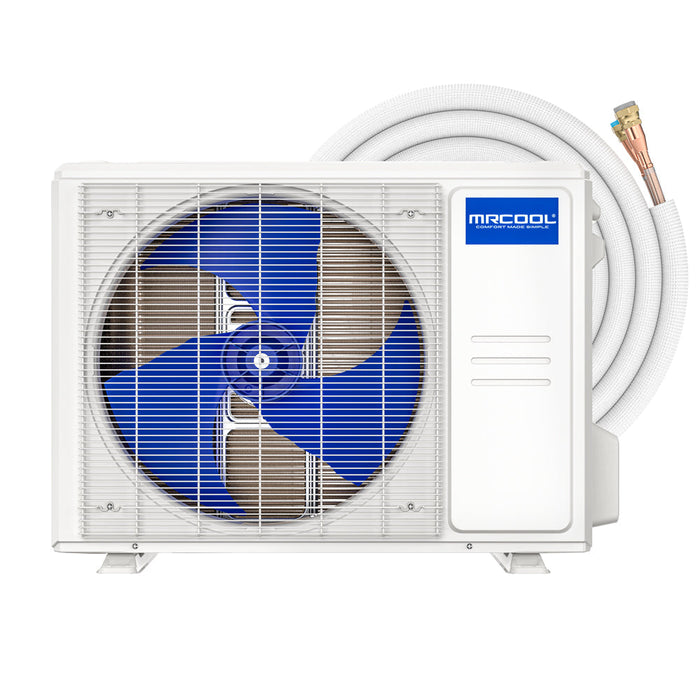

MRCOOL DIY® 5th Gen EasyPro 24,000 BTU Single Zone Mini Split Condenser 230V with 16 ft. DIY Quick Connect Line Set (EZPRO-24-HP-C-23016D-O)
- INDOOR UNIT (24K) w/ DIYPRO Cable x 1

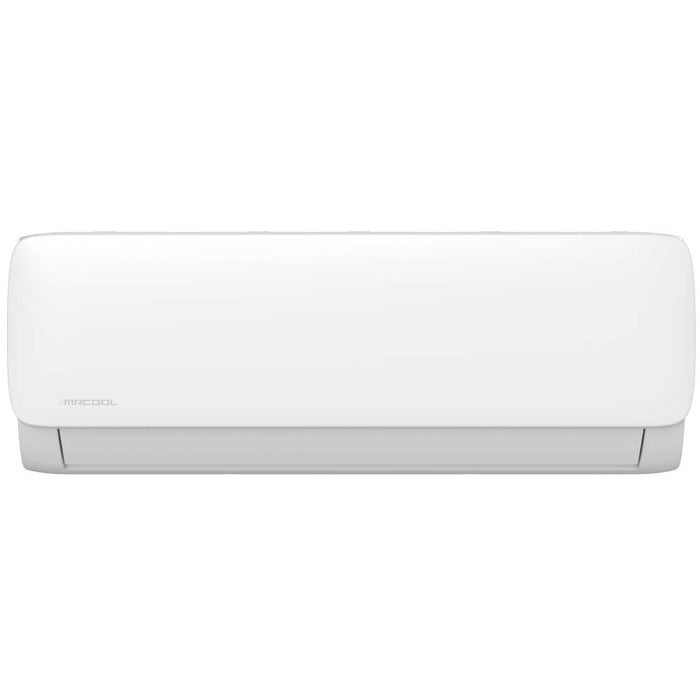

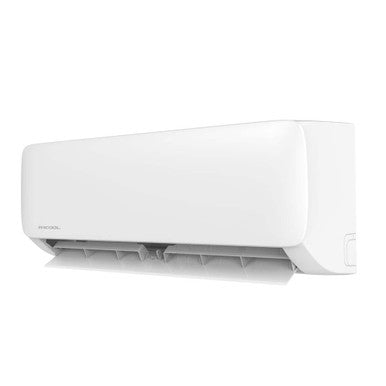

MRCOOL DIY® 5th Gen EasyPro 24,000 BTU Single Zone Mini Split Air Handler 230V with DIYPRO Cable (EZPRO-24-HP-WMAH-230D-O)
SPECIFICATIONS:
| DIMENSIONS |
| Condenser Dimensions |
35.04 W" x 13.46 D" x 26.5 H" |
| Air Handler Dimensions |
42.6 W" x 9.21 D" x 13.27 H" |
| Condenser Weight |
95.9 lbs |
| Air Handler Weight |
35.49 lbs |
| CAPACITY & PERFORMANCE |
| Zone Capacity |
1 |
| Cooling Capacity |
24,000 BTU |
| Outdoor Operating Temperature (Cooling) |
-13°F - 122°F |
| EER2 |
9.7 |
| SEER2 |
18.9 |
| Heating Capacity |
25,000 BTU |
| Outdoor Operating Temperature (Heating) |
-13°F - 75°F |
| HSPF2-4 |
8.7 |
| HSPF2-5 |
6.9 |
| Coverage Area |
Up to 1,050 sq ft. |
| Outdoor Noise Level |
61 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) |
51.5/40.5/21.5 dB(A) |
| ELECTRICAL REQUIREMENTS |
| Voltage |
208-230V |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
20A |
| Min Circuit Ampacity |
19A |
| Refrigerant & Piping |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
50.44 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
5/8" |
| Max Line Set Length |
164 ft. |
| FEATURES |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Inverter |
DC |
| Compressor Type |
Rotary |
| Fan Only Option |
Yes |
| Quiet Mode |
Yes |
| Auto Cool |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Works with IOS |
Yes |
| Works with Android |
Yes |
| Remote Control Included |
Yes |
| Certifications & Warranty |
| Certifications |
UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty |
1 Year Parts / 2 Year Compressor |
