MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Complete System 230V with 25 ft. DIY Quick Connect Line Set and DIYPRO Cable (DIY-24-HP-WM-230D25-O)
Thinking of building your own system? Reach out to us today!
Transform your indoor climate with the MRCOOL® DIY® 5th Gen 24,000 BTU Single Zone Mini Split, designed to deliver powerful, year-round heating and cooling for spaces between 750 to 1,000 sq. ft. This Energy Star® certified system offers a true do-it-yourself installation experience, complete with a 25 ft. pre-charged QuickConnect® line set and DIYPRO® cable—no HVAC technician or vacuum pump required.
With seamless smart control options including the SmartHVAC app, remote, or voice commands through Amazon Alexa or Google Assistant, customizing your comfort has never been easier. Backed by an industry-leading warranty and equipped with eco-friendly refrigerant, MRCOOL® continues to be the most trusted name in DIY climate solutions.
FEATURES:
-
DIY Installation: Easy, tool-free setup with no HVAC experience required.
-
QuickConnect® Line Set: Pre-charged with R-454B refrigerant for a fast, vacuum-free installation.
-
Eco-Friendly Refrigerant: R-454B has a lower Global Warming Potential (GWP) than R-410A, offering better efficiency and environmental performance.
-
DIYPRO® Cable: Replaces traditional conduit with a tough, weather-resistant cable that guards against outdoor exposure and wildlife.
-
Smart Control Options: Operate the system using the remote, SmartHVAC app (iOS/Android), or voice commands via Alexa or Google Assistant.
-
Follow Me Function: Senses the remote’s location and adjusts airflow for more precise comfort.
-
Dry Mode: Functions as a dehumidifier, reducing excess moisture and improving indoor air quality.
-
Gold Fin® Condenser: Corrosion-resistant coating ensures long-term durability, especially in coastal environments.
-
Premium Warranty: Includes a limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty.
-
Certified Performance: Intertek listed (5031495) for quality, safety, and reliability.
INCLUSIONS:
Want to configure your own system? Feel free to reach out!
SPECIFICATIONS:
| Dimensions & Weight |
| Condenser Dimensions |
37.24 W" x 16.14 D" x 31.89 H" |
| Condenser Weight |
112.8 lbs / 55.7 kg |

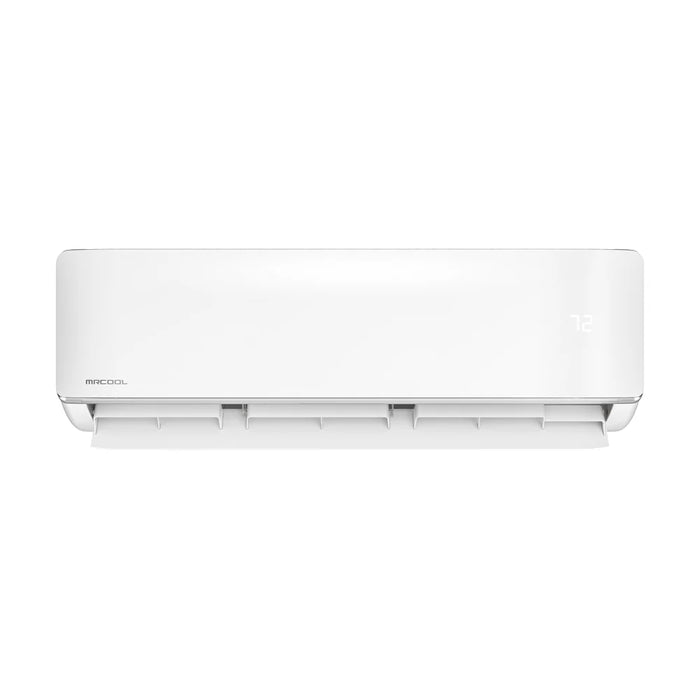

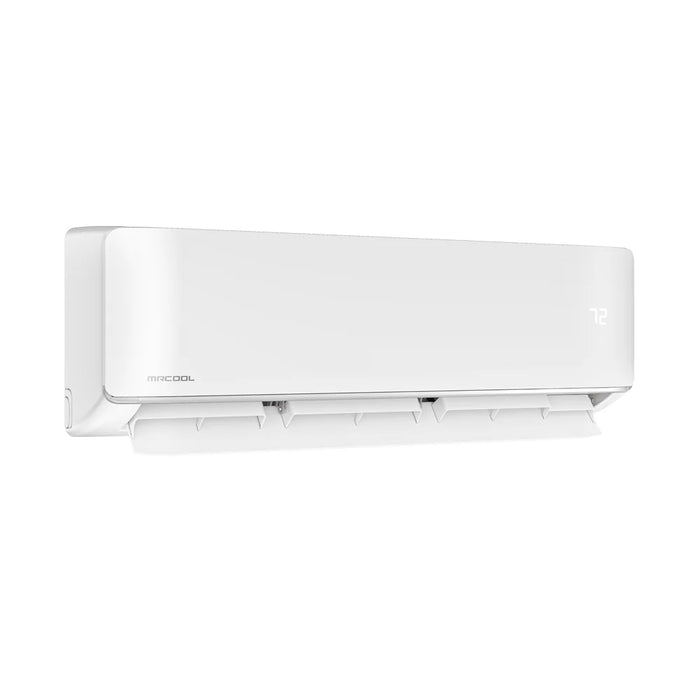

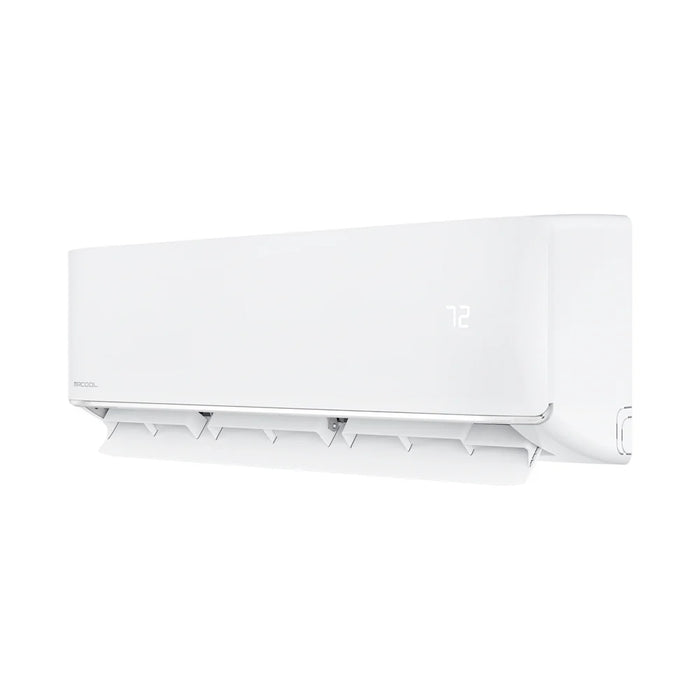

| Air Handler Dimensions |
42.52 W" x 8.90 D" x 13.19 H" |
| Air Handler Weight |
35.49 lbs / 16.1 kg |
| Capacity & Performance |
| Zone Capacity |
1 |
| Cooling Capacity |
23,000 BTU |
| EER2 |
12.7 |
| SEER2 |
22.7 |
| Heating Capacity |
23,000 BTU |
| HSPF2-4 |
9.6 |
| HSPF2-5 |
7.1 |
| Coverage Area |
750 to 1,000 sq ft. |
| Outdoor Noise Level |
58.5 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) |
54.0/48.0/43.0/33.5/20.0 dB(A) |
| Electrical Requirements |
| Voltage |
208-230V |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
25A |
| Min Circuit Ampacity |
24A |
| Refrigerant & Piping |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
67.37 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
5/8" |
| Max Line Set Length |
164 ft. |
| Features |
| Inverter |
DC |
| Compressor Type |
Rotary |
| Fan Only Option |
Yes |
| Quiet Mode |
Yes |
| Auto Cool |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Works with IOS |
Yes |
| Works with Android |
Yes |
| Remote Control Included |
Yes |
| Certifications & Warranty |
| Certifications |
UL Listed, ETL Listed, Energy Star Certified, AHRI Certified |
| Warranty |
7 Years Compressor
5 Years Parts
Extended Limited Lifetime Replacement
*If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty
**The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement. |
