MRCOOL DIY® 5th Gen 36,000 BTU 5-Zone Multi-Zone Mini Split Condenser 230V (DIY-MULTI5-36HP230D-O)

by MRCOOL
SKU DIY-MULTI5-36HP230D-O
Save $456.00 Save $456.00
Original price $2,999.00
Original price $2,999.00 - Original price $2,999.00
Original price $2,999.00
Current price $2,543.00
$2,543.00 - $2,543.00
Current price $2,543.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized MRCOOL Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937
 More payment options

Have Questions? 📞Call or Text (916)-999-9937 (10am-10pm EST - Daily)

Description

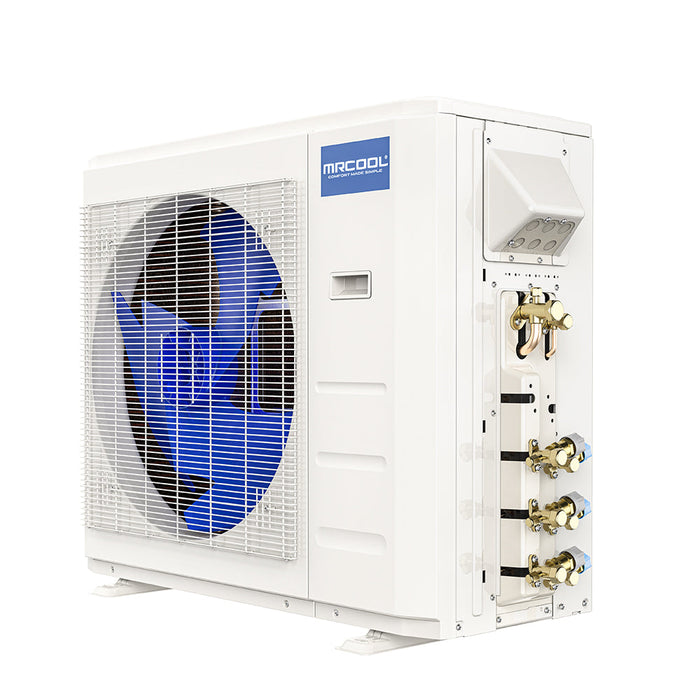

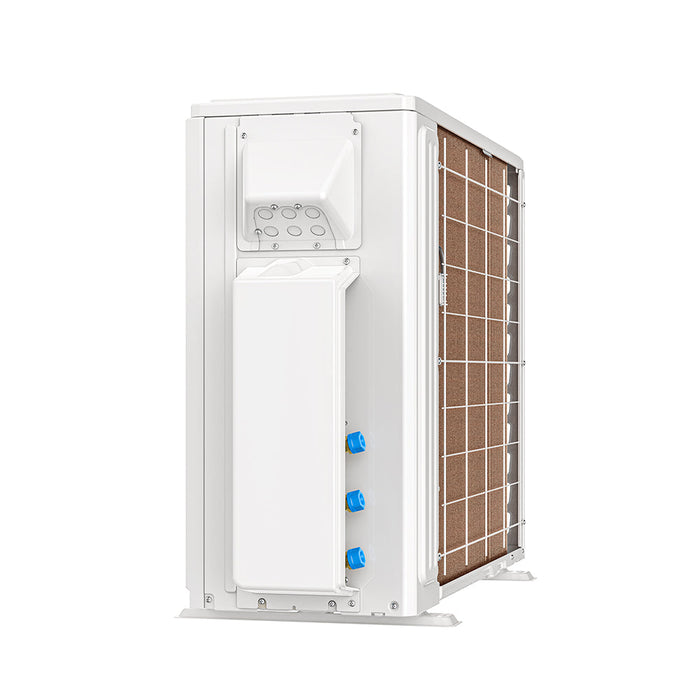

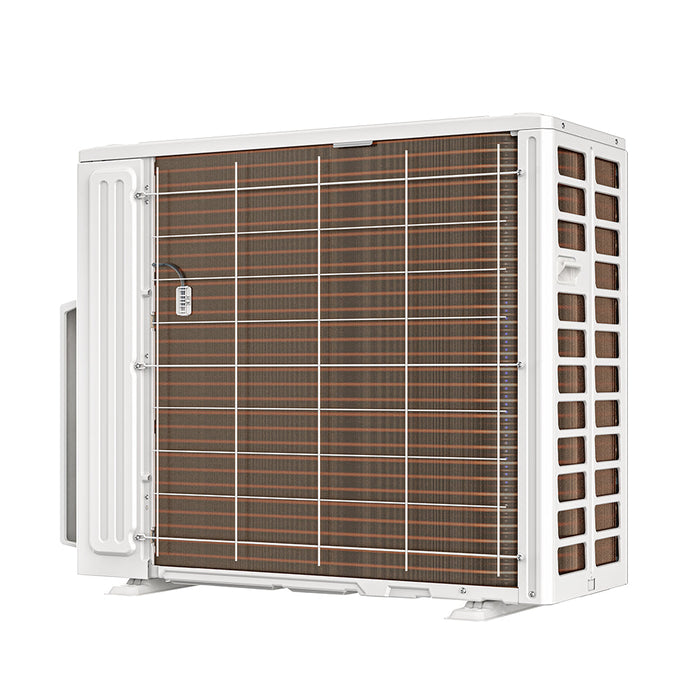

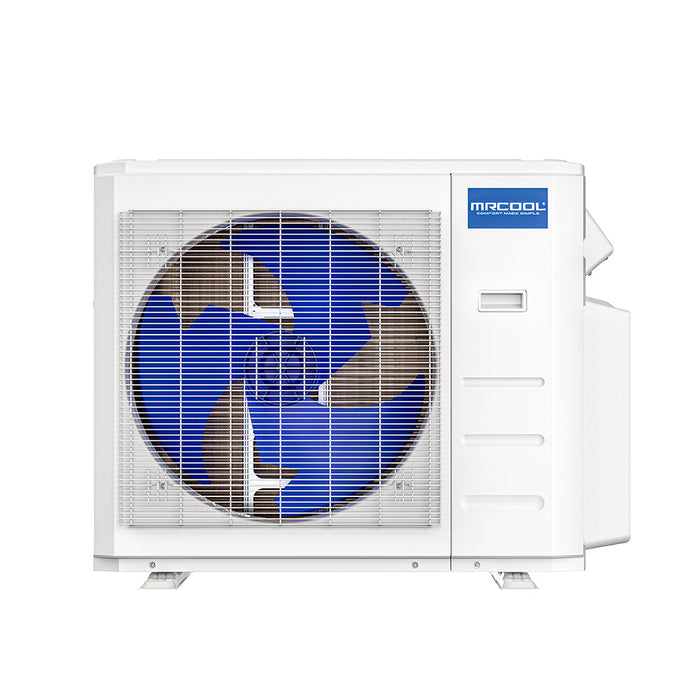

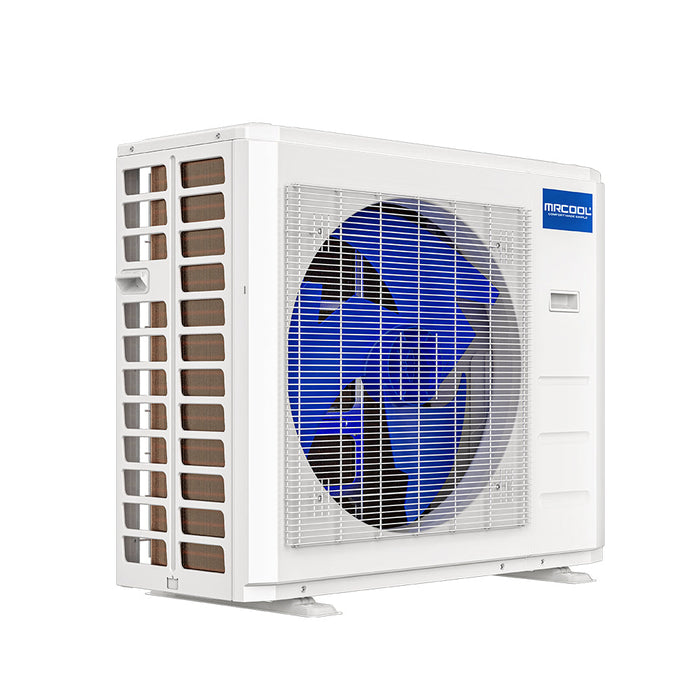

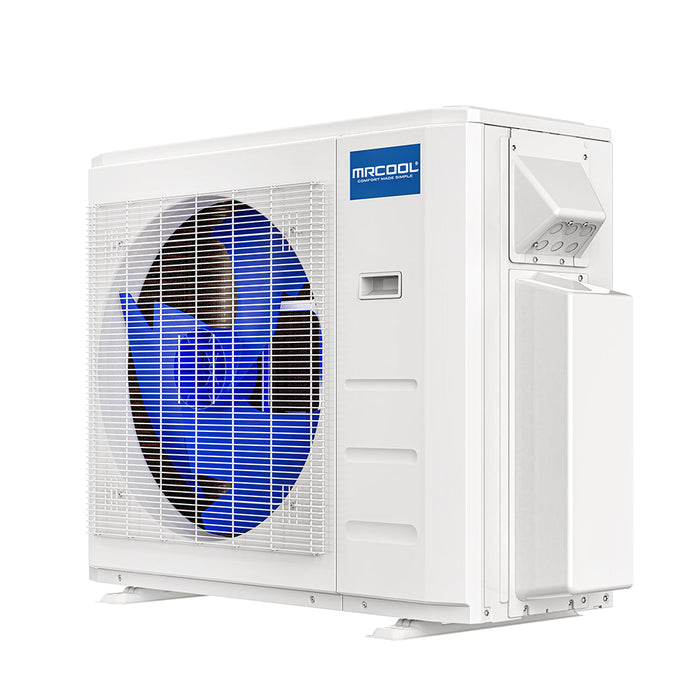

MRCOOL DIY® 5th Gen 36,000 BTU 5-Zone Multi-Zone Mini Split Condenser 230V (DIY-MULTI5-36HP230D-O)

The 5th Generation MRCOOL® DIY® 36K BTU Multi-Zone Ductless Mini-Split Condenser is the smart choice for whole-home comfort—without the high installation cost. Designed for true DIY installation, this unit can heat and cool up to five separate zones (rooms or spaces) using compatible air handlers and pre-charged Quick Connect® line sets (sold separately).

With powerful performance, top-tier energy efficiency, and smart control integration, the DIY® system gives you full climate control over your space—no HVAC technician needed. This 36K BTU unit uses the next-generation R-454B refrigerant, which is not only more eco-friendly than R-410A but also improves system efficiency. With an impressive SEER2 rating of 23 and HSPF2-4 of 9.9, you’ll save money while enjoying year-round comfort.

Control each zone independently with the SmartHVAC® app, or integrate with Amazon Alexa or Google Assistant for convenient voice control. Backed by a 7-year compressor warranty, 5-year parts warranty, and Limited Lifetime Replacement Warranty (with MRCOOL® Care Program registration), this system is built to last and perform.

FEATURES:

  • Supports up to 5 Zones
    Ideal for whole-home comfort or large multi-room setups.

  • Easy DIY Installation
    No special tools or professional HVAC knowledge required.

  • DIY® Quick Connect® Line Set Compatible (sold separately)
    Pre-charged with R-454B refrigerant—no vacuuming needed.

  • Eco-Friendly Refrigerant (R-454B)
    Lower Global Warming Potential (GWP) than R-410A and more energy efficient.

  • High Efficiency Ratings

    • SEER2: 23

    • HSPF2-4: 9.9

  • Smart Control Integration

    • Control via SmartHVAC® App (iOS & Android)

    • Compatible with Amazon Alexa and Google Assistant for voice control

  • Zone Customization
    Set temperatures, create schedules, and monitor energy usage for each zone.

  • Gold Fin® Anti-Corrosion Technology
    Protects the condenser in coastal or humid environments.

  • Durable & Weather Resistant
    Built for long-lasting performance in varying climates.

  • Industry-Leading Warranty

    • 7-Year Compressor Warranty

    • 5-Year Parts Warranty

    • Limited Lifetime Replacement Warranty with MRCOOL® Care Program registration

  • Certified Safe & Reliable

    • Intertek Listed (5031495)

    • Meets national safety and performance standards

SPECIFICATIONS:

Dimensions 16.14" D x 31.89" H x 37.24" W

SEER2

23

EER2

12

HSPF2-4

9.9

HSPF2-5

7.5

Tonnage

3

Cooling Capacity (BTU)

34000

Heating Capacity (BTU)

36000

Voltage (V)

208/230

Phase

1

Cycle

60

Max Fuse Breaker (A)

35

Min Circuit Ampacity (A)

30.5

Color

White

Zone Capacity

3

Refrigerant Type

R-454B

Refrigerant Volume (OZ)

104.75

Decibel Rating (DBA)

64

Inverter

DC

Line Set Length

25

Max Lineset Length (FT)

221.4

Liquid Line Size

1/4

Suctio Line Size

(3/8 X4) (1/2 X1)DIY-MULTI5-36HP230D-O

Compressor Motor Type

Rotary

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

UL Listed

Yes

ETL Listed

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contans Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

GUIDE:

Brochure

Installation Manual

Remote Manual

Warranty
