MRCOOL DIY Mini Split - 36,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft.|25 ft|35 ft.|50 ft. Install Kit

MRCOOL DIY Mini Split - 36,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft.|25 ft|35 ft.|50 ft. Install Kit

by MRCOOL
SKU DIYM436HPW00C00
Save up to $1,173.75 Save $1,173.75
$5,868.75
$5,868.75 - $5,868.75
$5,868.75
$4,695.00
$4,695.00 - $5,927.00
$4,695.00
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized MRCOOL Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937
 More payment options

Have Questions? 📞Call or Text (916)-999-9937 (10am-10pm EST - Daily)

Description

MRCOOL DIY Mini Split - 36,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft.|25 ft|35 ft.|50 ft. Install Kit

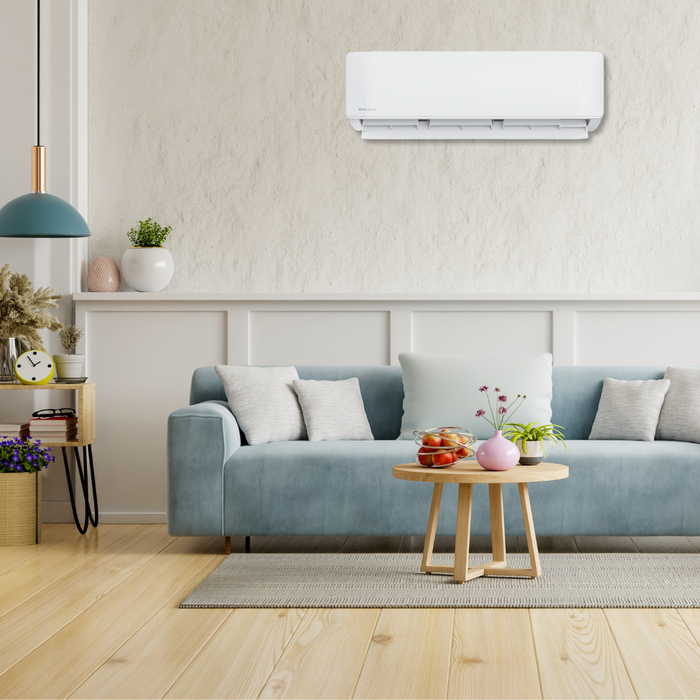

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat four different rooms. You'll be sent: DIY 36,000 BTU Multi-Zone Condenser, four 9,000 BTU Wall Mounted Air Handler, four Remotes, and four 16 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

Package Includes

  • MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series, DIY-MULTI4-36HP230C
  • MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x4)
  • MRCOOL 16ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY16-1412 (x4)

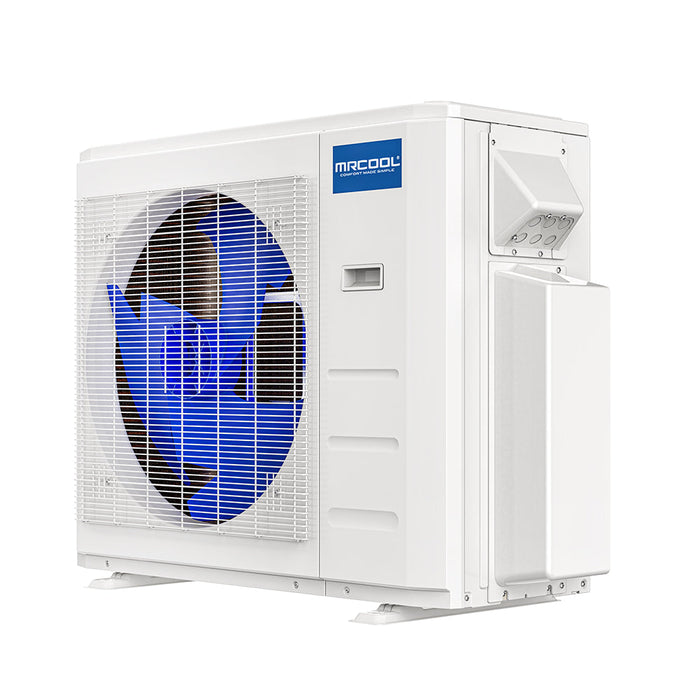

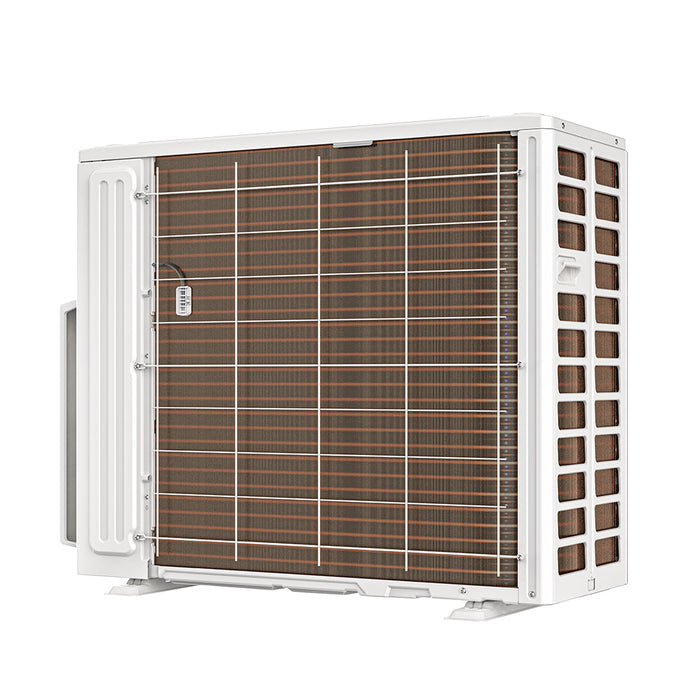

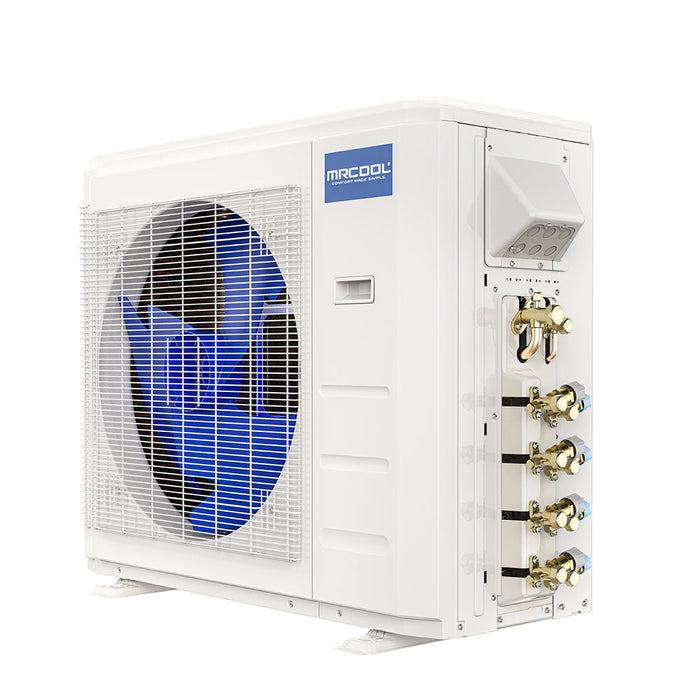

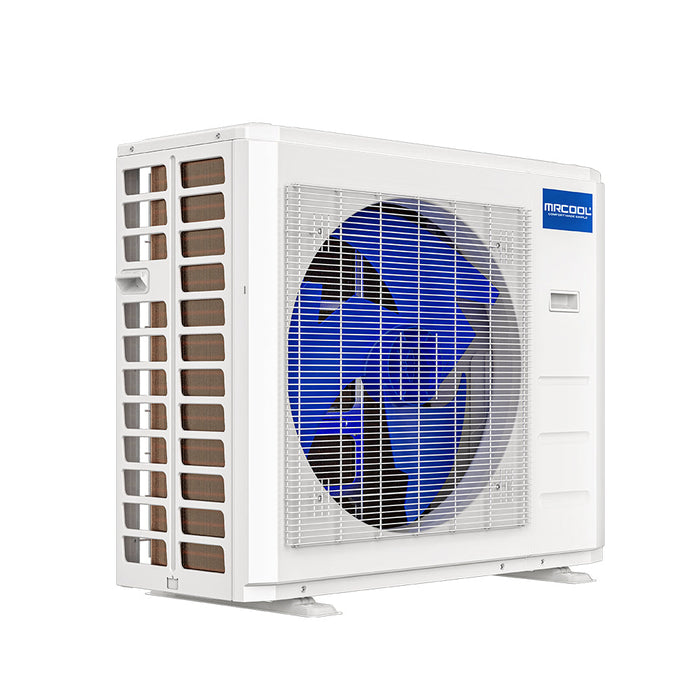

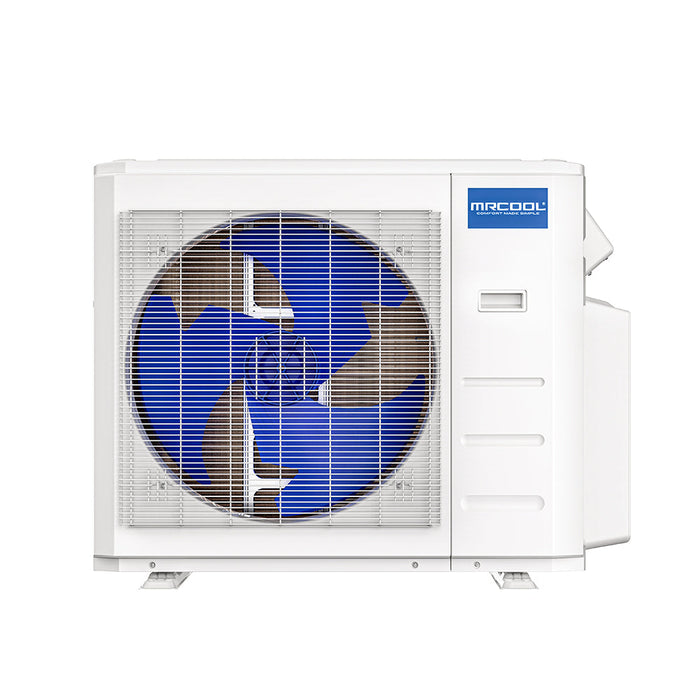

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

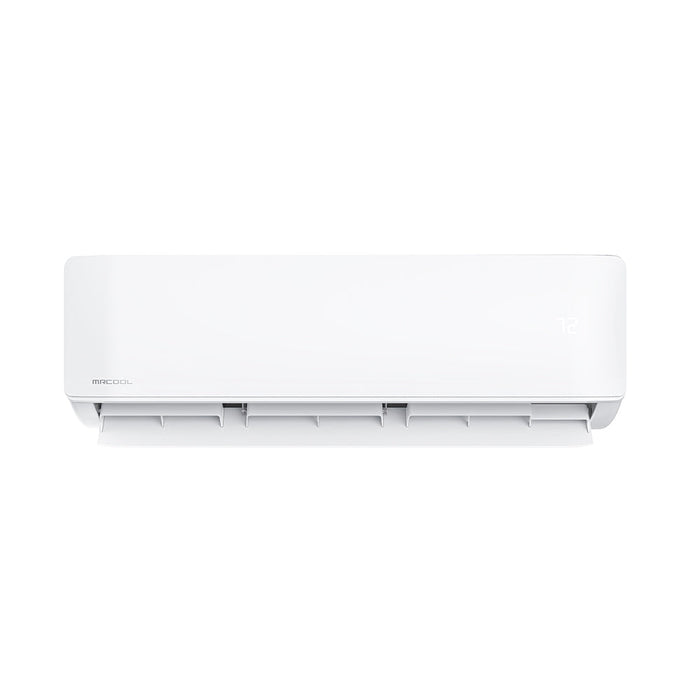

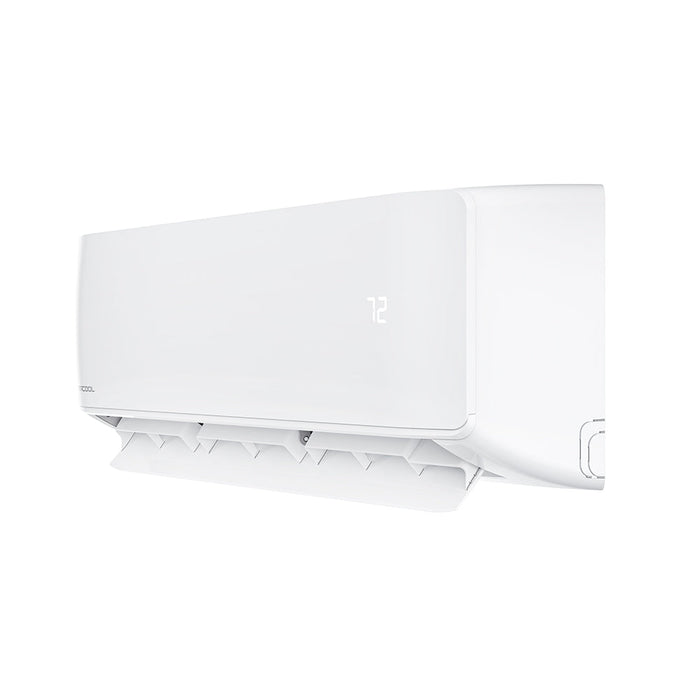

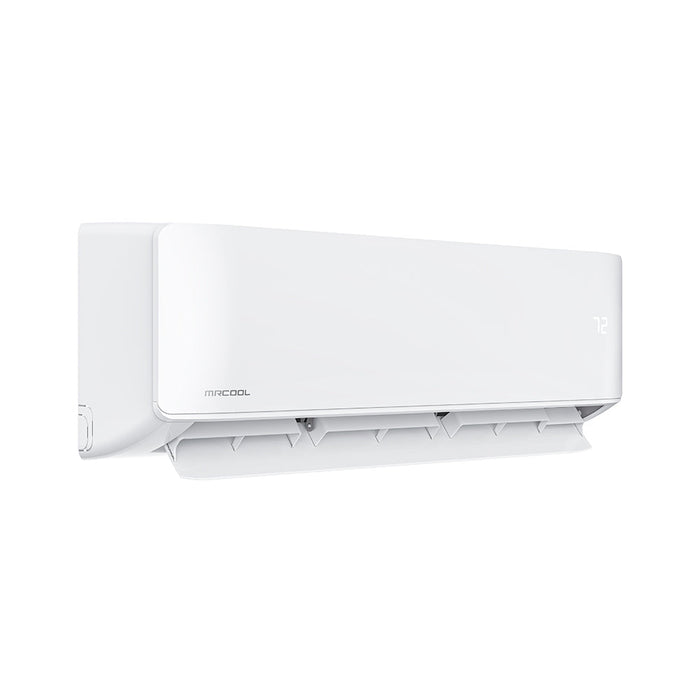

    Air Handler, 9K BTU, Quantity 4

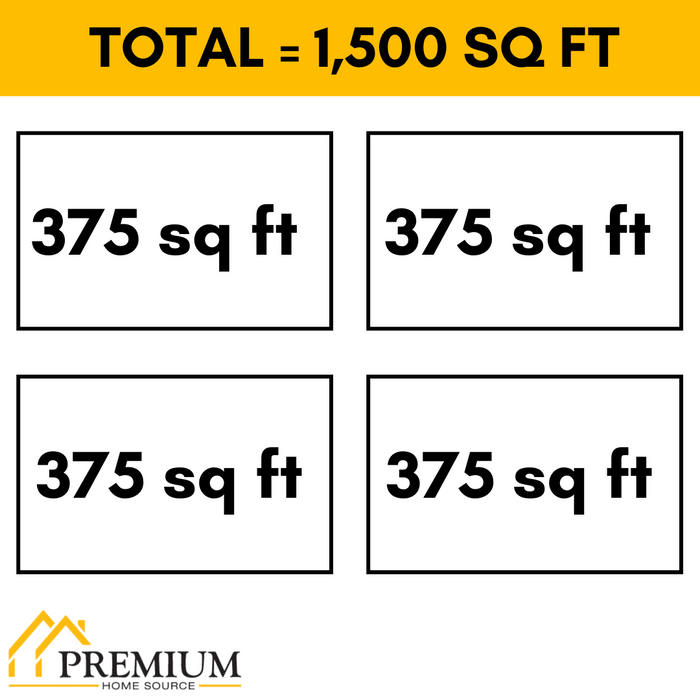

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

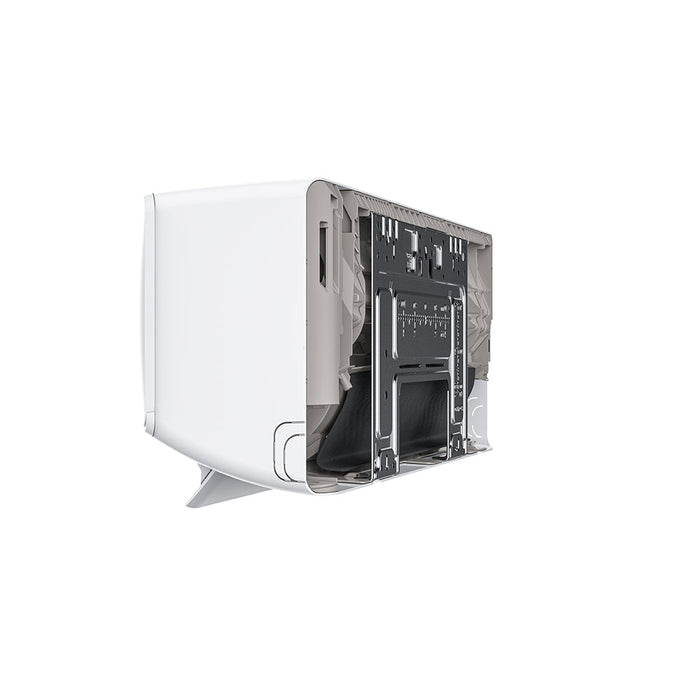

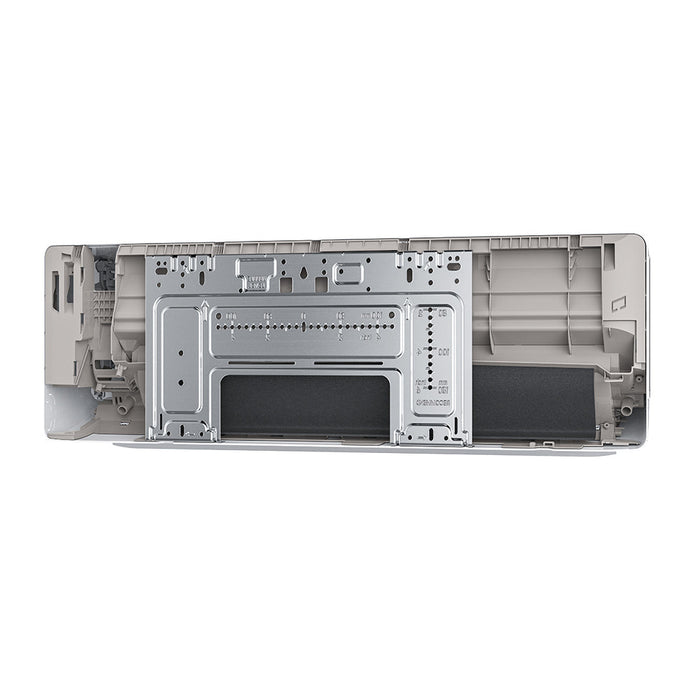

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

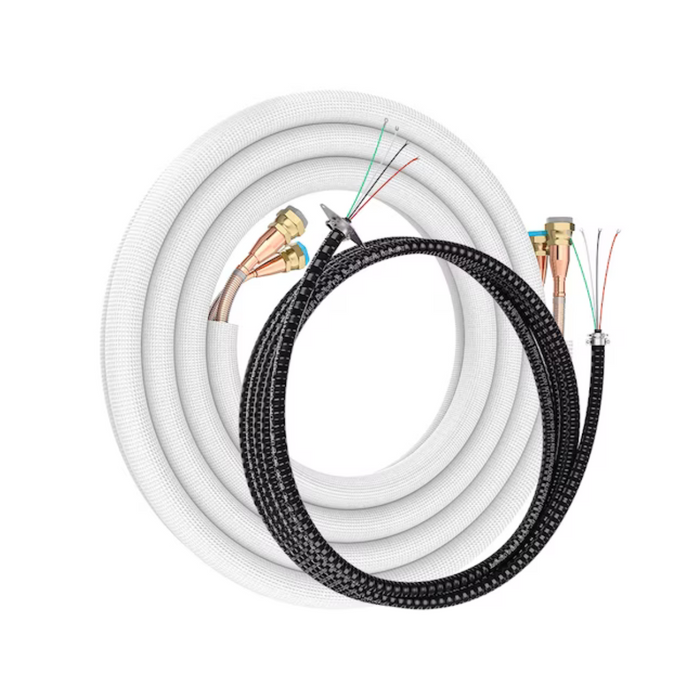

        Line Set 16 ft., Quantity 4

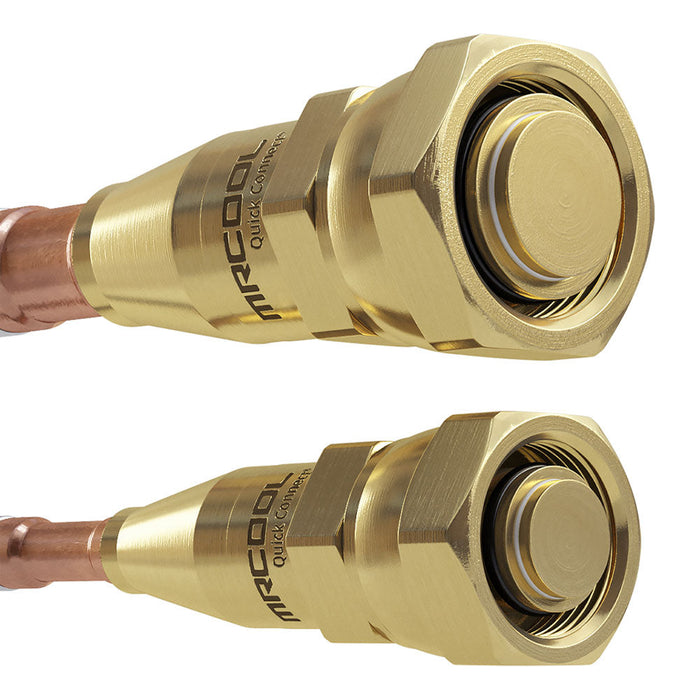

        • This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Additional Line Sets & Coupler

        If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.



            PRODUCT SPECIFICATIONS:

            Condenser Specifications

            Product Dimensions 37.24"W x 16.14"D x 31.89"H
            Cooling Capacity 36,000 BTU
            Heating Capacity 36,000 BTU
            Zone Capacity 4
            Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
            Heat Mode - Outdoor Operating Temperature Range -13F ~ 75.2F
            SEER 21.5
            EER 10.5
            Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
            Registered Warranty
            		 7 Years Replacement on Condenser, 5 Years Parts


            Air Handler 9K BTU

            Product Dimensions 31.57"W x 7.44"D x 11.69"H
            Mount Type Wall
            Cooling Capacity 9,000 BTU
            Heating Capacity 9,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Line Set

            Length 16 Feet
            Liquid Line Size 1/4"
            Suction Line Size 1/2"
