MRCOOL DIY 5th Gen EasyPro - 9,000 BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable (EZPRO-09-HP-11516D-O)
Thinking of building your own system? Reach out to us today!
Experience affordable comfort and smart technology with the MRCOOL® EasyPro™ 9,000 BTU Single Zone Mini Split System – designed for effortless homeowner installation. Perfect for bedrooms, home offices, and tech spaces up to 400 sq. ft., this energy-efficient system offers year-round heating and cooling without the need for professional installation.
Featuring built-in WiFi, smart home compatibility, and a pre-charged 16 ft. Fast Connection® line set, the EasyPro™ system is ready to go right out of the box. With ultra-quiet operation, smart controls, and a durable, weather-resistant design, MRCOOL® makes comfort simple, reliable, and efficient.
FEATURES:
-
DIY Installation:
Includes a 16 ft. pre-charged Fast Connection® line set for simple, tool-free installation—no HVAC technician needed.
-
Smart Home Ready:
Integrated WiFi control through the MRCOOL® Smart HVAC Controller® app, with voice command compatibility via Amazon Alexa and Google Assistant.
-
Remote with Follow Me® Function:
Automatically adjusts airflow and temperature based on the remote’s location for personalized comfort.
-
High Energy Efficiency:
SEER2 rating of 20.2 and HSPF2-4 rating of 9.2 for year-round energy savings.
-
Whisper-Quiet Operation:
Operates at just 54 dB(A)—ideal for quiet spaces like bedrooms and offices.
-
Low Ambient Cooling to 5°F:
Ensures reliable performance in cold climates or tech rooms requiring year-round cooling.
-
Gold Fin® Corrosion Resistance:
Protects the condenser from harsh elements—perfect for coastal environments.
-
Active Clean Technology:
Helps maintain a cleaner indoor coil and improved air quality with minimal maintenance.
-
Eco-Friendly Refrigerant:
Uses R-454B, which offers a lower Global Warming Potential (GWP) compared to older refrigerants like R-410A.
-
Certified Quality:
Meets AHRI, NEEP ccASHP, and CEE Tier 1 - North certification standards.
-
Warranty Coverage:
Backed by a 2-year parts warranty and 1-year compressor warranty upon registration.

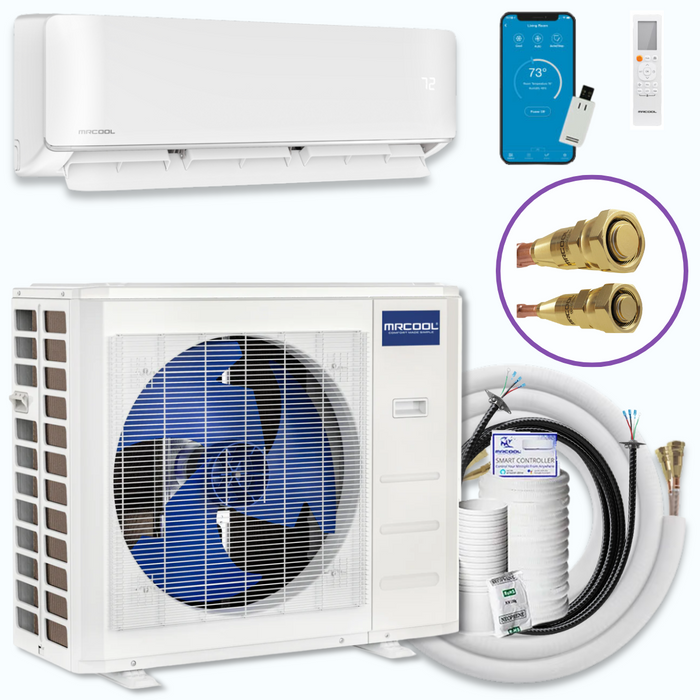

INCLUSIONS:

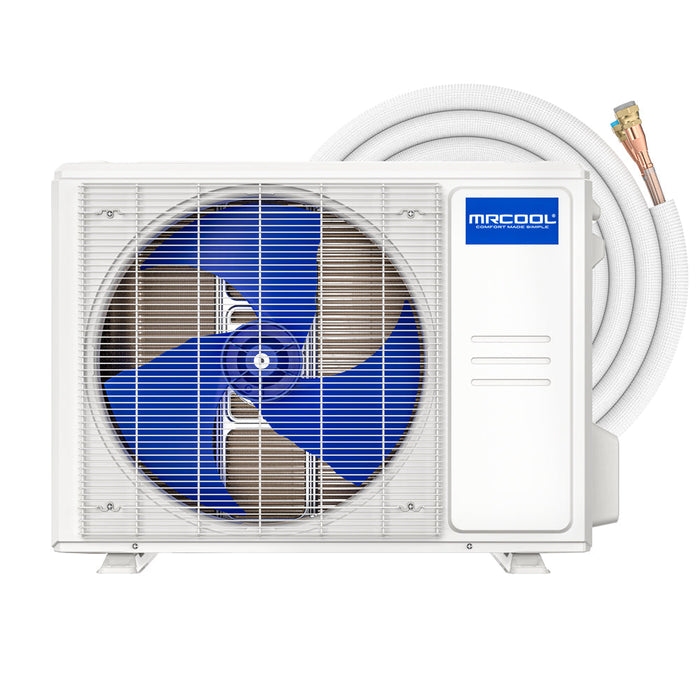

- 9K BTU Condenser + 16 ft. Line Set
- 9K BTU Air Handler
- Remote Control
NOTE: If you need an additional line set, feel free to reach out to us.
SPECIFICATIONS:
| DIMENSIONS |
| Condenser Dimensions |
28.35 W" x 10.63 D" x 19.49 H" |
| Air Handler Dimensions |
28.7 W" x 7.87 D" x 11.5 H" |
| Condenser Weight |
54.67 lbs |
| Air Handler Weight |
23.81 lbs |
| CAPACITY & PERFORMANCE |
| Zone Capacity |
1 |
| Cooling Capacity |
9,000 BTU |
| Outdoor Operating Temperature (Cooling) |
5°F - 122°F |
| EER2 |
11.3 |
| SEER2 |
20.2 |
| Heating Capacity |
10,000 BTU |
| Outdoor Operating Temperature (Heating) |
13°F - 75°F |
| HSPF2-4 |
9.2 |
| HSPF2-5 |
7.1 |
| Coverage Area |
Up to 400 sq ft. |
| Outdoor Noise Level |
54 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) |
43.0/31.0/18.0 dB(A) |
| ELECTRICAL REQUIREMENTS |
| Voltage |
115V |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
20A |
| Min Circuit Ampacity |
17A |
| Refrigerant & Piping |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
17.28 oz |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Max Line Set Length |
82 ft. |
| FEATURES |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Inverter |
DC |
| Compressor Type |
Rotary |
| Fan Only Option |
Yes |
| Quiet Mode |
Yes |
| Auto Cool |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Works with IOS |
Yes |
| Works with Android |
Yes |
| Remote Control Included |
Yes |
| Certifications & Warranty |
| Certifications |
UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty |
2 Year Parts / 1 Year Compressor |
