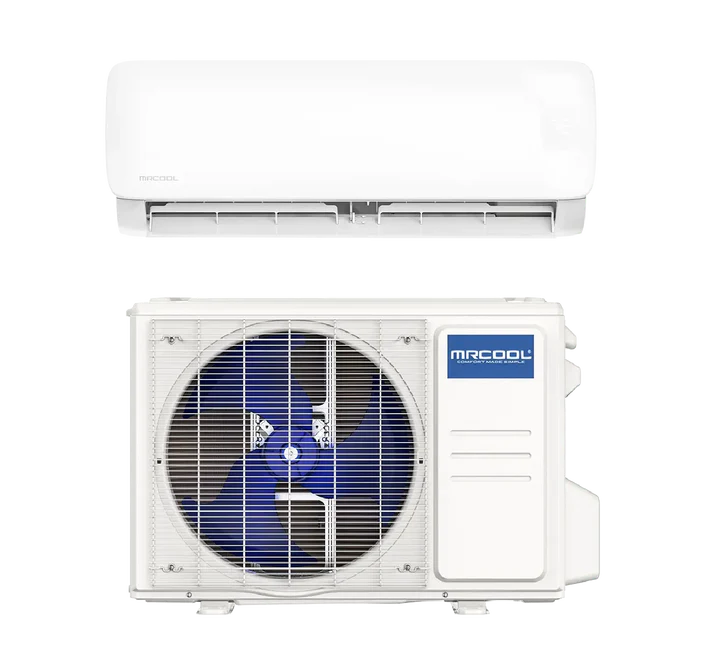

The MRCOOL® Easy Pro™ Mini-Split System delivers powerful, energy-efficient heating and cooling for spaces up to 550 sq. ft. — all with a simple, do-it-yourself installation. This complete system includes a quiet, WiFi-enabled indoor air handler and a durable outdoor condenser designed for long-lasting performance. Whether for a bedroom, office, or tech space like a server room, the Easy Pro™ system provides smart control, year-round comfort, and reliable efficiency — without breaking the bank.
-
DIY Installation Made Simple: Comes with a 16 ft. pre-charged Fast Connection® line set for quick, mess-free installation — no HVAC technician required.
-
Smart Home Integration: Built-in WiFi works with the MRCOOL® Smart HVAC Controller® app, plus full compatibility with Google Assistant and Amazon Alexa.
-
Personalized Comfort Control: The included remote features Follow Me® technology, automatically adjusting temperature based on your location in the room.
-
Energy-Efficient Performance: Achieves a 19.5 SEER2 rating and 9.3 HSPF2-4, delivering dependable comfort with lower energy costs year-round.
-
Quiet Operation: Operates at just 54 dB(A), ensuring peaceful comfort in bedrooms, offices, or other quiet environments.
-
Low Ambient Cooling: Provides reliable cooling even in outdoor temperatures as low as 5°F, ideal for server rooms or greenhouses.
-
Durable, Weather-Resistant Design: The Gold Fin® condenser coating resists corrosion, extending lifespan — perfect for coastal or humid areas.
-
Clean, Healthy Air: Active Clean Technology keeps the indoor unit fresh and easy to maintain for improved air quality.
-
Eco-Conscious & Certified: Uses R-454B refrigerant and meets AHRI, NEEP ccASHP, and CEE Tier 1 - North efficiency standards.
-
Warranty Protection: Includes a 2-year parts warranty and 1-year compressor warranty upon registration for added peace of mind.
WHAT YOU GET:

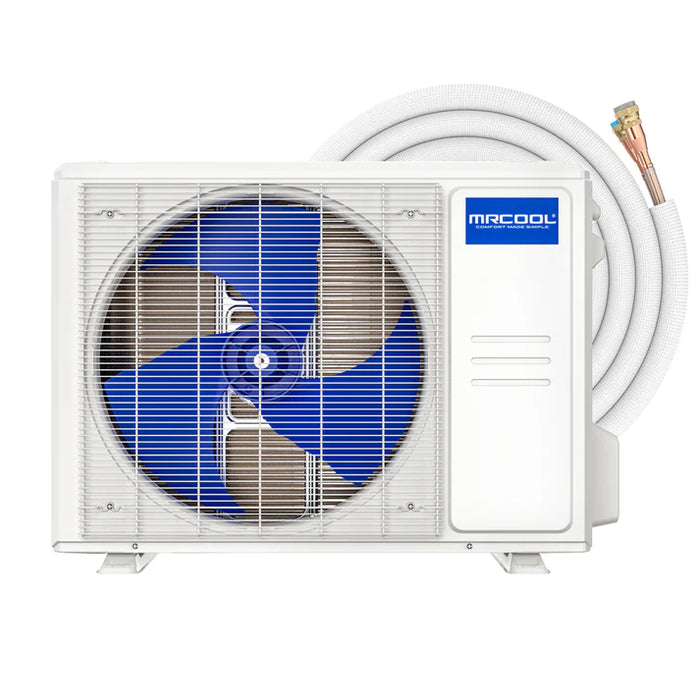

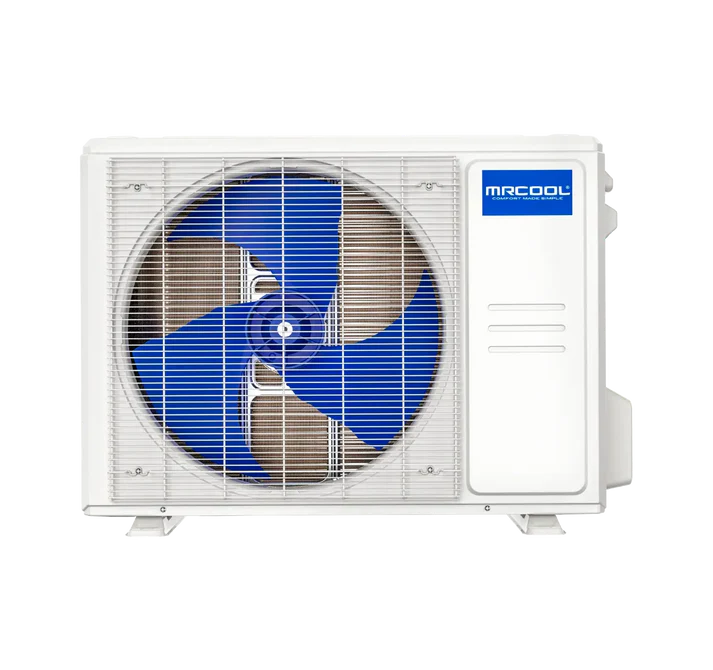

- OUTDOOR UNIT (12K) w/ 16 ft. DIY Quick Connect Line Set x 1
MRCOOL DIY® 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set (EZPRO-12-HP-C-11516D-O)

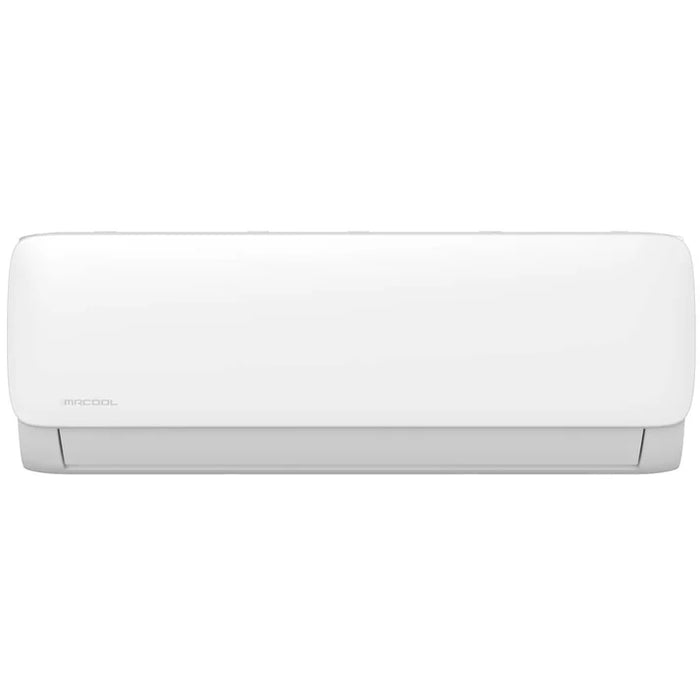

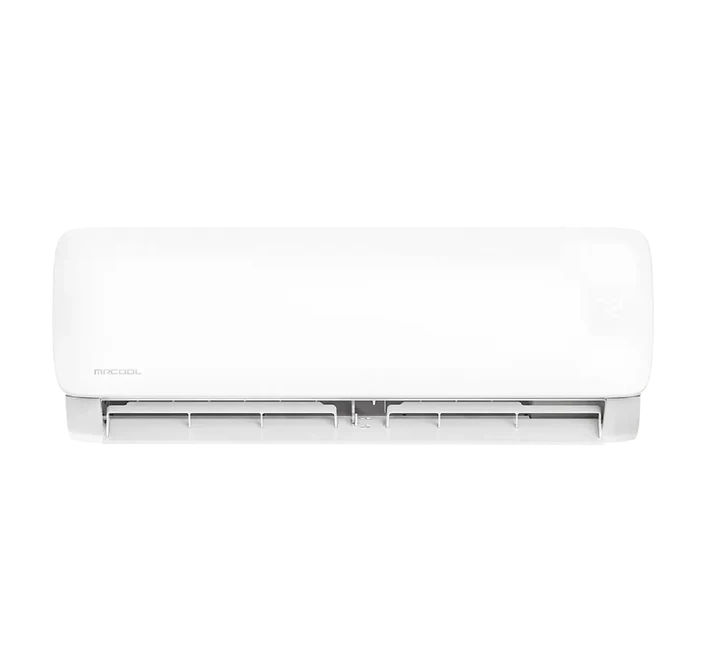

- INDOOR UNIT (12K) w/ DIYPRO Cable x 1
MRCOOL DIY® 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Air Handler 115V with DIYPRO Cable (EZPRO-12-HP-WMAH-115D-O)
SPECIFICATIONS:
| DIMENSIONS |
| Condenser Dimensions |
28.35 W" x 10.63 D" x 19.49 H" |
| Air Handler Dimensions |
31.57 W" x 7.87 D" x 11.61 H" |
| Condenser Weight |
54.89 lbs |
| Air Handler Weight |
24.91 lbs |
| CAPACITY & PERFORMANCE |
| Zone Capacity |
1 |
| Cooling Capacity |
12,000 BTU |
| Outdoor Operating Temperature (Cooling) |
-13°F - 122°F |
| EER2 |
9 |
| SEER2 |
19.5 |
| Heating Capacity |
12,000 BTU |
| Outdoor Operating Temperature (Heating) |
-13°F - 75°F |
| HSPF2-4 |
9.3 |
| HSPF2-5 |
7 |
| Coverage Area |
Up to 550 sq ft. |
| Outdoor Noise Level |
54 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) |
44.5/35/17.5 dB(A) |
| ELECTRICAL REQUIREMENTS |
| Voltage |
115V |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
20A |
| Min Circuit Ampacity |
19.5A |
| Refrigerant & Piping |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
21.52 oz |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Max Line Set Length |
82 ft. |
| FEATURES |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Inverter |
DC |
| Compressor Type |
Rotary |
| Fan Only Option |
Yes |
| Quiet Mode |
Yes |
| Auto Cool |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Works with IOS |
Yes |
| Works with Android |
Yes |
| Remote Control Included |
Yes |
| Certifications & Warranty |
| Certifications |
UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty |
1 Year Parts / 2 Year Compressor |
