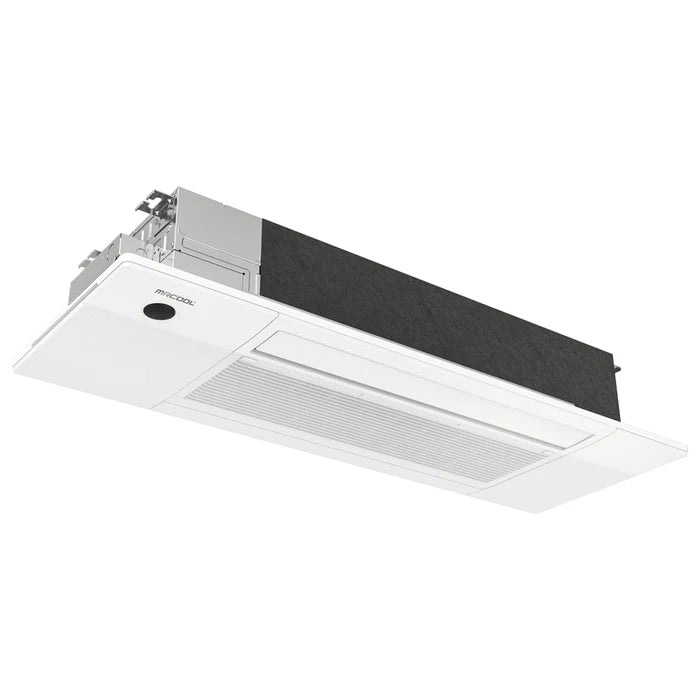

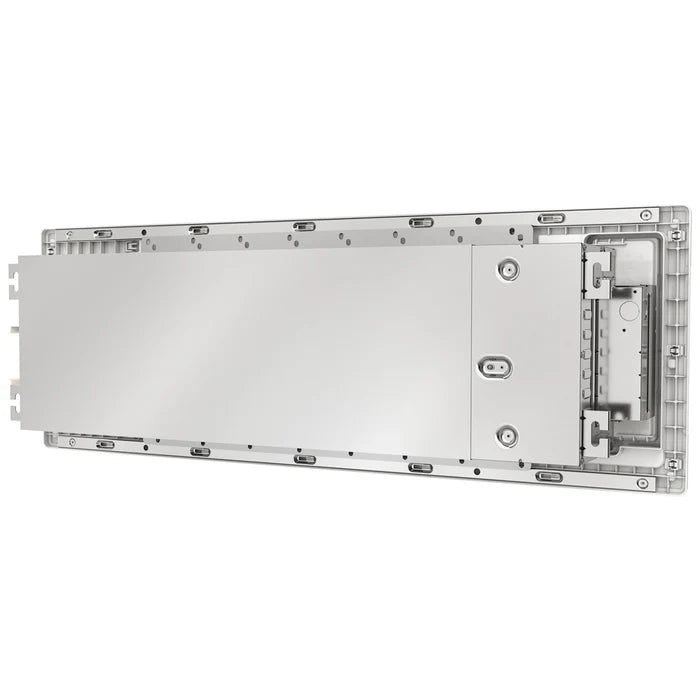

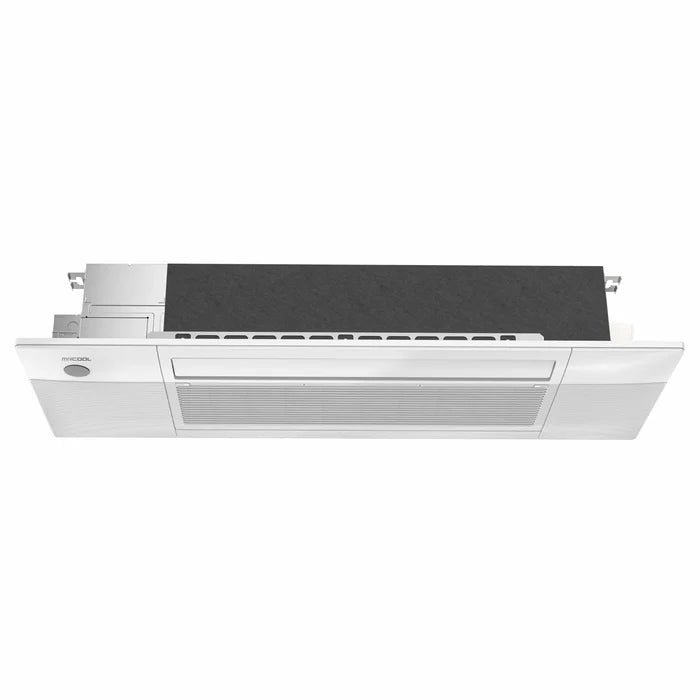

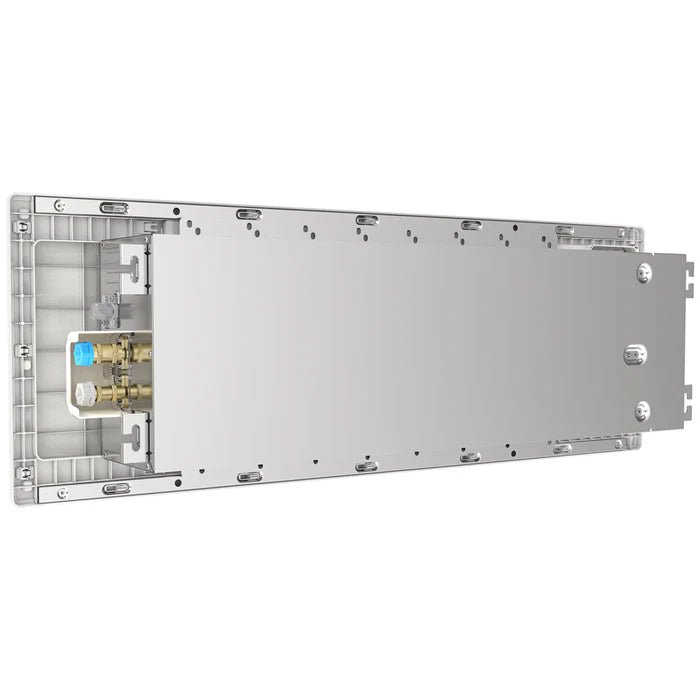

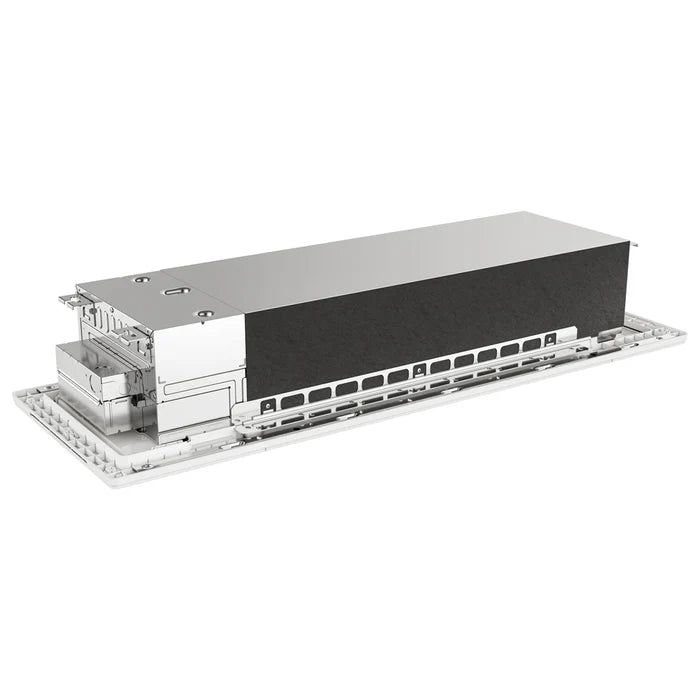

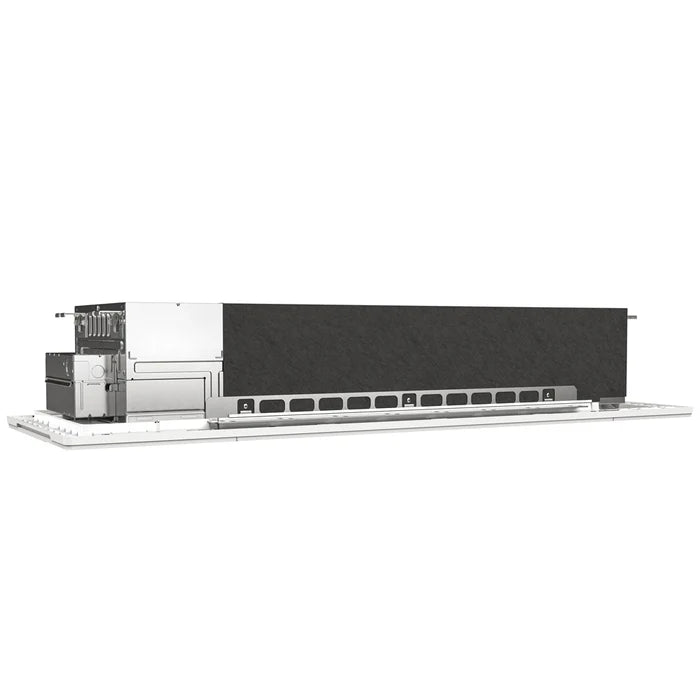

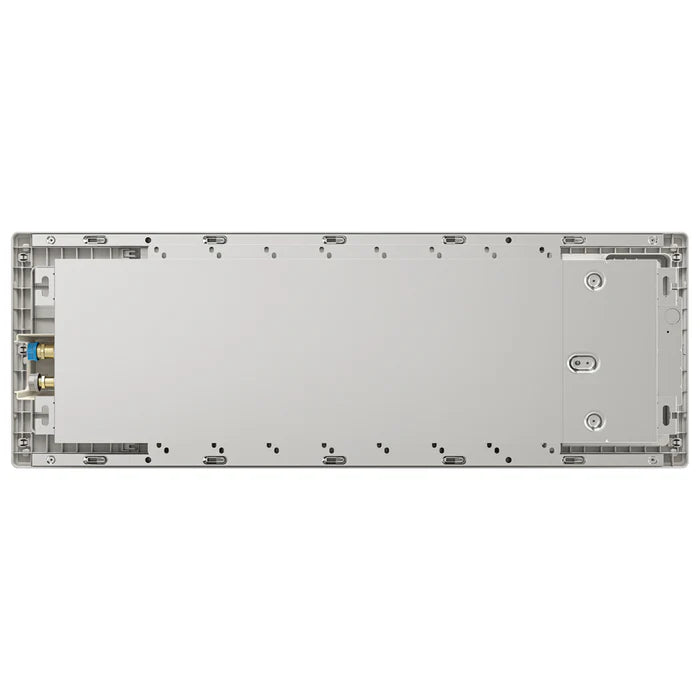

MRCOOL® DIY Series 5th Gen OuttaSight 6,000 BTU 230V One-Way Ceiling Cassette (DIYCASSETTE06HP-230D25-O)
Enjoy powerful, year-round comfort with the 5th Generation MRCOOL® DIY® Outtasight® 6K BTU 230V One-Way Ceiling Cassette. Perfect for spaces up to 200 sq. ft., this ductless mini split air handler is designed for easy, tool-free DIY installation—no prior experience or special tools required.

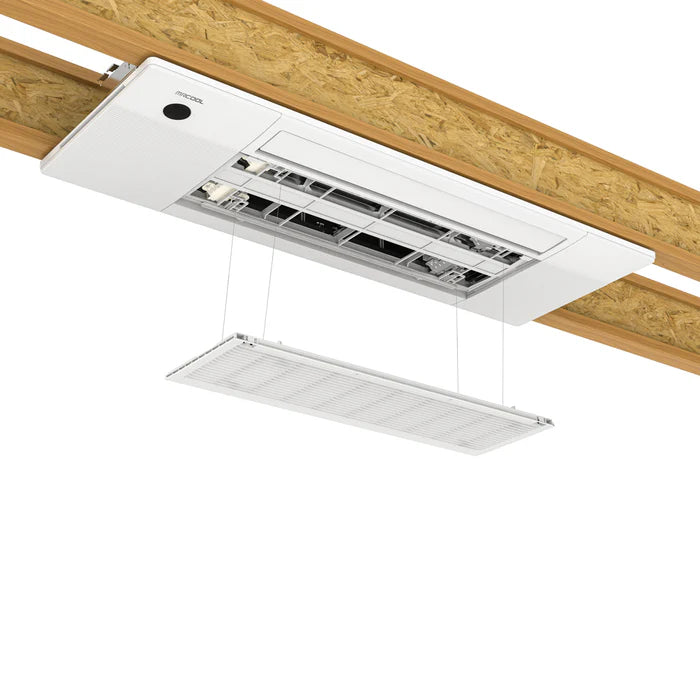

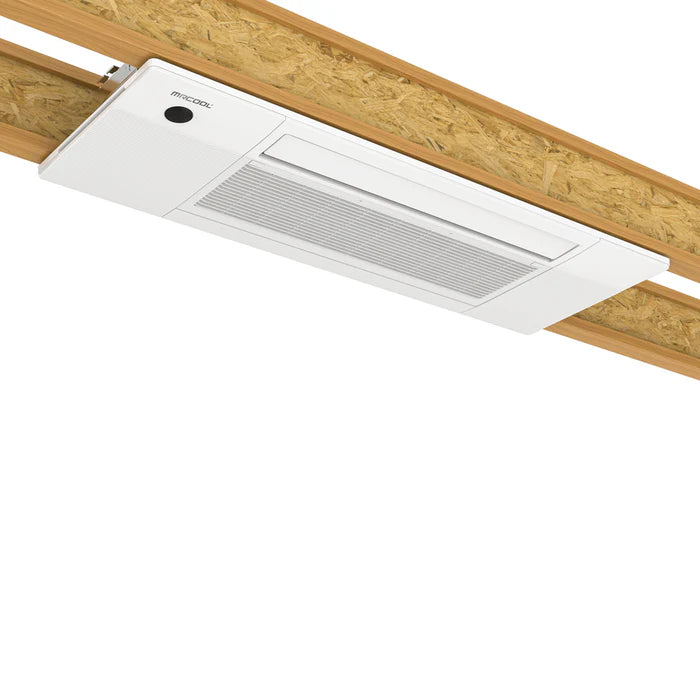

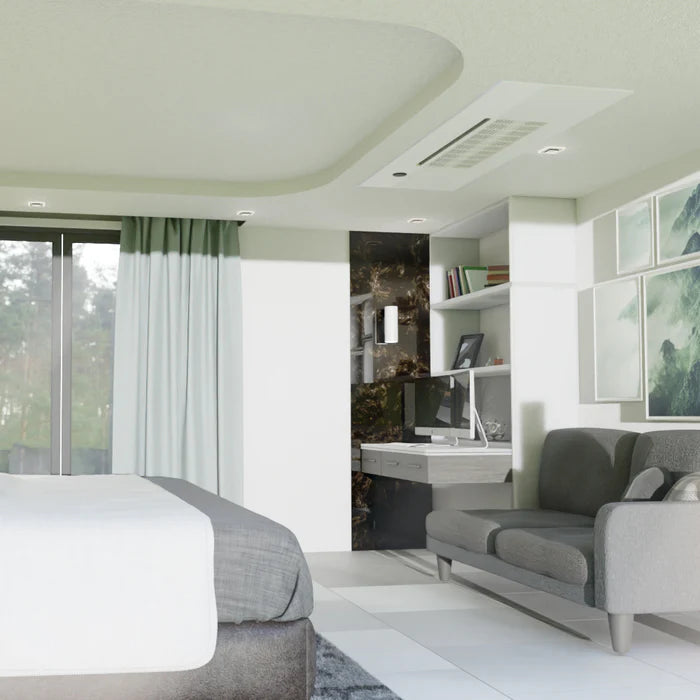

Its low-profile design fits seamlessly between 16" ceiling joists, including I-joists, offering a flush-mounted look ideal for both new construction and retrofit projects. The unit is compatible with MRCOOL®’s DIY® Quick Connect® line set, which is pre-charged with eco-friendly R-454B refrigerant—eliminating the need for vacuuming or charging.
Customize your comfort using the wireless remote, SmartHVAC app, or voice control via Amazon Alexa and Google Assistant. With features like advanced filtration, dry mode, and the Follow Me function, this ceiling cassette ensures clean, quiet, and efficient comfort. Maintenance is a breeze thanks to the Elevation function, which allows the filter panel to lower for easy access.
Backed by an industry-best limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty, the MRCOOL® DIY® Outtasight® Cassette offers unmatched convenience, technology, and performance.
FEATURES:
-
DIY Installation: No special tools or experience required—designed for simple, fast setup.
-
Low-Profile Design: Fits cleanly between 16" ceiling joists, including I-joists, for a discreet finish.
-
Quick Connect® Line Set Compatible: Pairs with pre-charged R-454B refrigerant line set; no vacuuming needed.
-
Environmentally Friendly Refrigerant: R-454B has a lower Global Warming Potential (GWP) than R-410A.
-
DIYPRO® Cable: No electrical conduit needed; built for added durability against outdoor wear and wildlife.
-
Smart Control Options: Operate via remote, SmartHVAC app (iOS and Android), or voice control with Alexa and Google Assistant.
-
Follow Me Function: Adjusts airflow based on the remote's location for personalized comfort.
-
Dry Mode: Reduces indoor humidity for improved air quality.
-

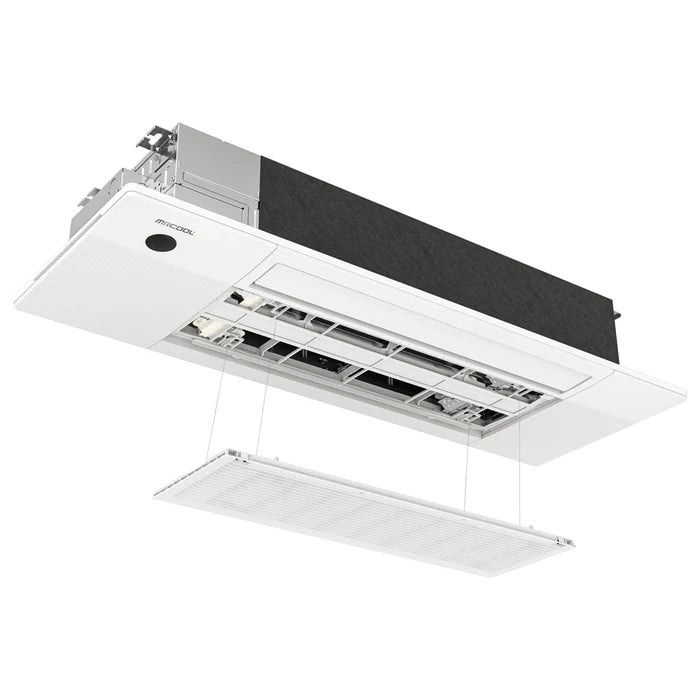

Elevation Function: Filter panel lowers for easy cleaning and maintenance.
-
Advanced Filtration: Improves indoor air quality.
-
Quiet Operation: Engineered for low-noise performance.
-
Swing Technology: Distributes air evenly throughout the space.
-
Multiple Modes: Includes heating, cooling, fan, auto, and dry.
-
Works with Multi- and Single-Zone Systems
-
Two-Stage DC Motor: For improved efficiency and performance.
-
Certified Quality: Intertek listed (5031495) for performance and safety.
-
Industry-Leading Warranty:
SPECIFICATIONS:
|
Dimensions
|
13.19" D x 8.98" H x 50.31" W
|
|
CFM
|
341 / 294 / 259 / 235 / 235
|
|
Voltage (V)
|
208-230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Max Fuse Breaker (A)
|
15
|
|
Min Circuit Ampacity (A)
|
3
|
|
Mount Type
|
Ceiling
|
|
Color
|
White
|
|
Rated Load
|
0.8
|
|
Max Coverage Area
|
200 |
|
Refrigerant Type
|
R-454B
|
|
Decibel Rating (DBA)
|
35.5
|
|
Decibel Rating Low (DBA)
|
23.5
|
|
Decibel Rating High (DBA)
|
46.5
|
|
Air Flow Direction
|
1-Way
|
|
Liquid Line Size
|
1/4
|
|
Suction Line Size
|
3/8
|
|
Blower Motor RPM
|
1024/944/784
|
|
Filter Type
|
Reusable
|
|
Fan Only Option
|
Yes
|
|
Quiet Mode
|
Yes
|
|
Sleep Mode
|
Yes
|
|
Auto Cool
|
Yes
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
Works with IOS
|
Yes
|
|
Works with Android
|
Yes
|
|
Remote Control Included
|
Yes
|
|
Registered Warranty
|
Limited Lifetime Compressor
|
|
Base Warranty
|
5-Year Part/7-Year Compressor
|
|
Bas Parts Warranty
|
5 Years
|
|
Registered Compressor Warranty
|
Limited Lifetime Compressor
|
|
Base Compressor Warranty
|
7 Years
|
|
Has Batteries
|
Yes
|
|
Contains Electronics
|
Yes
|
|
Contains Chemicals
|
Yes
|
|
Contains Aerosol
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Proposition 65 Warning
|
Yes
|
|
Restricted States
|
GU;PR;VI
|
|
Net Weight (Lbs)
|
45
|
|
Gross Weight (Lbs)
|
88
|
