Take control of your home comfort with the MRCOOL DIY® 5th Gen Multi-Zone Mini Split System—the easiest and most affordable way to enjoy powerful, energy-efficient heating and cooling without hiring a professional.
Three Rooms, Perfect Comfort: Heat or cool three spaces—150 sq. ft., 1,000 sq. ft., and 1,000 sq. ft.—with independent temperature control for fully personalized comfort.
Truly DIY-Friendly: Skip costly installations—no HVAC license or special tools required. If you can handle basic hand tools, you can install it yourself.
Hassle-Free Setup: Pre-charged Quick-Connect® line sets mean no refrigerant handling or vacuuming—just connect and start enjoying comfort immediately.
Year-Round Energy Savings: With up to 22 SEER2 cooling efficiency and 10.6 HSPF2-4 heating performance, this system helps reduce energy costs all year long.
Built for Every Season: Reliable heating keeps you cozy even in temperatures as low as -13°F.
Strong Warranty Protection: Includes 7-Year Compressor Replacement and 5-Year Parts Coverage for long-lasting peace of mind.
From blazing summer days to freezing winter nights, the MRCOOL DIY Mini Split System keeps your home comfortable and your energy bills low—smart, simple, and affordable.
WHAT YOU GET:
MRCOOL DIY® 5th Gen 55,000 BTU 6-Zone Multi-Zone Mini Split Condenser 230V (DIY-MULTI6-55HP230D-O)

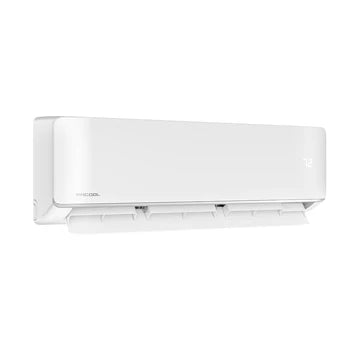

MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 24,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)
- REMOTE CONTROL x 3
-
PRE-CHARGED LINE SETS x 3
NOTE: Need different line set lengths? Click here to add them as add-ons.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
3 |
| Capacity |
Total: 54,000 BTU
Zone 1: 6,000 BTU
Zone 2: 24,000 BTU
Zone 3: 24,000 BTU
|
| Coverage Area |
Total: 2,150 sq. ft.
Zone 1: 150 sq. ft.
Zone 2: 1,000 sq. ft.
Zone 3: 1,000 sq. ft
|
| Refrigerant |
R-454B |
| Line Sets Included |
3 x Pre-Charged Line Sets |
| Warranty |
7 Years Compressor
5 Years Parts
|

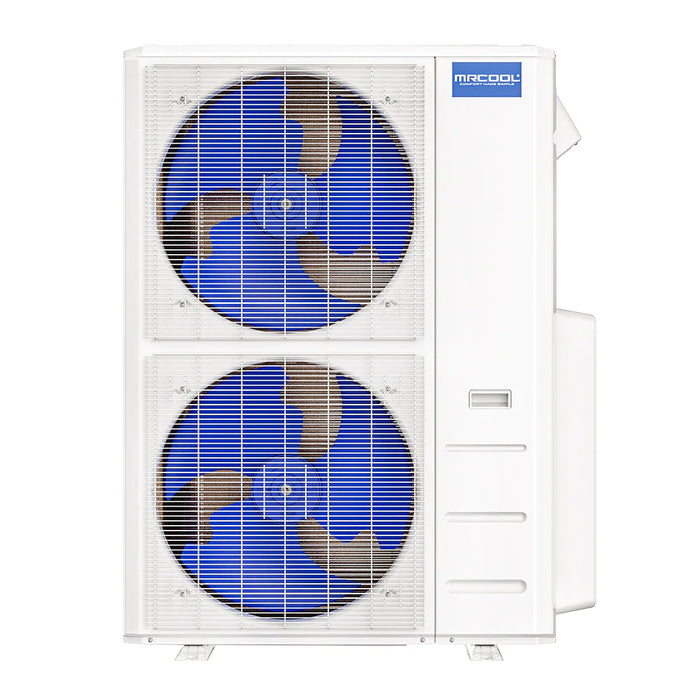

| OUTDOOR UNIT (55K) x 1 |
| Model |
DIY-MULTI6-55HP230D-O |
| Dimensions |
37.48" W x 16.34" D x 52.48" H |
| Cooling Capacity |
47,000 BTU |
| SEER2 |
22.0 |
| EER2 |
12.0 |
| Heating Capacity |
55,000 BTU |
| HSPF2-4 |
10.6 |
| HSPF2-5 |
8.5 |
| Outdoor Noise Level |
64.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -22°F – 122°F
Heating: -22°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
43.0A |
| Max Fuse Breaker |
45.0A |
| Weight |
245.81 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|
| INDOOR UNIT (6K) x 1 |
| Model |
DIY-06-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
6,000 BTU |
| Heating Capacity |
6,000 BTU |
| Coverage Area |
100 to 150 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (24K) x 2 |
| Model |
DIY-24-HP-WMAH-230D25-O |
| Dimensions |
42.52" W x 8.9" D x 13.19" H |
| Mounting Type |
Wall |
| Cooling Capacity |
24,000 BTU |
| Heating Capacity |
24,000 BTU |
| Coverage Area |
751 to 1,000 sq. ft. |
| Liquid Line Size |
3/8" |
| Suction Line Size |
5/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
35.93 lbs |
