Take Control of Your Comfort with the MRCOOL DIY 5th Gen Multi-Zone Mini Split System
The easiest and most affordable way to enjoy powerful, energy-efficient heating and cooling—no professional installation required.
-
Perfect Comfort for Three Rooms: Heat or cool spaces of 500 sq. ft., 750 sq. ft., and 1,000 sq. ft., each with independent temperature control for personalized comfort.
-
Truly DIY-Friendly: Skip costly installations. No HVAC license or special tools needed—if you can handle basic hand tools, you can install it yourself.
-
Hassle-Free Setup: Pre-charged Quick-Connect® line sets make installation clean and simple—no refrigerant handling or vacuuming required. Just connect and enjoy.
-
Year-Round Energy Savings: With up to 22 SEER2 cooling efficiency and 10.6 HSPF2-4 heating performance, enjoy comfort while keeping energy bills low.
-
Built for Every Season: Reliable heating keeps you cozy even in temperatures as low as -13°F.
-
Strong Warranty Protection: Includes a 7-Year Compressor Replacement and 5-Year Parts Coverage for lasting peace of mind.
From hot summer days to freezing winter nights, the MRCOOL DIY Mini Split delivers comfort, efficiency, and convenience. Smart. Simple. Affordable.

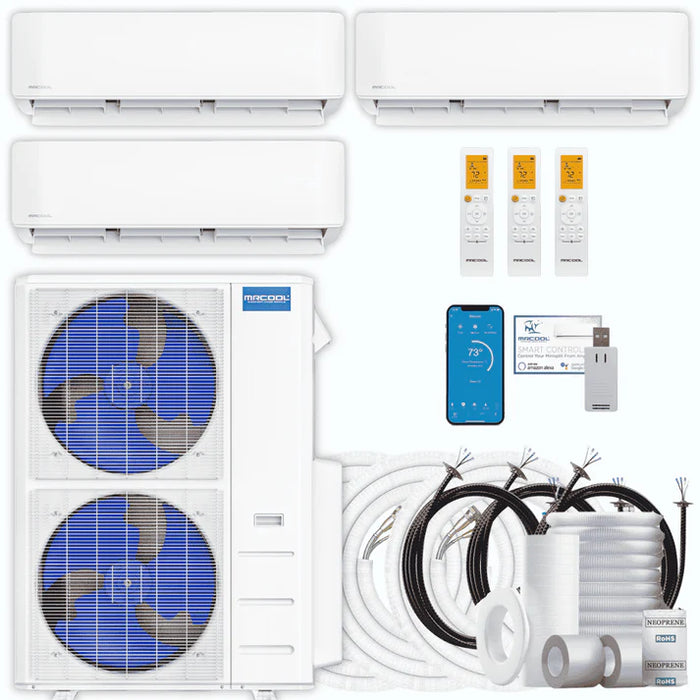

WHAT YOU GET:
MRCOOL DIY® 5th Gen 55,000 BTU 6-Zone Mini Split Condenser 230V (DIY-MULTI6-55HP230D-O)
MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 18,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-18-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 24,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)
-
PRE-CHARGED LINE SETS x 3
- REMOTE CONTROL x 3
NOTE: Need different line set lengths? Click here to add them as add-ons.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
3 |
| Capacity |
Total: 54,000 BTU
Zone 1: 12,000 BTU
Zone 2: 18,000 BTU
Zone 3: 24,000 BTU
|
| Coverage Area |
Total: 2,250 sq. ft.
Zone 1: 500 sq. ft.
Zone 2: 750 sq. ft.
Zone 3: 1,000 sq. ft
|
| Refrigerant |
R-454B |
| Line Sets Included |
3 x Pre-Charged Line Sets |
| Warranty |
7 Years Compressor
5 Years Parts
|
| OUTDOOR UNIT (55K) x 1 |
| Model |
DIY-MULTI6-55HP230D-O |
| Dimensions |
37.48" W x 16.34" D x 52.48" H |
| Cooling Capacity |
47,000 BTU |
| SEER2 |
22.0 |
| EER2 |
12.0 |
| Heating Capacity |
55,000 BTU |
| HSPF2-4 |
10.6 |
| HSPF2-5 |
8.5 |
| Outdoor Noise Level |
64.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -22°F – 122°F
Heating: -22°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
43.0A |
| Max Fuse Breaker |
45.0A |
| Weight |
245.81 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|
| INDOOR UNIT (12K) x 1 |
| Model |
DIY-12-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Coverage Area |
351 to 500 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (18K) x 1 |
| Model |
DIY-18-HP-WMAH-230D25-O |
| Dimensions |
42.52" W x 8.9" D x 13.19" H |
| Mounting Type |
Wall |
| Cooling Capacity |
18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Coverage Area |
501 to 750 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
1/2" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
35.49 lbs |
| INDOOR UNIT (24K) x 1 |
| Model |
DIY-24-HP-WMAH-230D25-O |
| Dimensions |
42.52" W x 8.9" D x 13.19" H |
| Mounting Type |
Wall |
| Cooling Capacity |
24,000 BTU |
| Heating Capacity |
24,000 BTU |
| Coverage Area |
751 to 1,000 sq. ft. |
| Liquid Line Size |
3/8" |
| Suction Line Size |
5/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
35.93 lbs |
