Take command of your home’s comfort with the MRCOOL DIY 5th Gen Multi-Zone Mini Split System—the most affordable, truly DIY solution for powerful, energy-efficient heating and cooling.
Comfort for Three Rooms
Easily heat or cool three separate areas—500 sq. ft., 750 sq. ft., and 750 sq. ft.—each with its own temperature setting for personalized climate control in every space.
Genuinely DIY-Friendly
Skip the costly contractor fees. No HVAC license, no specialized equipment—if you can handle basic hand tools, you can install this system confidently.
Zero-Hassle Installation
With pre-charged Quick-Connect® line sets, there’s no refrigerant handling, no vacuuming, and no mess. Just connect the lines and enjoy immediate comfort.
Efficient Year-Round Performance
Benefit from up to 21.8 SEER2 cooling efficiency and 10 HSPF2-4 heating performance, delivering impressive energy savings that help keep your utility bills low.
Ready for Any Weather
Stay warm even in extreme cold—this system provides reliable heating in temperatures as low as -13°F.
Reliable Protection
Enjoy peace of mind with a 7-Year Compressor Replacement Warranty and 5-Year Parts Coverage.
From sweltering summer heat to frigid winter nights, the MRCOOL DIY Mini Split keeps your home perfectly comfortable. Smart. Simple. Affordable.

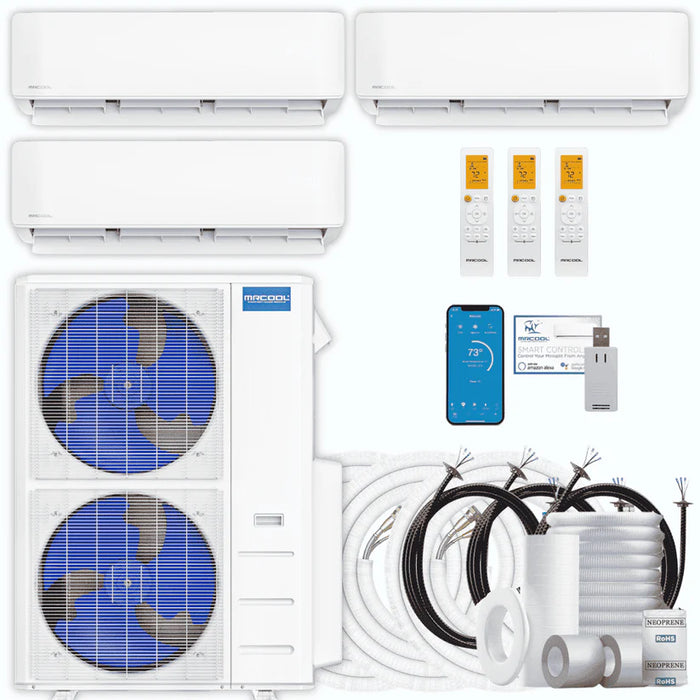

WHAT YOU GET:
MRCOOL DIY® 5th Gen 48,000 BTU 6-Zone Multi-Zone Mini Split Condenser 230V (DIY-MULTI6-48HP230D-O)
MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 18,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-18-HP-WMAH-230D25-O)
- REMOTE CONTROL x 3
-

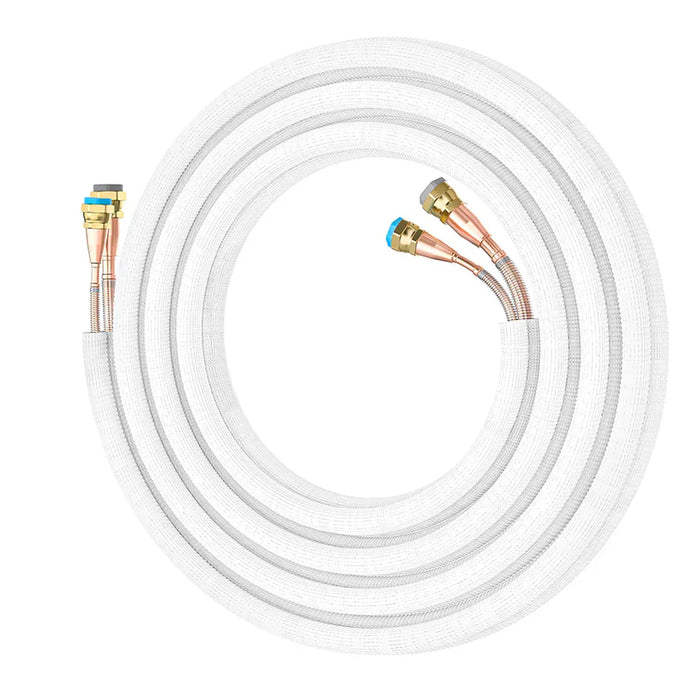

PRE-CHARGED LINE SETS x 3
NOTE: Need different line set lengths? Click here to add them as add-ons.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
3 |
| Capacity |
Total: 48,000 BTU
Zone 1: 12,000 BTU
Zone 2: 18,000 BTU
Zone 3: 18,000 BTU
|
| Coverage Area |
Total: 2,000 sq. ft.
Zone 1: 500 sq. ft.
Zone 2: 750 sq. ft.
Zone 3: 750 sq. ft
|
| Refrigerant |
R-454B |
| Line Sets Included |
3 x Pre-Charged Line Sets |
| Warranty |
7 Years Compressor
5 Years Parts
|
| OUTDOOR UNIT (48K) x 1 |
| Model |
DIY-MULTI6-48HP230D-O |
| Dimensions |
37.48" W x 16.34" D x 52.48" H |
| Cooling Capacity |
43,000 BTU |
| SEER2 |
21.8 |
| EER2 |
12.0 |
| Heating Capacity |
48,000 BTU |
| HSPF2-4 |
10.0 |
| HSPF2-5 |
7.8 |
| Outdoor Noise Level |
64.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -13°F – 122°F
Heating: -13°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
40.0A |
| Max Fuse Breaker |
45.0A |
| Weight |
223.77 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|
| INDOOR UNIT (12K) x 1 |
| Model |
DIY-12-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Coverage Area |
351 to 500 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (18K) x 2 |
| Model |
DIY-18-HP-WMAH-230D25-O |
| Dimensions |
42.52" W x 8.9" D x 13.19" H |
| Mounting Type |
Wall |
| Cooling Capacity |
18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Coverage Area |
501 to 750 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
1/2" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
35.49 lbs |
