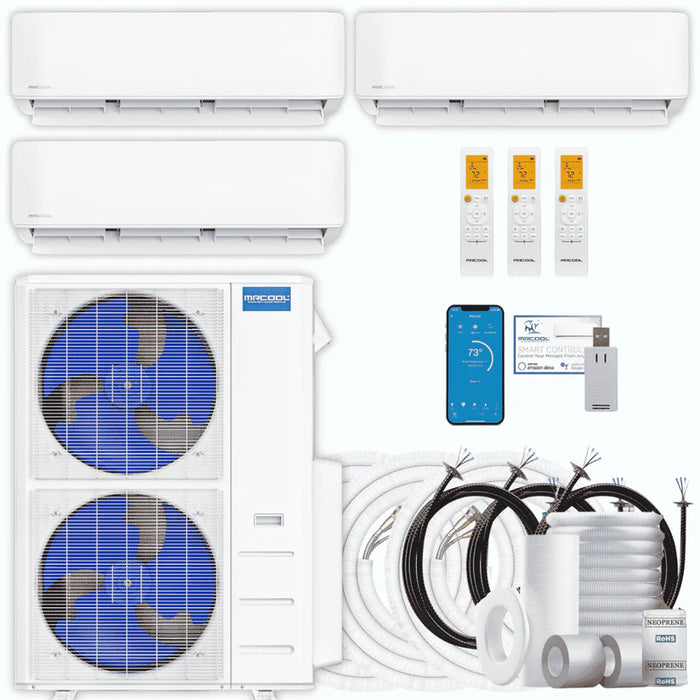

MRCOOL DIY® 5th Gen 48,000 BTU 6-Zone Multi-Zone Mini Split Condenser 230V (DIY-MULTI6-48HP230D-O)
MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 18,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-18-HP-WMAH-230D25-O)

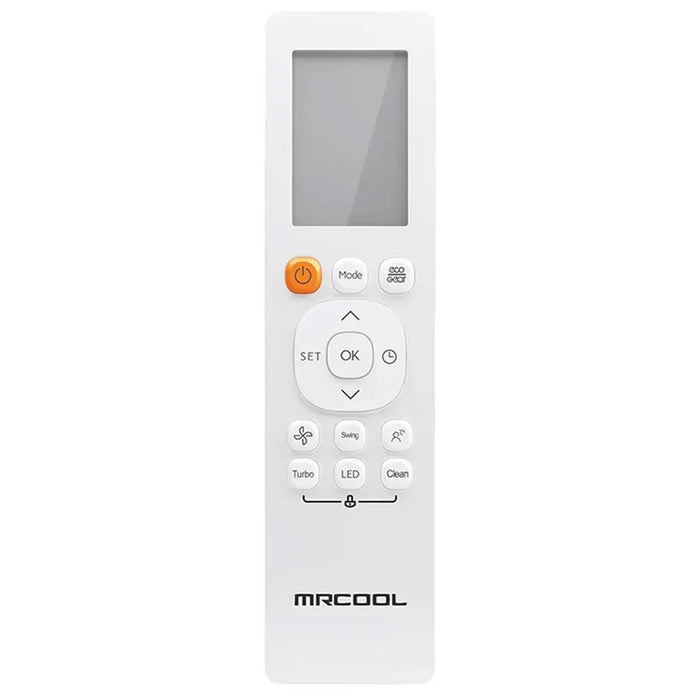

- REMOTE CONTROL x 3

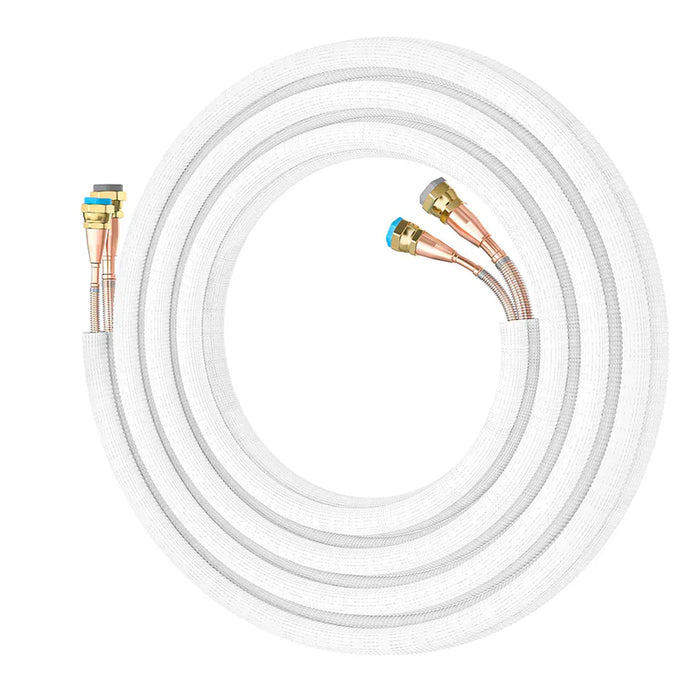

- PRE-CHARGED LINE SETS x 3
NOTE: Need different line set lengths? Click here to add them as add-ons
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
3 |
| Capacity |
Total: 48,000 BTU
Zone 1: 12,000 BTU
Zone 2: 18,000 BTU
Zone 3: 18,000 BTU
|
| Coverage Area |
Total: 2,000 sq. ft.
Zone 1: 500 sq. ft.
Zone 2: 750 sq. ft.
Zone 3: 750 sq. ft
|
| Refrigerant |
R-454B |
| Line Sets Included |
3 x Pre-Charged Line Sets |
| Warranty |
7 Years Compressor
5 Years Parts
|

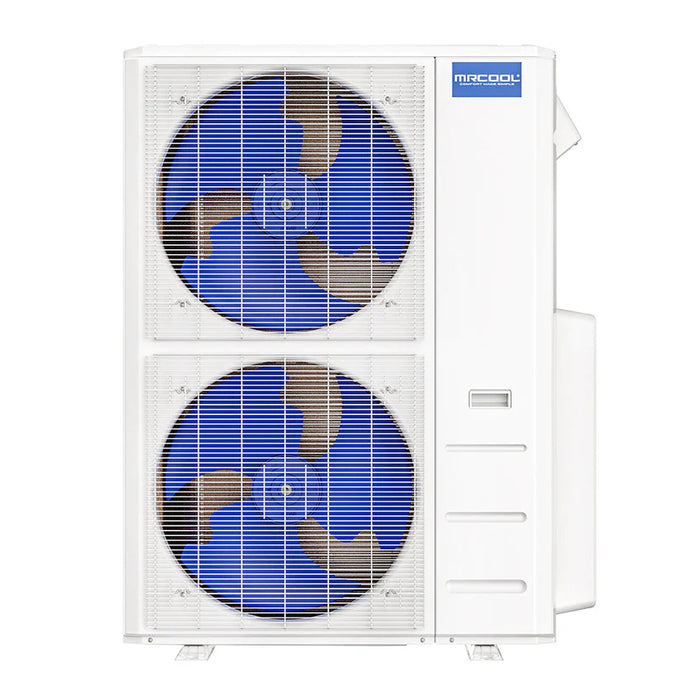

| OUTDOOR UNIT (48K) x 1 |
| Model |
DIY-MULTI6-48HP230D-O |
| Dimensions |
37.48" W x 16.34" D x 52.48" H |
| Cooling Capacity |
43,000 BTU |
| SEER2 |
21.8 |
| EER2 |
12.0 |
| Heating Capacity |
48,000 BTU |
| HSPF2-4 |
10.0 |
| HSPF2-5 |
7.8 |
| Outdoor Noise Level |
64.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -13°F – 122°F
Heating: -13°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
40.0A |
| Max Fuse Breaker |
45.0A |
| Weight |
223.77 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|

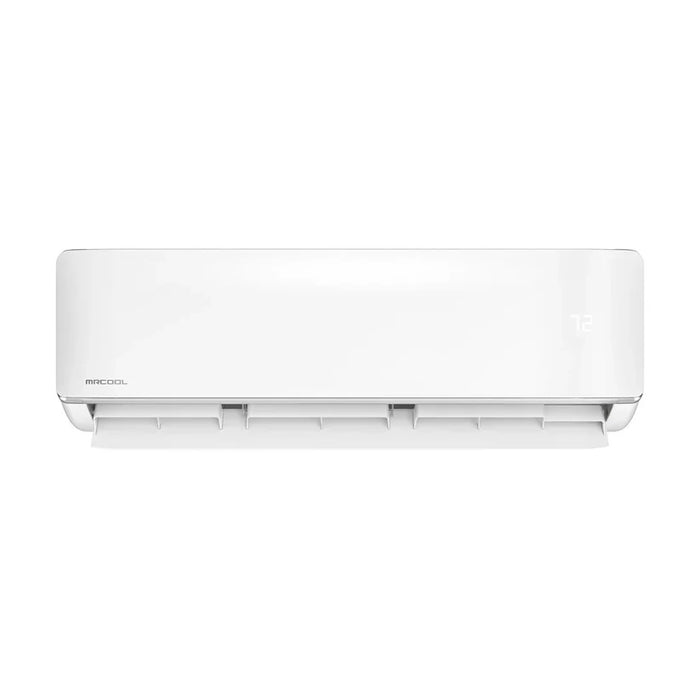

| INDOOR UNIT (12K) x 1 |
| Model |
DIY-12-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Coverage Area |
351 to 500 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (18K) x 2 |
| Model |
DIY-18-HP-WMAH-230D25-O |
| Dimensions |
42.52" W x 8.9" D x 13.19" H |
| Mounting Type |
Wall |
| Cooling Capacity |
18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Coverage Area |
501 to 750 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
1/2" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
35.49 lbs |
