Take Control of Your Comfort with the MRCOOL DIY 5th Gen Multi-Zone Mini Split System
Enjoy powerful, energy-efficient heating and cooling without the need for a professional—easy, affordable, and completely DIY.
-
Perfect Comfort for Three Rooms: Independently heat or cool spaces of 150 sq. ft., 350 sq. ft., and 1,000 sq. ft., so every room stays just the way you like it.
-
Truly DIY-Friendly: No expensive installation, HVAC license, or special tools required. If you can use basic hand tools, you can do this yourself.
-
Hassle-Free Setup: Pre-charged Quick-Connect® line sets eliminate refrigerant handling and vacuuming. Simply connect and enjoy comfort immediately.
-
Year-Round Energy Savings: With up to 22 SEER2 cooling efficiency and 10.6 HSPF2-4 heating performance, enjoy lower energy bills without sacrificing comfort.
-
Built for Every Season: Reliable heating keeps you cozy even in winter temperatures as low as -13°F.
-
Strong Warranty Protection: Includes 7-Year Compressor Replacement and 5-Year Parts Coverage.
Whether it’s scorching summer days or freezing winter nights, the MRCOOL DIY Mini Split delivers comfort, efficiency, and convenience. Smart. Simple. Affordable.

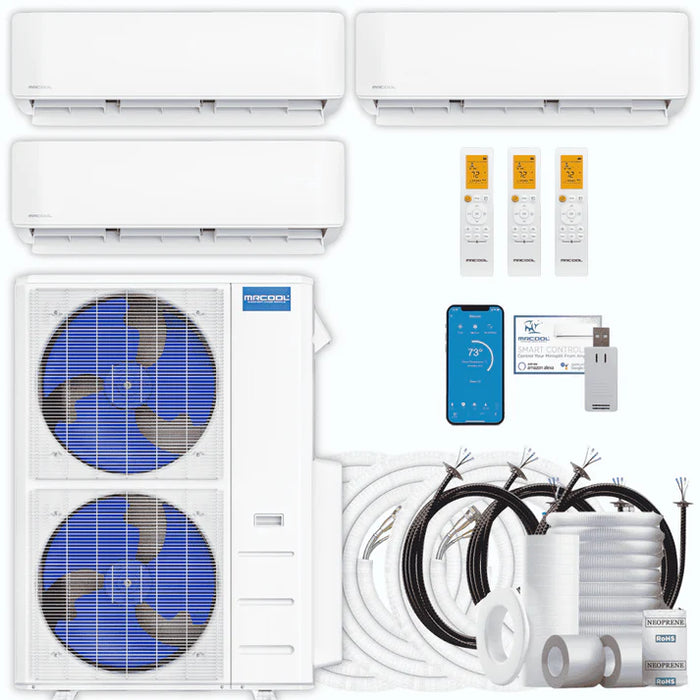

WHAT YOU GET:
MRCOOL DIY® 5th Gen 55,000 BTU 6-Zone Mini Split Condenser 230V (DIY-MULTI6-55HP230D-O)
MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-09-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 24,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)
-
PRE-CHARGED LINE SETS x 3
- REMOTE CONTROL x 3
NOTE: Need different line set lengths? Click here to add them as add-ons.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
3 |
| Capacity |
Total: 39,000 BTU
Zone 1: 6,000 BTU
Zone 2: 9,000 BTU
Zone 3: 24,000 BTU
|
| Coverage Area |
Total: 1,500 sq. ft.
Zone 1: 150 sq. ft.
Zone 2: 350 sq. ft.
Zone 3: 1,000 sq. ft
|
| Refrigerant |
R-454B |
| Line Sets Included |
3 x Pre-Charged Line Sets |
| Warranty |
7 Years Compressor
5 Years Parts
|
| OUTDOOR UNIT (55K) x 1 |
| Model |
DIY-MULTI6-55HP230D-O |
| Dimensions |
37.48" W x 16.34" D x 52.48" H |
| Cooling Capacity |
47,000 BTU |
| SEER2 |
22.0 |
| EER2 |
12.0 |
| Heating Capacity |
55,000 BTU |
| HSPF2-4 |
10.6 |
| HSPF2-5 |
8.5 |
| Outdoor Noise Level |
64.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -22°F – 122°F
Heating: -22°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
43.0A |
| Max Fuse Breaker |
45.0A |
| Weight |
245.81 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|
| INDOOR UNIT (6K) x 1 |
| Model |
DIY-06-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
6,000 BTU |
| Heating Capacity |
6,000 BTU |
| Coverage Area |
100 to 150 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (9K) x 1 |
| Model |
DIY-09-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
9,000 BTU |
| Heating Capacity |
9,000 BTU |
| Coverage Area |
151 to 350 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (24K) x 1 |
| Model |
DIY-24-HP-WMAH-230D25-O |
| Dimensions |
42.52" W x 8.9" D x 13.19" H |
| Mounting Type |
Wall |
| Cooling Capacity |
24,000 BTU |
| Heating Capacity |
24,000 BTU |
| Coverage Area |
751 to 1,000 sq. ft. |
| Liquid Line Size |
3/8" |
| Suction Line Size |
5/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
35.93 lbs |
