Take Control of Your Comfort with the MRCOOL DIY 5th Gen Multi-Zone Mini Split System
Enjoy powerful, energy-efficient heating and cooling the easy and affordable way—no professional installation required.
-
Perfect Comfort for Three Rooms: Heat or cool spaces of 150 sq. ft., 150 sq. ft., and 500 sq. ft., each with independent temperature control for personalized comfort.
-
Truly DIY-Friendly: Skip expensive installations. No HVAC license or special tools required—if you can use basic hand tools, you can install it yourself.
-
Hassle-Free Setup: Pre-charged Quick-Connect® line sets make setup fast and clean—no refrigerant handling or vacuuming needed. Just connect and enjoy.
-
Year-Round Energy Savings: With up to 23 SEER2 cooling efficiency and 9.9 HSPF2-4 heating performance, save on energy while staying comfortable.
-
Built for Every Season: Reliable heating keeps you cozy even when temperatures drop to -13°F.
-
Strong Warranty Protection: Includes a 7-Year Compressor Replacement and 5-Year Parts Warranty for peace of mind.
From scorching summer days to freezing winter nights, the MRCOOL DIY Mini Split keeps your home comfortable and your energy bills low. Smart. Simple. Affordable.

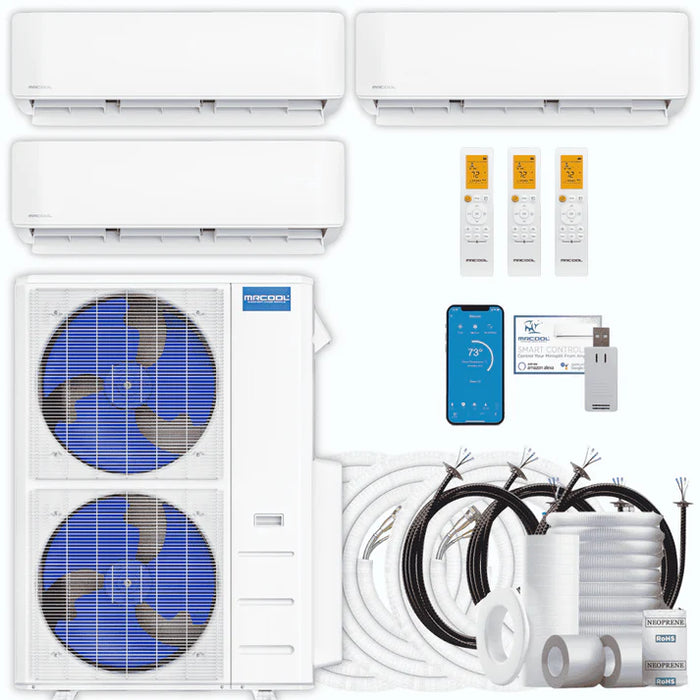

WHAT YOU GET:
MRCOOL DIY® 5th Gen 36,000 BTU 6-Zone Mini Split Condenser 230V (DIY-MULTI5-36HP230D-O)
MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O)
-
PRE-CHARGED LINE SETS x 3
- REMOTE CONTROL x 3
NOTE: Need different line set lengths? Click here to add them as add-ons.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
3 |
| Capacity |
Total: 24,000 BTU
Zone 1: 6,000 BTU
Zone 2: 6,000 BTU
Zone 3: 12,000 BTU
|
| Coverage Area |
Total: 800 sq. ft.
Zone 1: 150 sq. ft.
Zone 2: 150 sq. ft.
Zone 3: 500 sq. ft
|
| Refrigerant |
R-454B |
| Line Sets Included |
3 x Pre-Charged Line Sets |
| Warranty |
7 Years Compressor
5 Years Parts
|
| OUTDOOR UNIT (36K) x 1 |
| Model |
DIY-MULTI5-36HP230D-O |
| Dimensions |
37.24" W x 16.14" D x 31.89" H |
| Cooling Capacity |
34,000 BTU |
| SEER2 |
23.0 |
| EER2 |
12.0 |
| Heating Capacity |
36,000 BTU |
| HSPF2-4 |
9.9 |
| HSPF2-5 |
7.5 |
| Outdoor Noise Level |
64.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -13°F – 122°F
Heating: -13°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
30.5A |
| Max Fuse Breaker |
35.0A |
| Weight |
169.75 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|
| INDOOR UNIT (6K) x 2 |
| Model |
DIY-06-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
6,000 BTU |
| Heating Capacity |
6,000 BTU |
| Coverage Area |
100 to 150 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (12K) x 1 |
| Model |
DIY-12-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Coverage Area |
351 to 500 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
