MRCOOL DIY 5th Gen 2-Zone 48,000 BTU Ductless Mini Split Air Conditioner & Heat Pump (12K+36K) (DIY2-B-48HP1236)
Effortless Comfort, Personalized for You. Meet the MRCOOL DIY 5th Gen Multi-Zone Mini Split System — your all-in-one solution for powerful, energy-efficient heating and cooling without the cost or complexity of professional installation.
-
Dual-Zone Control: Heat or cool two different areas with ease — one up to 500 sq. ft., the other up to 1,500 sq. ft. — each with independent temperature settings for total comfort.
-
True DIY Installation: Save time and money. This system is made for do-it-yourselfers — no special tools or HVAC license needed. If you can use basic hand tools, you can install it yourself.
-
Energy Efficient: Achieve exceptional savings with up to 21.8 SEER2 cooling efficiency and 10 HSPF2-4 heating performance.
-
Built for All Seasons: Designed to perform even in extreme weather — delivers consistent heating in temperatures as low as -13°F.
-
Peace of Mind Warranty: Comes with a 7-year compressor warranty and 5-year parts coverage for long-term confidence.
The MRCOOL DIY Mini Split is the smarter, simpler, and more affordable way to enjoy personalized comfort and lower energy bills — all year round.

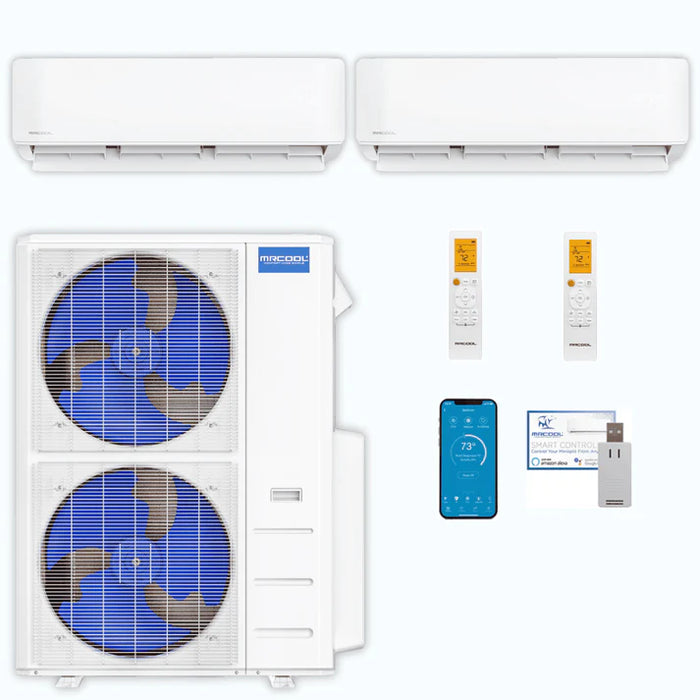

WHAT YOU GET:
MRCOOL DIY® 5th Gen 48,000 BTU 6-Zone Multi-Zone Mini Split Condenser 230V (DIY-MULTI6-48HP230D-O)
MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 36,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-36-HP-WMAH-230D25-O)
NOTE: Line sets are not included. Please choose your line set above.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
2 |
| Capacity |
Total: 48,000 BTU
Zone 1: 12,000 BTU
Zone 2: 36,000 BTU
|
| Coverage Area |
Total: 2,000 sq. ft.
Zone 1: 500 sq. ft.
Zone 2: 1,500 sq. ft.
|
| Refrigerant |
R-454B |
| Line Sets Included |
None - Choose Your Line Sets Above! |
| Warranty |
7 Years Compressor
5 Years Parts
|

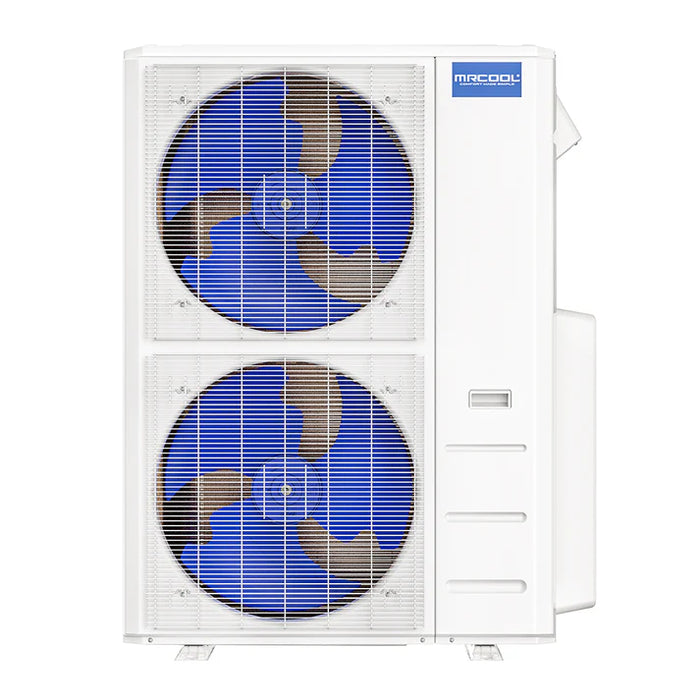

| OUTDOOR UNIT (48K) x 1 |
| Model |
DIY-MULTI6-48HP230D-O |
| Dimensions |
37.48" W x 16.34" D x 52.48" H |
| Cooling Capacity |
43,000 BTU |
| SEER2 |
21.8 |
| EER2 |
12.0 |
| Heating Capacity |
48,000 BTU |
| HSPF2-4 |
10.0 |
| HSPF2-5 |
7.8 |
| Outdoor Noise Level |
64.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -13°F – 122°F
Heating: -13°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
40.0A |
| Max Fuse Breaker |
45.0A |
| Weight |
223.77 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|
| INDOOR UNIT (12K) x 1 |
| Model |
DIY-12-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Coverage Area |
351 to 500 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (36K) x 1 |
| Model |
DIY-36-HP-WMAH-230D25-O |
| Dimensions |
49.57" W x 11.1" D x 14.25" H |
| Mounting Type |
Wall |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
36,000 BTU |
| Coverage Area |
1,001 to 1,500 sq. ft. |
| Liquid Line Size |
3/8" |
| Suction Line Size |
5/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
48.72 lbs |
