Take Control of Your Comfort. Discover effortless home climate control with the MRCOOL DIY 5th Gen Multi-Zone Mini Split System — the simplest, most affordable way to enjoy powerful, energy-efficient heating and cooling without hiring a professional.
-
Perfect Comfort for Two Rooms - Easily heat or cool two spaces up to 750 sq. ft. each, with independent temperature settings for personalized comfort in every zone.
-
Designed for True DIY Installation - Skip the costly contractor fees — no HVAC license or special tools required. If you can handle basic hand tools, you can install it yourself.
-
Year-Round Energy Savings - Delivering up to 21.8 SEER2 cooling efficiency and 10 HSPF2-4 heating performance, this system provides outstanding comfort while keeping energy costs low.
-
Built for Every Season - Enjoy reliable warmth even in extreme cold — efficient heating operates down to -13°F for dependable comfort all winter long.
-
Backed by a Strong Warranty - Includes a 7-Year Compressor Replacement and 5-Year Parts Warranty for long-lasting peace of mind.
Whether it’s blazing summer heat or freezing winter nights, the MRCOOL DIY Mini Split keeps your home comfortable and your bills low. Smart. Simple. Affordable.

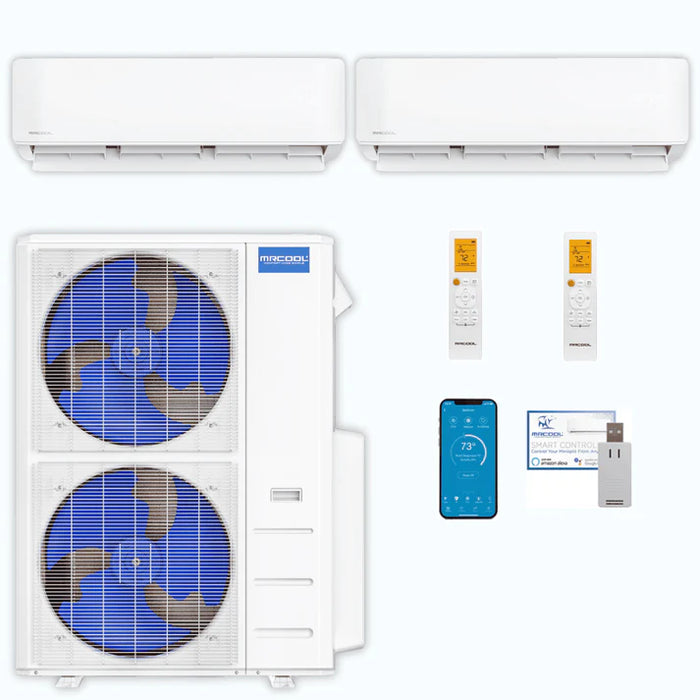

WHAT YOU GET:
MRCOOL DIY® 5th Gen 48,000 BTU 6-Zone Multi-Zone Mini Split Condenser 230V (DIY-MULTI6-48HP230D-O)
MRCOOL DIY® 5th Gen 18,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-18-HP-WMAH-230D25-O)
NOTE: Line sets are not included. Please choose your line set above.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
2 |
| Capacity |
Total: 36,000 BTU
Zone 1: 18,000 BTU
Zone 2: 18,000 BTU
|
| Coverage Area |
Total: 1,500 sq. ft.
Zone 1: 750 sq. ft.
Zone 2: 750 sq. ft.
|
| Refrigerant |
R-454B |
| Line Sets Included |
None - Choose Your Line Sets Above! |
| Warranty |
7 Years Compressor
5 Years Parts
|

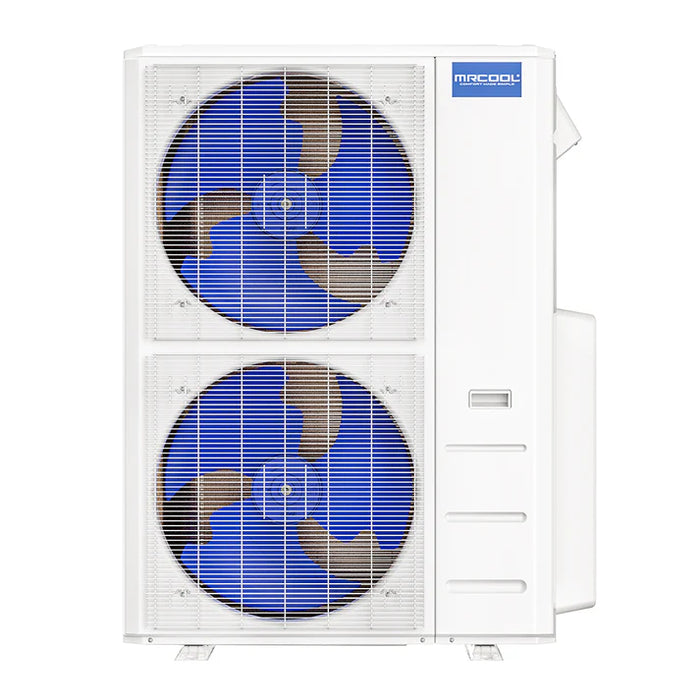

| OUTDOOR UNIT (48K) x 1 |
| Model |
DIY-MULTI6-48HP230D-O |
| Dimensions |
37.48" W x 16.34" D x 52.48" H |
| Cooling Capacity |
43,000 BTU |
| SEER2 |
21.8 |
| EER2 |
12.0 |
| Heating Capacity |
48,000 BTU |
| HSPF2-4 |
10.0 |
| HSPF2-5 |
7.8 |
| Outdoor Noise Level |
64.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -13°F – 122°F
Heating: -13°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
40.0A |
| Max Fuse Breaker |
45.0A |
| Weight |
223.77 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|

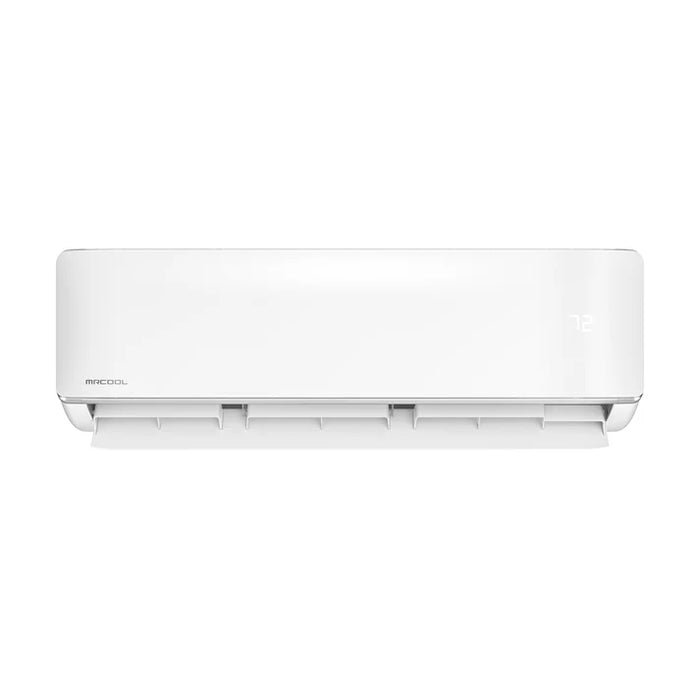

| INDOOR UNIT (18K) x 2 |
| Model |
DIY-18-HP-WMAH-230D25-O |
| Dimensions |
42.52" W x 8.9" D x 13.19" H |
| Mounting Type |
Wall |
| Cooling Capacity |
18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Coverage Area |
501 to 750 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
1/2" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
35.49 lbs |
