Take Control of Your Comfort
Experience the MRCOOL DIY 5th Gen Multi-Zone Mini Split System — the simplest and most affordable way to enjoy powerful, energy-efficient heating and cooling without hiring a professional.
-
Perfect Comfort for Two Rooms
Easily heat or cool two spaces — one up to 150 sq. ft. and another up to 750 sq. ft. — with independent temperature control in each room for personalized comfort all year round.
-
Truly DIY-Friendly
No need for expensive installations or specialized tools. If you can handle basic hand tools, you can install this system yourself.
-
Quick and Easy Setup
Thanks to the pre-charged Quick-Connect® line sets, there’s no need for refrigerant handling or vacuuming. Simply connect, mount, and start enjoying your perfect indoor climate.
-
Year-Round Efficiency
Achieve serious energy savings with up to 23 SEER2 cooling efficiency and 9.9 HSPF2-4 heating performance — delivering comfort without the high utility costs.
-
Built for Every Season
Stay warm even in extreme cold. This system provides reliable heating performance all the way down to -13°F.
-
Peace of Mind Warranty
Includes a 7-Year Compressor Replacement Warranty and 5-Year Parts Coverage for long-lasting confidence and protection.
Whether it’s scorching summer days or freezing winter nights, the MRCOOL DIY Mini Split keeps your home comfortable while keeping energy costs low. Smart. Simple. Affordable.

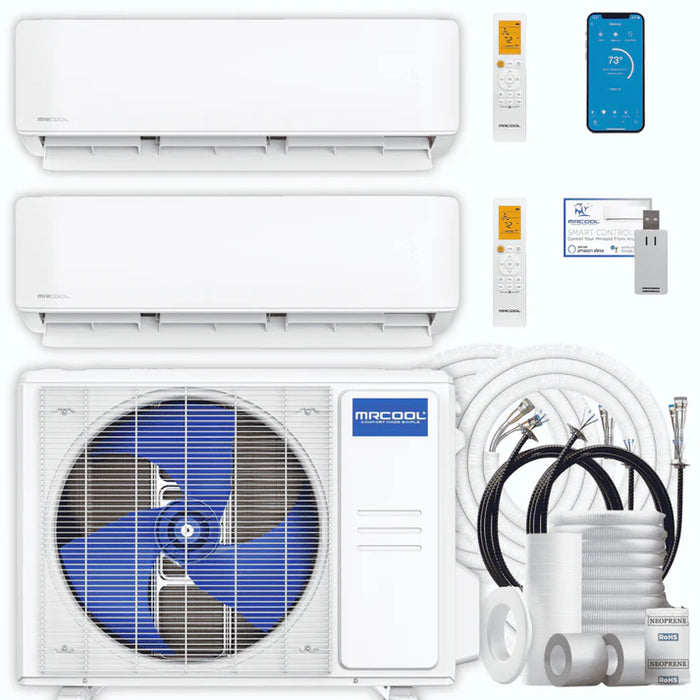

WHAT YOU GET:
MRCOOL DIY® 5th Gen 36,000 BTU 5-Zone Mini Split Condenser 230V (DIY-MULTI5-36HP230D-O)
MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 18,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-18-HP-WMAH-230D25-O)
-
PRE-CHARGED LINE SETS x 2
- REMOTE CONTROL x 2
NOTE: Need different line set lengths? Click here to add them as add-ons.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
2 |
| Capacity |
Total: 24,000 BTU
Zone 1: 6,000 BTU
Zone 2: 18,000 BTU
|
| Coverage Area |
Total: 900 sq. ft.
Zone 1: 150 sq. ft.
Zone 2: 750 sq. ft.
|
| Refrigerant |
R-454B |
| Line Sets Included |
2 x Pre-Charged Line Sets |
| Warranty |
7 Years Compressor
5 Years Parts
|
| OUTDOOR UNIT (36K) x 1 |
| Model |
DIY-MULTI5-36HP230D-O |
| Dimensions |
37.24" W x 16.14" D x 31.89" H |
| Cooling Capacity |
34,000 BTU |
| SEER2 |
23.0 |
| EER2 |
12.0 |
| Heating Capacity |
36,000 BTU |
| HSPF2-4 |
9.9 |
| HSPF2-5 |
7.5 |
| Outdoor Noise Level |
64.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -13°F – 122°F
Heating: -13°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
30.5A |
| Max Fuse Breaker |
35.0A |
| Weight |
169.75 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|
| INDOOR UNIT (6K) x 1 |
| Model |
DIY-06-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
6,000 BTU |
| Heating Capacity |
6,000 BTU |
| Coverage Area |
100 to 150 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (18K) x 1 |
| Model |
DIY-18-HP-WMAH-230D25-O |
| Dimensions |
42.52" W x 8.9" D x 13.19" H |
| Mounting Type |
Wall |
| Cooling Capacity |
18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Coverage Area |
501 to 750 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
1/2" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
35.49 lbs |
