Take charge of your comfort with the MRCOOL DIY 5th Gen Multi-Zone Mini Split System – the easiest, most cost-effective way to enjoy powerful, energy-efficient heating and cooling without hiring a professional.
-
Perfect Comfort for Two Rooms: Heat or cool two areas — one up to 350 sq. ft. and another up to 500 sq. ft. — each with its own temperature control for customized comfort in every space.
-
Truly DIY-Friendly: Skip the expensive installation fees. No HVAC license, special equipment, or professional help required — if you can use basic hand tools, you can install it yourself.
-
No-Hassle Setup: The system includes pre-charged Quick-Connect® line sets, eliminating the need for refrigerant handling or vacuuming. Just connect, tighten, and start enjoying your comfort.
-
Year-Round Efficiency: With up to 23 SEER2 cooling efficiency and 9.5 HSPF2-4 heating performance, this system delivers exceptional energy savings while keeping you comfortable in every season.
-
Built for Any Weather: Stay warm even when it’s -13°F outside — the MRCOOL DIY Mini Split keeps performing when other systems can’t.
-
Reliable Warranty Coverage: Backed by a 7-Year Compressor Replacement Warranty and 5-Year Parts Warranty for lasting peace of mind.
From the height of summer to the depths of winter, the MRCOOL DIY Mini Split System keeps your home comfortable and your energy costs low. Smart. Simple. Affordable.

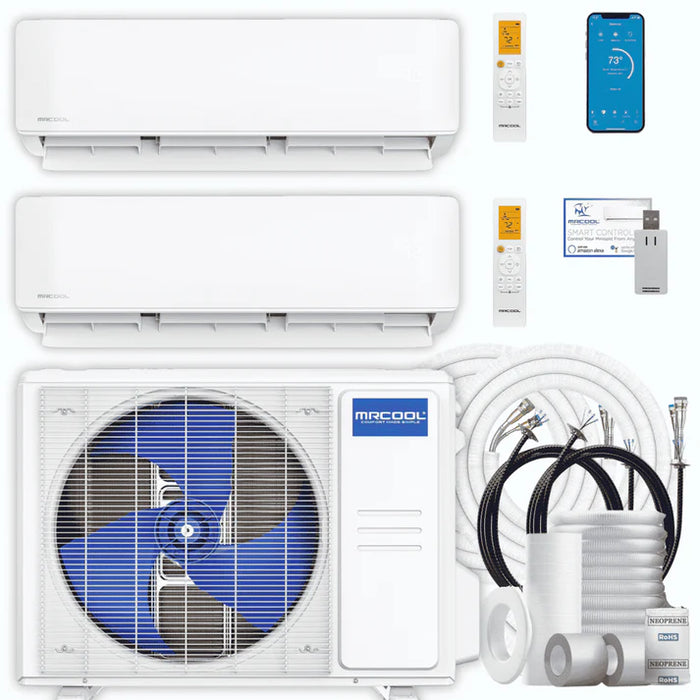

WHAT YOU GET:
MRCOOL DIY® 5th Gen 27,000 BTU 4-Zone Mini Split Condenser 230V (DIY-MULTI4-27HP230D-O)
MRCOOL DIY® 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-09-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O)
-
PRE-CHARGED LINE SETS x 2
- REMOTE CONTROL x 2
NOTE: Need different line set lengths? Click here to add them as add-ons.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
2 |
| Capacity |
Total: 21,000 BTU
Zone 1: 9,000 BTU
Zone 2: 12,000 BTU
|
| Coverage Area |
Total: 850 sq. ft.
Zone 1: 350 sq. ft.
Zone 2: 500 sq. ft.
|
| Refrigerant |
R-454B |
| Line Sets Included |
2 x Pre-Charged Line Sets |
| Warranty |
7 Years Compressor
5 Years Parts
|
| OUTDOOR UNIT (27K) x 1 |
| Model |
DIY-MULTI4-27HP230D-O |
| Dimensions |
37.24" W x 16.14" D x 31.89" H |
| Cooling Capacity |
26,000 BTU |
| SEER2 |
23.0 |
| EER2 |
12.0 |
| Heating Capacity |
26,000 BTU |
| HSPF2-4 |
9.5 |
| HSPF2-5 |
7.0 |
| Outdoor Noise Level |
61.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -13°F – 122°F
Heating: -13°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
23.0A |
| Max Fuse Breaker |
25.0A |
| Weight |
140.2 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|
| INDOOR UNIT (9K) x 1 |
| Model |
DIY-09-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
9,000 BTU |
| Heating Capacity |
9,000 BTU |
| Coverage Area |
151 to 350 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (12K) x 1 |
| Model |
DIY-12-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Coverage Area |
351 to 500 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
