Take Control of Your Comfort
The MRCOOL DIY 5th Gen Multi-Zone Mini Split System makes it easy and affordable to enjoy powerful, energy-efficient heating and cooling — all without hiring a professional.
-
Two Rooms, Perfect Comfort
Heat or cool two spaces — one up to 150 sq. ft. and another up to 500 sq. ft. — with independent temperature control for personalized comfort.
-
Truly DIY-Friendly
No expensive installations, no HVAC license, and no special tools required. If you can use basic hand tools, you can install this system yourself.
-
No-Hassle Setup
Pre-charged Quick-Connect® line sets make installation simple — no refrigerant handling, no vacuuming. Just connect and enjoy.
-
Year-Round Energy Savings
With up to 23 SEER2 cooling efficiency and 9.5 HSPF2-4 heating performance, this system keeps your home comfortable while lowering your energy bills.
-
Built for Every Season
Reliable heating works even in extreme cold, down to -13°F, keeping you cozy all winter long.
-
Strong Warranty Protection
Peace of mind comes standard with a 7-Year Compressor Replacement and 5-Year Parts Coverage.
Whether it’s scorching summer heat or freezing winter nights, the MRCOOL DIY Mini Split keeps your home comfortable and energy-efficient. Smart. Simple. Affordable.

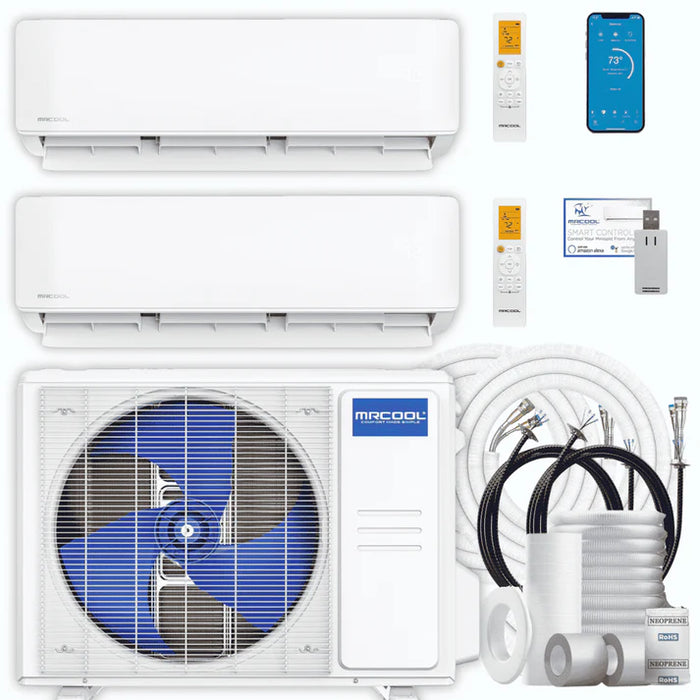

WHAT YOU GET:
MRCOOL DIY® 5th Gen 27,000 BTU 4-Zone Mini Split Condenser 230V (DIY-MULTI4-27HP230D-O)
MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O)
MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O)
-
PRE-CHARGED LINE SETS x 2
- REMOTE CONTROL x 2
NOTE: Need different line set lengths? Click here to add them as add-ons.
SPECIFICATIONS:
| SYSTEM OVERVIEW |
| System Type |
Ductless Mini Split Air Conditioner & Heat Pump |
| Zones |
2 |
| Capacity |
Total: 18,000 BTU
Zone 1: 6,000 BTU
Zone 2: 12,000 BTU
|
| Coverage Area |
Total: 650 sq. ft.
Zone 1: 150 sq. ft.
Zone 2: 500 sq. ft.
|
| Refrigerant |
R-454B |
| Line Sets Included |
2 x Pre-Charged Line Sets |
| Warranty |
7 Years Compressor
5 Years Parts
|
| OUTDOOR UNIT (27K) x 1 |
| Model |
DIY-MULTI4-27HP230D-O |
| Dimensions |
37.24" W x 16.14" D x 31.89" H |
| Cooling Capacity |
26,000 BTU |
| SEER2 |
23.0 |
| EER2 |
12.0 |
| Heating Capacity |
26,000 BTU |
| HSPF2-4 |
9.5 |
| HSPF2-5 |
7.0 |
| Outdoor Noise Level |
61.0 dB(A) |
| Outdoor Operating Temperature |
Cooling: -13°F – 122°F
Heating: -13°F – 75°F
|
| Voltage |
208–230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
23.0A |
| Max Fuse Breaker |
25.0A |
| Weight |
140.2 lbs |
| Certifications |
ENERGY STAR Certified
AHRI Certified
UL Listed
ETL Listed
|
| INDOOR UNIT (6K) x 1 |
| Model |
DIY-06-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
6,000 BTU |
| Heating Capacity |
6,000 BTU |
| Coverage Area |
100 to 150 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
| INDOOR UNIT (12K) x 1 |
| Model |
DIY-12-HP-WMAH-230D25-O |
| Dimensions |
31.57" W x 7.44" D x 11.69" H |
| Mounting Type |
Wall |
| Cooling Capacity |
12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Coverage Area |
351 to 500 sq. ft. |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Modes |
Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.
|
| Weight |
24.47 lbs |
