MRCOOL 5th Gen Advantage Series - 9,000 BTU Single Zone Mini Split Complete System with 16ft. Line Set - 115V / 230V (A-09-HP-115D-O | A-09-HP-230D-O)
OPTIONS:
- 9000 BTU Single Zone Mini Split Complete System 115V (A-09-HP-115D-O)
-
9000 BTU Single Zone Mini Split Complete System 230V (A-09-HP-230D-O)
Thinking of building your own system? Reach out to us today!

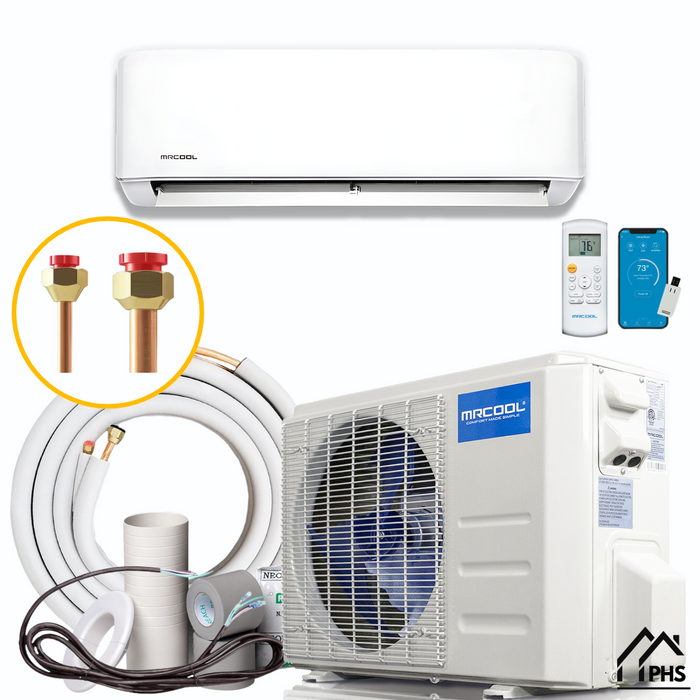

The MRCOOL 5th Generation 9,000 BTU Advantage Mini-Split delivers powerful, energy-efficient heating and cooling for spaces up to 400 sq. ft. Designed for seamless comfort all year round, this ductless system uses eco-friendly R-454B refrigerant, operates quietly, and includes smart control features. Available in both 115V and 230V models, each unit comes complete with a corrosion-resistant Gold Fin® outdoor condenser and a 16 ft. line set.
FEATURES:
-
Coverage Area: Effectively cools and heats up to 400 sq. ft.
-
High Efficiency Ratings:
-
Eco-Friendly Refrigerant: R-454B with ~80% lower Global Warming Potential (GWP) than R-410A
-

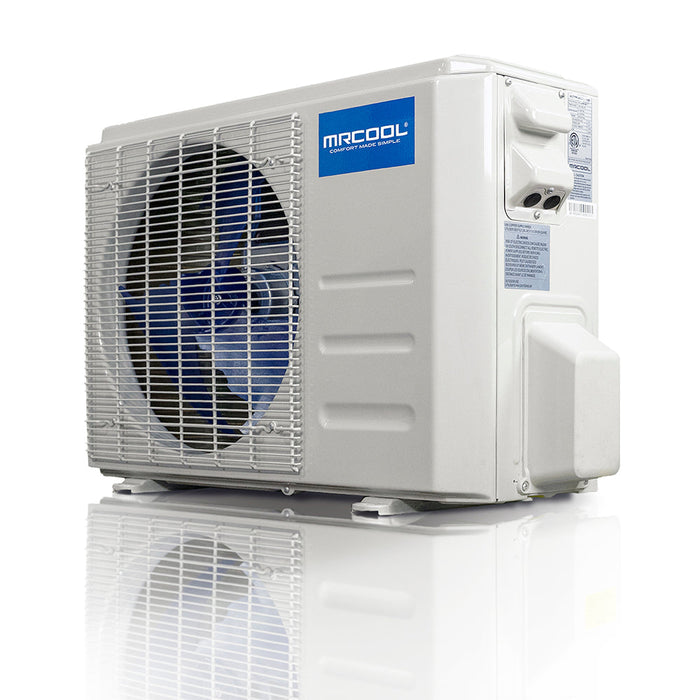

Gold Fin® Condenser: Corrosion-resistant; ideal for coastal climates
-
Smart Controls: Built-in Wi-Fi with compatibility for the MRCOOL® Smart HVAC Controller® app, Amazon Alexa, and Google Assistant
-
Quiet Operation:
-
Follow Me® Technology: Remote control senses the temperature at your location for better comfort
-
Low Ambient Cooling: Operates reliably down to 5°F, great for server rooms or greenhouses
-
Built-In Safety & Diagnostics: Includes refrigerant leak detection and programmable timer mode
-
Certified Performance: AHRI Certified, NEEP ccASHP Listed, and CEE Tier 1 (North)
-
Complete Installation Kit: Includes 16 ft. line set for professional setup
-
Warranty Coverage:
Important Note: This is not a DIY unit. Professional HVAC installation is required for optimal performance and to maintain warranty eligibility.
SPECIFICATIONS:
| DIMENSIONS |
| Condenser Dimensions |
30.12" W x 11.93" D x 21.85" H |

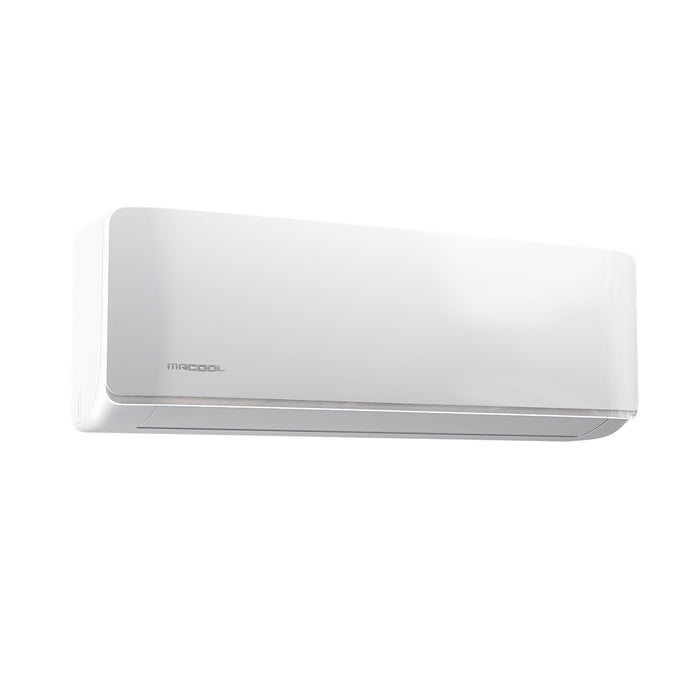

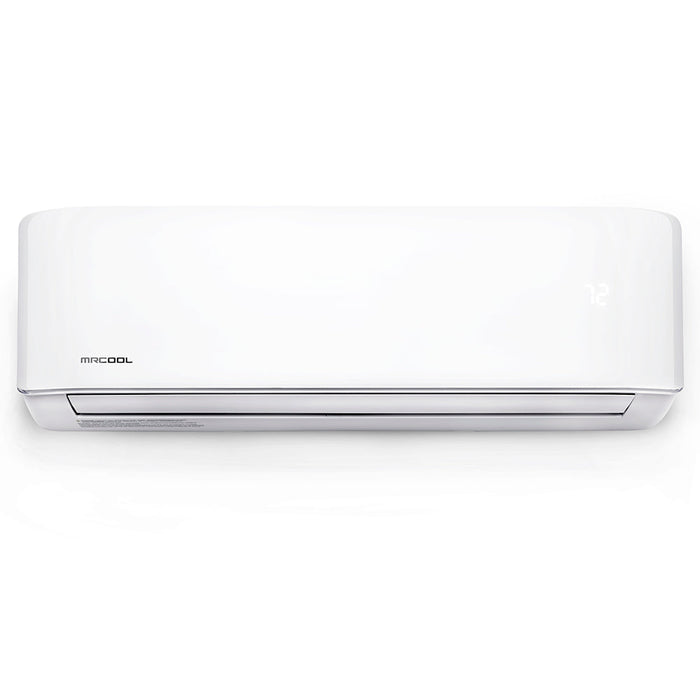

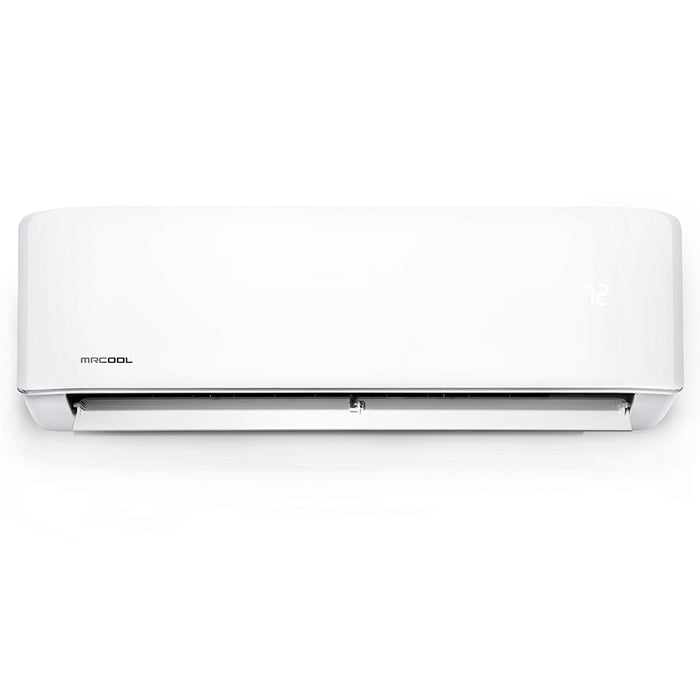

| Air Handler Dimensions |
28.43" W x 7.36" D x 11.42" H |
| Condenser Weight |
56.66 lbs (115V) ; 54.23 lbs (230V) |
| Air Handler Weight |
17.42 lbs (115V) ; 16.98 lbs (230V) |
| CAPACITY & PERFORMANCE |
| Zone Capacity |
1 |
| Cooling Capacity |
9,000 BTU |
| Outdoor Operating Temperature (Cooling) |
5°F - 122°F |
| EER2 |
12.5 (115V) ; 12.6 (230V) |
| SEER2 |
21.5 (115V) ; 21.2 (230V) |
| Heating Capacity |
10,000 BTU |
| Outdoor Operating Temperature (Heating) |
5°F - 86°F |
| HSPF2-4 |
9.0 (115V) ; 9.1 (230V) |
| HSPF2-5 |
7.0 |
| Coverage Area |
Up to 400 sq ft. |
| Outdoor Noise Level |
52.4 dB(A) (115V) ; 53.5 dB(A) (230V) |
| Indoor Noise Level (Hi/Mi/Lo) |
43.0/37.5/33.5/25.0/18.0 dB(A) (115V)
40.5/35.5/31.5/23.0/18.5 dB(A) (230V)
|
| ELECTRICAL REQUIREMENTS |
| Voltage |
115V ; 208-230V
|
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
20A (115V) ; 15A (230V) |
| Min Circuit Ampacity |
18A (115V) ; 12A (230V) |
| REFRIGERANT & PIPING |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
21.52 oz |
| Liquid Line Size |
1/4" |
| Suction Line Size |
3/8" |
| Max Line Set Length |
82 ft. |
| FEATURES |
| Inverter |
DC |
| Compressor Type |
Rotary |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Works with IOS |
Yes |
| Works with Android |
Yes |
| Remote Control Included |
Yes |
| CERTIFICATIONS & WARRANTY |
| Certifications |
UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty |
1-year parts, 2-year compressor, 1-year remote warranty; optional Lifetime compressor coverage with MRCOOL® Care enrolment. |
