LiTime 48V (58.4V) 10A LiFePO4 Lithium Battery Charger

LiTime 48V (58.4V) 10A LiFePO4 Lithium Battery Charger

by LiTime Batteries
SKU
Save $109.80 Save $109.80
$249.99
$249.99 - $249.99
$249.99
$140.19
$140.19 - $140.19
$140.19
🚚 Fast Delivery Times

💰 Lowest Price Guaranteed

🛡️Premium Authorized LiTime Batteries Dealer - Warranty Included

🧑🏻‍💼Post-Purchase Lifetime Customer Support

❓Questions? Talk to Experts (916)-999-9937

LiTime 48V (58.4V) 10A LiFePO4 Lithium Battery Charger

OVERVIEW:

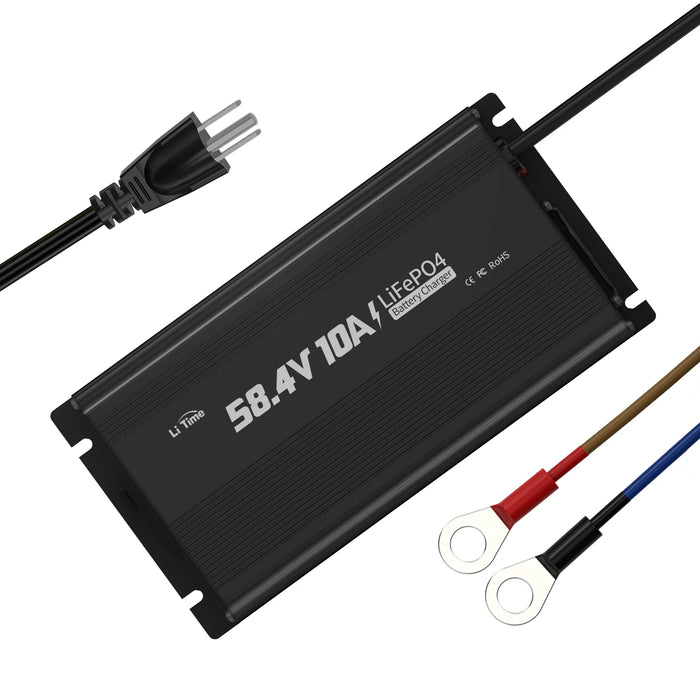

  • 58.4V 10A LiFePO4 charger designed for 48V lithium batteries, maximizing performance and lifespan with easy wire lug connections
  • Input cable: 47.24 inch; output cable: 57.08 inch (including 9.84 inch Anderson extension cable)
  • Safely jump-starts BMS-protected lithium batteries within 3 seconds.

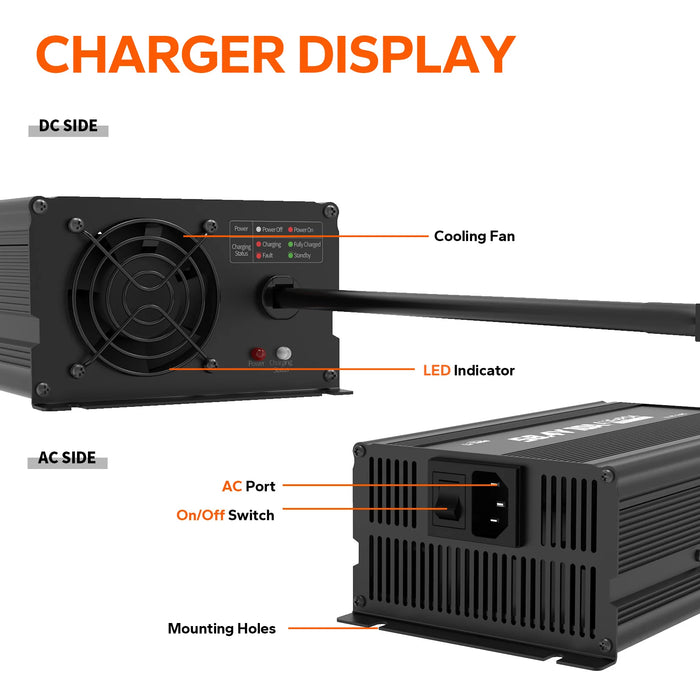

  • Equipped with mounting holes, on/off switch, and 30A Anderson connector for safe and convenient operation.
  • Offers 4 safety protections: over-temperature, reverse polarity, over-voltage, and short circuit protection.
  • Built-in cooling fan for better heat-dissipation.
  • LED indicator displays real-time charging status (charging, fully charged, connection issues).
  • Not suitable for lead-acid or LiTime 48V (15-cell) server rack LiFePO4 batteries.
  • UL, FCC, CE, ROSH, UN38.3 certified.
  • 2-year warranty, 24-hour service, and lifetime technical support.
  • Recommended for RVs, homes, off-grid cabins, garages, and other indoor use; for long-term marine applications, we suggest the waterproof version.

NOTE: Only charging for LiFePO4 Battery!

FEATURES:

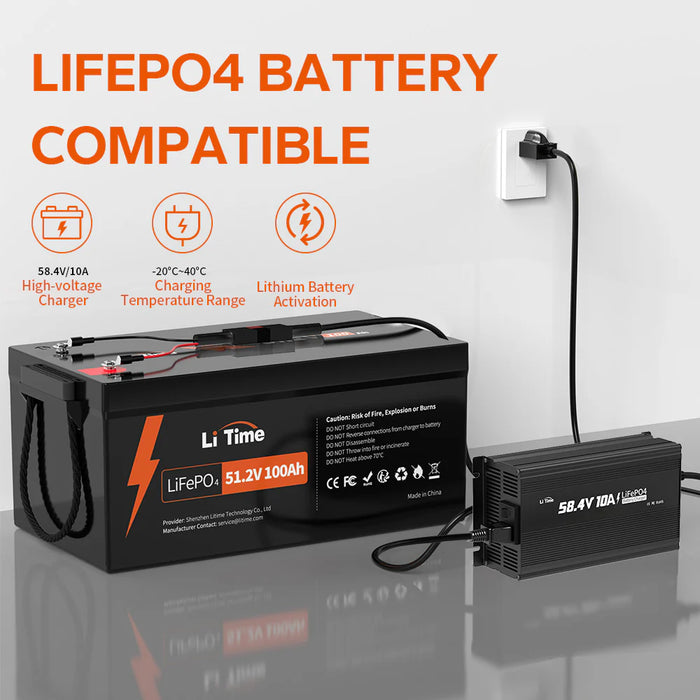

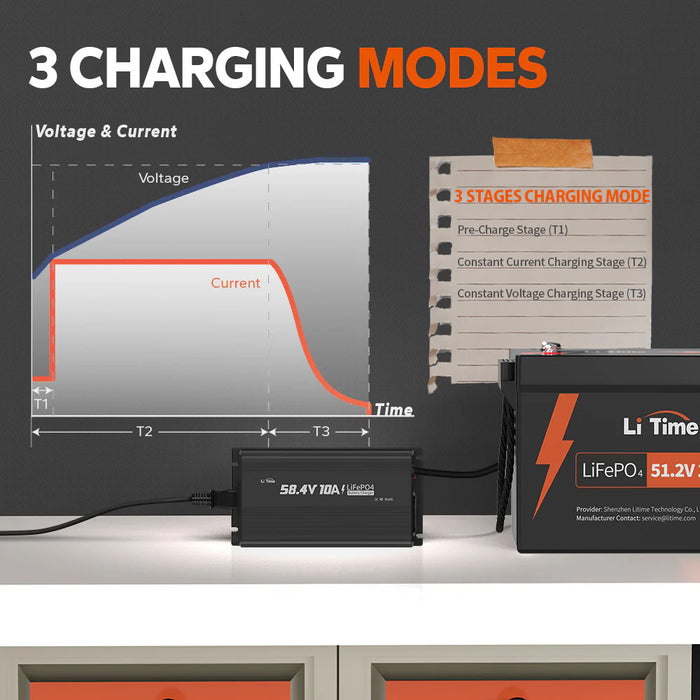

Safe, Fast, and Efficient Charging Solution
The LiTime 58.4V 10A battery charger is designed for LiFePO4 batteries, offering a safe, fast, and efficient charging solution.
charge with litime 58.4V 10A lifepo4 lithium battery charger for safe, fast and efficient charging
Connection Guide

connection guide of litime 48V 10A lifepo4 lithium battery charger

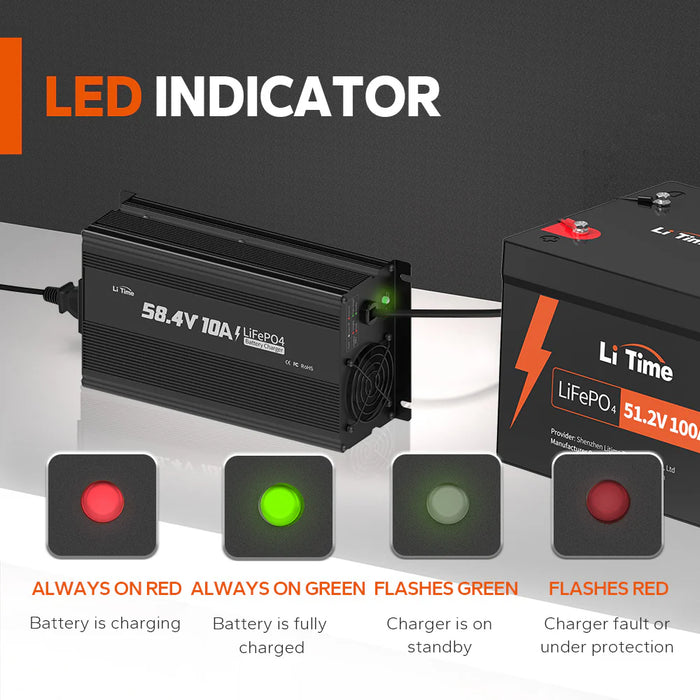

LED Indicator Showing Charging Status
The LiTime 58.4V 10A battery charger features an intuitive LED indicator system to keep you informed about the charging status. When the LED is red, it indicates that the battery is currently charging. A green light signifies that the battery is fully charged. Additionally, if the LED flashes green, it means the charger is on standby mode. This user-friendly design allows for easy monitoring of your battery’s charge level, ensuring that you stay informed throughout the charging process.
litime 48V 10A lifepo4 battery charger feature with led indicator showing charging status

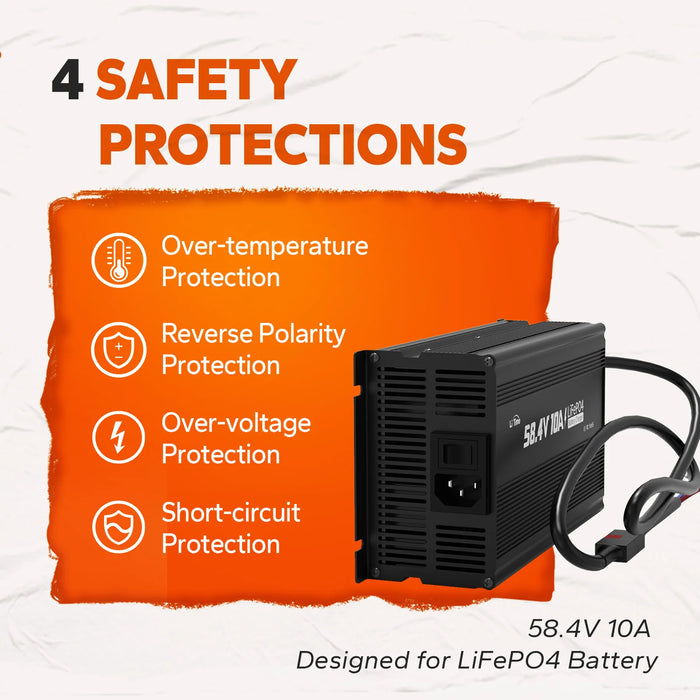

Safely Charging with Protections
The LiTime 48V (58.4V) 10A battery charger is equipped with four critical safety protections to ensure safe operation. It features over-temperature protection to prevent overheating, reverse polarity connection protection to guard against incorrect connections, output short-circuit protection to protect against electrical faults, and output over-voltage protection to maintain safe charging levels. These safety features provide peace of mind, allowing you to charge your LiFePO4 batteries confidently and securely.
safety protections of litime 48v 10a lithium battery charger:over-temperature, reverse polarity, short-circuit, and over-voltage
charging 48v battery with litime 58.4v 10a lifepo4 battery charger for safety, speed, and efficiency

SPECIFICATIONS:

BASIC

Charger Type：LiFePO4 Battery Charger
Output Voltage：58.4V
Output Current：10A
Max Input Current：9A
Input Voltage Range: 100V ~ 240V AC; 50Hz ~ 60Hz
LED Indicator：√

PROTECTION

Over Temperature：√
Output Short-Circuit：√
Reverse Polarity Connection：√
Output Over-Voltage：√

TEMPERATURE

Operating：-20℃ ~ 40℃ / -4℉ ~104℉
Storage：-40℃ ~70℃ / -40℉ ~ 158℉

OTHERS

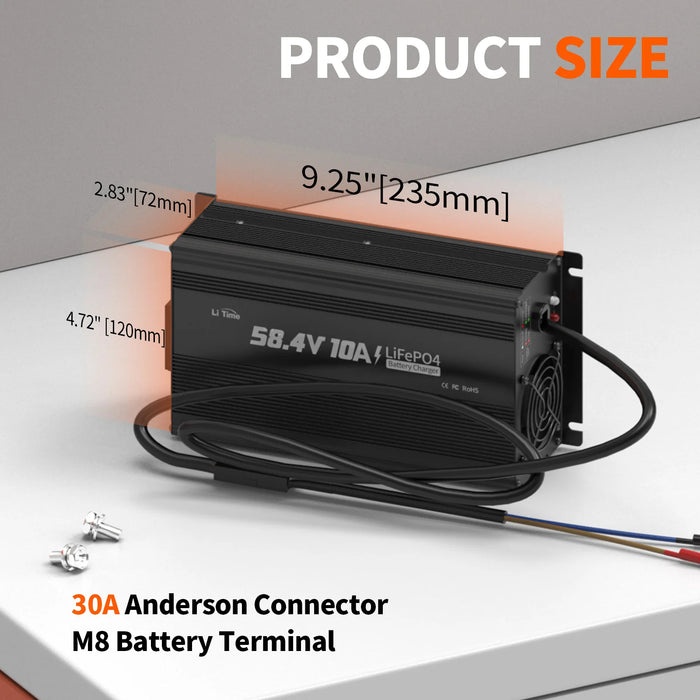

Size：L9.25XW4.72XH2.83 inch
Approx. Weight：4.63lbs
Warranty：2 years
Certifications: UL, FCC, CE, ROSH, UN38.3
Anderson Connector: 30A/M8 Terminal
Input Cable: 47.24 inch
Output Cable: 57.08 inch (Include 9.84 inch Anderson Extension Cable)

GUIDE:

User Manual

FAQS:

How long does it take to charge a 48V 100Ah LiFePO4 lithium battery?

The 58.4V 10Ah LiFePO4 battery charger is designed to charge LiFePO4 batteries. The low resistance in the Lithium cells allow the battery to accept the full output from the charger. With a constant 10A current, it takes around 100Ah/10A=10hrs to fully charge a 48V 100Ah LiFePO4 lithium battery.

How fast will my battery charge?

To determine your charging speed, take the amp hour rating of your battery and divide it by the output current of your charger. For example, a 100 amp hour battery (Ah) would charge in 100AH/10A=10 hours with a 58.4V 10A LiFePO4 lithium battery charger.

Can I charge my LiFePO4 lithium battery faster?

For most applications, a charging time of 3-10 hours provides the longest lifespan for your LiFePO4 lithium battery. But if you have an application where you need rapid charging, you can choose a charger with a higher output current. For example, you could use a 40 amp charger with a 100Ah battery for a 2.5-hour charge time.

What voltage should LiFePO4 lithium batteries be charged at?

It depends on the voltages of your LiFePO4 lithium batteries. LiTime 58.4 volts charger is recommended for 48V LiFePO4 lithium batteries.

How to choose the right charger for my LiFePO4 lithium battery?

It is always important to match your charger to deliver the correct current and voltage for the LiFePO4 lithium battery you are charging. For example, you wouldn't use a 24V charger to charge a 12V LiFePO4 lithium battery. It's also recommended that you use a charger matched to your battery chemistry.

Additionally, when charging a LiFePO4 lithium battery with a normal lead-acid charger, you would want to ensure that the charger does not have a desulfation mode or a dead battery mode.

Can this charger work with lead-acid batteries?

No. This charger is designed only for LiFePO4 batteries. For charging Lead-Acid, LiFePO4, or NCM batteries, we recommend using our LiTime Multi-Bank Chargers,
