LiTime 36 Volt (43.8V) 18A LiFePO4 Lithium Golf Cart Battery Charger
OVERVIEW:
- Designed for 36V (38.4V) LiFePO4 batteries.
- 43.8V output, 18A charging current, 100-240V AC input.
- Input cable: 47.24 inch; output cable: 61.02 inch (including 13.78 inch Anderson extension cable).
- Safely jump-starts BMS-protected lithium batteries within 3 seconds.

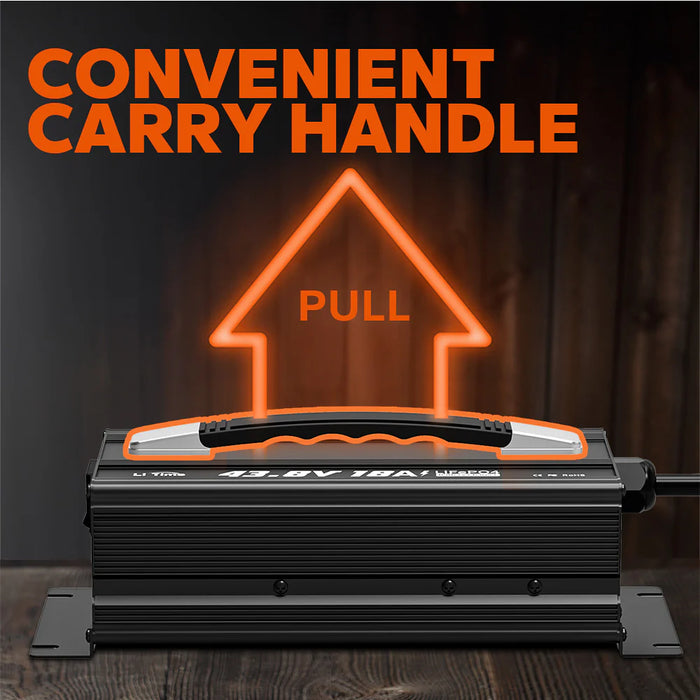

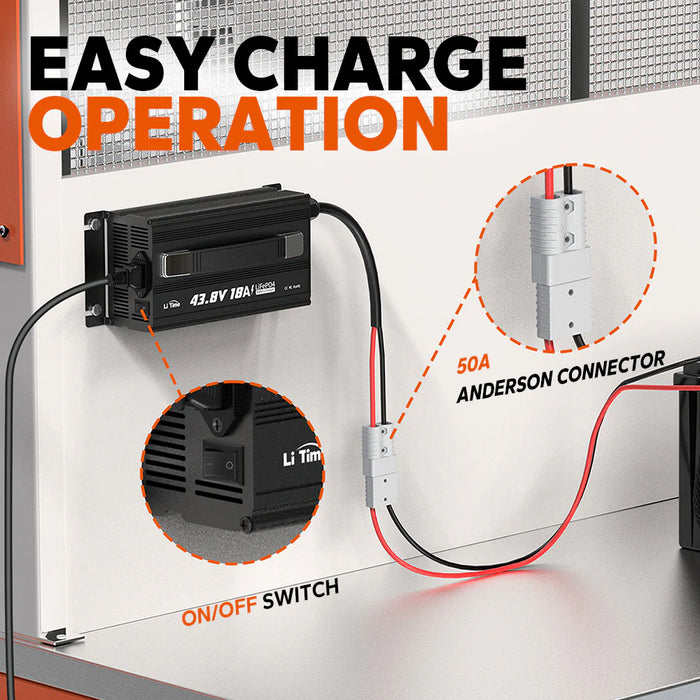

- Independent AC cable, top handle, on/off switch, and 50A Anderson connector for easy and safe use.
- Automatic CC, CV, and Cut off transitions.
- Protections against over-temperature, reverse polarity, short-circuit, and over-voltage.
- LED indicators for power on/off, standby, charging, full charge, and error monitoring.
- CE and RoHS certified.
- 2-year warranty with professional support and 24-hour response time.
- Recommended for RVs, homes, off-grid cabins, garages, and other indoor use; for long-term marine applications, we suggest the waterproof version.
NOTE: Only charging for LiFePO4 Battery!

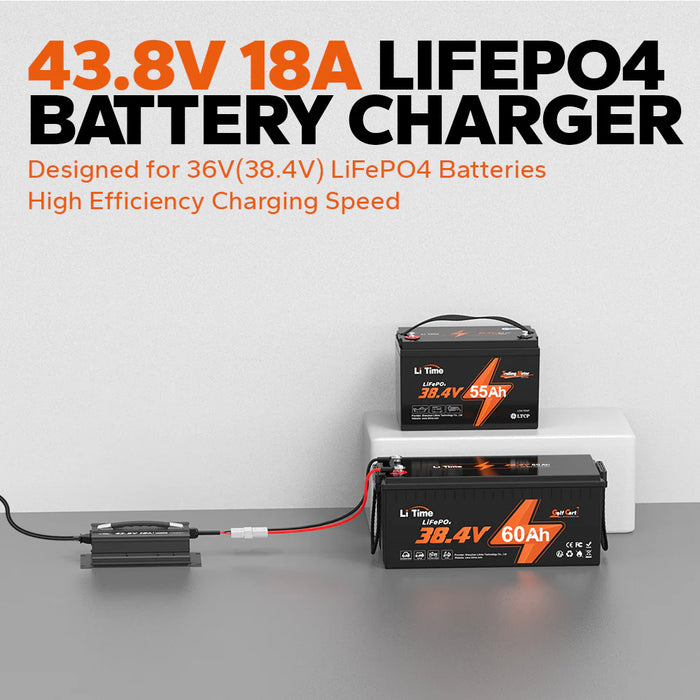

The LiTime 43.8V 18A charger is specifically designed for charging 36V (38.4V) LiFePO4 (Lithium Iron Phosphate) batteries, making it an excellent choice for ensuring the longevity and performance of your battery systems.
FEATURES:

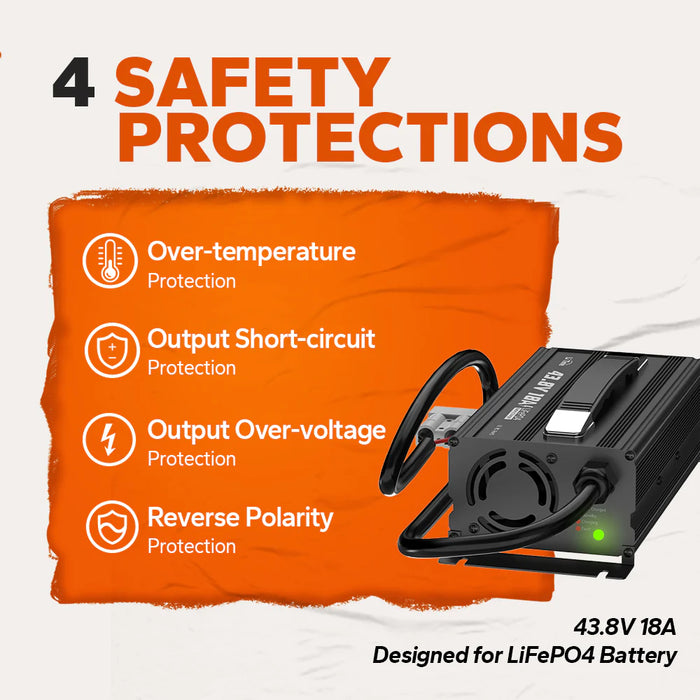

4 Safety Protections
The LiTime 43.8V 18A LiFePO4 Battery Charger is equipped with essential safety features to ensure safe and reliable charging. Over-temperature Protection: Prevents overheating of the charger and batteries, ensuring safe operation even in demanding conditions. Reverse Polarity Protection: Safeguards the charger and batteries from damage due to incorrect connections. Over-voltage Protection: Protects against voltage surges, ensuring that batteries are charged within safe voltage limits. Short-circuit Protection: Detects and responds to short circuits, minimizing the risk of damage and enhancing safety. These safety features make the LiTime charger a reliable choice for maintaining and charging your LiFePO4 batteries, providing peace of mind during use.

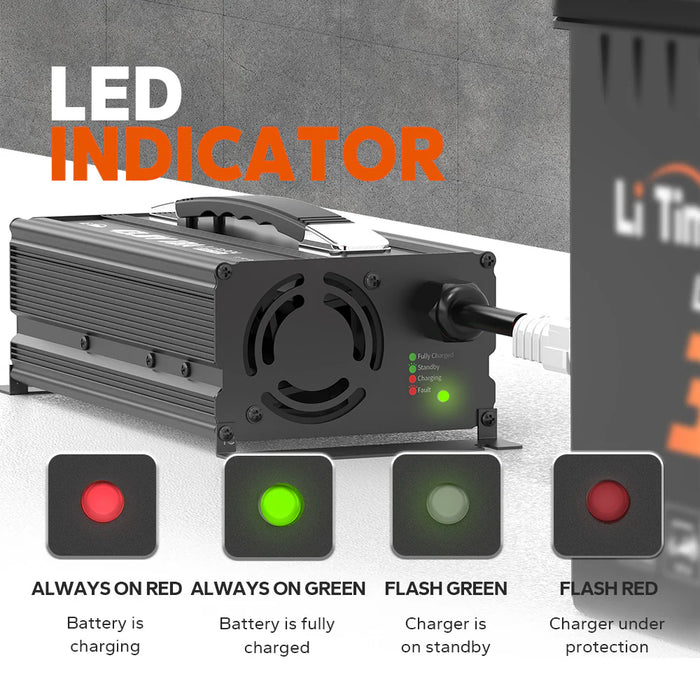

LED Indicator Showing Charging Status
The LiTime 43.8V 18A LiFePO4 Battery Charger features a user-friendly LED indicator that provides real-time status updates on the charging process.
Dedicated Charging Mode for LiFePO4 Battery
3-Stage charging function can identify battery voltage and automatically switch charging mode, providing fast and efficient charging.

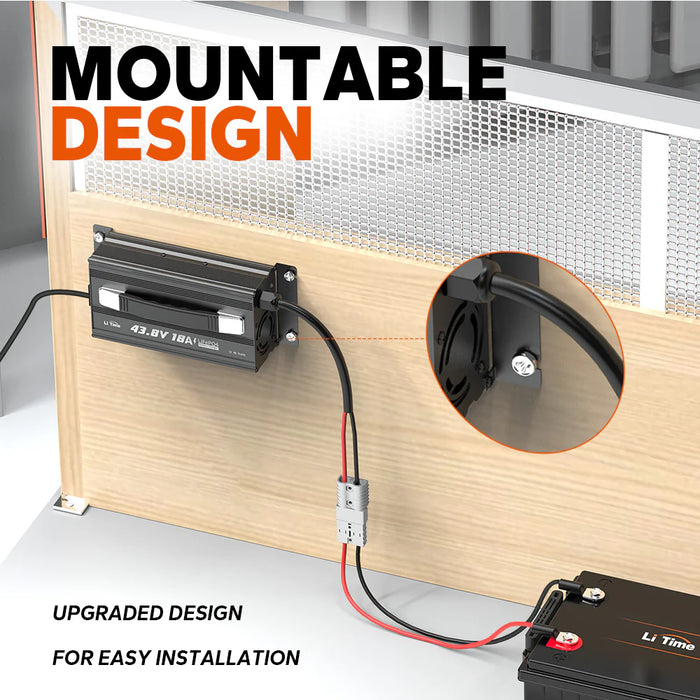

Mountable Design
The LiTime 43.8V 18A LiFePO4 Battery Charger features an upgraded mountable design that facilitates easy installation in various settings. This mountable design enhances convenience and accessibility, making it easier to integrate the charger into your battery management setup!
Widely Applications
The LiTime 43.8V 18A LiFePO4 Battery Charger is designed for a variety of applications like boat, golf cart, making it a versatile choice for different environments.

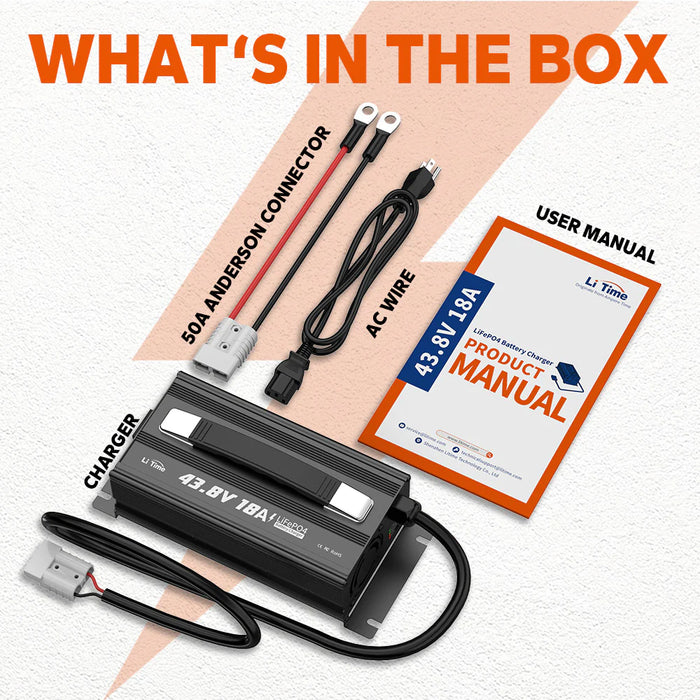

INCLUSIONS:
The LiTime 43.8V 18A LiFePO4 Battery Charger comes with everything you need for efficient operation, including the charger itself, a direct wired DC wire for secure battery connections, an AC wire for power source connectivity, a 50A Anderson connector for high-current applications, and a user manual that offers detailed instructions and safety information. This comprehensive package ensures a straightforward setup, allowing you to start using your new charger right away!
SPECIFICATIONS:
BASIC
Charger Type：LiFePO4 Battery Charger
Lithium Battery Activation：√
Input Voltage Range：100V to 240V AC; 50Hz to 60Hz
Output Voltage (DC)：43.8V+14.6V/LFP, 42V+16.8V/NCM, 44.1V+14.7V/Lead Acid
Max. Charging Power：441W+168W
PROTECTION
Reverse Polarity Connection：√

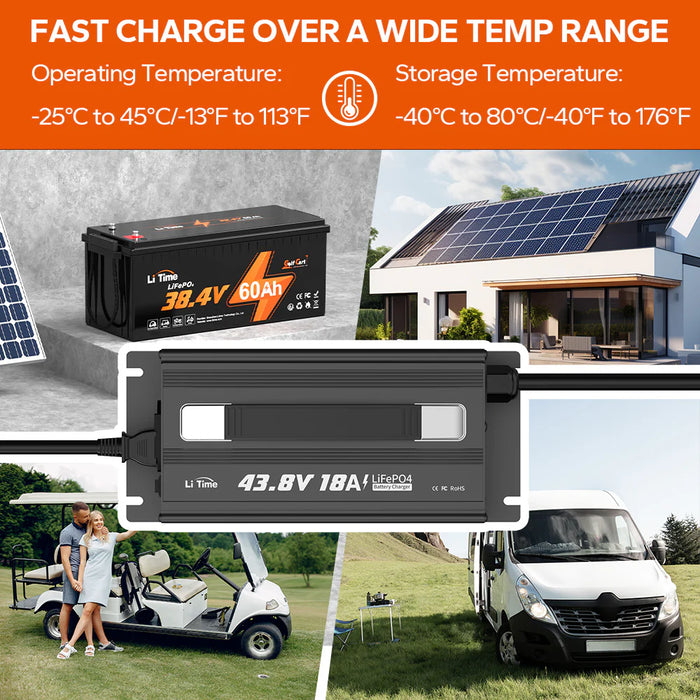

TEMPERATURE
Operating：-25℃ to 45℃/-13℉ to 113℉
Storage：-40℃ to 80℃/-40℉ to 176℉
OTHERS

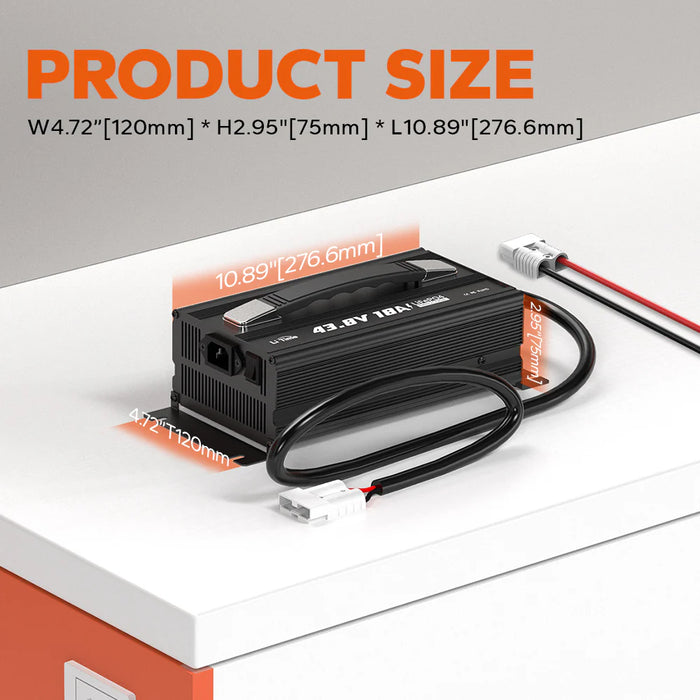

Size：L10.89XW4.72XH2.95 inch
Approx. Weight：2.3kg/5.07lbs
Output Cable：61.02 inch (Include 13.78 inch Anderson Extension Cable)
GUIDE:
FAQS:
What type of battery is this charger suitable for charging?
This lithium battery charger is suitable for all kind of 36V deep cycle LiFePO4 batteries, providing a reliable and efficient charging solution for a variety of applications. Whether you're using it for golf carts or 36V marine setups, this charger is designed to optimize the performance and longevity of your batteries.
With advanced charging technology, it ensures that your batteries receive the appropriate voltage and current, enhancing their lifespan while maintaining safety. The charger features a built-in Battery Management System (BMS) that protects against overcharging, overheating, and short circuits, providing peace of mind during the charging process.
When installing the LiTime 36V golf cart battery charger, are there any precautions I need to be aware of?
Installing the charger horizontal will improve venting and heat dissipation of the charger. Place the charge in a well-ventilated area with sufficient heat dissipation to prevent overheating and damage.
Is it OK to leave a LiFePO4 battery on the charger overnight?
It's ok to leave it plugged overnight but permanently connected is still not recommended. It's better to unplug the charger when the battery is fully charged.
Can I charge more of one batteries in parallel at the same time?
Please charge the battery separately as much as possible.
Is it possible to link multiple chargers together to achieve higher charging amperage?
We recommend charging the battery at 0.2C and avoid using multiple chargers to charge a single battery.
Can this charger work with lead-acid batteries?
No. This charger is designed only for LiFePO4 batteries. For charging Lead-Acid, LiFePO4, or NCM batteries, we recommend using our LiTime Multi-Bank Chargers.
