LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection
Will Prowse "Best Value" 12V LiFePO4 Battery for 2023
Support 200A Current: suitable for 12V trolling motors with 30-70 lbs, marine, RVs, UPS and backup power.
Low-Temperature Cut-Off Protection: cuts charging when it is below 0°C/32°F, disconnecting loads when it is below -20°C/-4°F, to prevent damages from charging/discharging in the cold weather.
Automatic Overload Protection and Recovery – No User Intervention Required
EV Grade-A LiFePO4 battery cells: 4000+ cycles at 100% DOD, and are green and non-toxic.
High Safety of 200A BMS: an intelligent 200A BMS board prevents over-charging, over-discharging, over-current, over-temperature and short-circuit protection, ensuring a safer and more reliable battery.
IP65 waterproof: protect your battery from water and dust
6X Cost-effectiveness: $0.21 per deep cycle to save $1.21 per cycle than lead-acid batteries, and no regular maintenance fee.

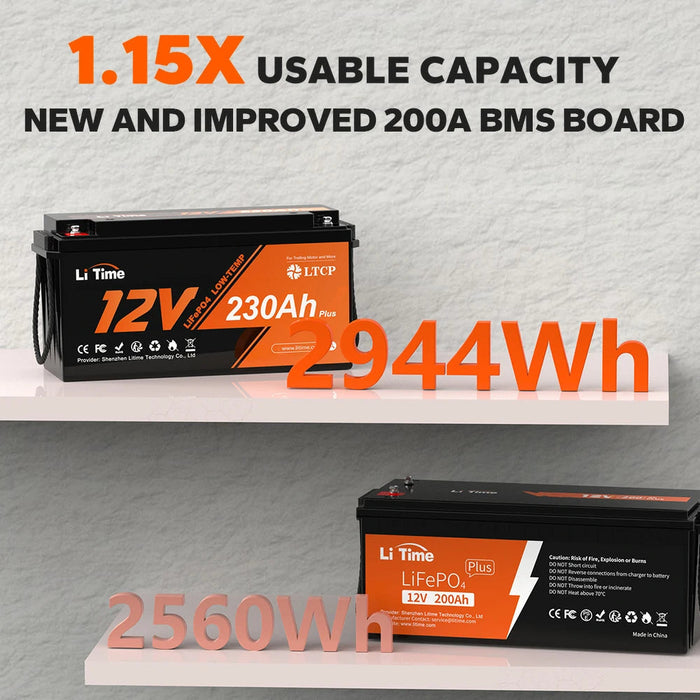

Ultra-long Runtime: a Max 2560W Power & 2944Wh of usable energy, enough to power approx. 3kWh of daily home/off-grid or one-day use of fishing/RV/camping.
6X Energy Density: 65Wh/lbs, 6X the energy density and 65% lighter than a 12V 200Ah lead-acid battery.
Max 47.104kWh Energy Expansion: Max 4P4S to build a 51.2V 920Ah battery system
Flexible 3 Recharging Ways: LiFePO4 charger/Solar/Generator
Best Service: fast delivery, 24-hour response & 5-year warranty
Upgraded Low-Temperature Cut-Off Protection
Maximize your battery life and charging efficiency with the low-temperature cut-off protection - keeping you safe and powered up even in the coldest conditions. LiTime 12V 230Ah low-temp cut-off protection battery can cut charging when it is below 0°C/32°F and disconnect loads when it is below -20°C/-4°F to extend our battery life. While other batteries struggle in chilly conditions, suffering capacity loss or going into hibernation, our advanced technology safeguards your charge and discharging.

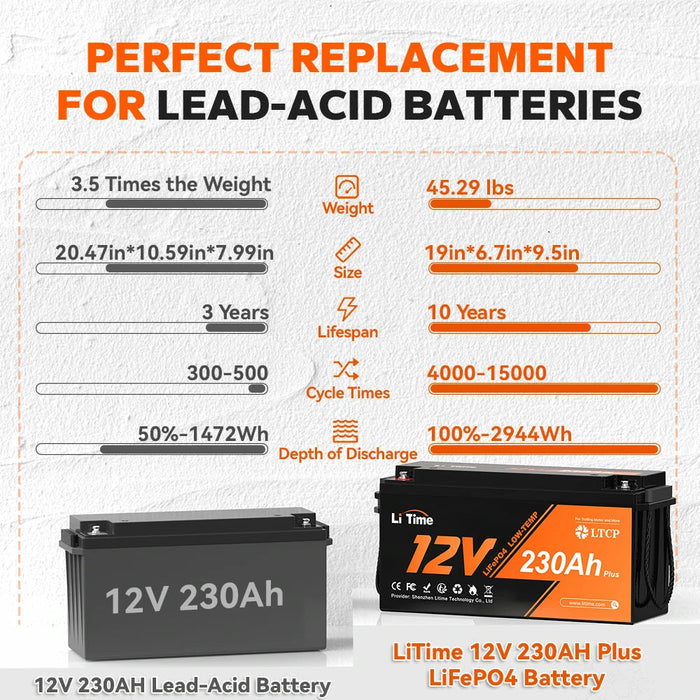

Ultra-Long Battery Lifespan
Most lead-acid batteries are only 2~3 years lifespan. But the LiTime LiFePO4 battery is built to stand the test of time. Boasting a stunning 4000+ cycles@100% DOD, the LiTime lithium battery leads the industry in sheer longevity. That allows you to power your home or cabin for over a decade. Experience peace of mind with EV Grade-A LiFePO4 battery cells, which are free from mercury, lead, and other toxic substances. IP65 waterproof level protect against water and dust.

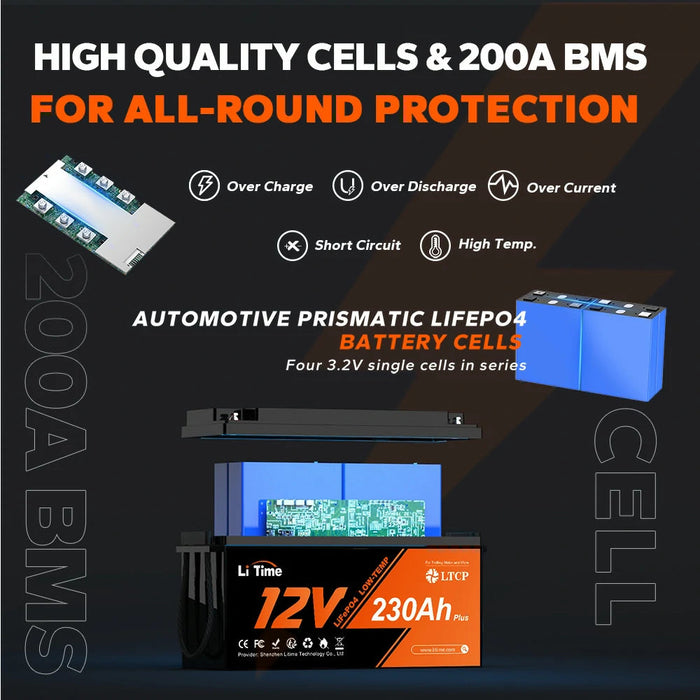

All-Round Upgraded BMS
The upgraded 12V 230Ah LiFePO4 deep cycle battery is designed for harsh environments such as rainy, coastal areas, or dusty and wet conditions, and offers worry-free and long-lasting performance with a reduced risk of damage and an extended lifespan. Our upgraded BMS secures your battery from over-charging, over-discharging, and short-circuiting, ensuring a safer and more reliable battery. You can reduce the cost of replacing vulnerable batteries.
Unlock Limitless Power with 47.104kWh of Energy
Experience unparalleled versatility with the LiTime 12V 230Ah low-temp protection lithium batteries. Combine up to 16 units with a 4P4S configuration to establish a formidable 51.2V 920Ah system, boasting a staggering 47.104kWh of green energy. Tailor your energy solution to suit your needs, whether it's for residential, marine, RVs, trolling motors, off-grid, or any scenario demanding extended runtime capabilities or in any cold conditions. With LiTime, the possibilities are endless.
3 Ways to Recharge
The LiTime 12V 230Ah low-temp cut-off protection lithium battery outperforms lead-acid batteries with its faster charging efficiency. Moreover, there are 3 versatile charging options: LiFePO4 chargers, solar panels and generators. It takes about 5.75 hours to fully charge the battery with a 14.6V 40A LiFePO4 charger, enabling you to swiftly recharge the battery for a better user experience.
Conquer Every Scenario with Ease
Versatility meets reliability with this battery. LiTime 12V 230Ah low-temp cut-off protection lithium battery is perfect for many applications, including trolling motors, home energy storage, solar power systems, caravans, and outdoor adventures. Its lightweight and compact design allows for effortless portability
Outstanding Service
Professional technical support, customer service, easy-to-understand operation manuals, phone support, and 24-hour quick online feedback are provided.
BATTERY
Cell Type：
LiFePO4 Prismatic
Warranty：
5 Years
Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
12.8V
Rated Capacity：
230Ah
Energy：
2944Wh
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
UL, FCC, CE, RoHS, UN38.3
BMS
BMS：
200A
Max. Continuous Output Power：
2560W
Max. Continuous Charge Current：
200A
Max. Continuous Discharge Current：
200A
Max. Discharge Current 5 Seconds：
600A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4V ± 0.2V
Recommend Charge Current：
46A (0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature：
-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature：
-10℃ to 50℃ / 14℉ to 122℉
Low-Temperature Protection：
Yes (32℉/0℃)
Low-Temperature Charging Protection Auto Recovery：
Yes (41℉/5℃)
OTHERS
Terminals：
M8 bolts
Weight Approx.：
45.22 lbs

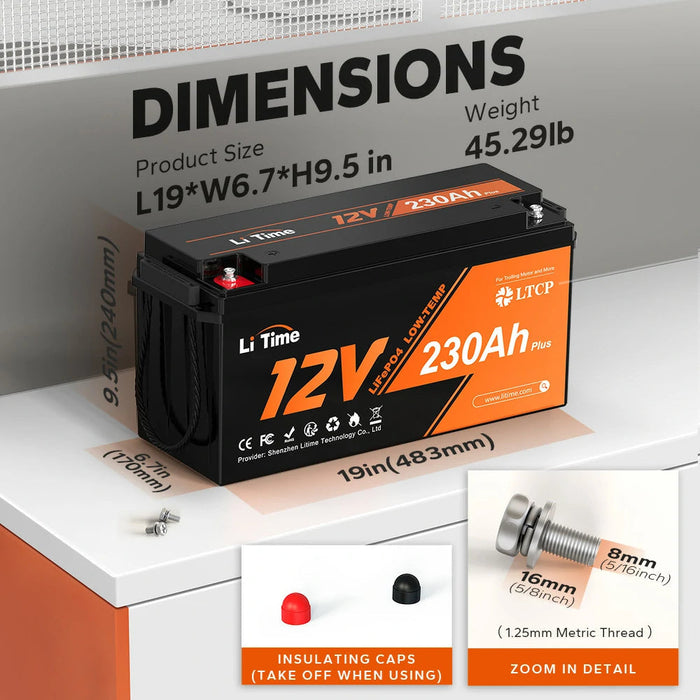

Size：
L19*W6.7*H9.5 inch
Housing Material：
ABS (Flame Retardant Plastic)
Protection Class：
IP65
